Toyota Innova

2022-11 → present · chassis MAGA10,MAGH10 · catalogue 614210 · General

Supported model Data version 2024-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

32 part groups · 8 illustrations

Illustrations

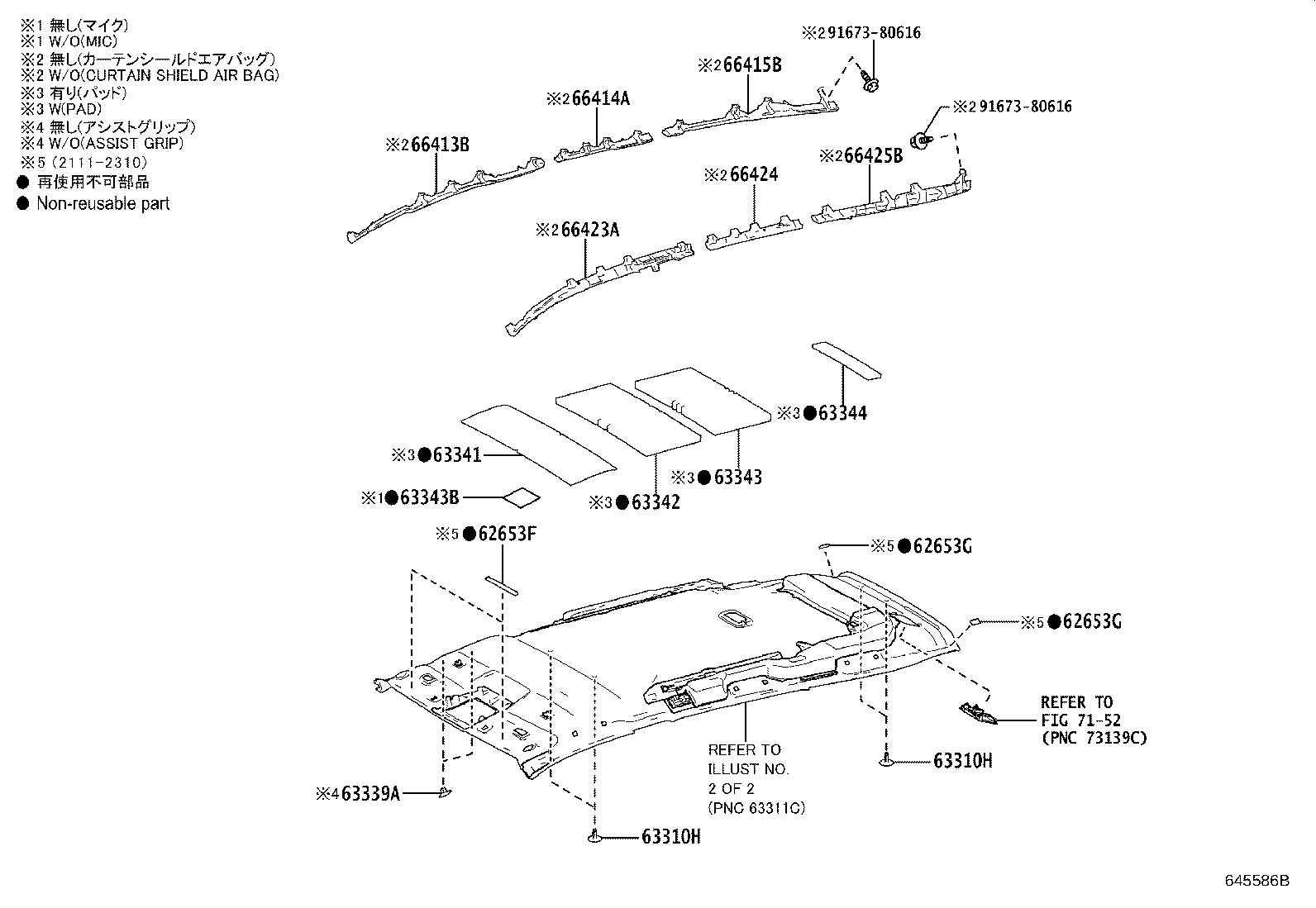

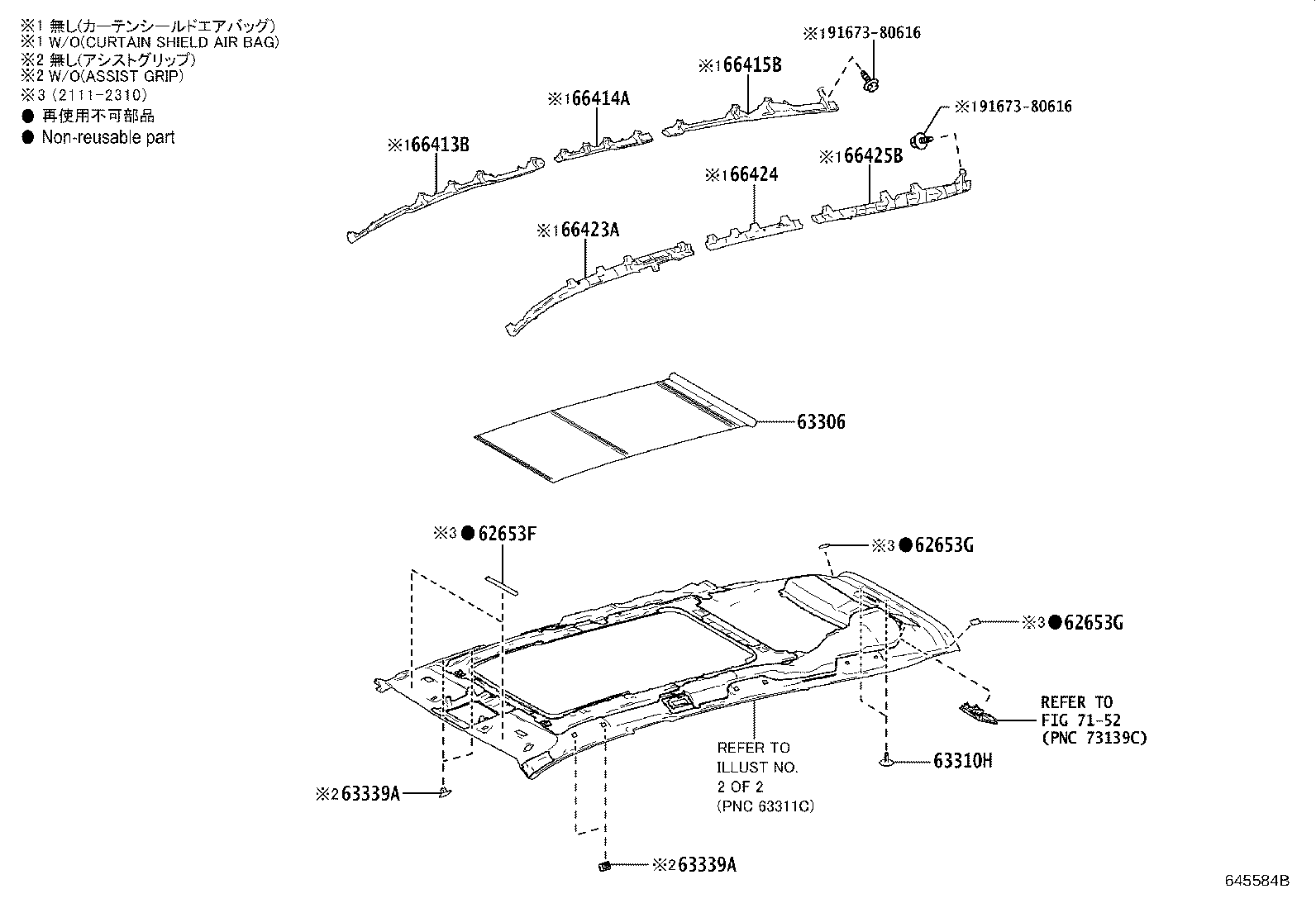

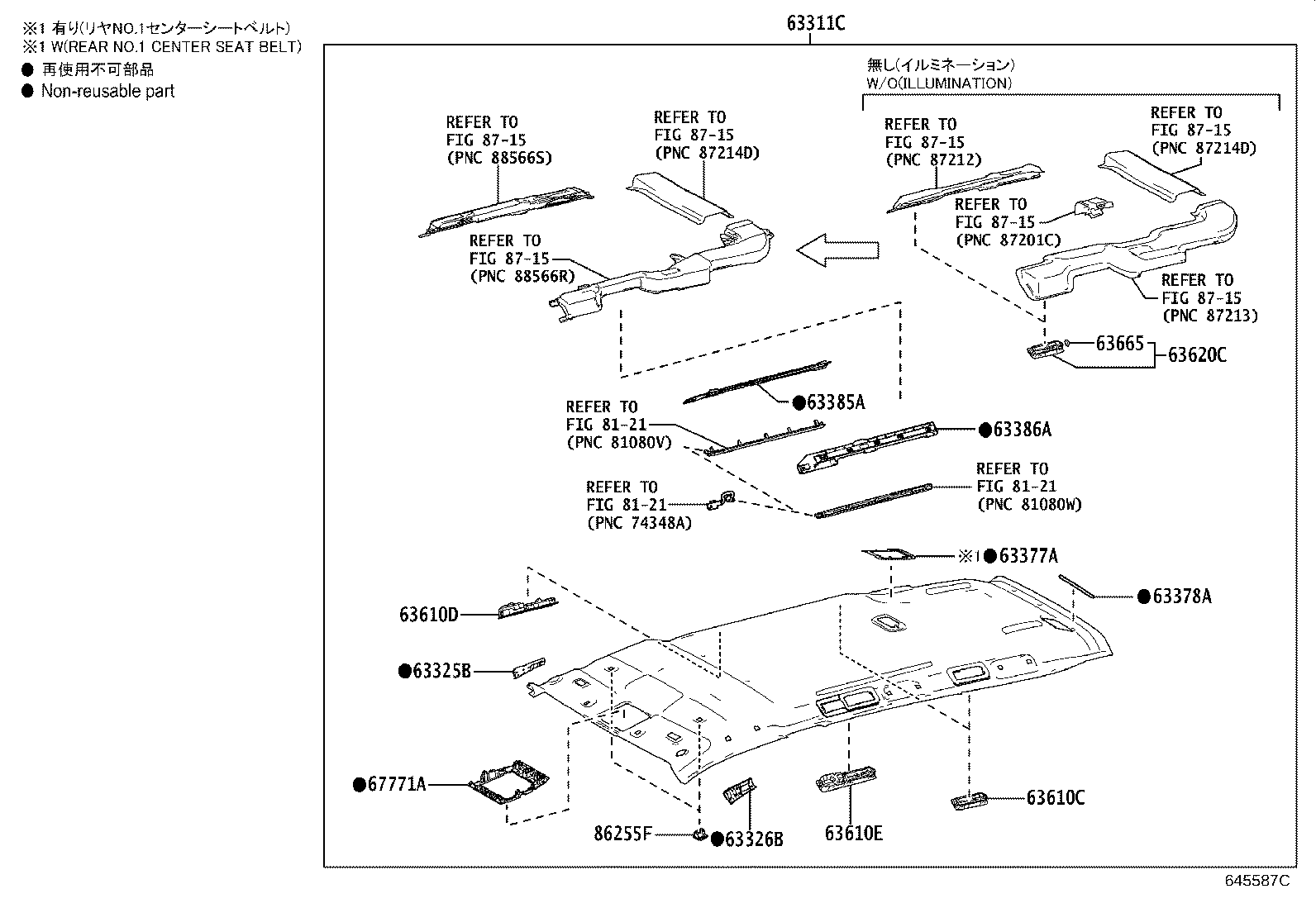

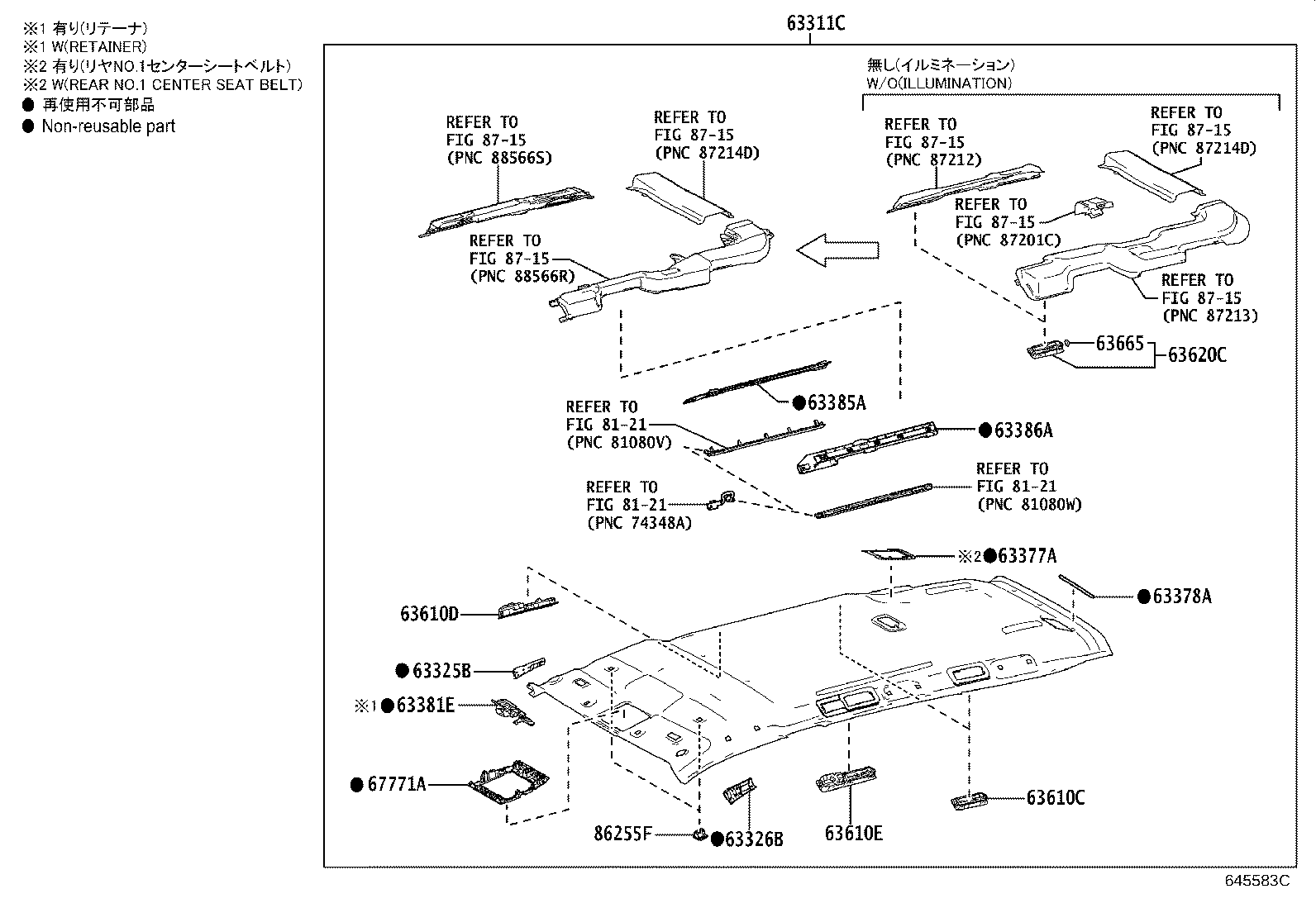

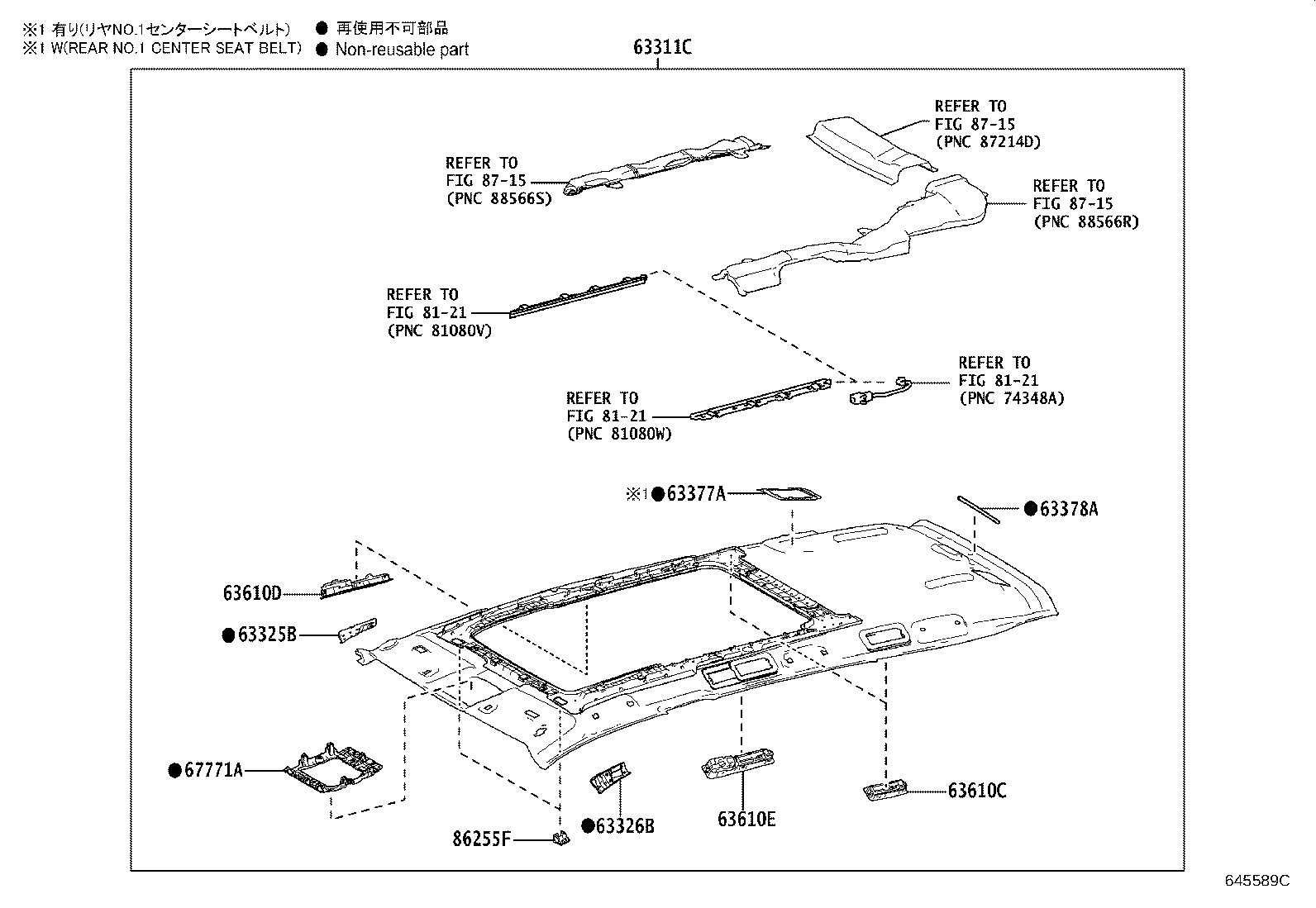

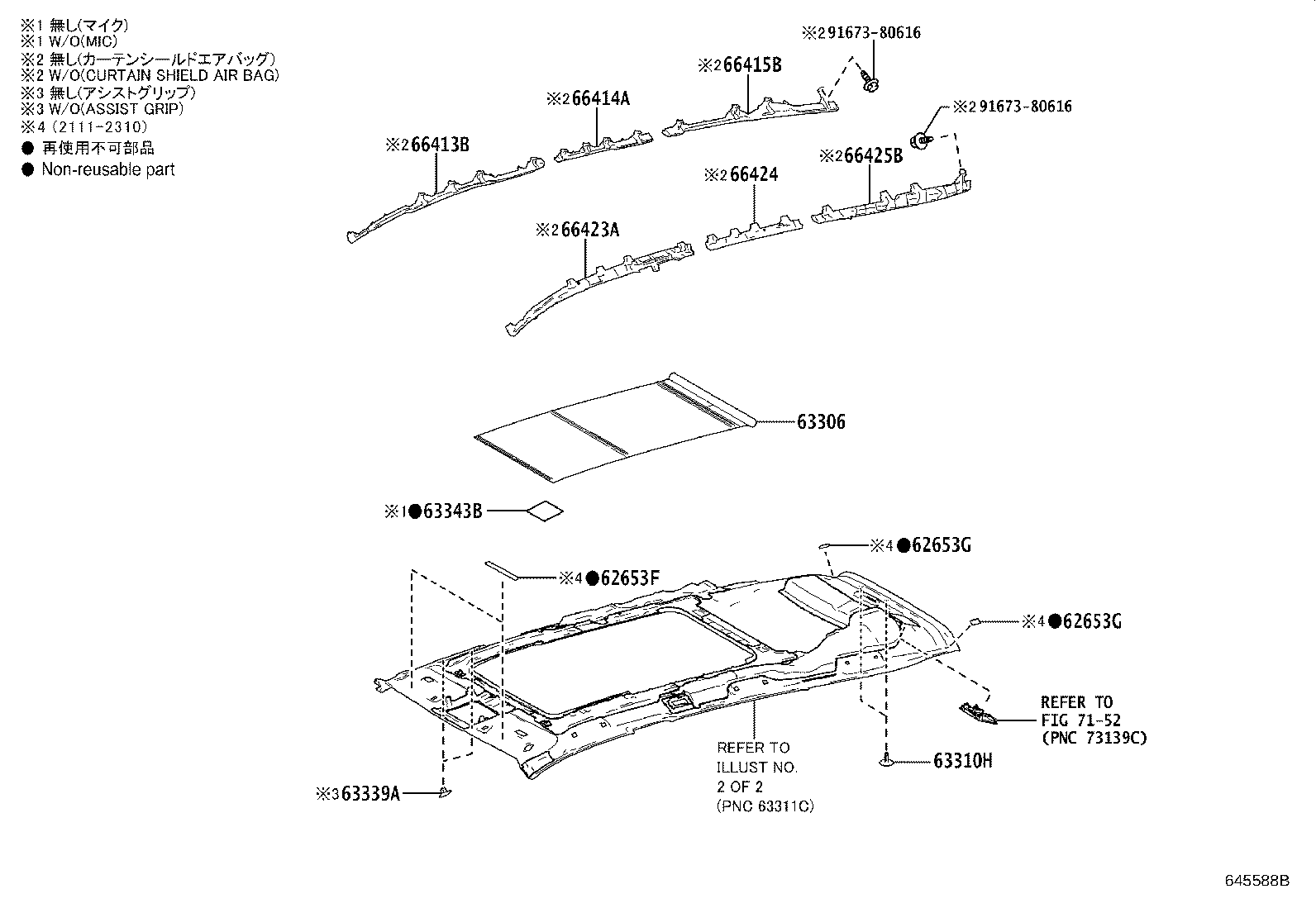

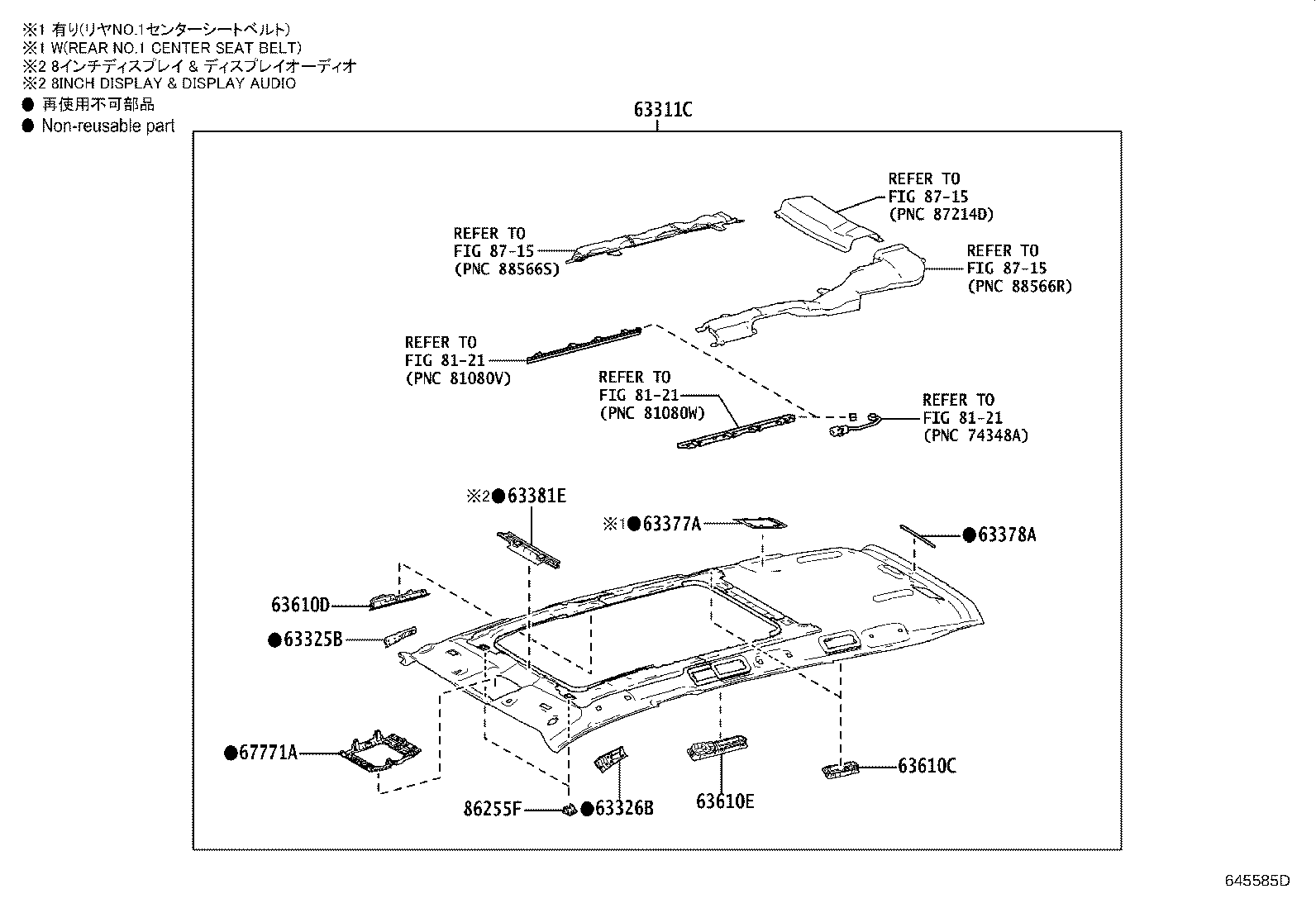

Figure 645582B 645582B 2022-11 → — Figure 645583C 645583C 2022-11 → — Figure 645584B 645584B 2022-11 → — Figure 645585D 645585D 2022-11 → — Figure 645586B 645586B 2022-12 → — Figure 645587C 645587C 2022-12 → — Figure 645588B 645588B 2022-12 → — Figure 645589C 645589C 2022-12 → —

Part groups

PNCDescription
62653F Packing (FOR ROOF HEADLINING)
62653G Packing,(FOR ROOF HEADLINING)
63306 Trim Sub-assy, Sunshade
63310H Clip(FOR ROOF HEADLINING)
63311C Headlining, Roof
63325B Plate, Roof Headlining Set, RH
63326B Plate, Roof Headlining Set, LH
63339A Cover, Roof Headlining Service Hole
63341 Pad, Roof Silencer, NO.1
63342 Pad, Roof Silencer, NO.2
63343 Pad, Roof Silencer, NO.3
63343B Pad, Roof Silencer, Rear
63344 Pad, Roof Silencer, NO.4
63377A Retainer, Roof Headlining Support, NO.1
63378A Retainer, Roof Headlining Support, NO.2
63381E Retainer, Roof Headlining Trim, Front
63385A Retainer, Roof Headlining Trim Side, RH
63386A Retainer, Roof Headlining Trim Side, LH
63388A Cover, Roof Headlining Holder
63610C Register Assy, Air Outlet, NO.1
63610D Register Assy, Air Outlet, Front RH
63610E Register Assy, Air Outlet, Front LH
63620C Register Assy, Air Outlet, NO.2
63665 Spacer, Roof Headlining
66413B Spacer, Side Rail, Front RH
66414A Spacer, Side Rail, Rear RH
66415B Spacer, Side Rail, Rear NO.2 RH
66423A Spacer, Side Rail, Front LH
66424 Spacer, Side Rail, Rear LH
66425B Spacer, Side Rail, Rear NO.2 LH
67771A Retainer, Roof Headlining
86255F Case, Microphone
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
