Toyota Innova
2022-11 → present · chassis MAGA10,MAGH10 · catalogue 614210 · General
Supported model
Data version 2024-03

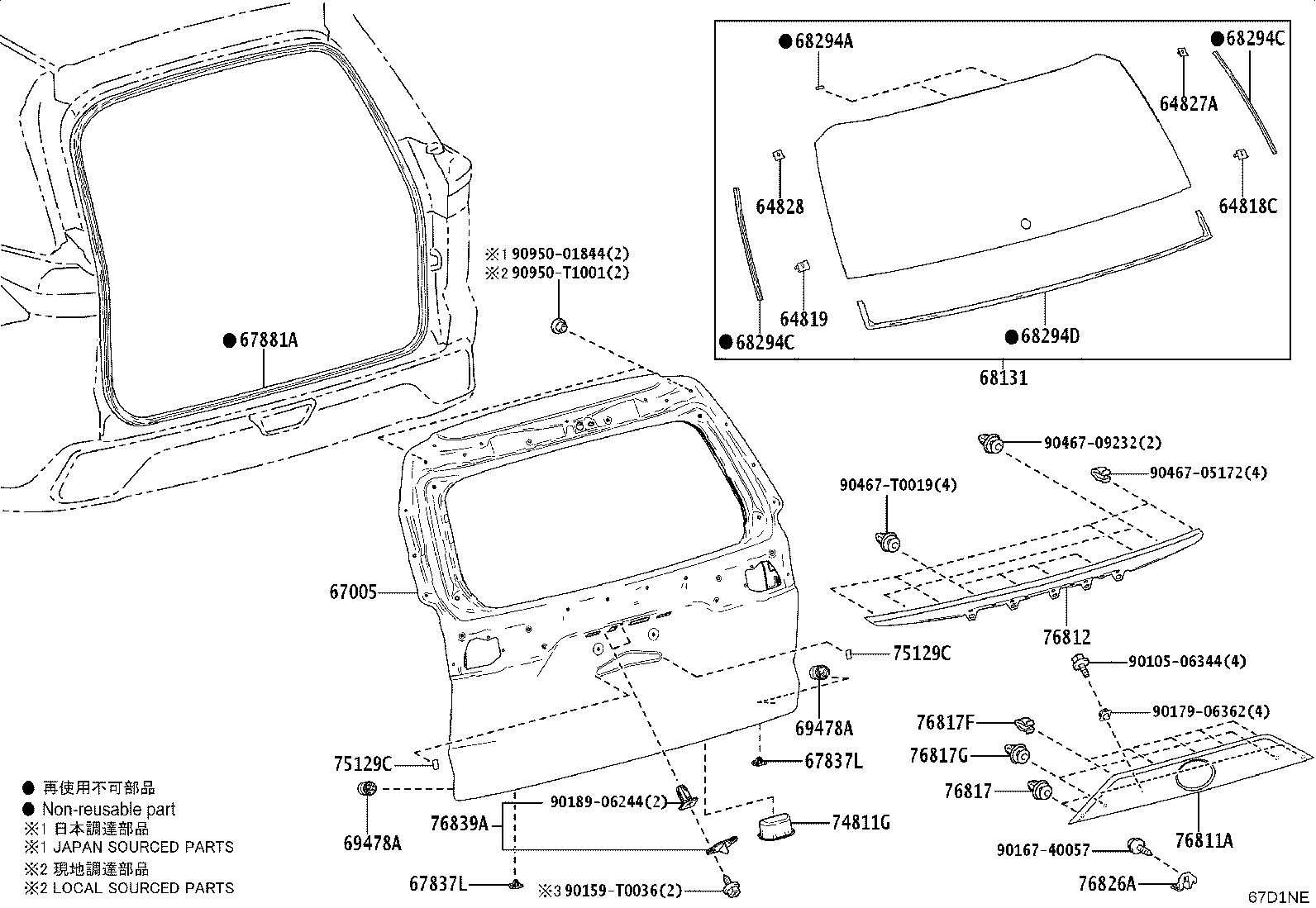

Back Door Panel & Glass
33 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 64818C | Spacer, Back Window Glass, NO.1 |
| 64819 | Spacer, Back Window Glass, NO.2 |
| 64827A | Clip, Back Window Glass, RH |
| 64828 | Clip, Back Window Glass, LH |
| 67005 | Panel Sub-assy, Back Door |
| 67750 | Board Assy, Back Door Trim |
| 67751A | Clip(FOR BACK DOOR TRIM BOARD) |
| 67751B | Retainer(FOR BACK DOOR TRIM BOARD) |
| 67765A | Cover, Back Door Service Hole, NO.1 |
| 67766 | Cover, Back Door Service Hole, NO.2 |
| 67767B | Cover, Back Door Service Hole, NO.3 |
| 67837L | Seal, Door Dust Proof |
| 67881A | Weatherstrip, Back Door |
| 67937B | Garnish, Back Door Side, RH |
| 67937C | Clip(FOR BACK DOOR SIDE GARNISH) |
| 67938A | Garnish, Back Door Side, LH |
| 67938C | Clip (FOR BACK DOOR SIDE GARNISH), LH |
| 67939B | Garnish, Back Door, Center |
| 67939C | Clip(FOR BACK DOOR CENTER GARNISH) |
| 68131 | Glass, Back Door |
| 68294A | Dam, Back Door Glass Adhesive |
| 68294C | Dam, Back Door Glass Adhesive, NO.1 |
| 68294D | Dam, Back Door Glass Adhesive, NO.2 |
| 69478A | Cushion, Back Door Lower Stopper |
| 74811G | Handle, Door Pull |
| 75129C | Cushion, Rear Licence Plate |
| 76811A | Garnish, Back Door, Outside |
| 76812 | Garnish, Back Door, Outside Lower |
| 76817 | Clip, Back Door Outside Garnish |
| 76817F | Clip, Back Door Outside Garnish, NO.2 |
| 76817G | Clip, Back Door Outside Garnish, NO.3 |
| 76826A | Retainer, Back Door Garnish, NO.1 |
| 76839A | Cover, Back Door Garnish |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
