Toyota Innova

2022-11 → present · chassis MAGA10,MAGH10 · catalogue 614210 · General

Supported model Data version 2024-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

96 part groups · 17 illustrations

Illustrations

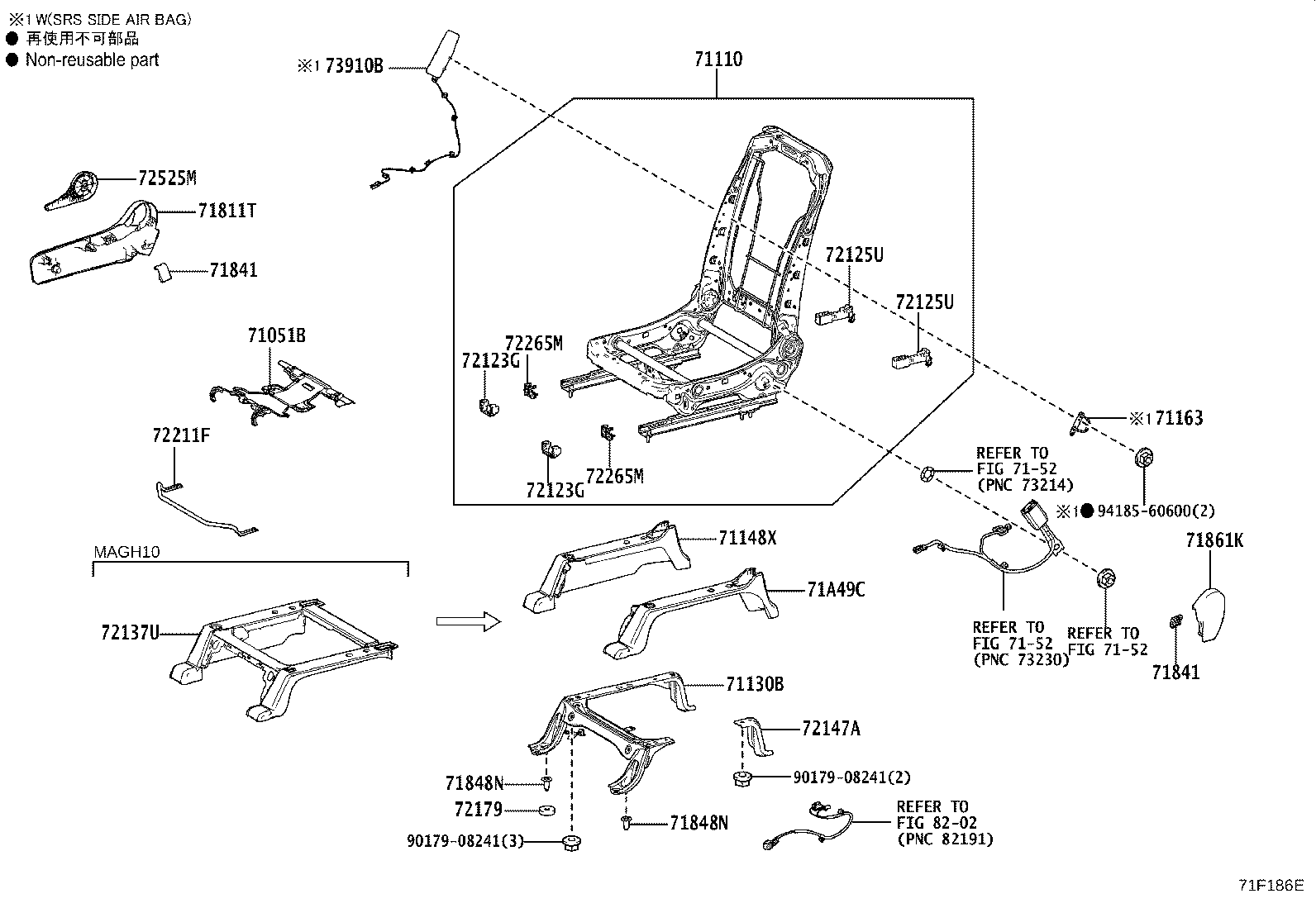

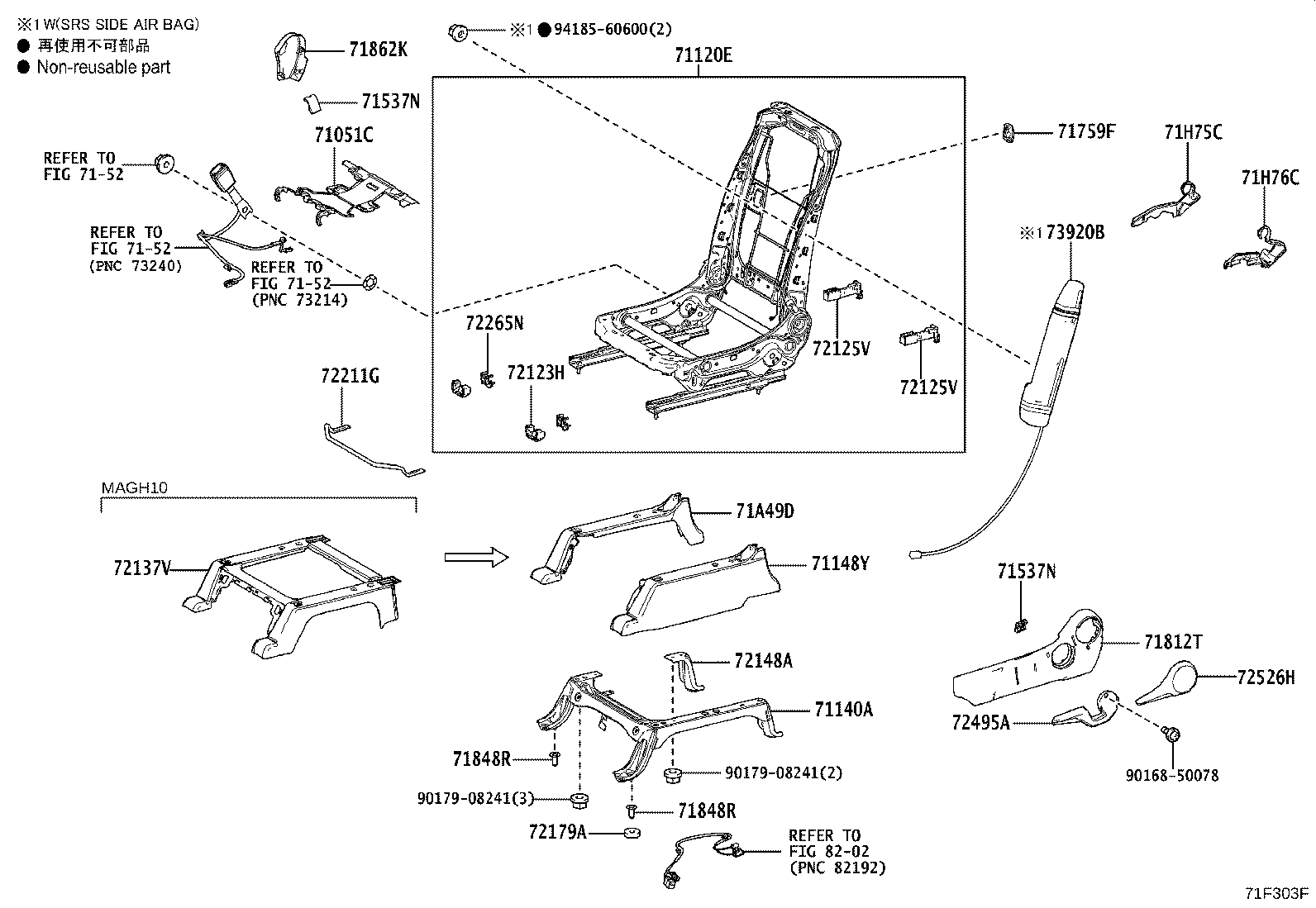

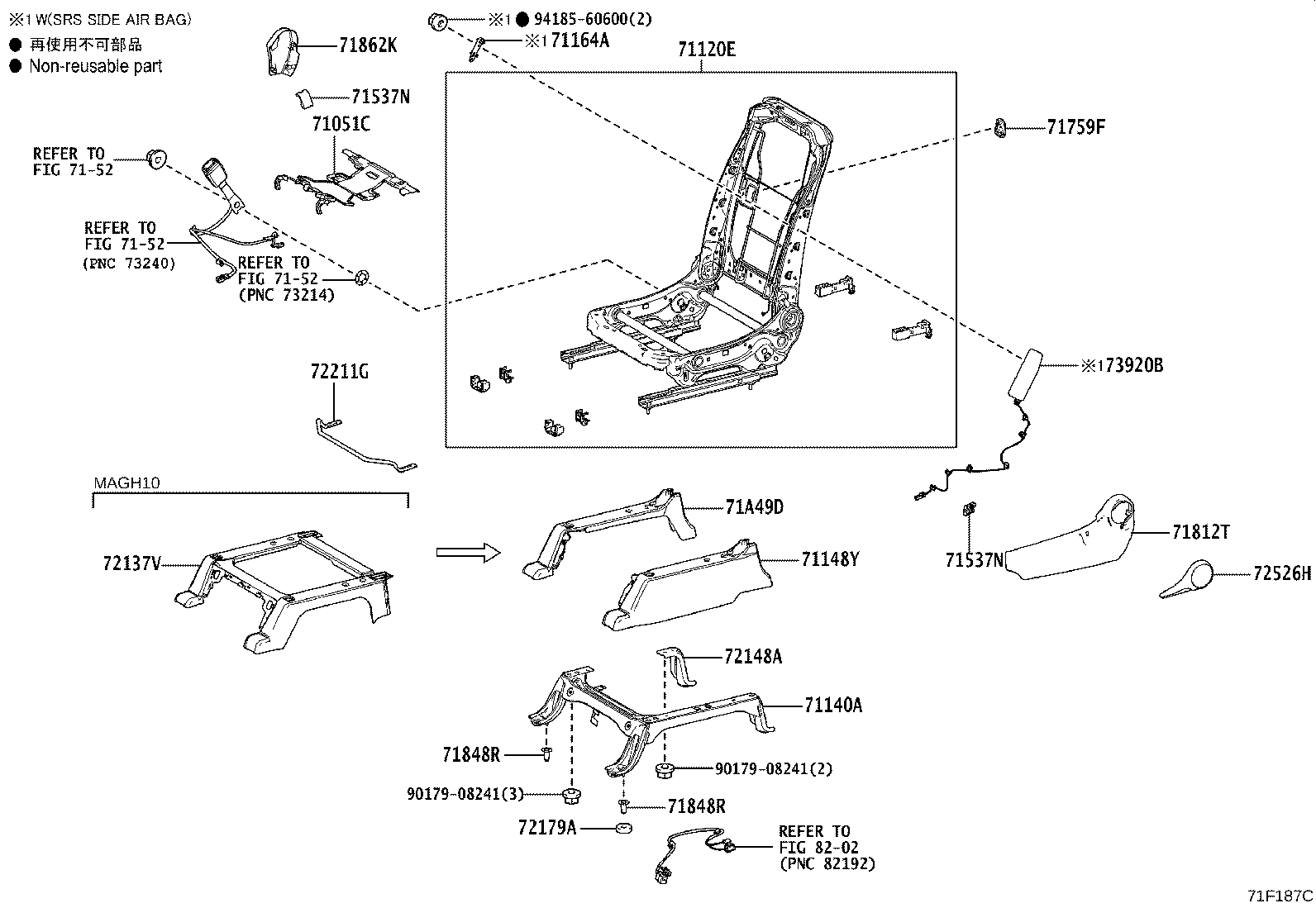

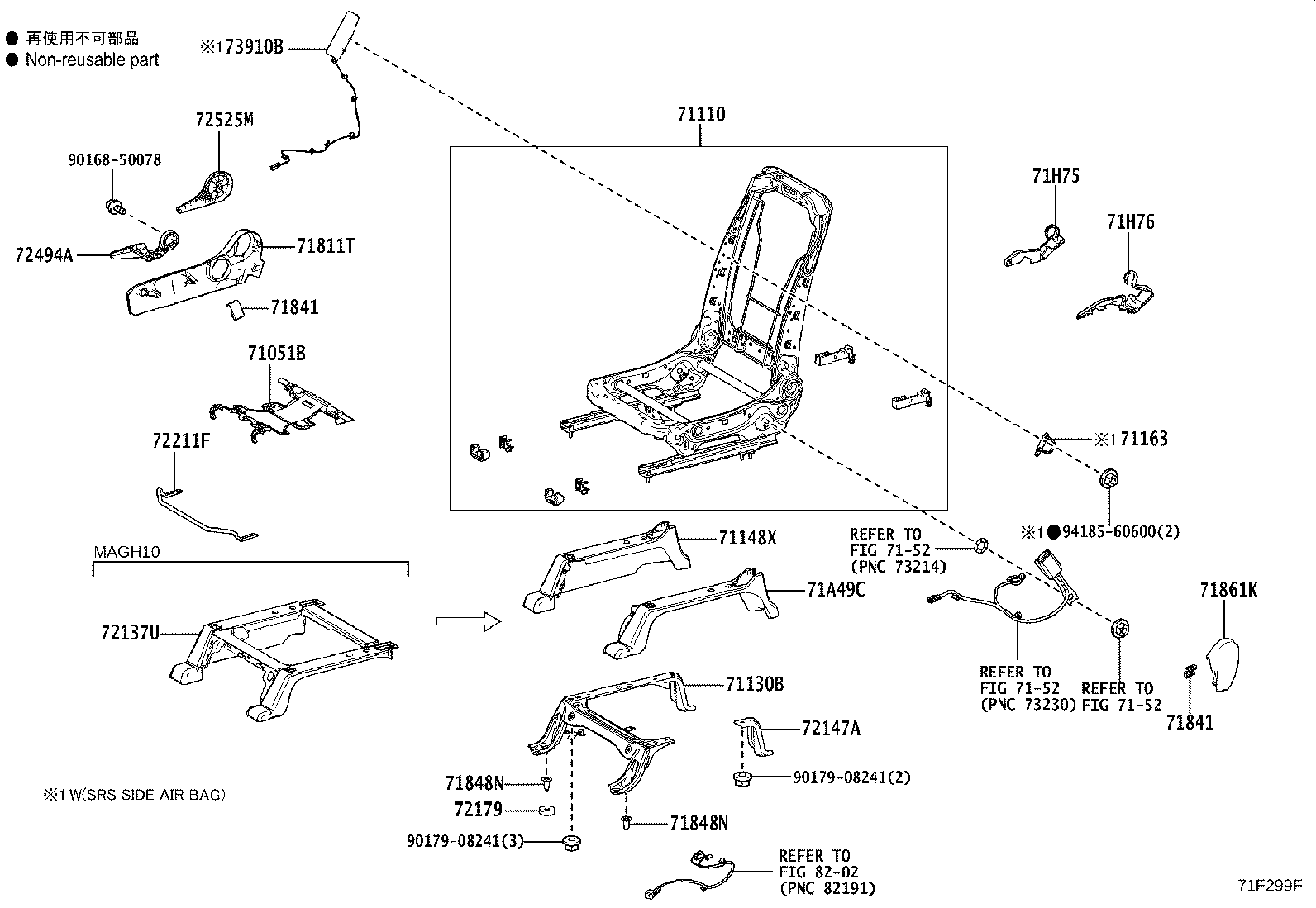

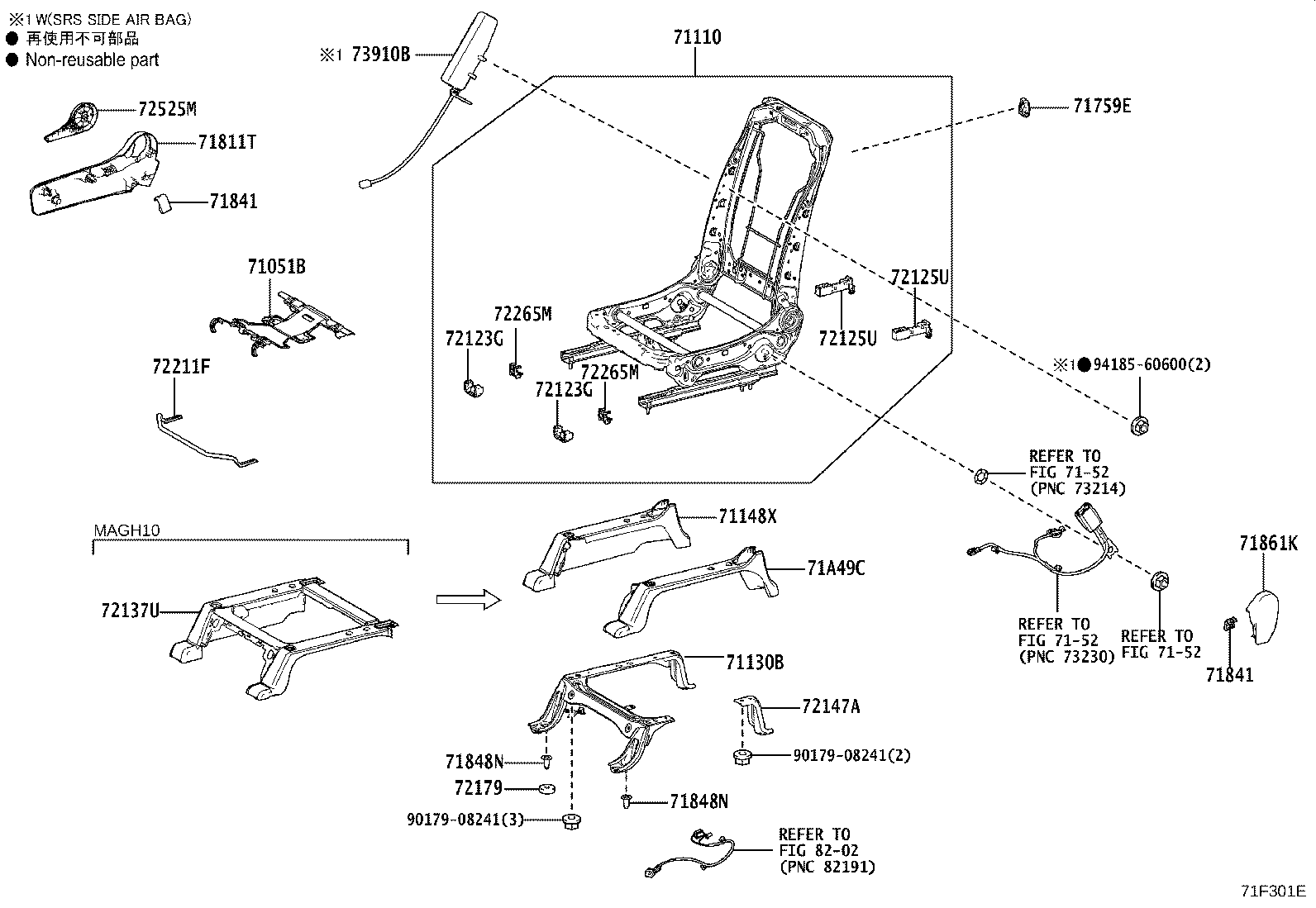

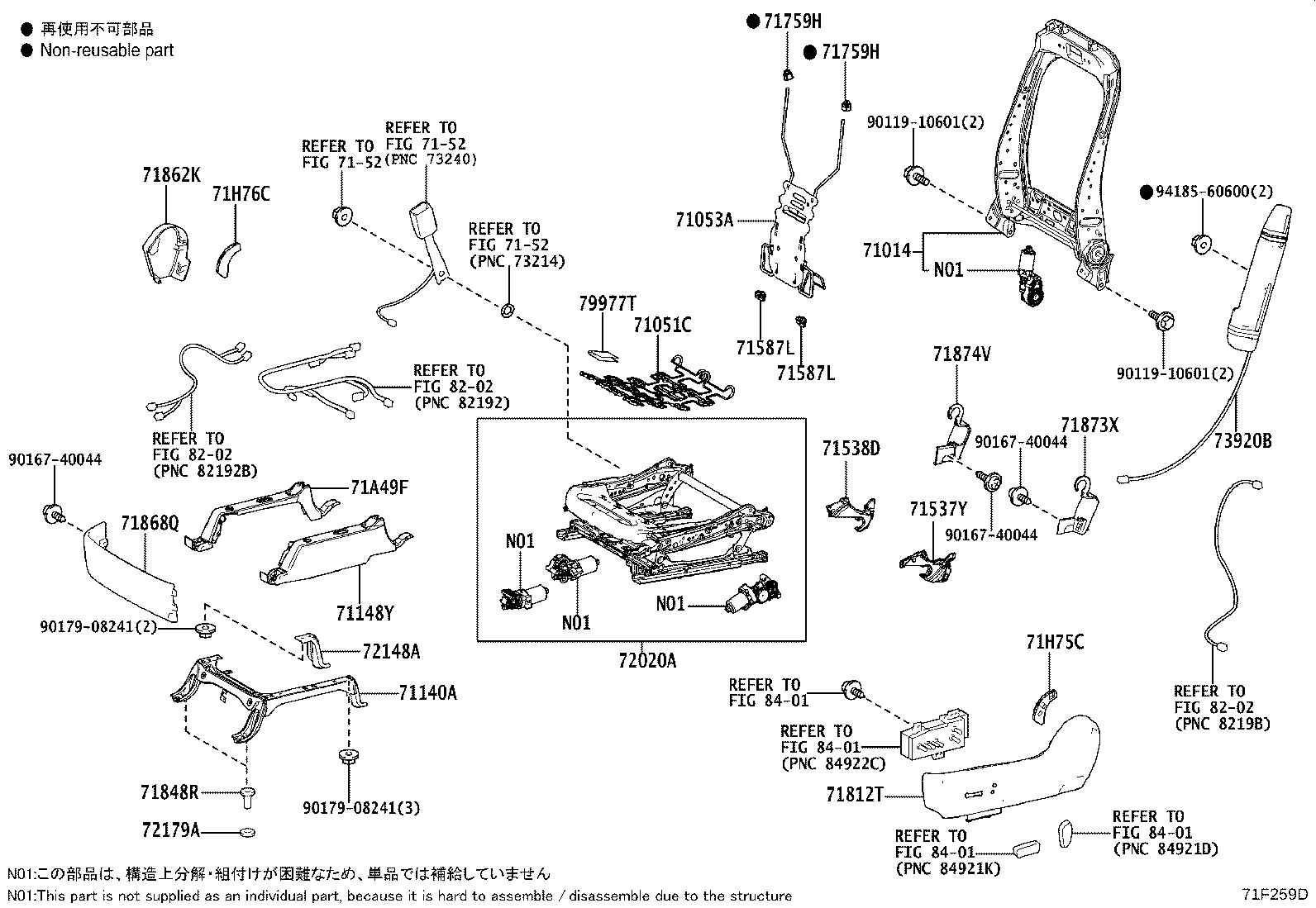

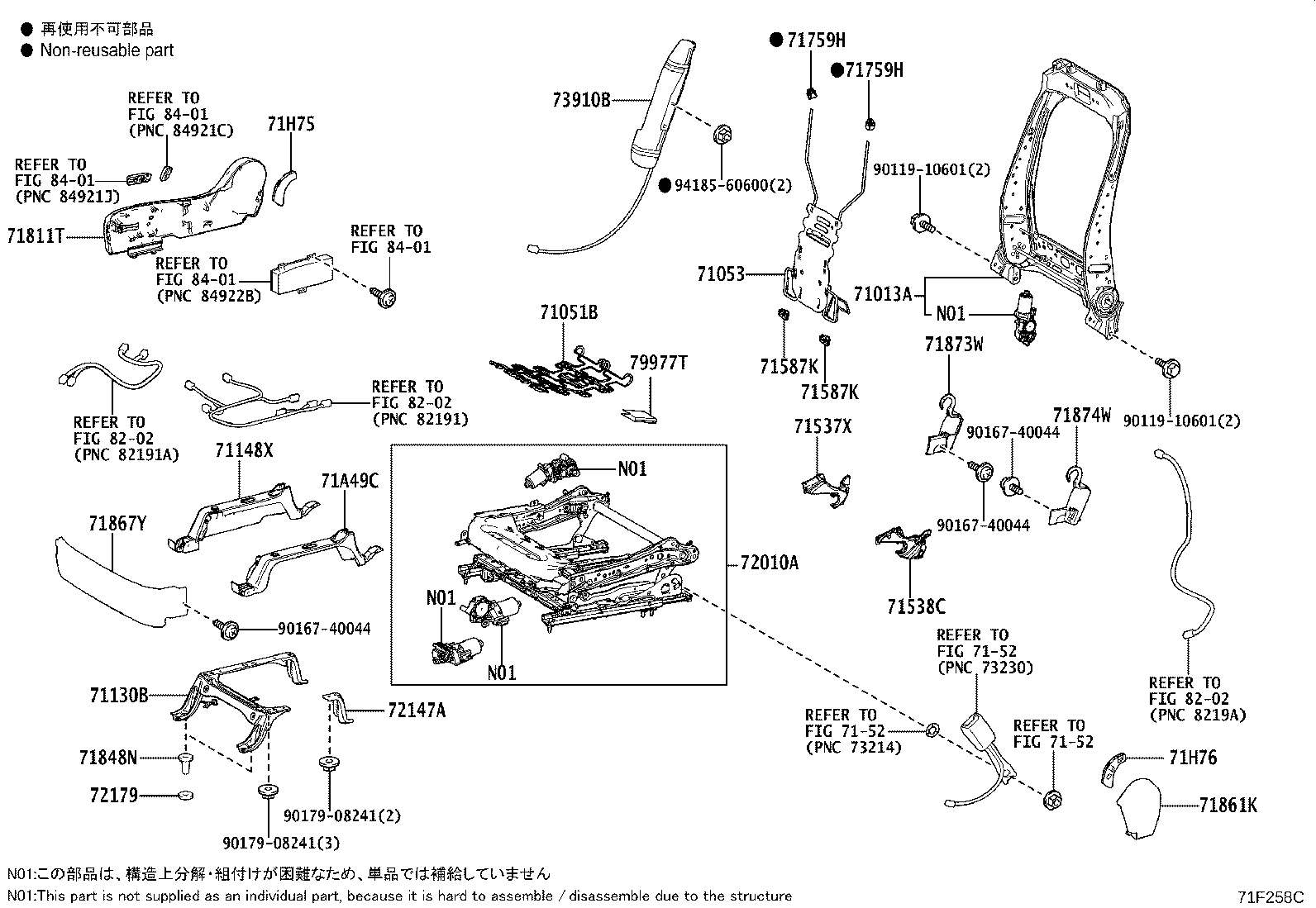

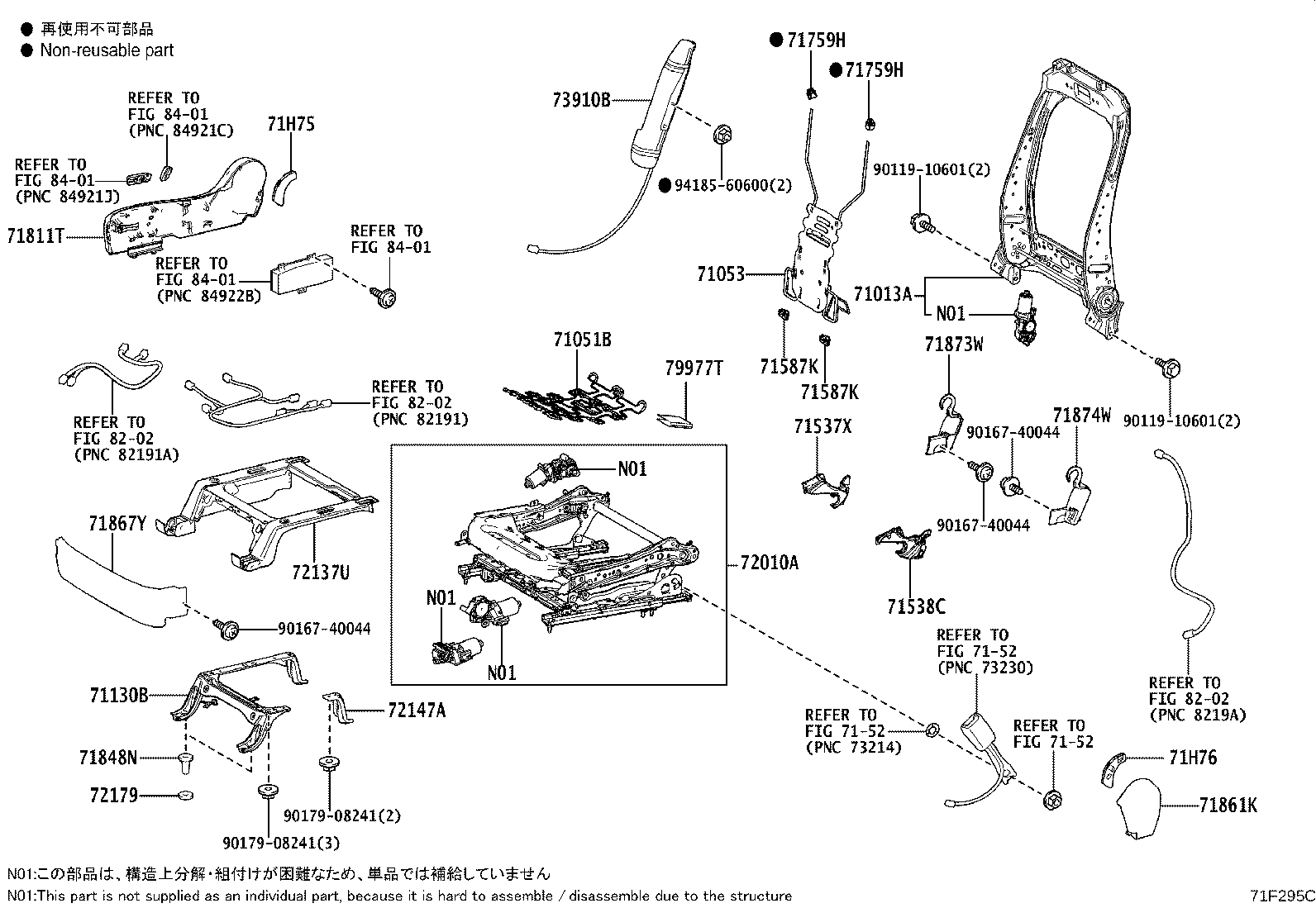

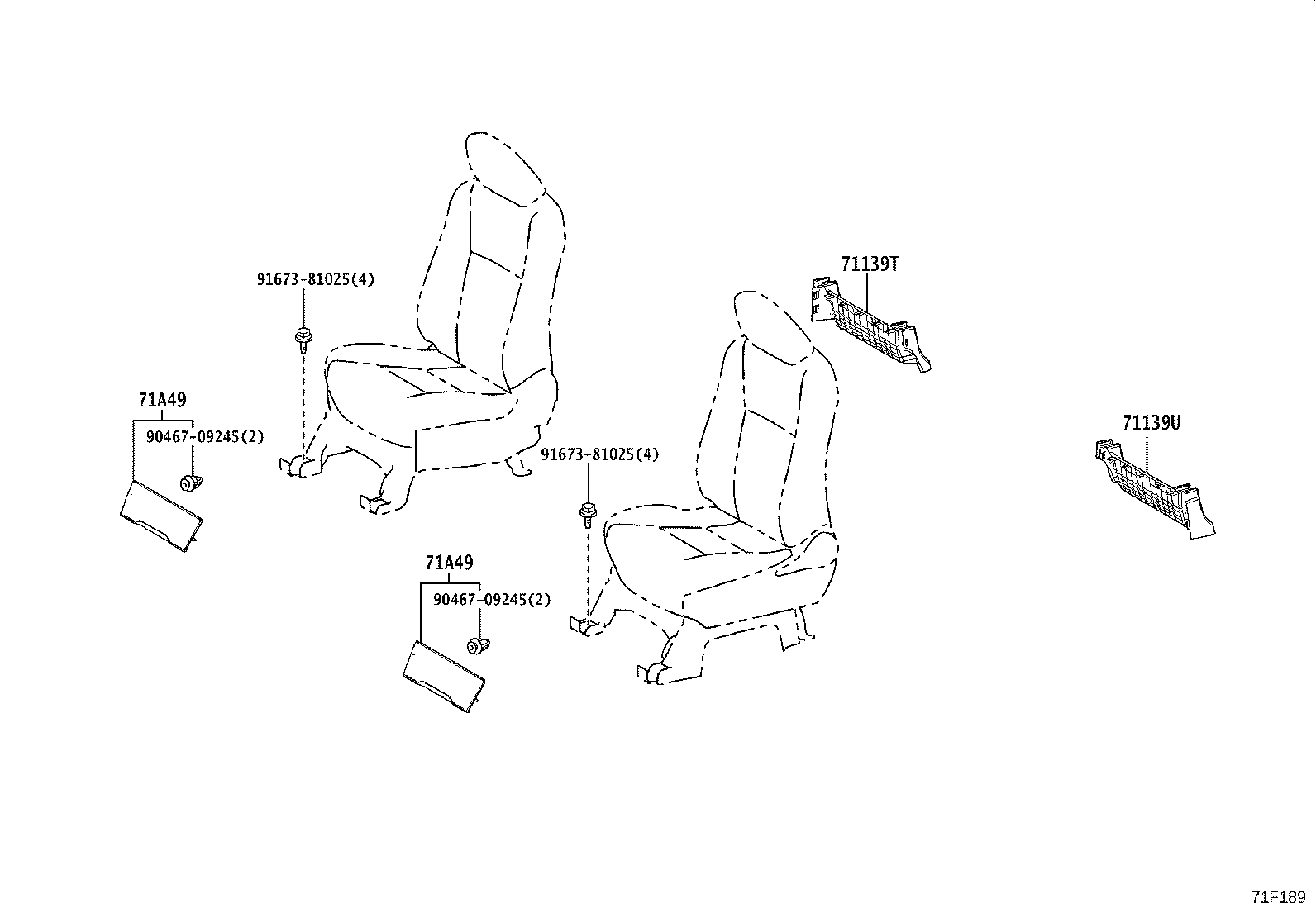

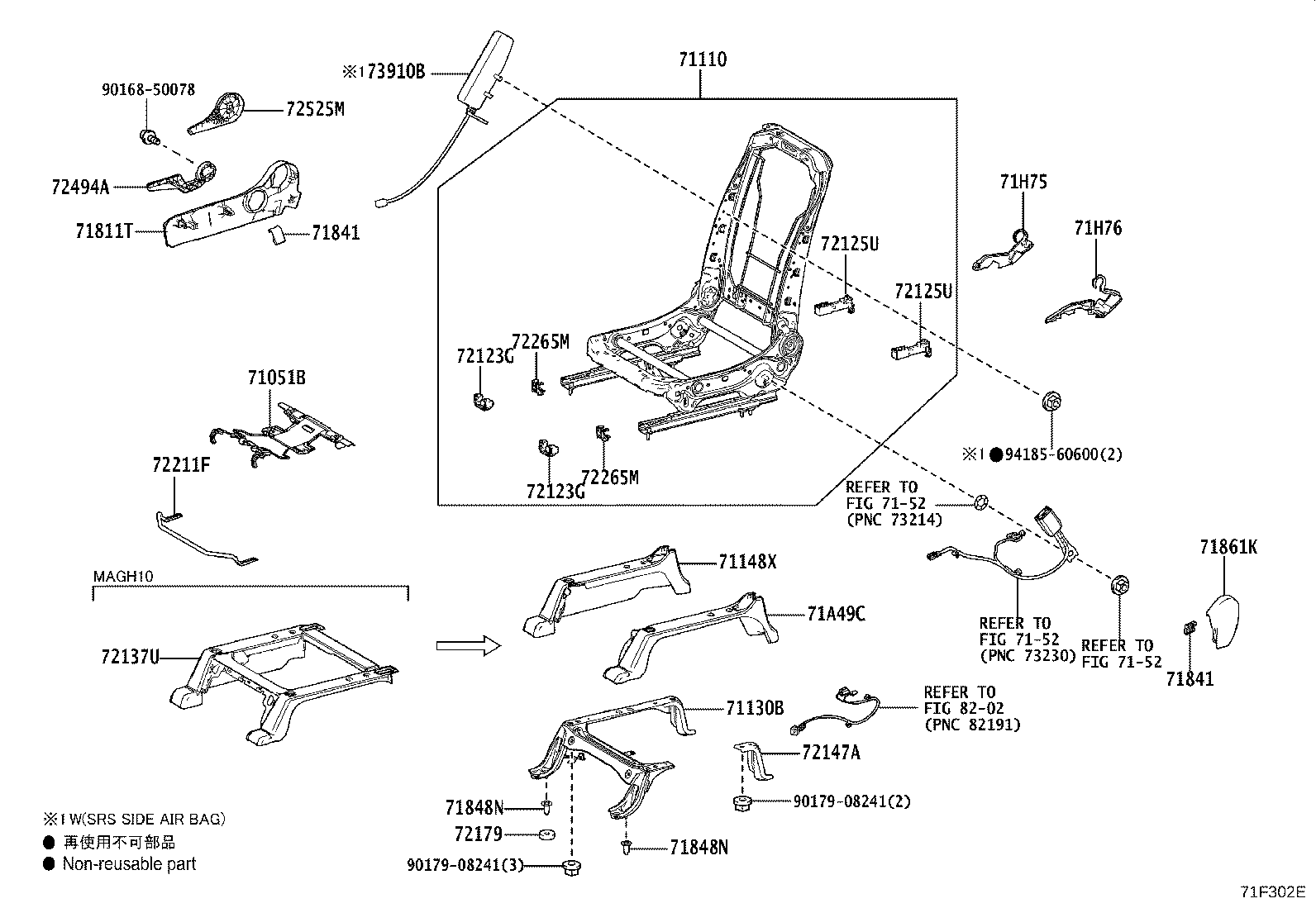

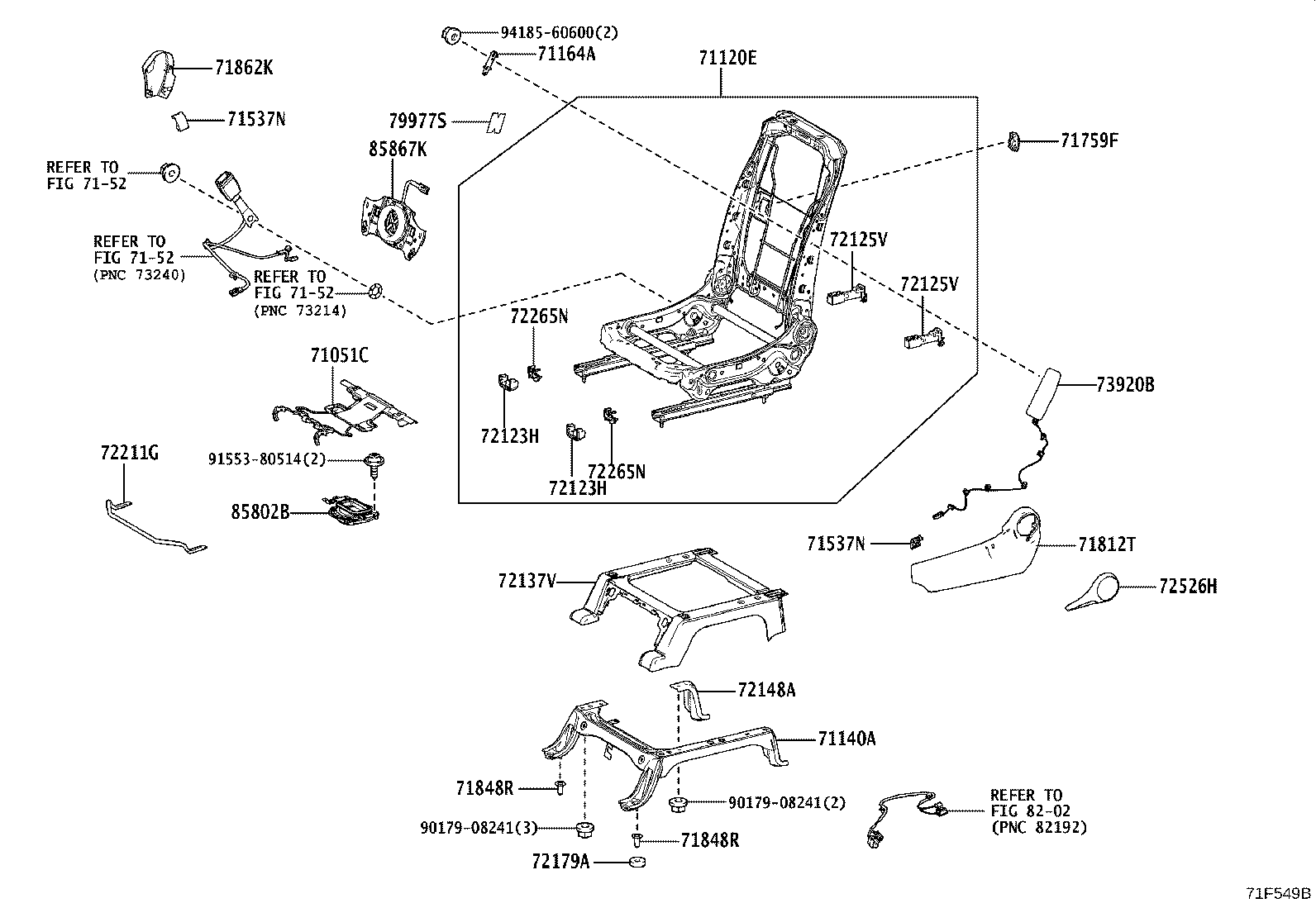

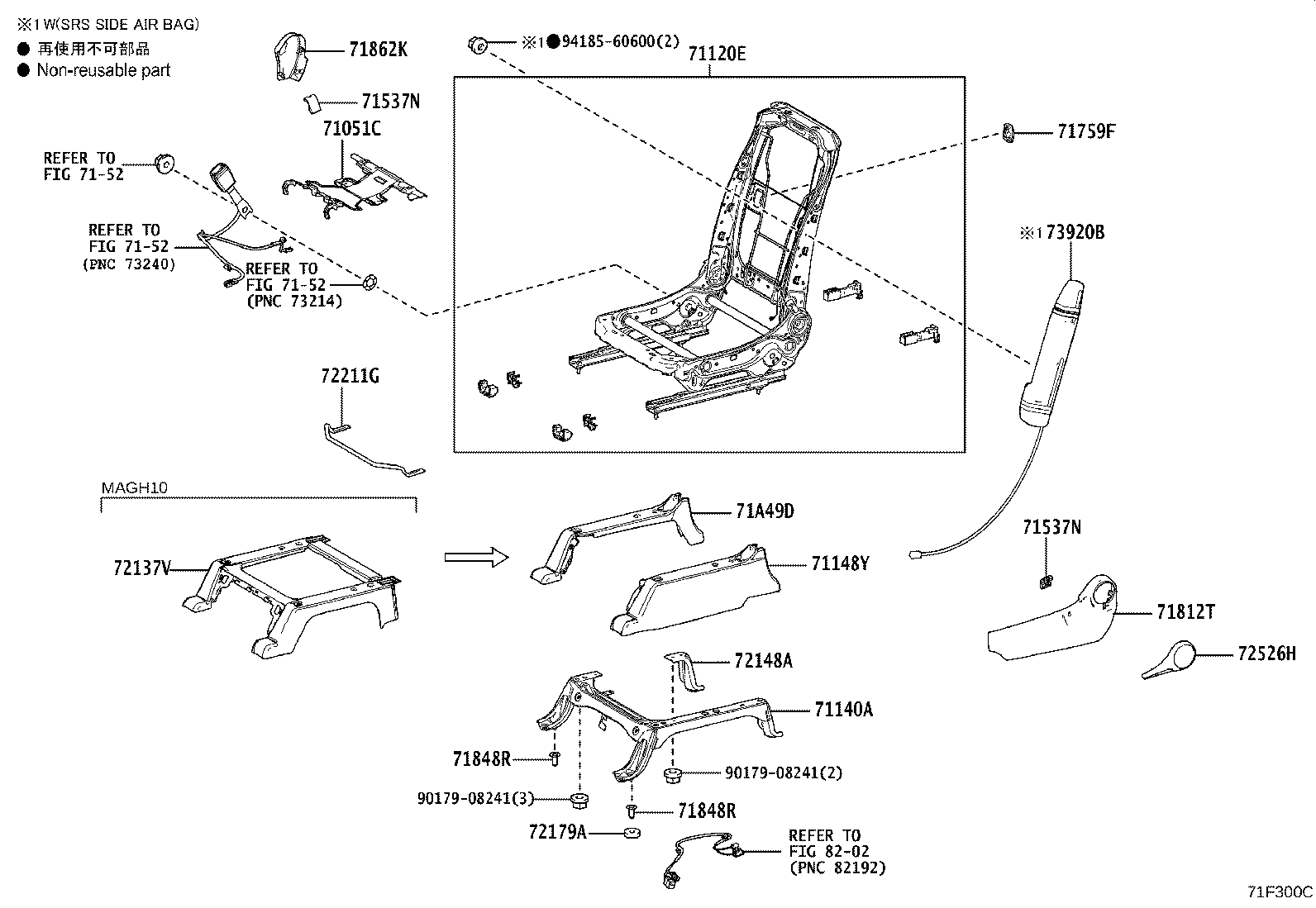

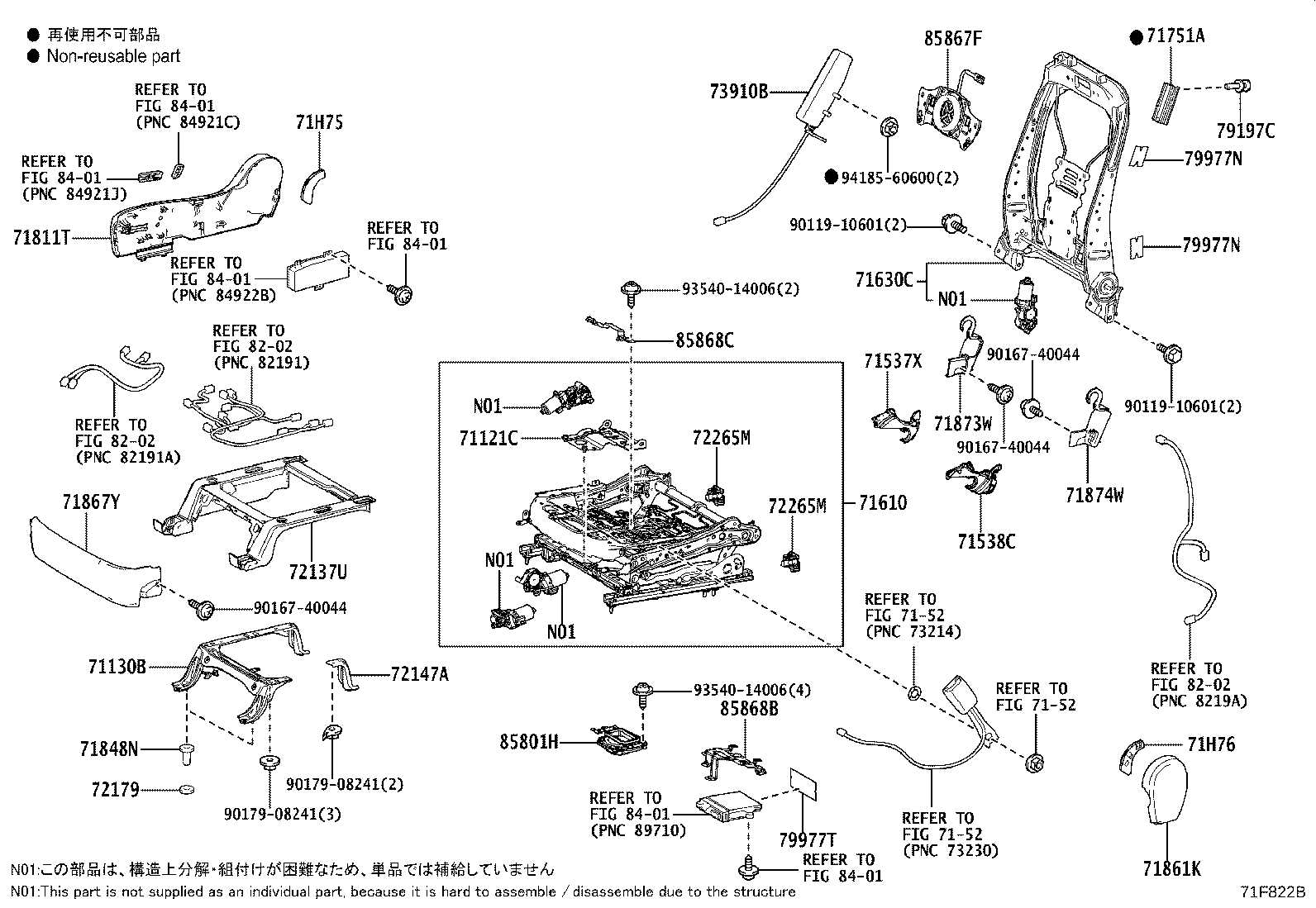

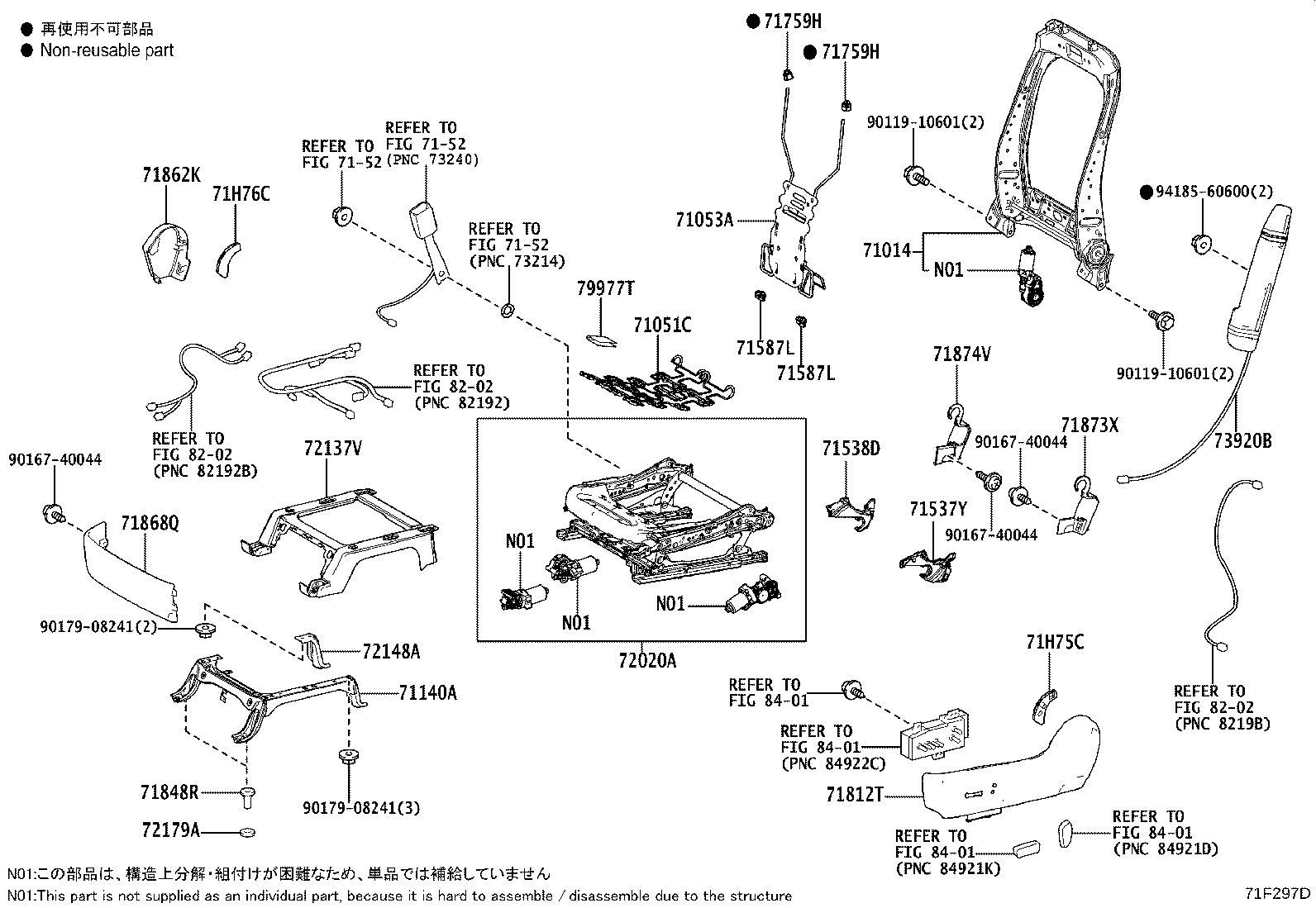

Figure 71F183B 71F183B 2022-11 → — Figure 71F302E 71F302E 2022-11 → — Figure 71F303F 71F303F 2022-11 → — Figure 71F259D 71F259D 2022-11 → — Figure 71F258C 71F258C 2022-11 → — Figure 71F295C 71F295C 2022-11 → — Figure 71F297D 71F297D 2022-11 → — Figure 71F822B 71F822B 2022-12 → — Figure 71F186E 71F186E 2022-12 → — Figure 71F299F 71F299F 2022-12 → — Figure 71F301E 71F301E 2022-11 → — Figure 71F300C 71F300C 2022-11 → — Figure 71F549B 71F549B 2022-12 → — Figure 71F187C 71F187C 2022-12 → — Figure 71F188 71F188 2022-11 → — Figure 71F189 71F189 2022-11 → — Figure 71F464 71F464 2022-11 → —

Part groups

PNCDescription
71013A Frame Sub-assy, Front Seatback, RH
71014 Frame Sub-assy, Front Seatback, LH
71051B Spring Sub-assy, Front Seat Cushion, RH
71051C Spring Sub-assy, Front Seat Cushion, LH
71053 Spring Sub-assy, Front Seatback, RH
71053A Spring Sub-assy, Front Seatback, LH
71071 Cover Sub-assy, Front Seat Cushion, RH
71072 Cover Sub-assy, Front Seat Cushion, LH
71073A Cover Sub-assy, Front Seatback, RH
71074A Cover Sub-assy, Front Seatback, LH
71110 Frame Assy, Front Seat W/Adjuster, RH
71120E Frame Assy, Front Seat W/Adjuster, LH
71121C Bracket, Front Seat Cushion, RH
71130B Leg Assy, Front Seat, RH
71139T Cover, Front Seat Leg, Rear RH
71139U Cover, Front Seat Leg, Rear LH
71140A Leg Assy, Front Seat, LH
71148X Cover, Front Seat Leg, Outer RH
71148Y Cover, Front Seat Leg, Outer LH
71163 Bracket, Front Seatback Support, RH
71164A Bracket, Front Seatback Support, LH
71511A Pad, Front Seat Cushion, RH
71512 Pad, Front Seat Cushion, LH
71537N Protector, Front Seat Cushion Edge NO.1
71537X Protector, Front Seat Cushion Edge, RH(FOR RH SEAT)
71537Y Protector, Front Seat Cushion Edge, RH(FOR LH SEAT)
71538C Protector, Front Seat Cushion Edge, LH(FOR RH SEAT)
71538D Protector, Front Seat Cushion Edge, LH(FOR LH SEAT)
71551A Pad, Front Seatback, RH
71552A Pad, Front Seatback, LH
71587K Protector, Front Seatback Edge, RH
71587L Protector, Front Seatback Edge, LH
71610 Spring Assy, Front Seat Cushion, RH
71630C Spring Assy, Front Seatback, RH
71751A Hanger, Seat Cover
71759E Hook, Front Seatback, RH
71759F Hook, Front Seatback, LH
71759H Hook, Front Seatback
71811T Shield, Front Seat Cushion, RH
71812T Shield, Front Seat Cushion, LH
71841 Protector, Front Seat Cushion Edge
71848N Cap, Front Seat Adjuster Cover, RH NO.1
71848R Cap, Front Seat Adjuster Cover, LH NO.1
71861K Shield, Front Seat Cushion, Inner RH
71862K Shield, Front Seat Cushion, Inner LH
71867Y Shield, Front Seat Cushion, Inner NO.1 RH(FOR RH SEAT)
71868Q Shield, Front Seat Cushion, Inner NO.1 LH(FOR LH SEAT)
71873W Shield, Front Seat Cushion, Lower RH, Outer
71873X Shield, Front Seat Cushion, Lower RH, Inner
71874V Shield, Front Seat Cushion, Lower LH, Outer
71874W Shield, Front Seat Cushion, Lower LH, Inner
71910E Headrest Assy, Front Seat, RH
71910F Headrest Assy, Front Seat, LH
71930E Support Assy, Front Seat Headrest, RH
71930F Support Assy, Front Seat Headrest, LH
71A49 Cover, Front Seat Leg, NO.1
71A49C Cover, Front Seat Leg, Inner NO.1(FOR RH SEAT)
71A49D Cover, Front Seat Leg, Inner NO.1(FOR LH SEAT)
71A49F Cover, Front Seat Leg, Inner NO.2(FOR LH SEAT)
71H75 Cover, Reclining Adjuster Inside, RH Outer(FOR RH SEAT)
71H75C Cover, Reclining Adjuster Inside, RH(FOR LH SEAT)
71H76 Cover, Reclining Adjuster Inside, LH(FOR RH SEAT)
71H76C Cover, Reclining Adjuster Inside, LH Outer(FOR LH SEAT)
72010A Adjuster Assy, Front Seat, RH
72020A Adjuster Assy, Front Seat, LH
72123G Plate, Inner Seat Track Lock, RH
72123H Plate, Inner Seat Track Lock, LH
72125U Cover, Seat Track, Upper Rear RH
72125V Cover, Seat Track, Upper Rear LH
72137U Cover, Front Seat Track, RH
72137V Cover, Front Seat Track, LH
72147A Bracket, Front Inner Seat Track, Lower Rear RH
72148A Bracket, Front Inner Seat Track, Lower Rear LH
72179 Cushion, Rear Seat Track, RH
72179A Cushion, Rear Seat Track, LH
72211F Handle, Seat Track Adjusting, RH
72211G Handle, Seat Track Adjusting, LH
72265M Cover, Seat Track Upper Rail, RH
72265N Cover, Seat Track Upper Rail, LH
72494A Handle, Front Seat Vertical Adjuster, RH
72495A Handle, Front Seat Vertical Adjuster, LH
72525M Handle, Reclining Adjuster Release, RH
72526H Handle, Reclining Adjuster Release, LH
73910B Airbag Assy, Front Seat, RH
73920B Airbag Assy, Front Seat, LH
79197C Hook, Seatback Cover
79977N Felt, Seatback
79977S Felt, Seat Cushion, LH
79977T Felt, Seat Cushion Spring
85801H Blower Sub-assy, Seat Cushion Climate, RH
85802B Blower Sub-assy, Seat Cushion Climate, LH
85867F Blower, Seatback Climate Control, RH
85867K Bracket, Seat Cushion Climate Control, LH NO.1
85868B Bracket, Seat Cushion Climate Control, RH NO.1
85868C Bracket, Seat Cushion Climate Control, RH NO.2
89953B Sensor, Belt Warning Occupant Detection
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
