Rear Seat & Seat Track

147 part groups · 22 illustrations

Illustrations

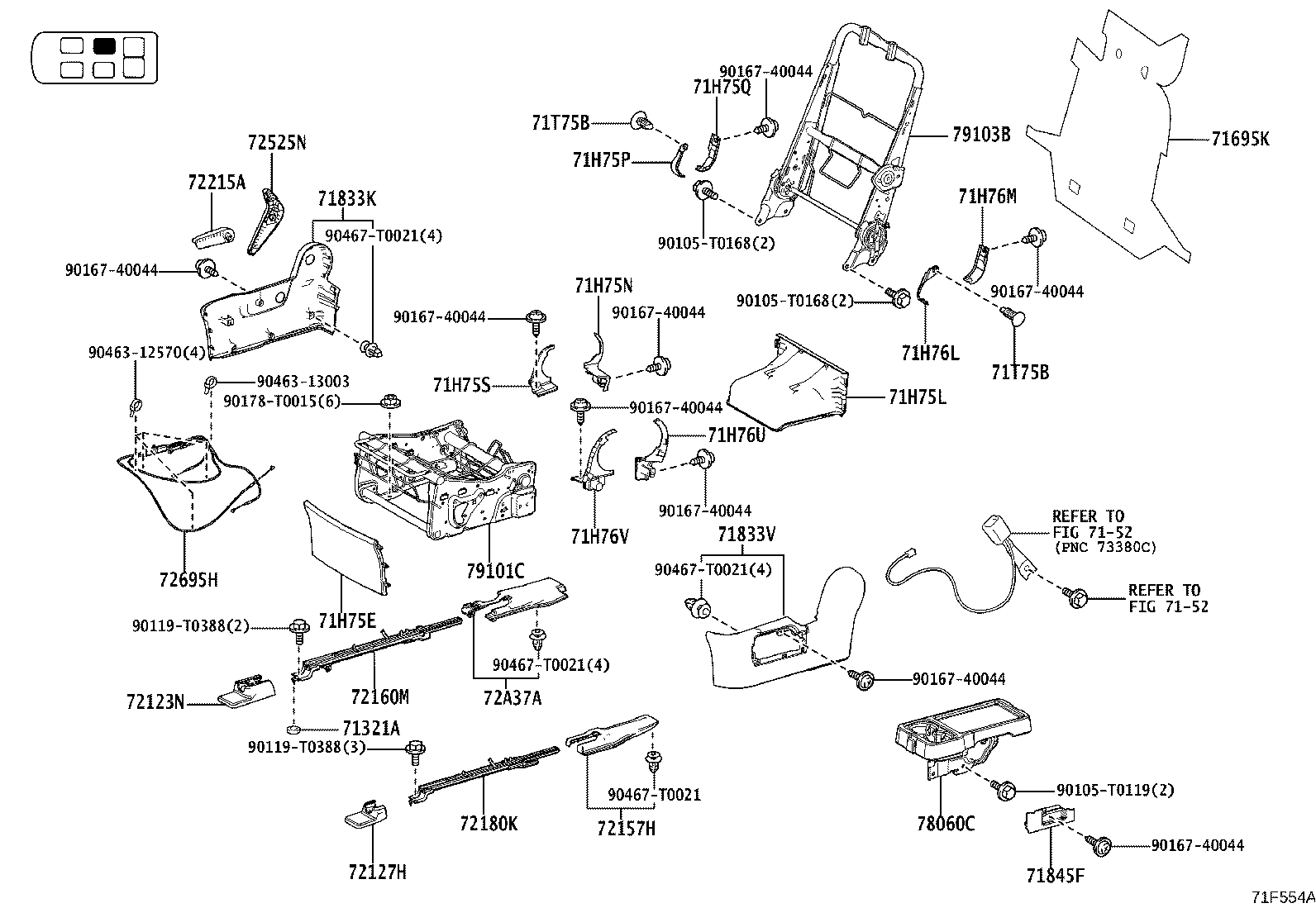

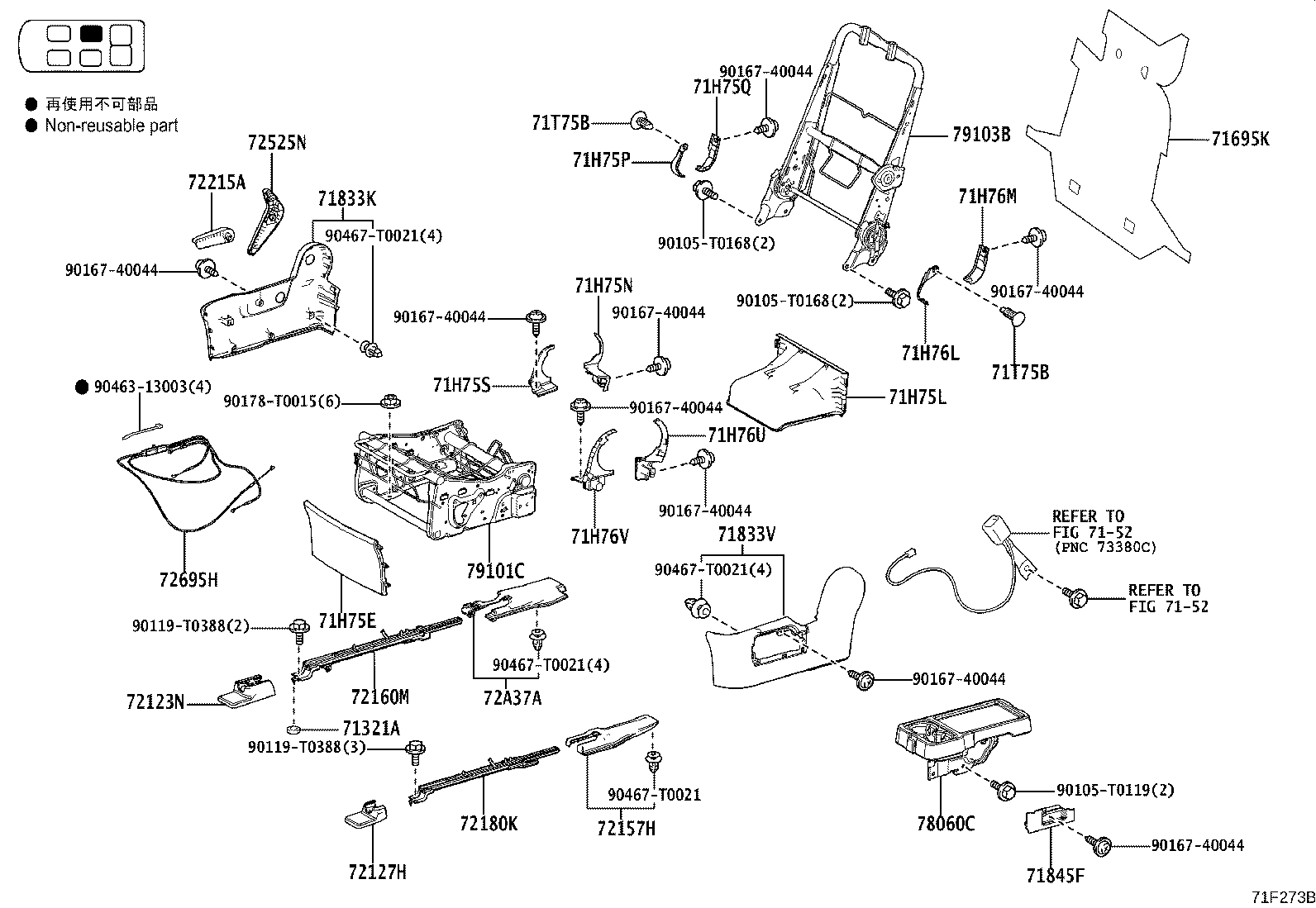

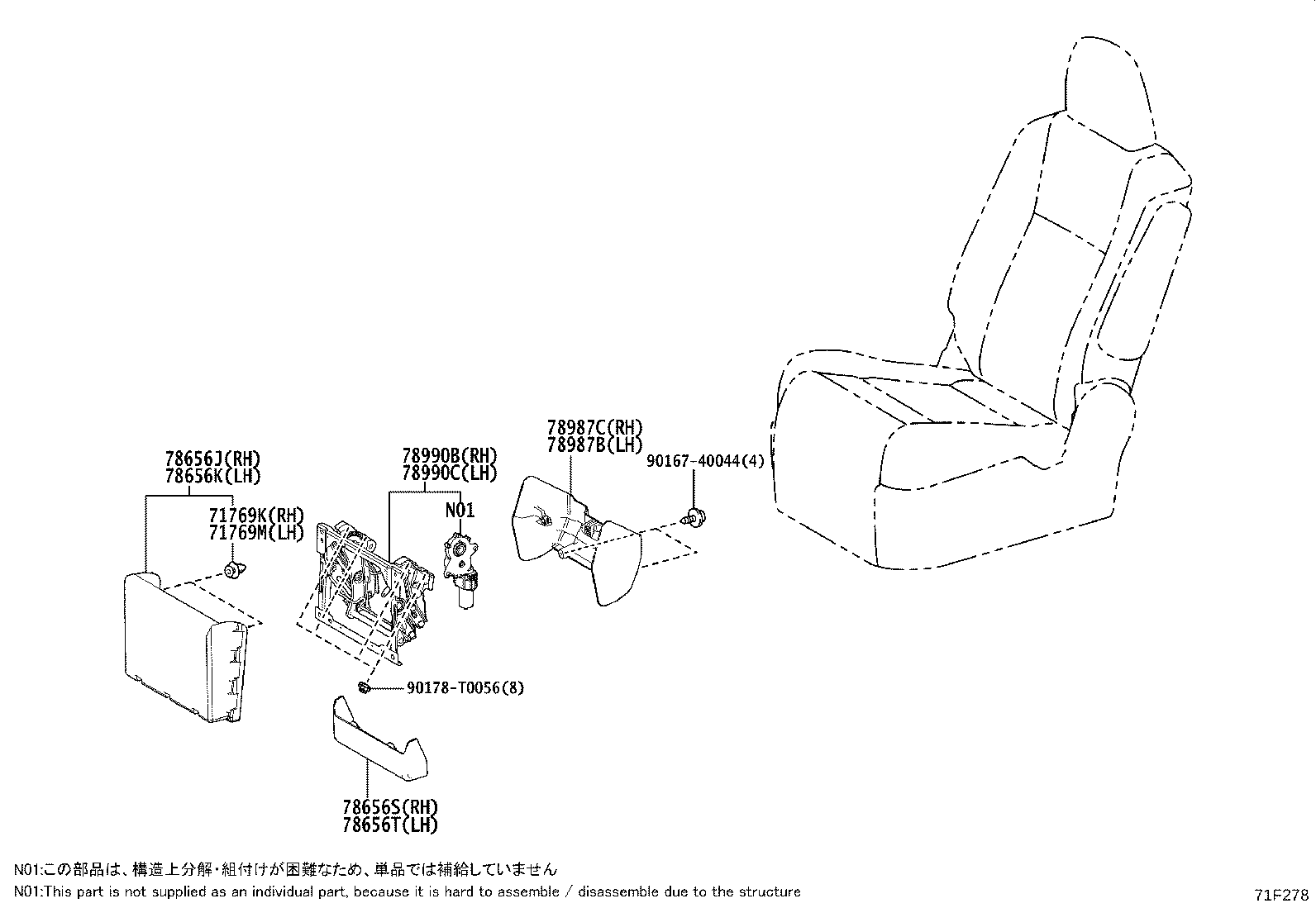

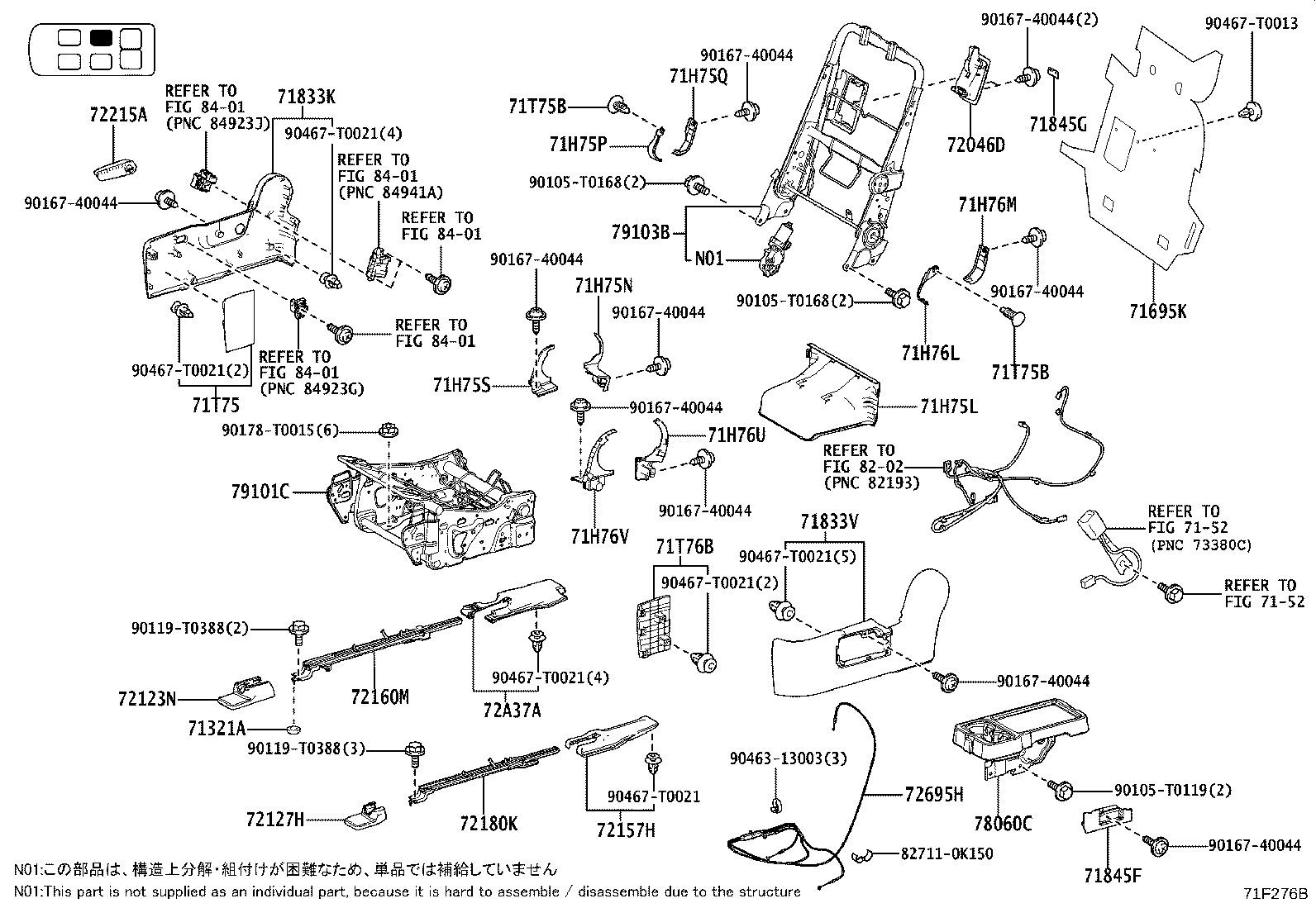

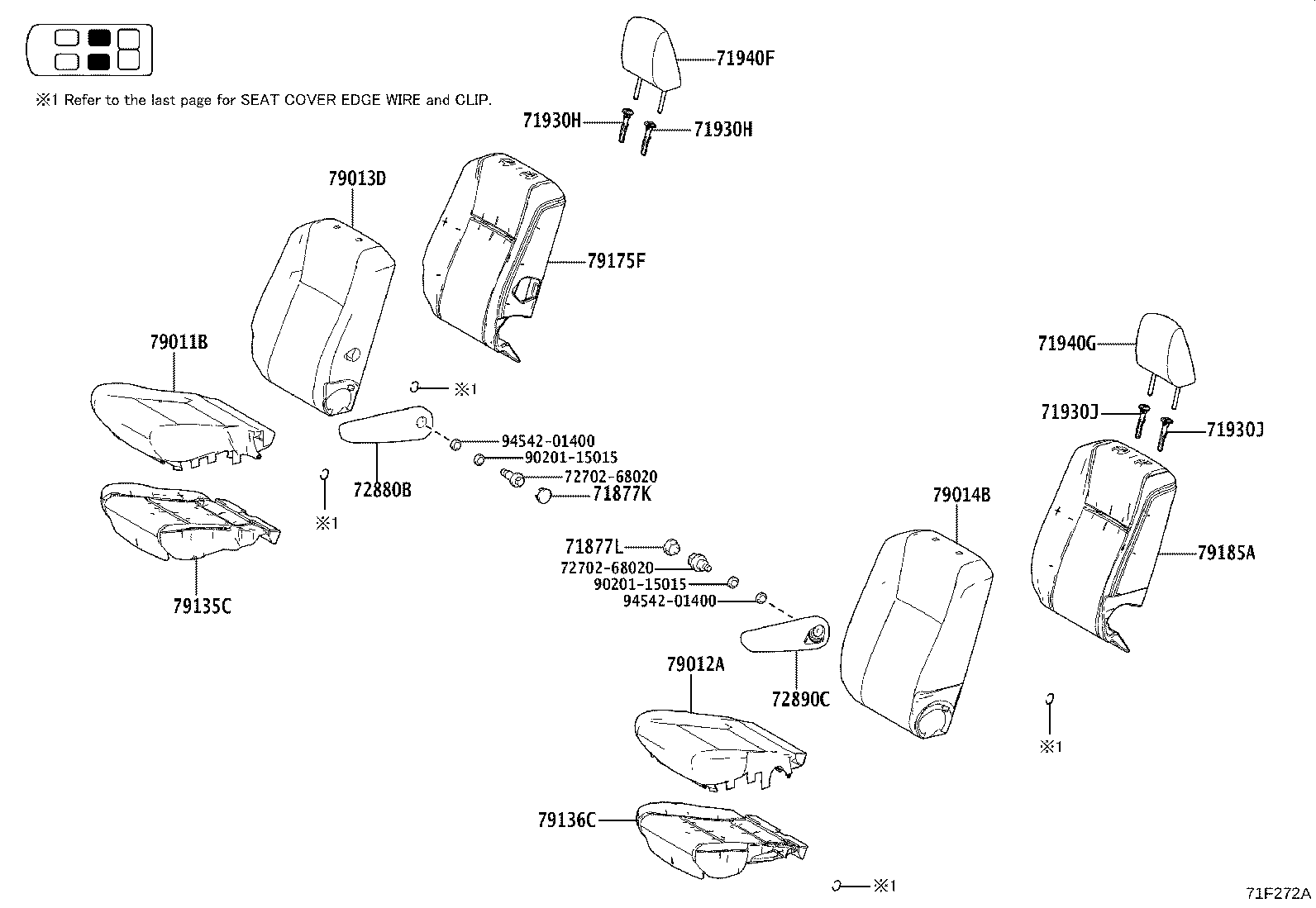

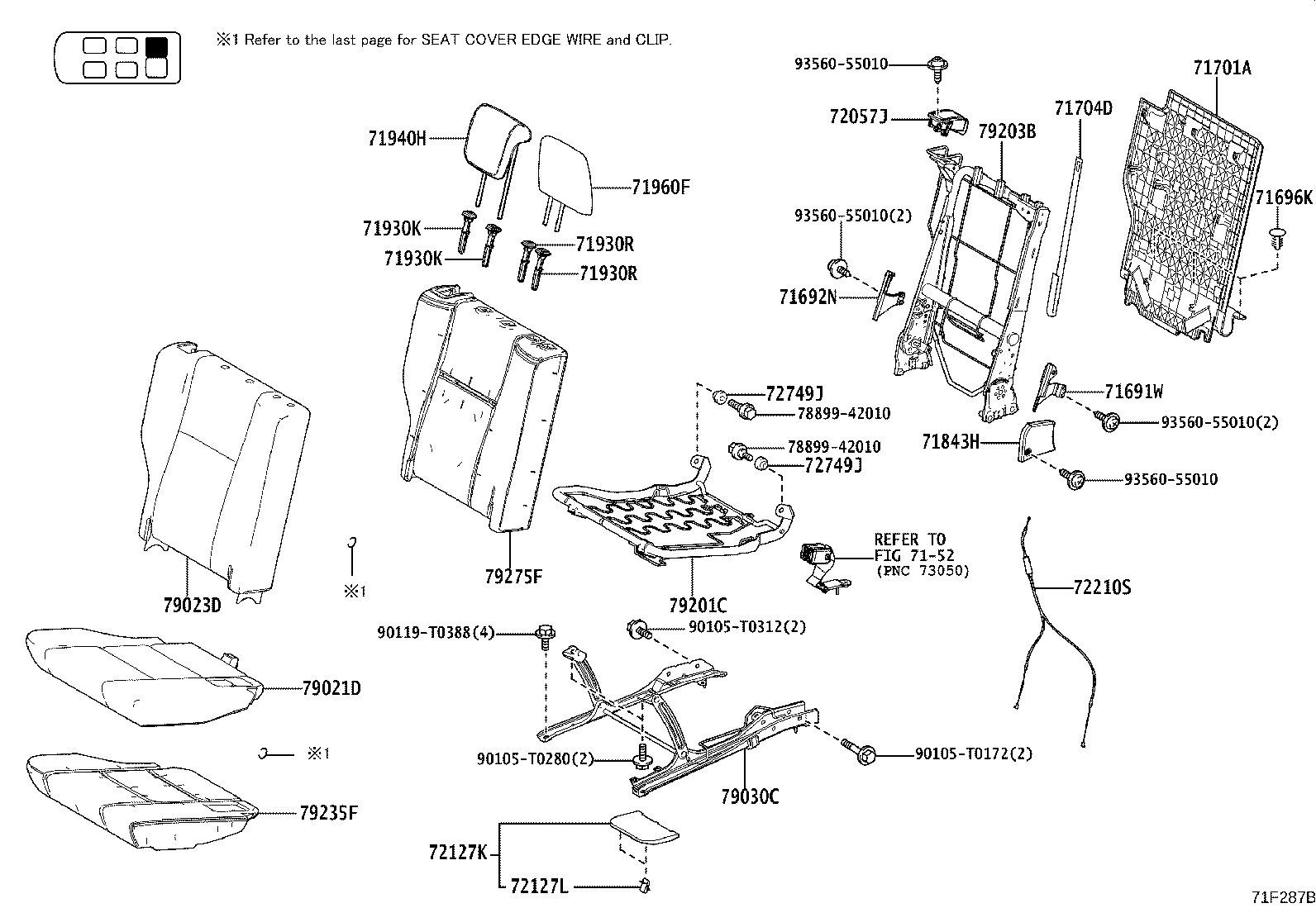

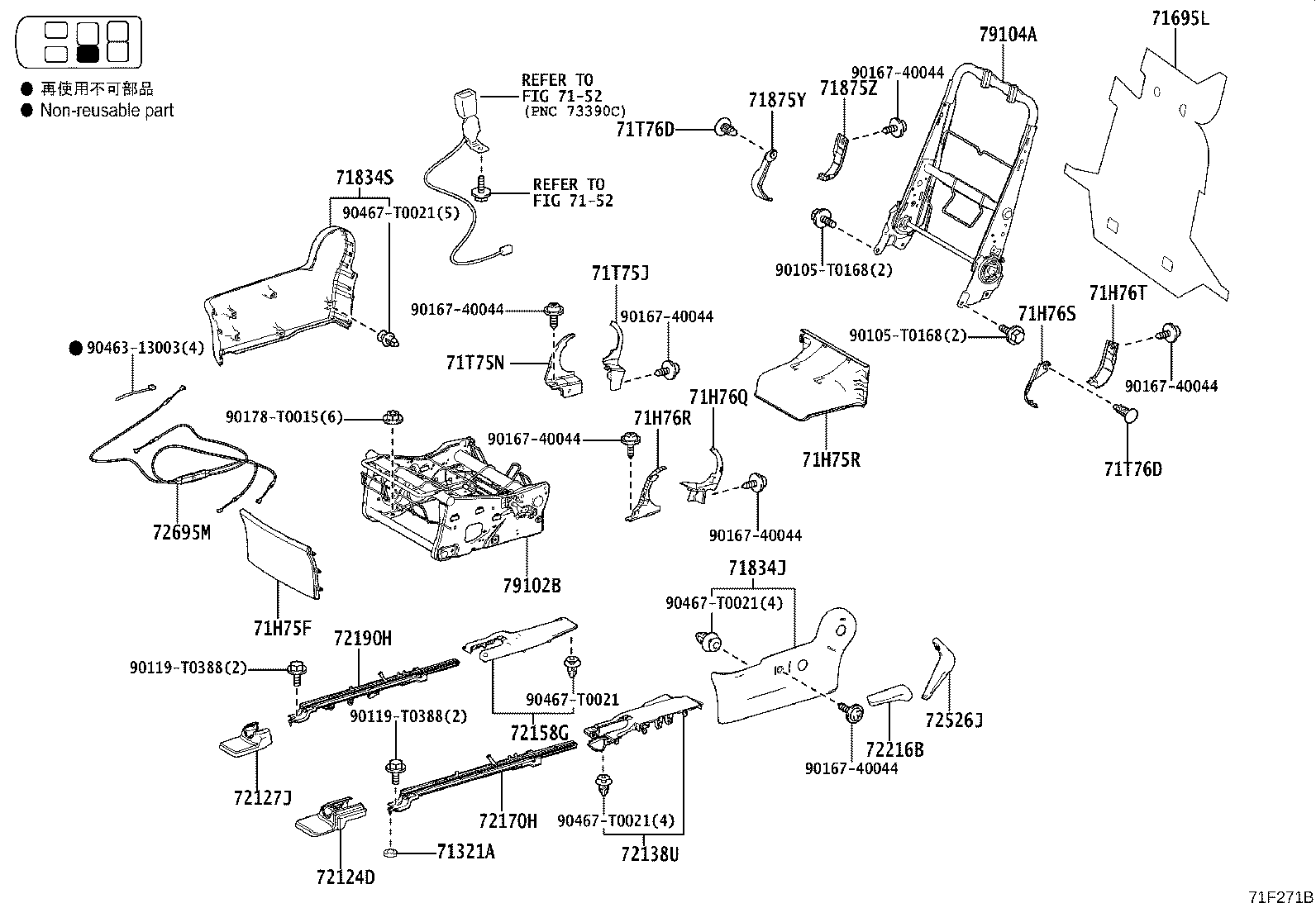

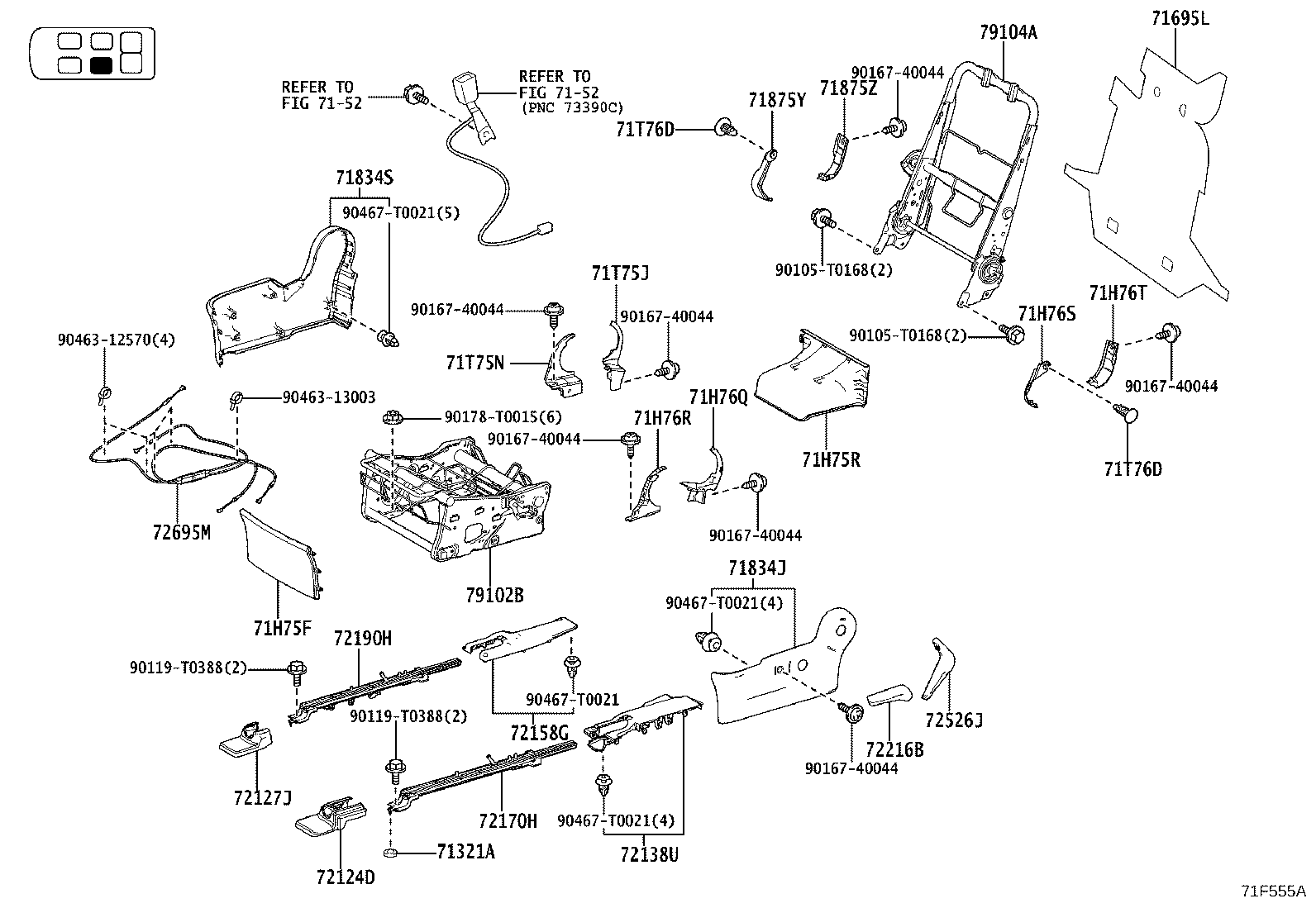

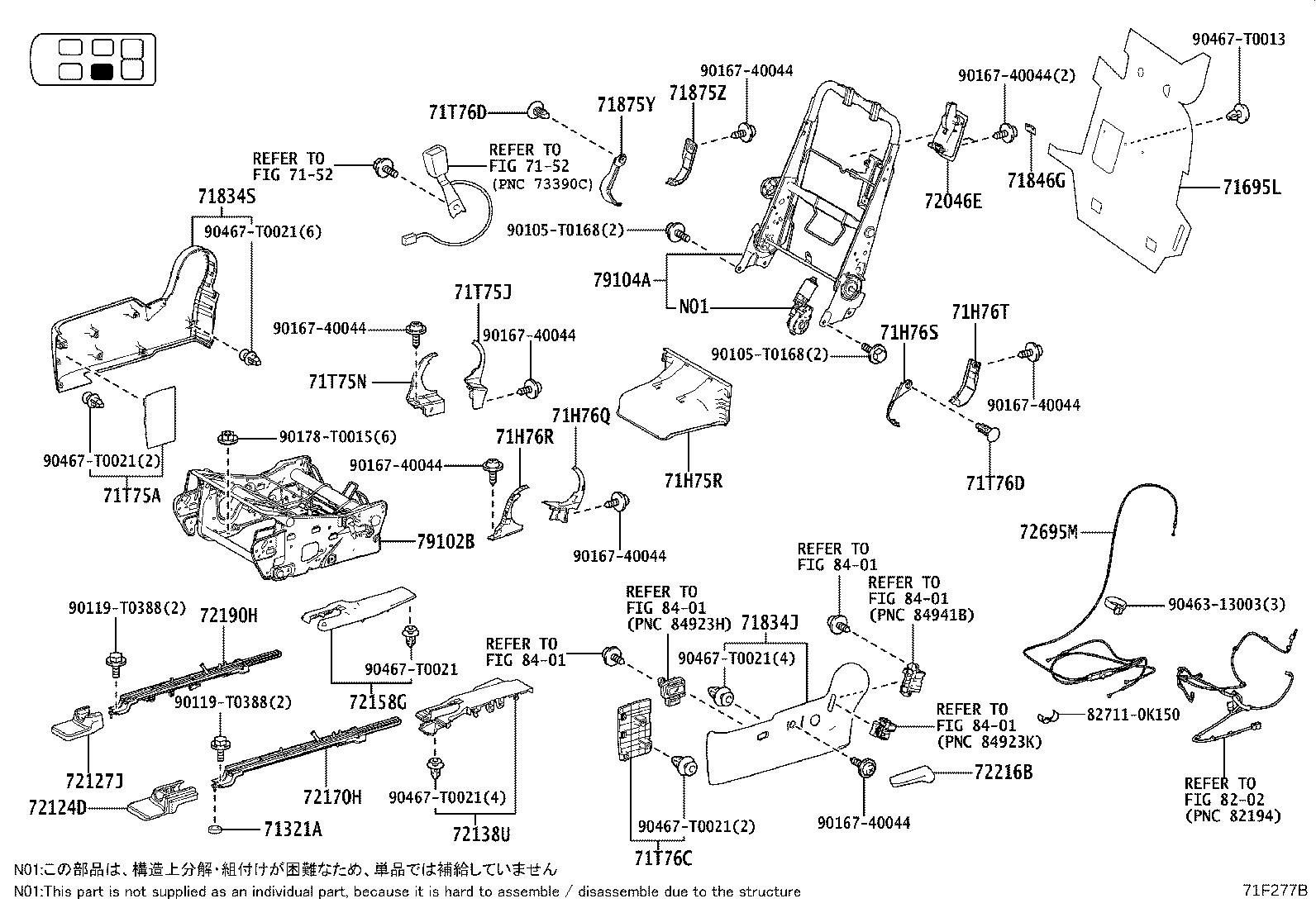

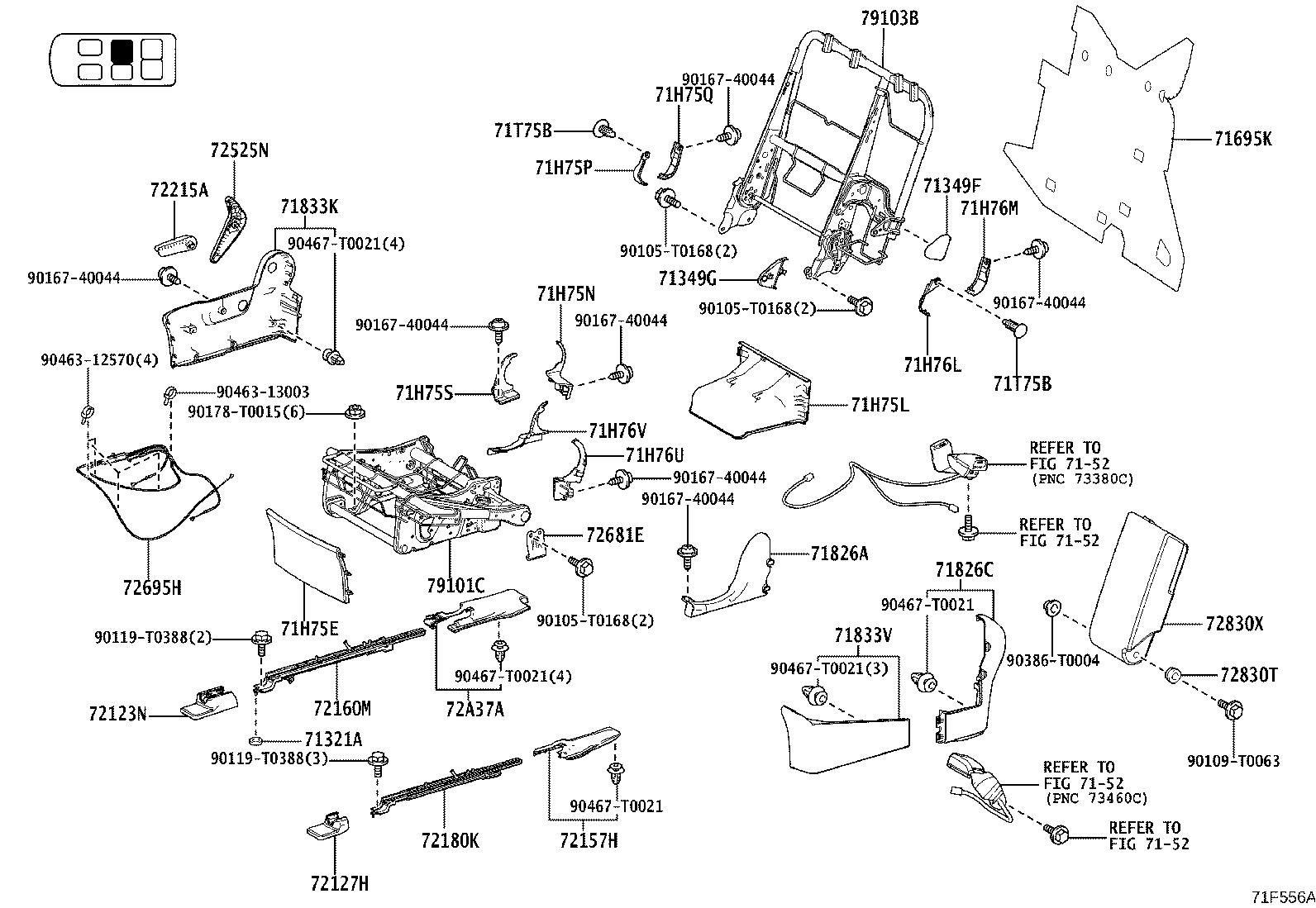

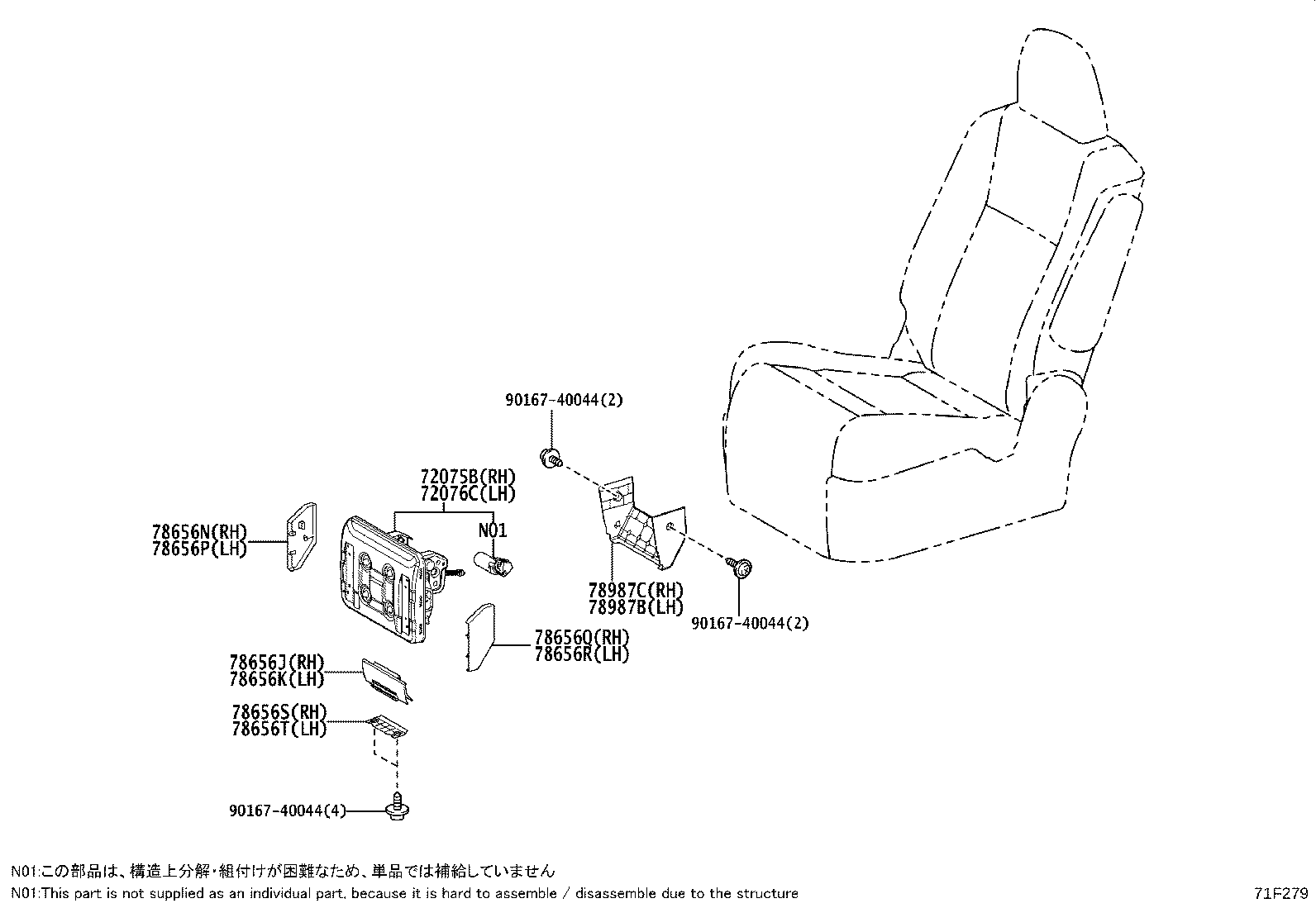

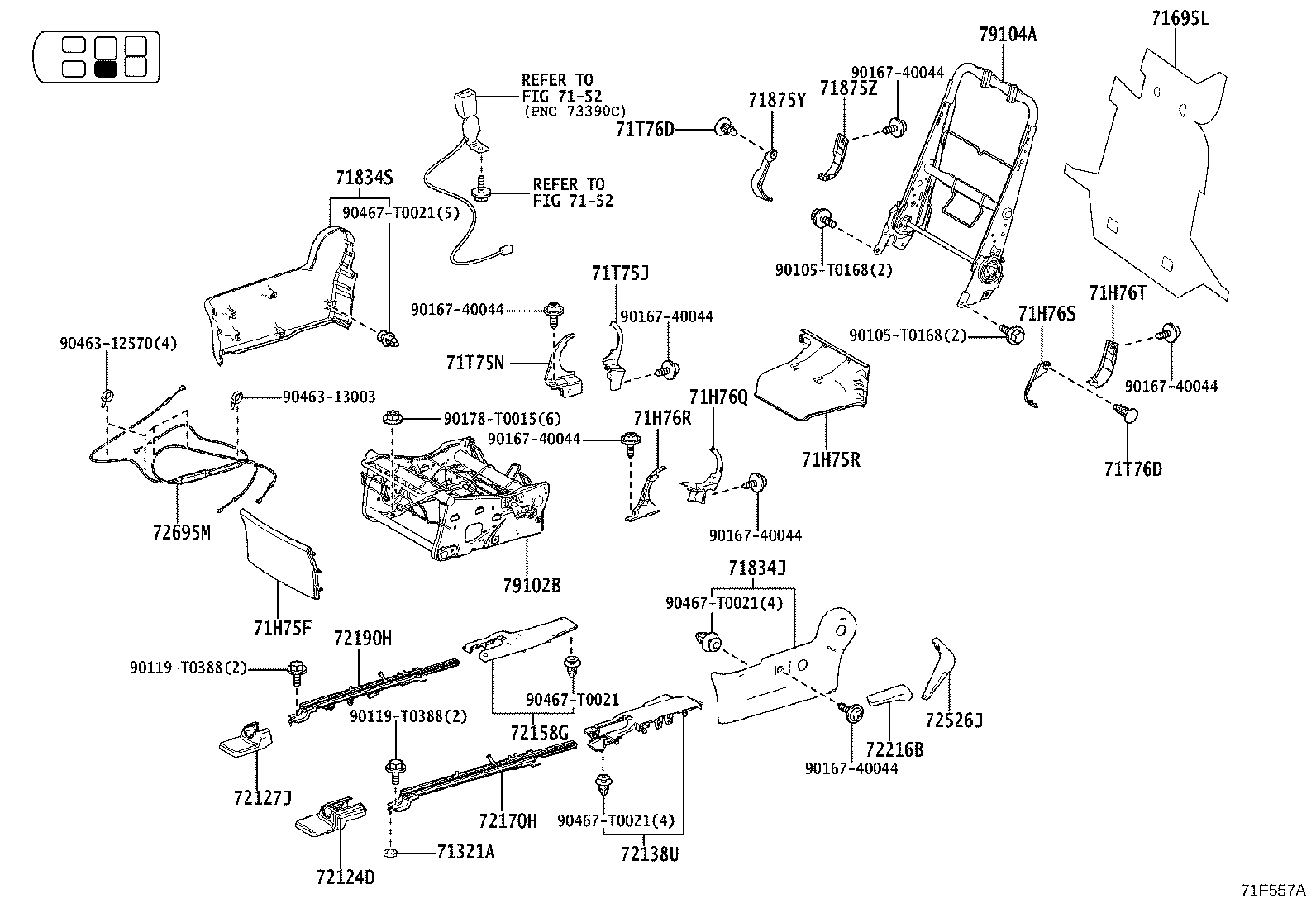

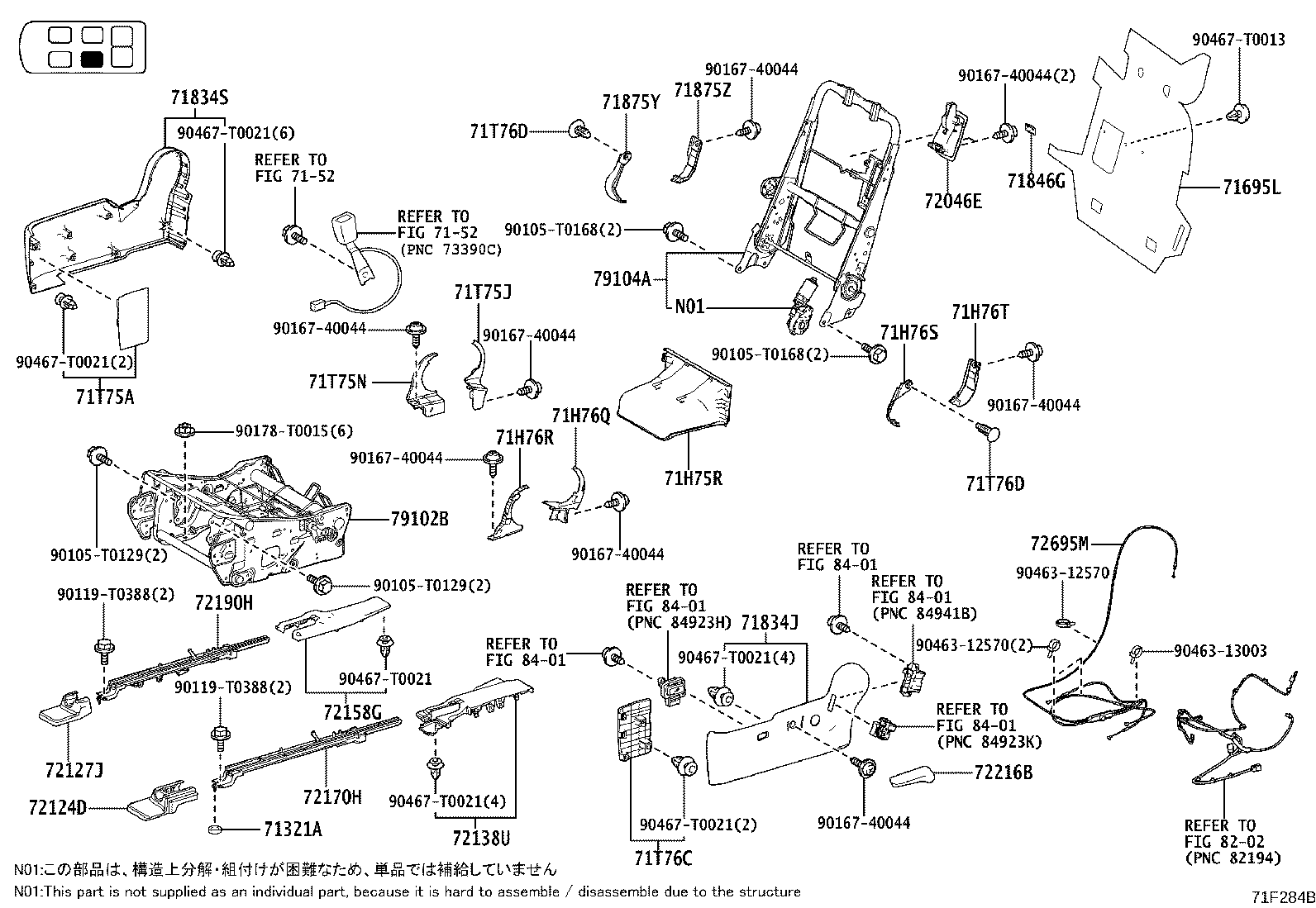

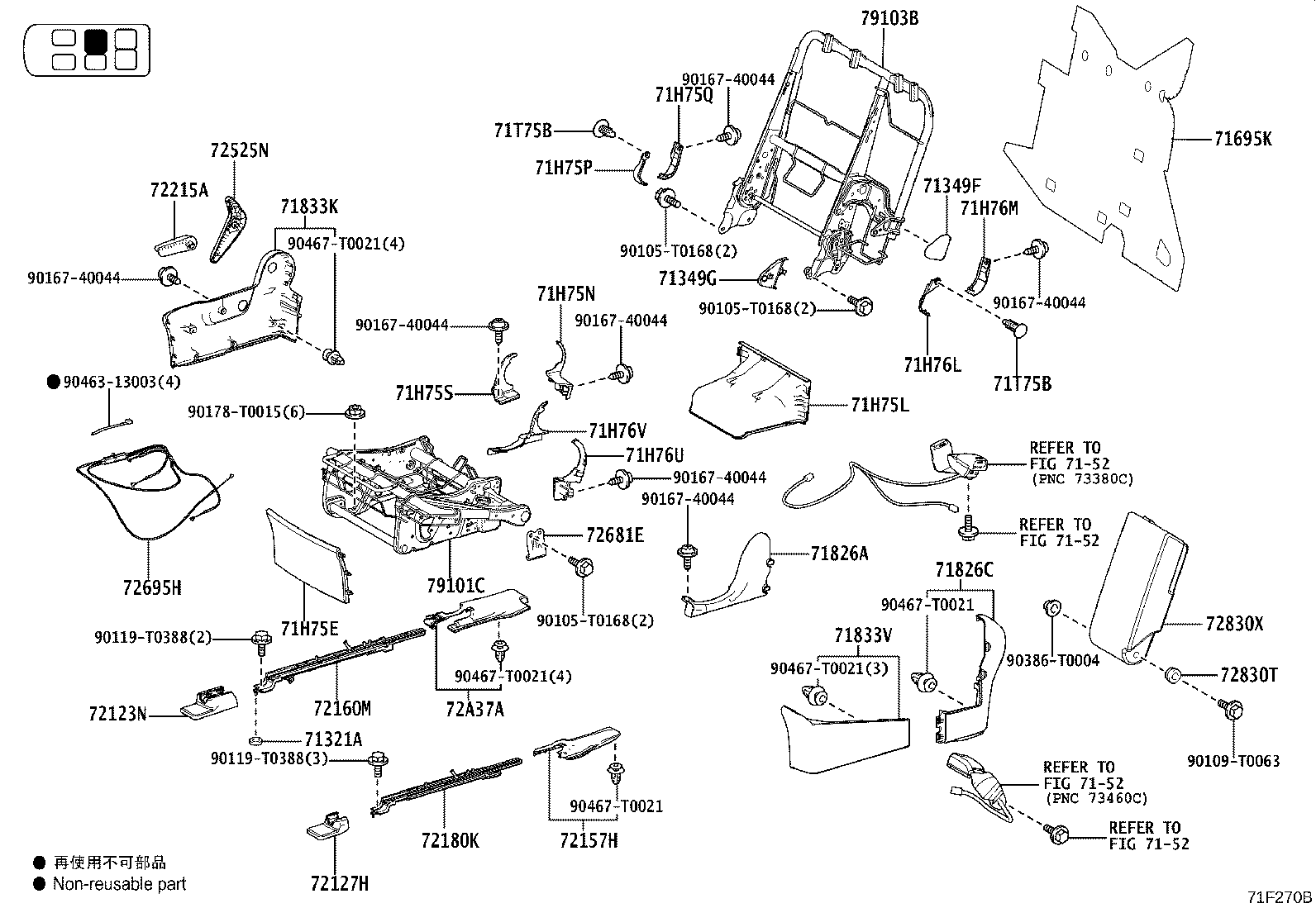

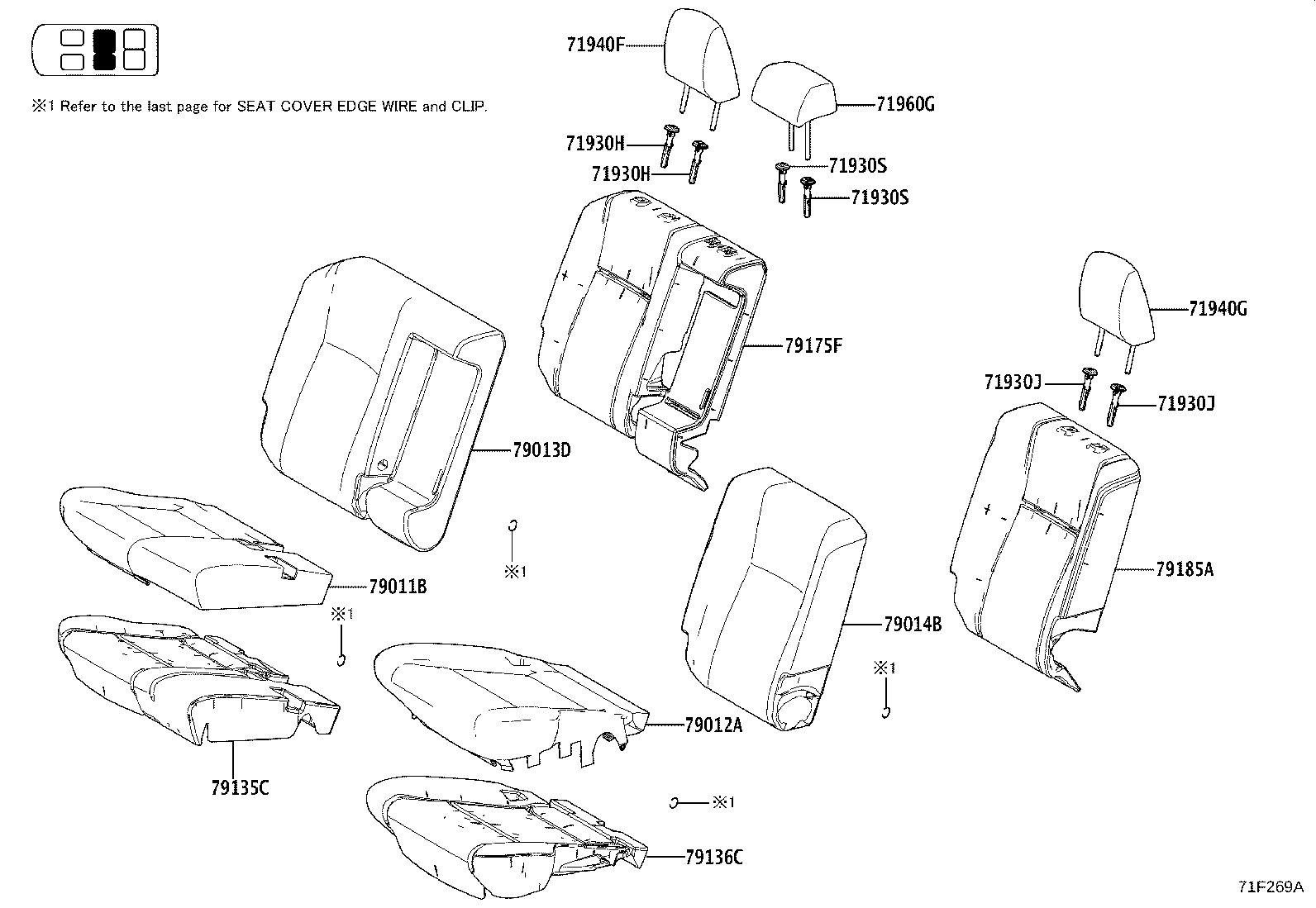

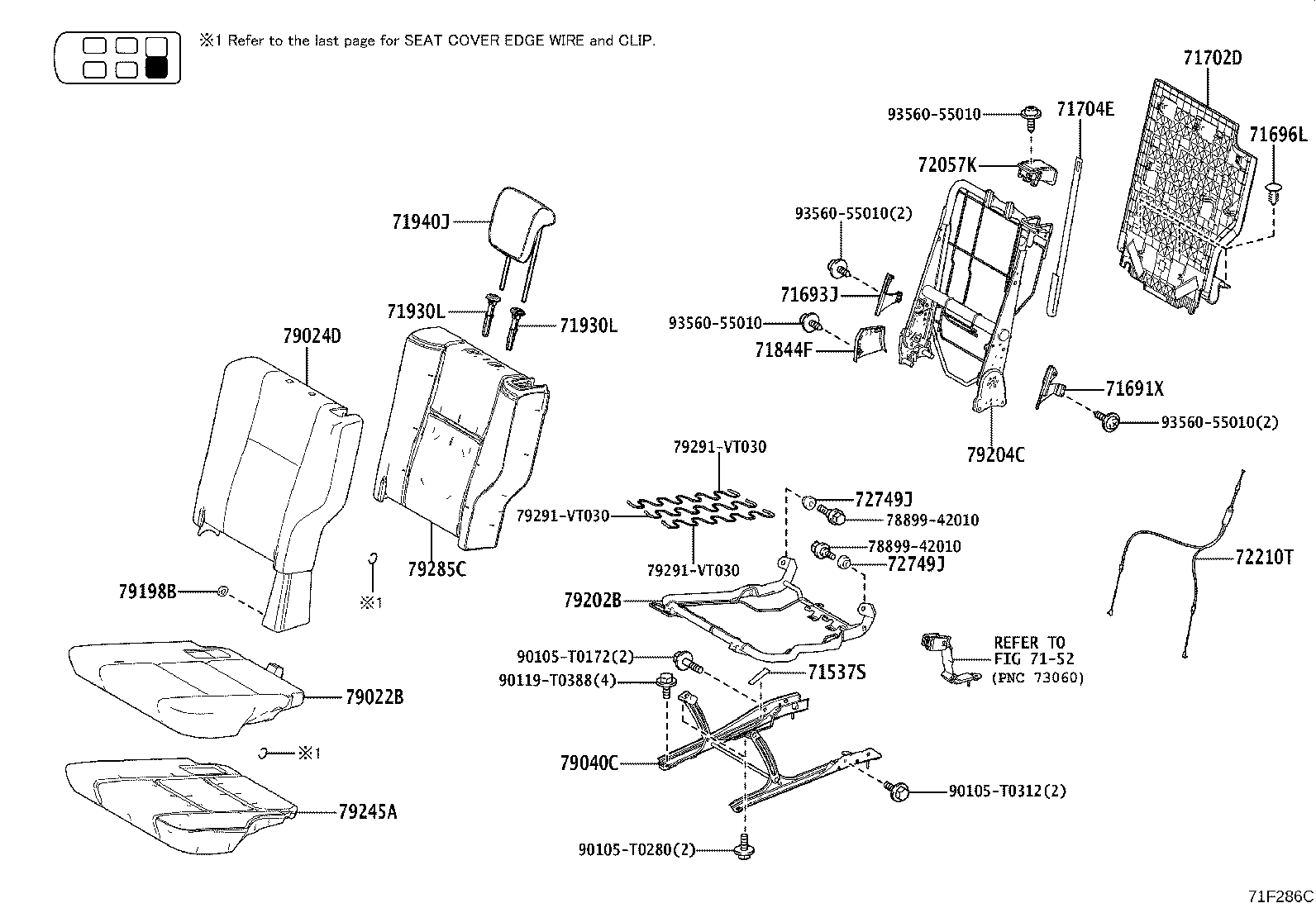

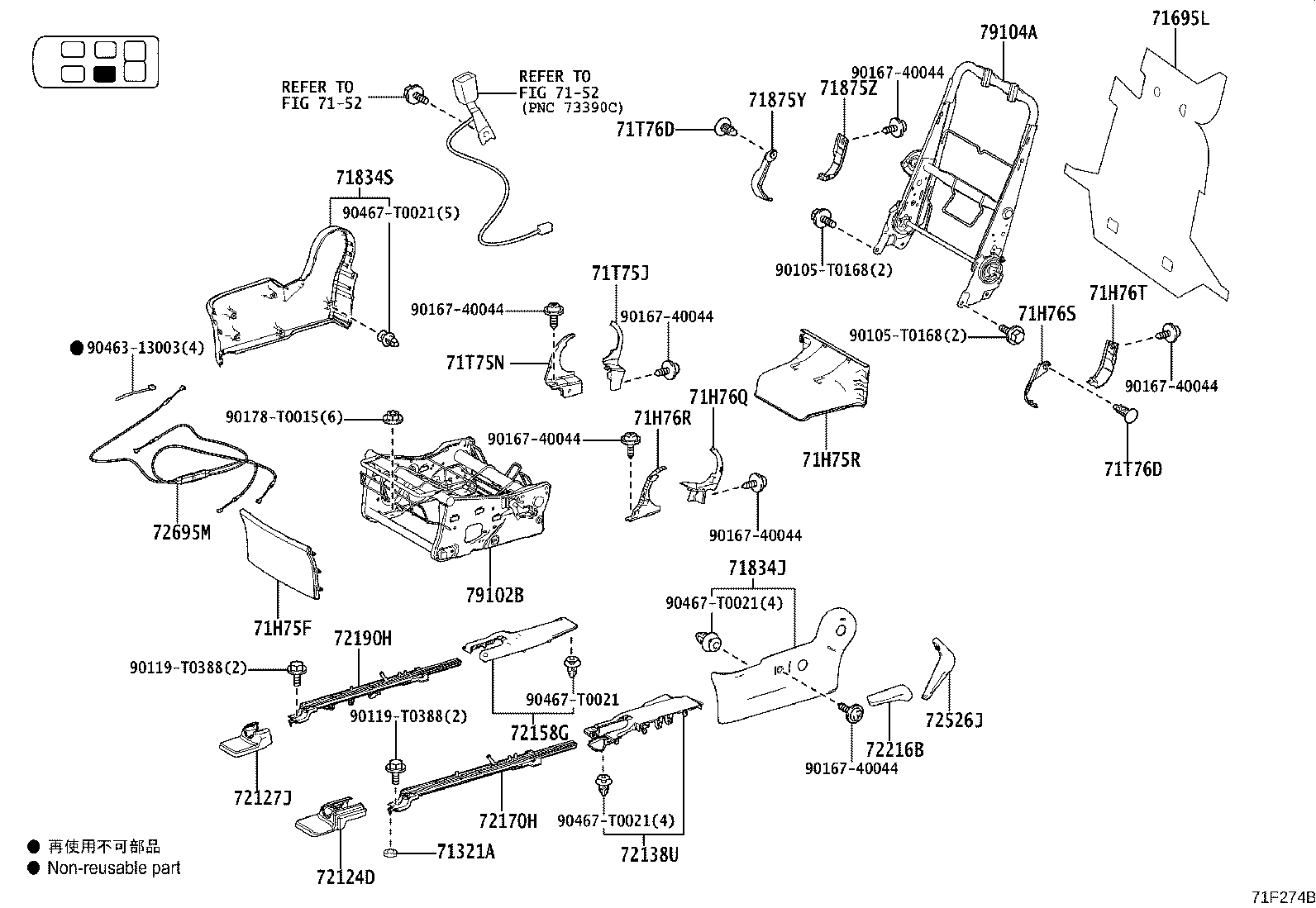

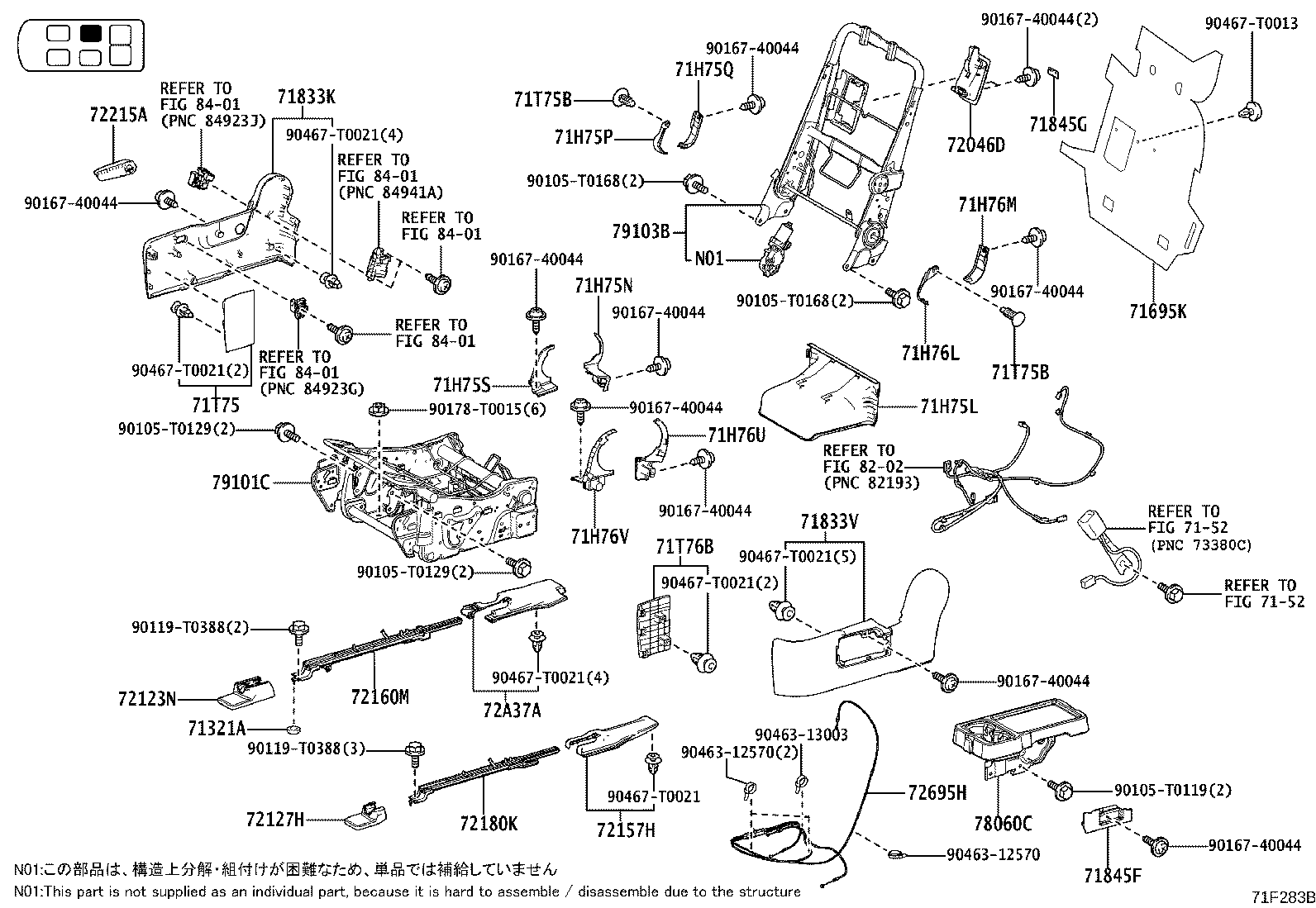

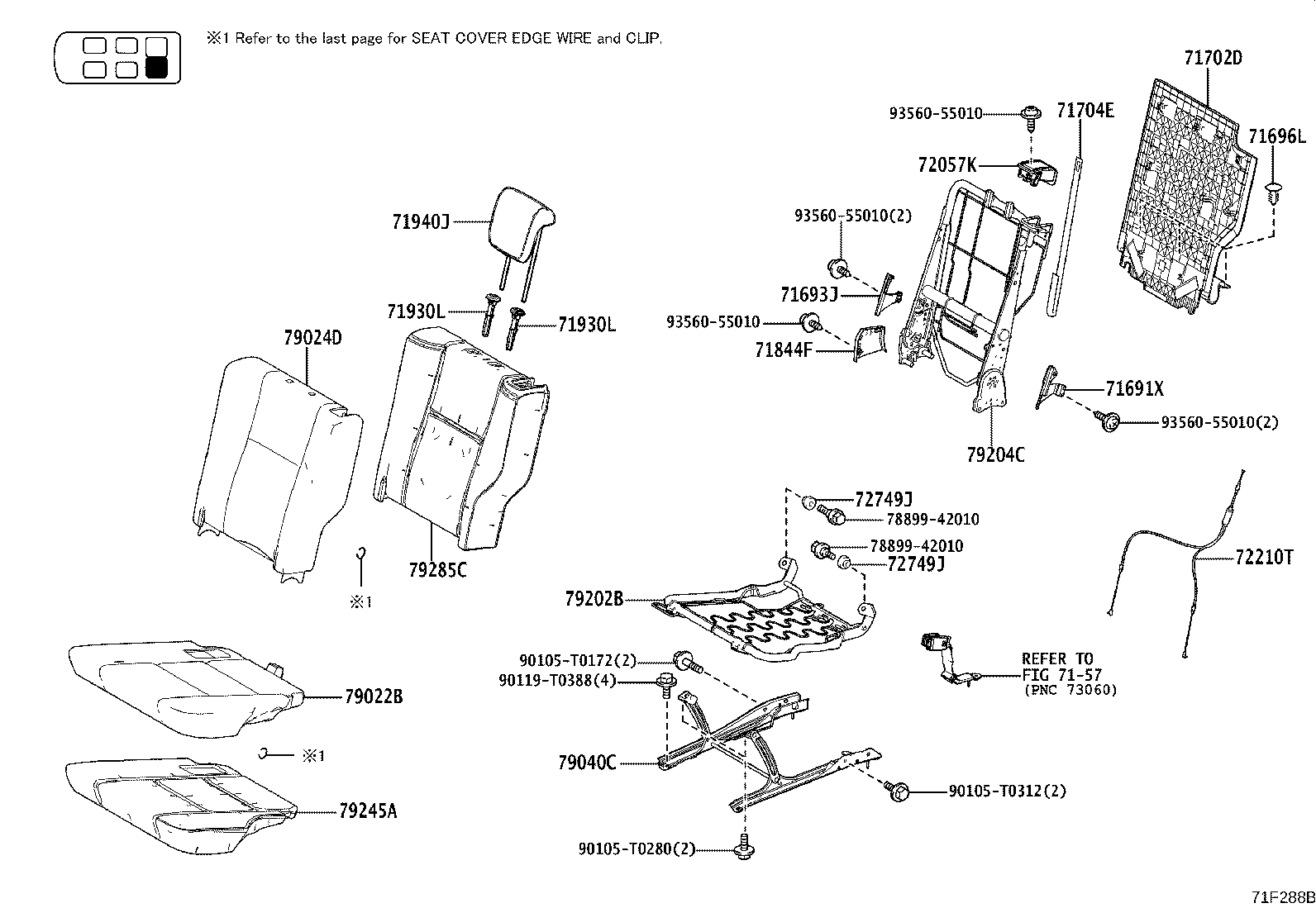

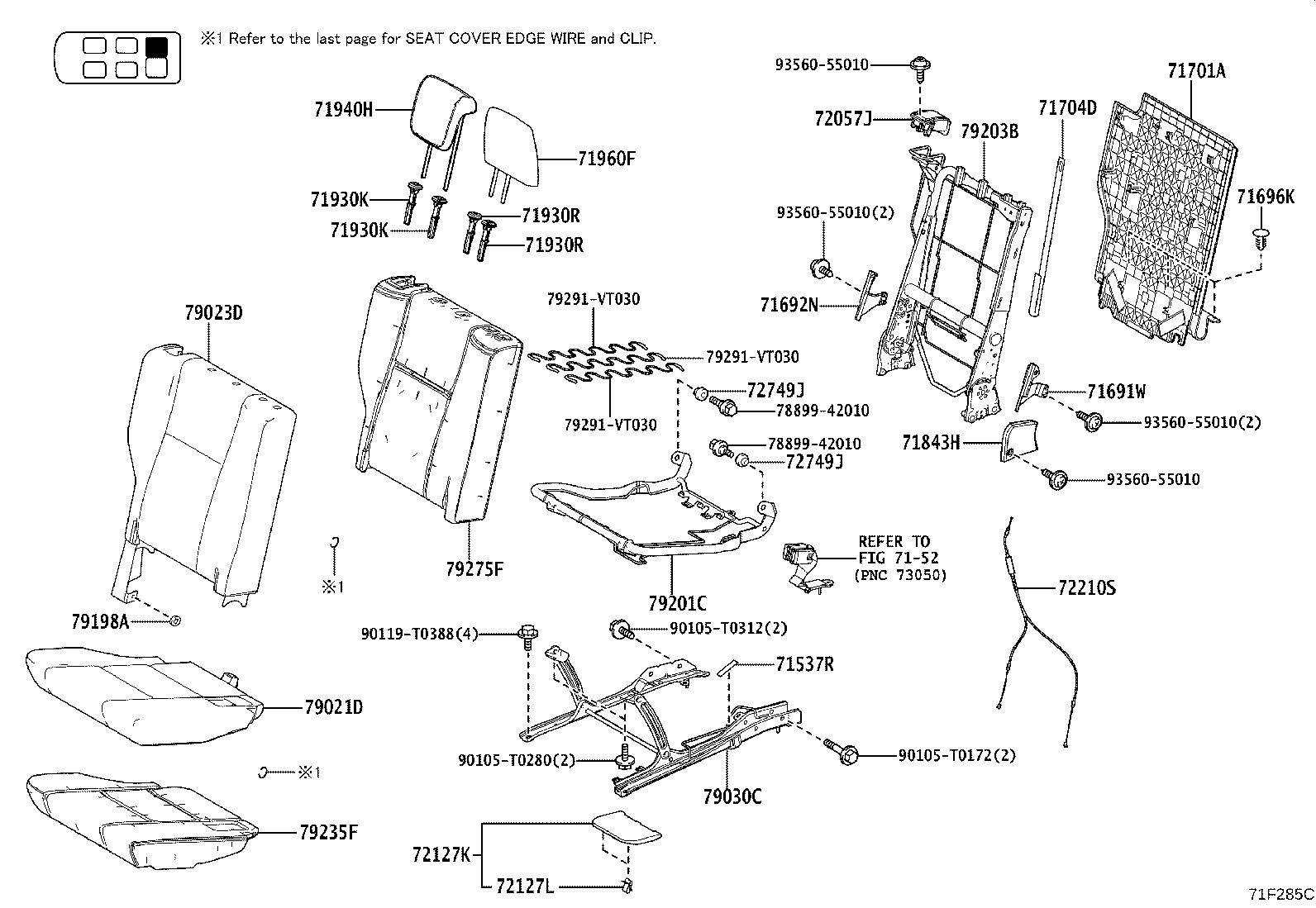

Figure 71F275B 71F275B 2022-11 → — Figure 71F276B 71F276B 2022-11 → — Figure 71F283B 71F283B 2022-12 → — Figure 71F277B 71F277B 2022-11 → — Figure 71F284B 71F284B 2022-12 → — Figure 71F278 71F278 2022-11 → — Figure 71F279 71F279 2022-12 → — Figure 71F272A 71F272A 2022-11 → — Figure 71F273B 71F273B 2022-11 → — Figure 71F554A 71F554A 2022-12 → — Figure 71F274B 71F274B 2022-11 → — Figure 71F555A 71F555A 2022-12 → — Figure 71F269A 71F269A 2022-11 → — Figure 71F270B 71F270B 2022-11 → — Figure 71F556A 71F556A 2022-12 → — Figure 71F271B 71F271B 2022-11 → — Figure 71F557A 71F557A 2022-12 → — Figure 71F287B 71F287B 2022-11 → — Figure 71F288B 71F288B 2022-11 → — Figure 71F285C 71F285C 2022-12 → — Figure 71F286C 71F286C 2022-12 → — Figure 71A647A 71A647A 2022-11 → —

Part groups

PNCDescription
71321A Cushion, Rear Seat
71349F Cover, NO.1 Seatback Hinge, RH
71349G Cover, Rear Seatback Hinge
71537R Protector, Rear NO.2 Seat Cushion, RH
71537S Protector, Rear NO.2 Seat Cushion, LH
71691W Cover, Rear Seat Cushion Hinge, NO.1
71691X Cover, Rear Seat Cushion Hinge, NO.2
71692N Cover, Rear Seat Cushion Hinge, NO.3
71693J Cover, Rear Seat Cushion Hinge, NO.3
71695K Protector, NO.1 Seatback, RH
71695L Protector, NO.1 Seatback, LH
71696K Clip, NO.2 Seatback Protector, RH NO.1
71696L Clip, NO.2 Seatback Protector, LH NO.1
71701A Board Sub-assy, Rear Seatback, RH
71702D Board Sub-assy, Rear Seatback, LH
71704D Band Sub-assy, Rear Side Seat, RH
71704E Band Sub-assy, Rear Side Seat, LH
71769K Clip, NO.1 Seat Legrest Cover(FOR RH SEAT)
71769M Clip, NO.1 Seat Legrest Cover(FOR LH SEAT)
71826A Moulding, NO.1 Seat Cushion, LH Inner
71826C Moulding, Rear Seat Cushion, LH
71833K Cover, NO.1 Seat Reclining, NO.1 RH Outer
71833V Cover, NO.1 Seat Reclining, NO.2 RH
71834J Cover, NO.1 Seat Reclining, NO.1 LH Outer
71834S Cover, Rear Seat Reclining, NO.1 LH
71843H Cover, NO.2 Seat Reclining, NO.2 RH Inner
71844F Cover, NO.2 Seat Reclining, NO.2 LH Inner
71845F Cap, Rear Seat Cover
71845G Cap, Rear Seat Cover, RH
71846G Cap, Rear Seat Cover, LH
71875Y Cover, Reclining Adjuster Inside, RH NO.1(FOR LH SEATBACK)
71875Z Cover, Reclining Adjuster Inside, RH NO.2(FOR LH SEATBACK)
71877K Cover, Rear Seat Armrest Hole RH
71877L Cover, Rear Seat Armrest Hole LH
71930H Support Assy, NO.1 Seat Headrest, RH
71930J Support Assy, NO.1 Seat Headrest, LH
71930K Support Assy, NO.2 Seat Headrest, RH
71930L Support Assy, NO.2 Seat Headrest, LH
71930R Support Assy, Rear NO.2 Seat Headrest, Center
71930S Support Assy, Rear NO.1 Seat Headrest, Center
71940F Headrest Assy, NO.1 Seat, RH
71940G Headrest Assy, NO.1 Seat, LH
71940H Headrest Assy, NO.2 Seat, RH
71940J Headrest Assy, NO.2 Seat, LH
71960F Headrest Assy, Rear NO.2 Seat, Center
71960G Headrest Assy, Rear NO.1 Seat, Center
71H75E Cover, Reclining Adjuster Inside, RH(FOR REAR NO.1 RH SEAT)
71H75F Cover, Reclining Adjuster Inside, RH(FOR REAR NO.1 LH SEAT)
71H75L Cover, Reclining Adjuster Inside, RH NO.1(FOR RH SEAT)
71H75N Cover, Reclining Adjuster Inside, RH NO.3(FOR RH SEAT)
71H75P Cover, Reclining Adjuster Inside, RH NO.1(FOR RH SEATBACK)
71H75Q Cover, Reclining Adjuster Inside, RH NO.2(FOR RH SEATBACK)
71H75R Cover, Reclining Adjuster Inside, RH NO.1(FOR LH SEAT)
71H75S Cover, Reclining Adjuster Inside, RH NO.4(FOR RH SEAT)
71H76L Cover, Reclining Adjuster Inside, LH NO.1(FOR RH SEAT)
71H76M Cover, Reclining Adjuster Inside, LH NO.2(FOR RH SEAT)
71H76Q Cover, Reclining Adjuster Inside, LH NO.3(FOR LH SEAT)
71H76R Cover, Reclining Adjuster Inside, LH NO.4(FOR LH SEAT)
71H76S Cover, Reclining Adjuster Inside, LH NO.1(FOR LH SEATBACK)
71H76T Cover, Reclining Adjuster Inside, LH NO.2(FOR LH SEATBACK)
71H76U Cover, Reclining Adjuster Inside, LH NO.3(FOR RH SEAT)
71H76V Cover, Reclining Adjuster Inside, LH NO.4(FOR RH SEAT)
71T75 Cover, Reclining Adjuster Inside, RH
71T75A Cover, Reclining Adjuster Inside, RH NO.2
71T75B Clip, Reclining Adjuster Inside Cover, RH
71T75J Cover, Reclining Adjuster Inside, RH NO.3(FOR LH SEAT)
71T75N Cover, Reclining Adjuster Inside, RH NO.4(FOR LH SEAT)
71T76B Cover, Reclining Adjuster Inside, LH
71T76C Cover, Reclining Adjuster Inside, LH NO.2
71T76D Clip, Reclining Adjuster Inside Cover, LH
72046D Cover Sub-assy, Rear Seat Track, Outer LH NO.1
72046E Cover Sub-assy, Rear Seat Track, Outer LH NO.2
72057J Lever Sub-assy, Rear Seat Lock Control(FOR RH SEAT)
72057K Lever Sub-assy, Rear Seat Lock Control(FOR LH SEAT)
72075B Arm Sub-assy, Rear Seat Legrest, RH
72076C Arm Sub-assy, Rear Seat Legrest, LH
72123N Cover, Seat Track Bracket, Outer Front RH
72124D Cover, Seat Track Bracket, Outer Front LH
72127H Cover, Seat Track Bracket, Inner Front RH
72127J Cover, Seat Track Bracket, Inner Front LH
72127K Cover, Seat Track Bracket, Inner Front
72127L Clip, Seat Track Bracket Cover
72138U Cover, Seat Track Bracket, Outer Rear LH
72157H Cover, Seat Track Bracket, Inner Rear RH
72158G Cover, Seat Track Bracket, Inner Rear LH
72160M Track Assy, Rear Seat, Outer RH
72170H Track Assy, Rear Seat, Outer LH
72180K Track Assy, Rear Seat, Inner RH
72190H Track Assy, Rear Seat, Inner LH
72210S Cable Assy, NO.2 Seat Slide, RH
72210T Cable Assy, NO.2 Seat Slide, LH
72215A Lever, NO.1 Seat Track Handle Control, RH
72216B Lever, NO.1 Seat Track Handle Control, LH
72525N Handle, NO.1 Seat Reclining Adjuster Release, RH
72526J Handle, NO.1 Seat Reclining Adjuster Release, LH
72681E Hook, Rear Seat
72695H Cable, Rear NO.1 Seat Lock Control, RH
72695M Cable, Rear NO.1 Seat Lock Control, LH
72749J Spacer, Rear Seat Reclining
72830T Bush (FOR REAR SEAT CENTER ARMREST)
72830X Armrest Assy, Rear Seat, Center
72848C Cap, NO.1 Seat Armrest, NO.1 RH
72848D Cap, NO.1 Seat Armrest, NO.1 LH
72880B Armrest Assy, NO.1 Seat, C RH(FOR RH SEAT)
72890C Armrest Assy, NO.1 Seat, C LH(FOR LH SEAT)
72A37A Cover, Seat Track Bracket, Outer Rear RH
78060C Table Assy, NO.1 Seat Side
78656J Cover, Rear Seat Legrest, RH
78656K Cover, Rear Seat Legrest, LH
78656N Cover, Rear Seat Legrest, RH NO.2
78656P Cover, Rear Seat Legrest, LH NO.2
78656Q Cover, NO.1 Seat Legrest, RH NO.3
78656R Cover, NO.1 Seat Legrest, LH NO.3
78656S Cover, NO.1 Seat Legrest(FOR RH SEAT)
78656T Cover, NO.1 Seat Legrest(FOR LH SEAT)
78987B Cover, Rear NO.1 Seat Footrest, NO.1 LH
78987C Cover, Rear NO.1 Seat Footrest, NO.1 RH
78990B Adjuster Assy, NO.1 Seat Footrest(FOR RH SEAT)
78990C Adjuster Assy, NO.1 Seat Footrest(FOR LH SEAT)
79011B Cover Sub-assy, NO.1 Seat Cushion, RH
79012A Cover Sub-assy, NO.1 Seat Cushion, LH
79013D Cover Sub-assy, NO.1 Seatback, RH
79014B Cover Sub-assy, NO.1 Seatback, LH
79021D Cover Sub-assy, NO.2 Seat Cushion, RH
79022B Cover Sub-assy, NO.2 Seat Cushion, LH
79023D Cover Sub-assy, NO.2 Seatback, RH
79024D Cover Sub-assy, NO.2 Seatback, LH
79030C Leg Assy, Rear NO.2 Seat, RH
79040C Leg Assy, Rear NO.2 Seat, LH
79101C Frame Sub-assy, NO.1 Seat Cushion, RH
79102B Frame Sub-assy, NO.1 Seat Cushion, LH
79103B Frame Sub-assy, NO.1 Seatback, RH
79104A Frame Sub-assy, NO.1 Seatback, LH
79135C Pad, NO.1 Seat Cushion, RH
79136C Pad, NO.1 Seat Cushion, LH
79175F Pad, NO.1 Seatback, RH
79185A Pad, NO.1 Seatback, LH
79198A Retainer, Seatback Cover Hook, RH
79198B Retainer, Seatback Cover Hook, LH
79201C Frame Sub-assy, NO.2 Seat Cushion, RH
79202B Frame Sub-assy, NO.2 Seat Cushion, LH
79203B Frame Sub-assy, NO.2 Seatback, RH
79204C Frame Sub-assy, NO.2 Seatback, LH
79235F Pad, NO.2 Seat Cushion, RH
79245A Pad, NO.2 Seat Cushion, LH
79275F Pad, NO.2 Seatback, RH
79285C Pad, NO.2 Seatback, LH
