Toyota Innova
2022-11 → present · chassis MAGA10,MAGH10 · catalogue 614210 · General
Supported model
Data version 2024-03

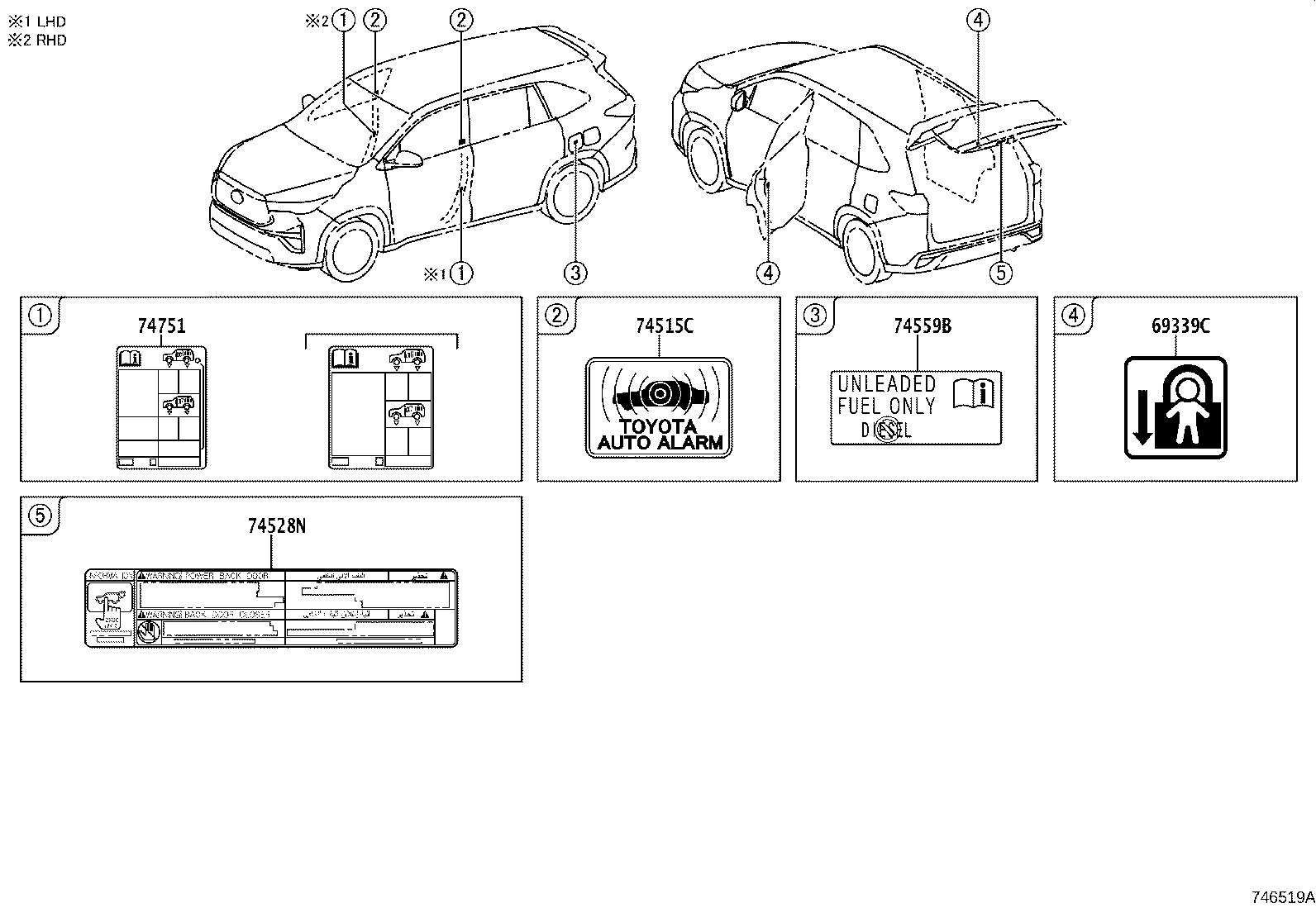

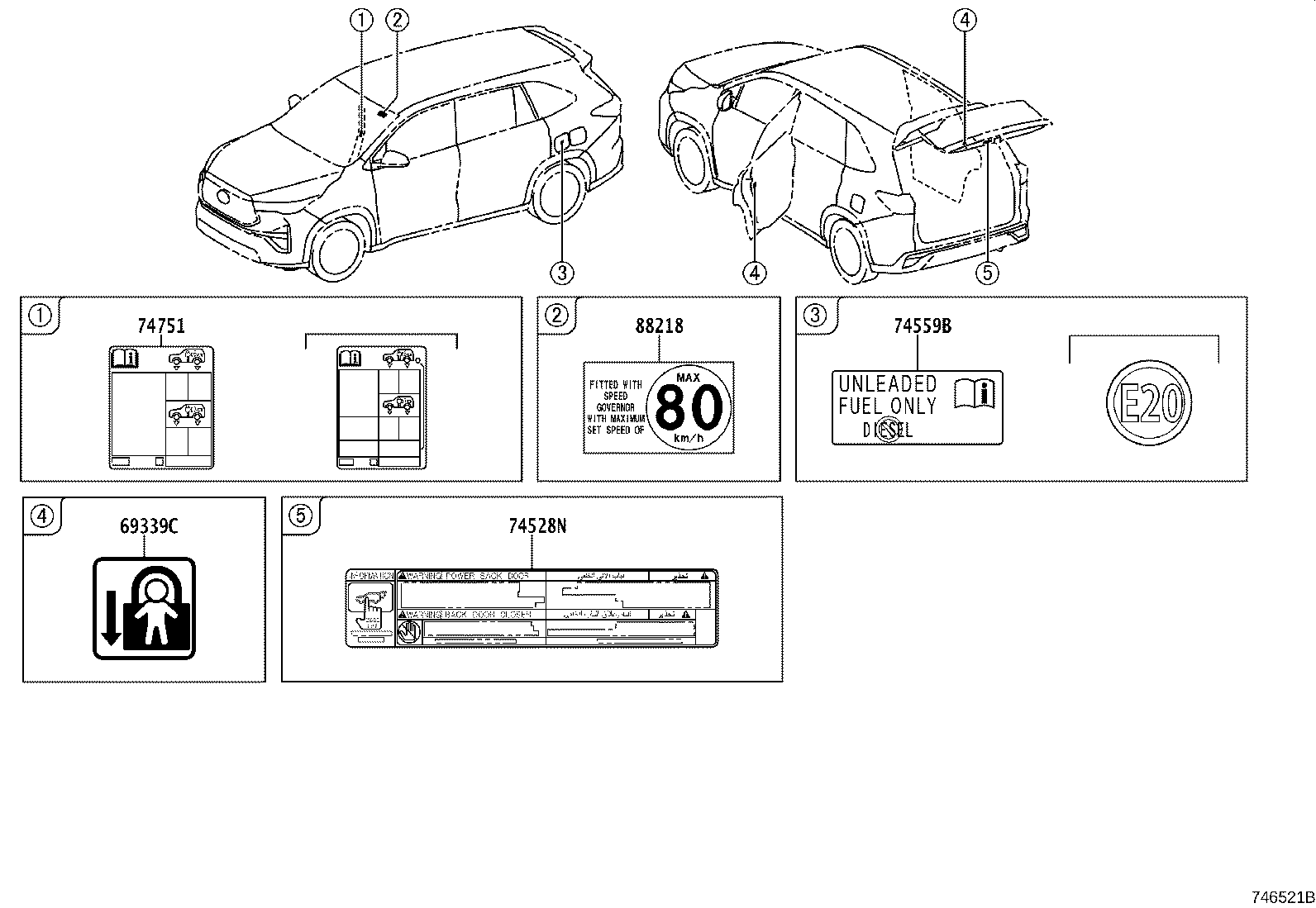

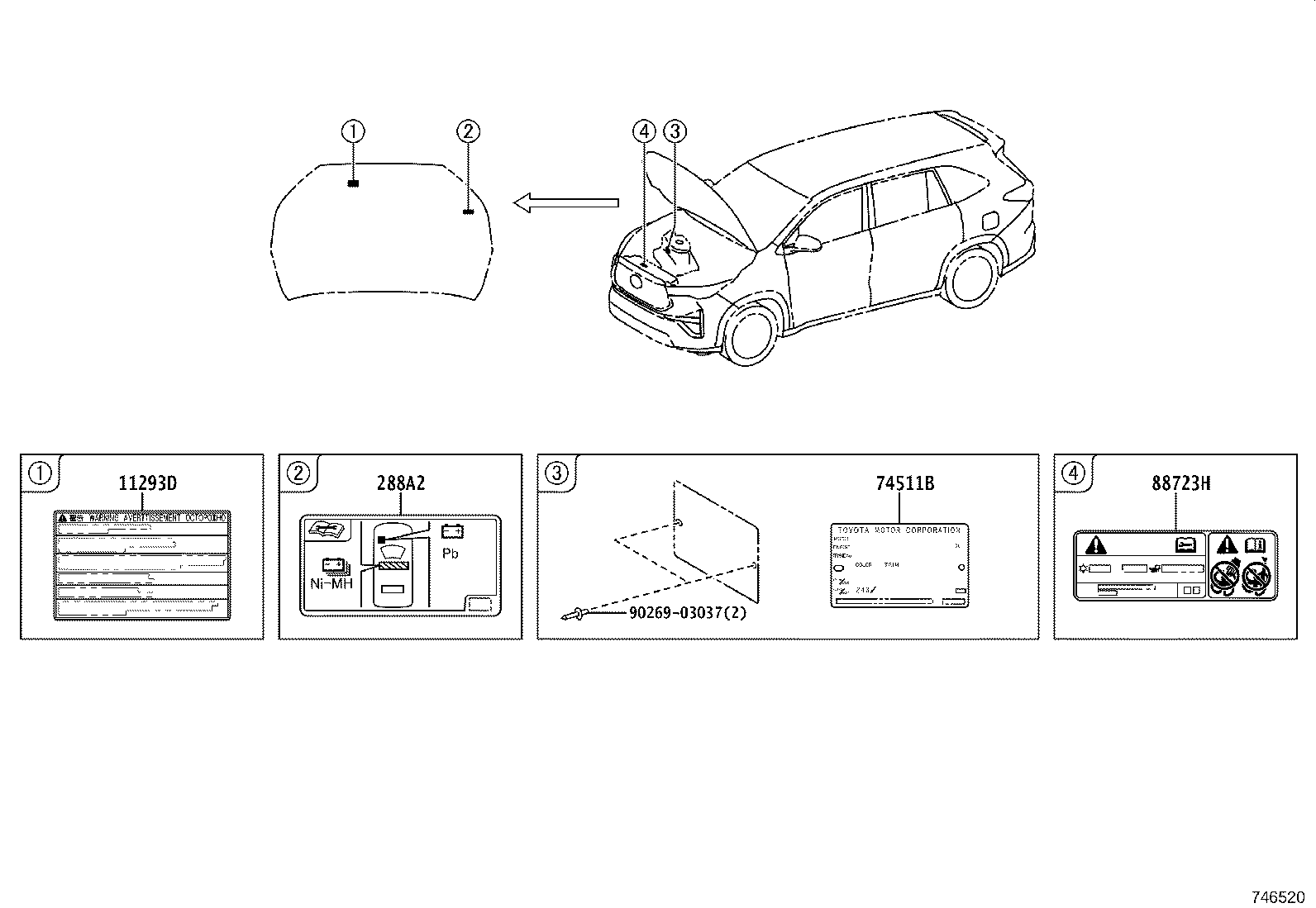

Caution Plate
11 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 11293D | Label, Engine Caution |
| 11298B | Label, Emission Control Information |
| 288A2 | Label, Battery Location |
| 69339C | Label, Child Protector Information |
| 74511B | Plate, Name |
| 74515C | Label, Theft Warning Information |
| 74528N | Label, Back Door Caution, NO.2 |
| 74559B | Label, Fuel Information |
| 74751 | Label, Tire Pressure Information |
| 88218 | Label, Speed Governor Information |
| 88723H | Label, Cooler Service Caution |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
