Toyota Innova

2022-11 → present · chassis MAGA10,MAGH10 · catalogue 614210 · General

Supported model Data version 2024-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate

8 part groups · 2 illustrations

Illustrations

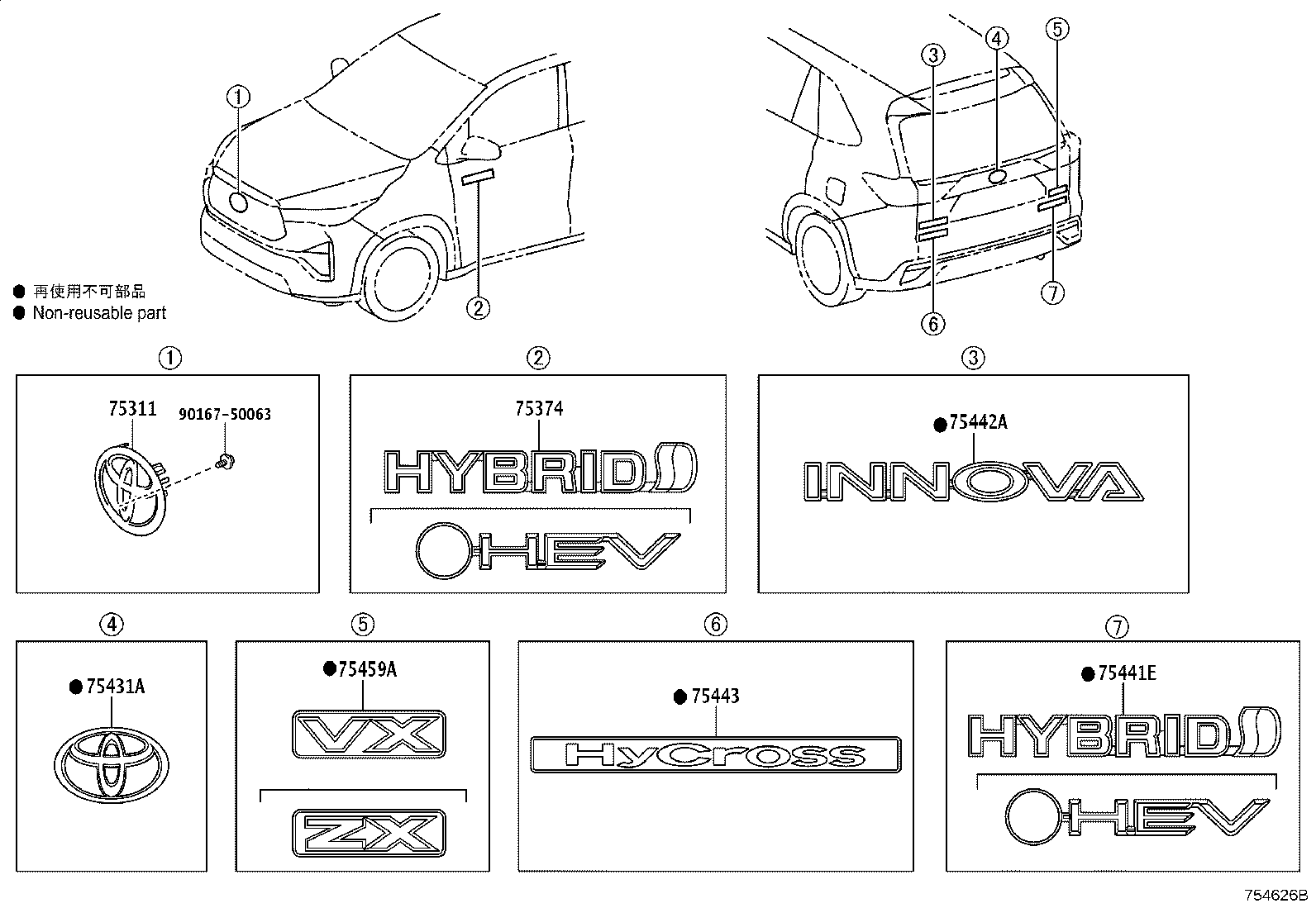

Figure 754627B 754627B 2022-11 → — Figure 754626B 754626B 2022-12 → —

Part groups

PNCDescription
75311 Emblem, Radiator Grille (OR FRONT PANEL)
75374 Emblem, Side Panel
75431A Emblem, Back Door, NO.1
75441E Plate, Back Door Name, NO.1
75442A Plate, Back Door Name, NO.2
75443 Plate, Back Door Name, NO.3
75444A Plate, Back Door Name, NO.4
75459A Mark, Back Door
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
