Toyota Innova

2022-11 → present · chassis MAGA10,MAGH10 · catalogue 614210 · General

Supported model Data version 2024-03

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

25 part groups · 5 illustrations

Illustrations

Figure 87L549A

87L549A 2022-11 → —

Figure 87L549A

87L549A 2024-04 → —

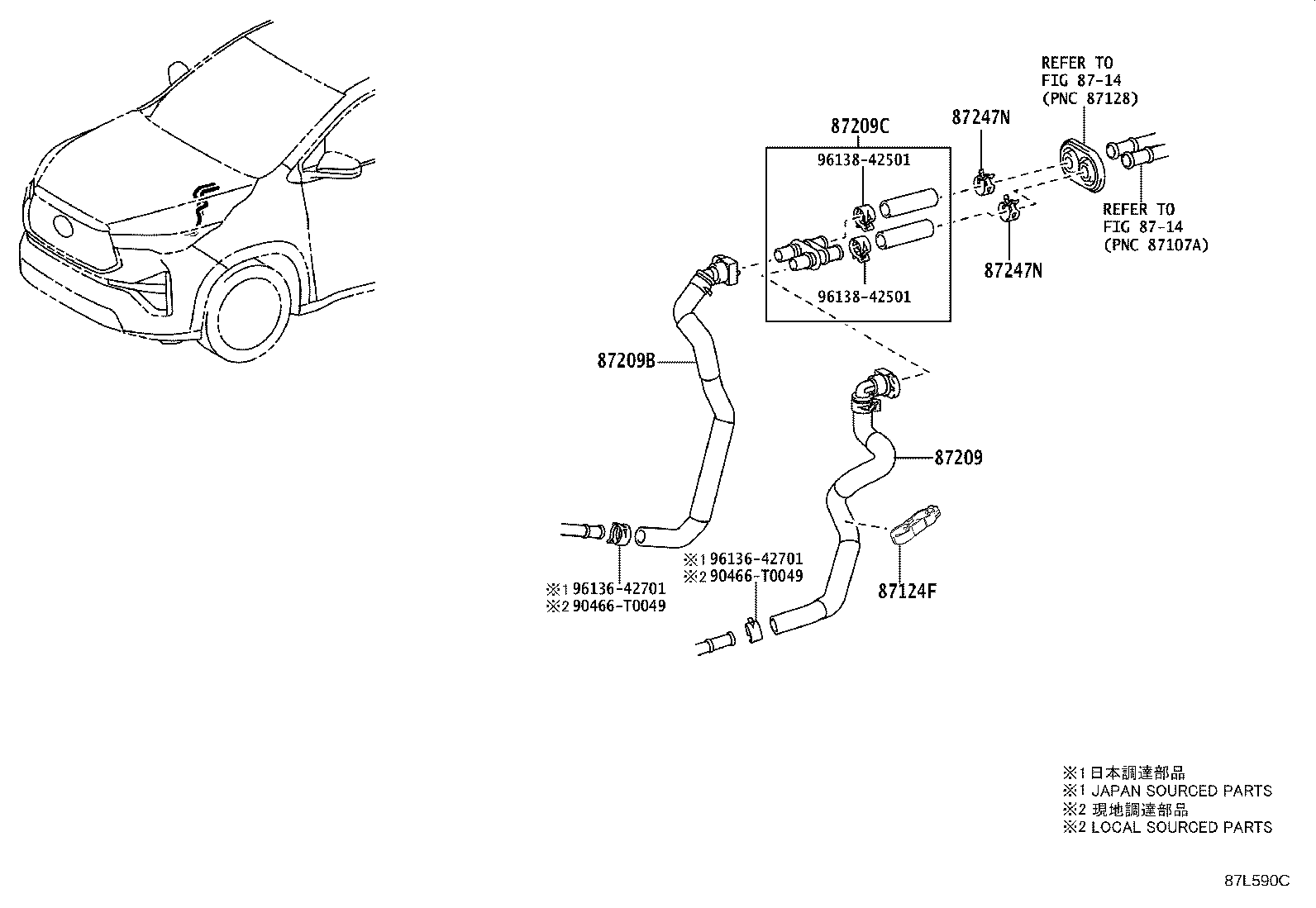

Figure 87L590C

87L590C 2022-11 → —

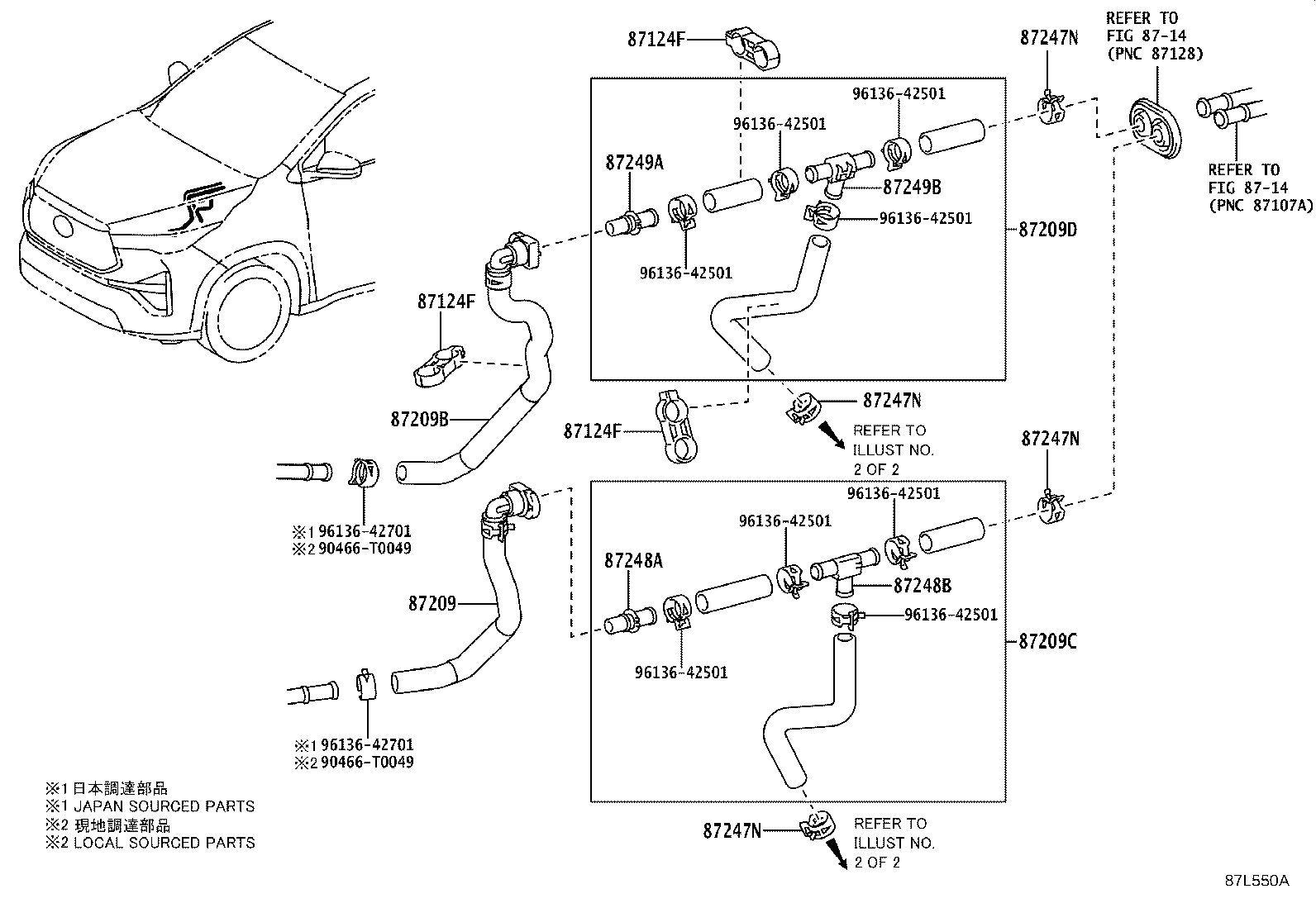

Figure 87L550A

87L550A 2022-11 → —

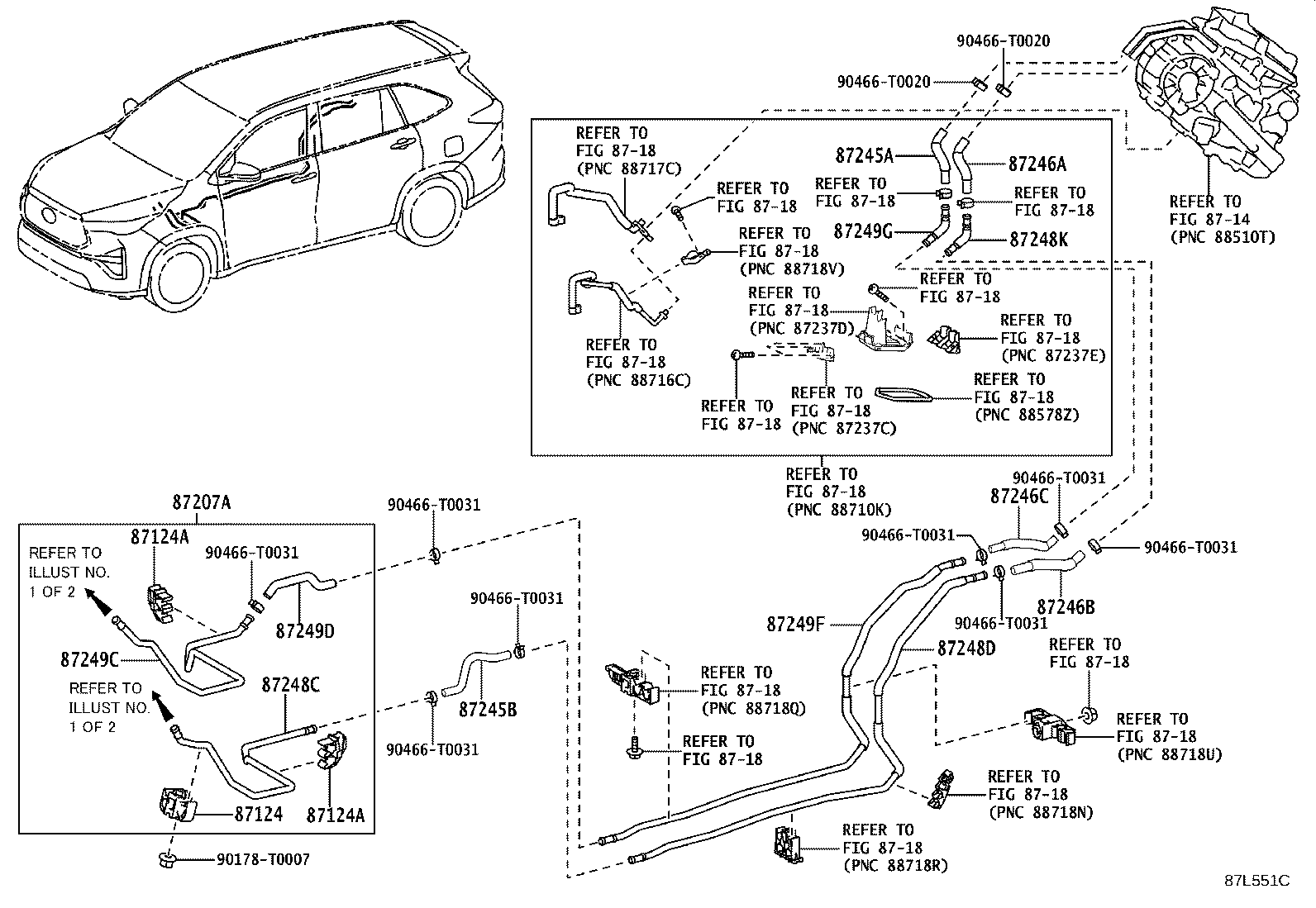

Figure 87L551C

87L551C 2022-11 → —

Part groups

PNC	Description
87124	Clamp, Heater
87124A	Clamp, Heater
87124F	Clamp, Heater Hose, NO.1
87207A	Pipe & Hose Sub-assy, Water A
87209	Hose Sub-assy, Water
87209B	Hose Sub-assy, Water, B
87209C	Hose Sub-assy, Water, C
87209D	Hose Sub-assy, Water, D
87245A	Hose, Heater Water, Inlet A
87245B	Hose, Heater Water, Inlet B
87246A	Hose, Heater Water, Outlet A
87246B	Hose, Heater Water, Outlet B
87246C	Hose, Heater Water, Outlet C
87247N	Clip, Hose
87248A	Pipe, Heater Water Inlet, A
87248B	Pipe, Heater Water Inlet, B
87248C	Pipe, Heater Water Inlet, C
87248D	Pipe, Heater Water Inlet, D
87248K	Pipe, Heater Water Inlet, K
87249A	Pipe, Heater Water Outlet, A
87249B	Pipe, Heater Water Outlet, B
87249C	Pipe, Heater Water Outlet, C
87249D	Pipe, Heater Water Outlet, D
87249F	Pipe, Heater Water Outlet, F
87249G	Pipe, Heater Water Outlet, G

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
