Toyota Innova

2022-11 → present · chassis MAGA10,MAGH10 · catalogue 614210 · General

Supported model Data version 2024-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

52 part groups · 11 illustrations

Illustrations

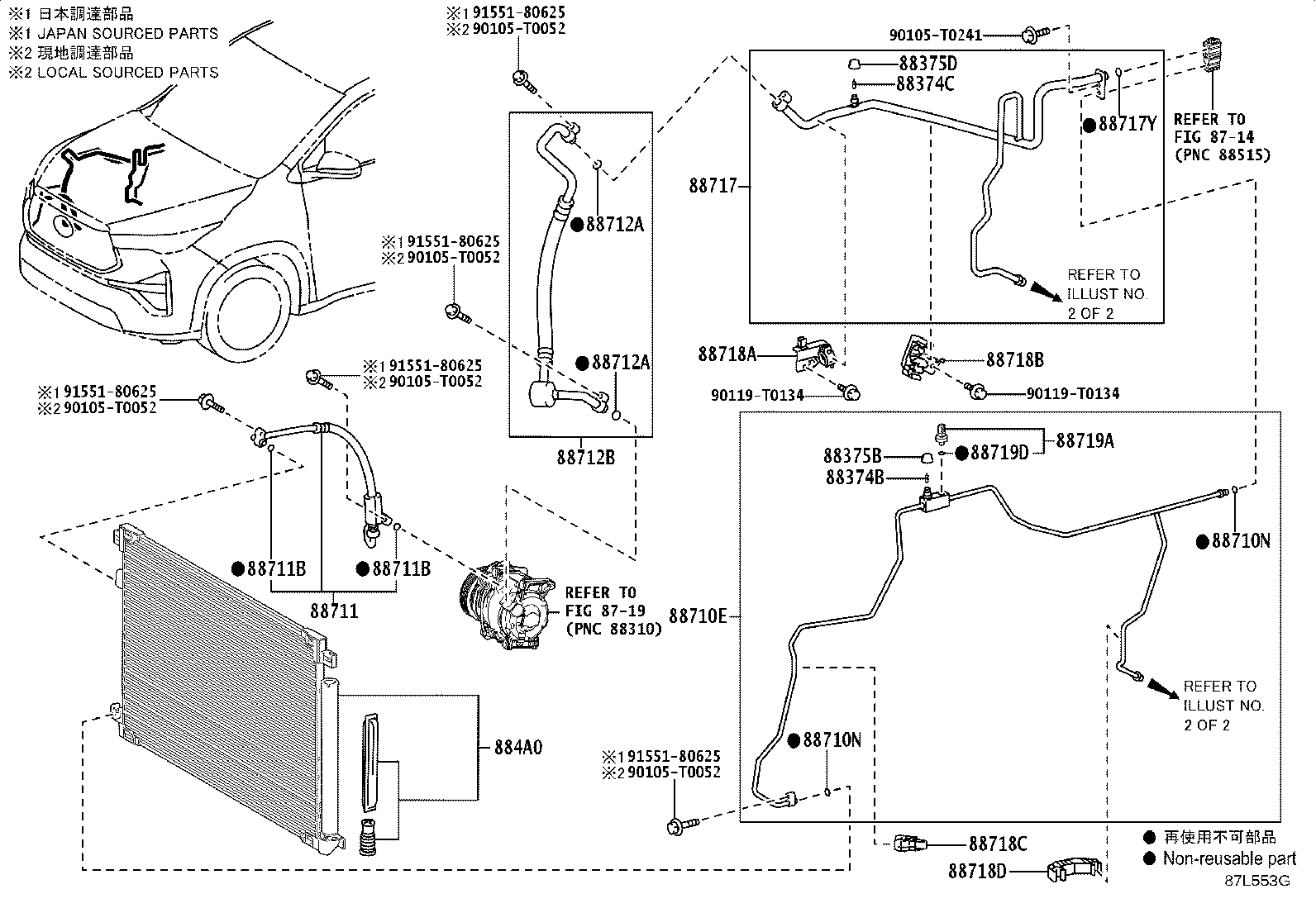

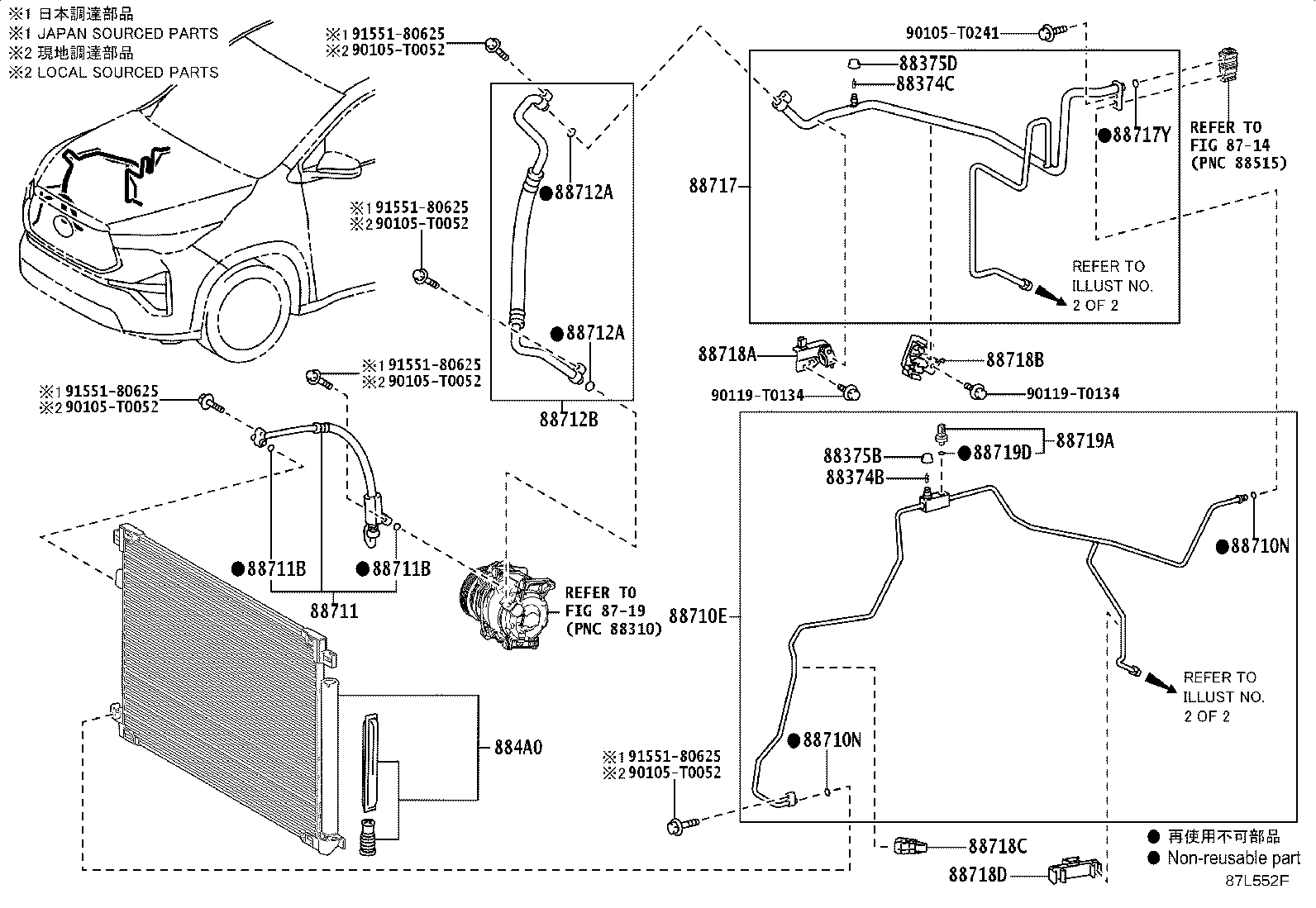

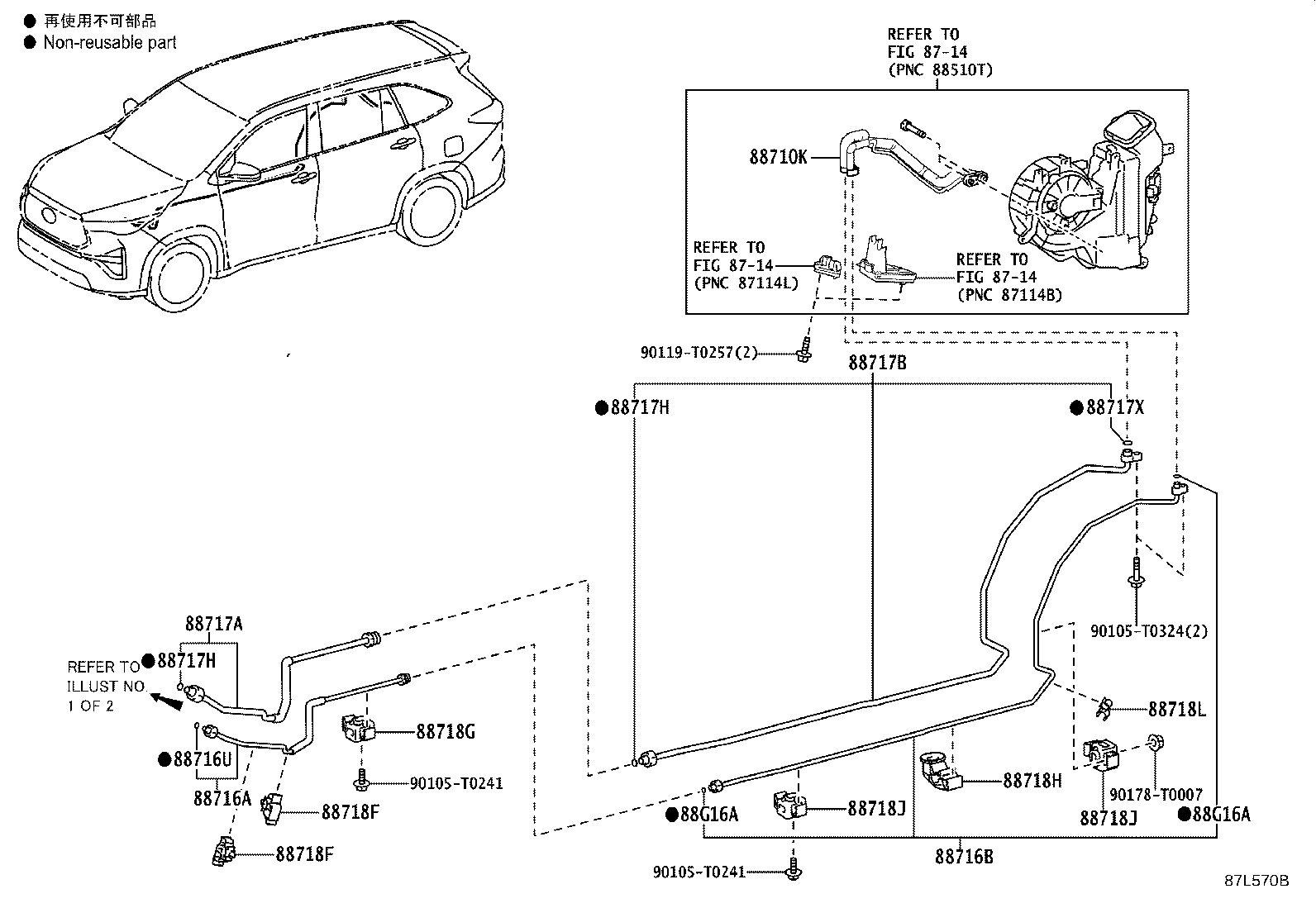

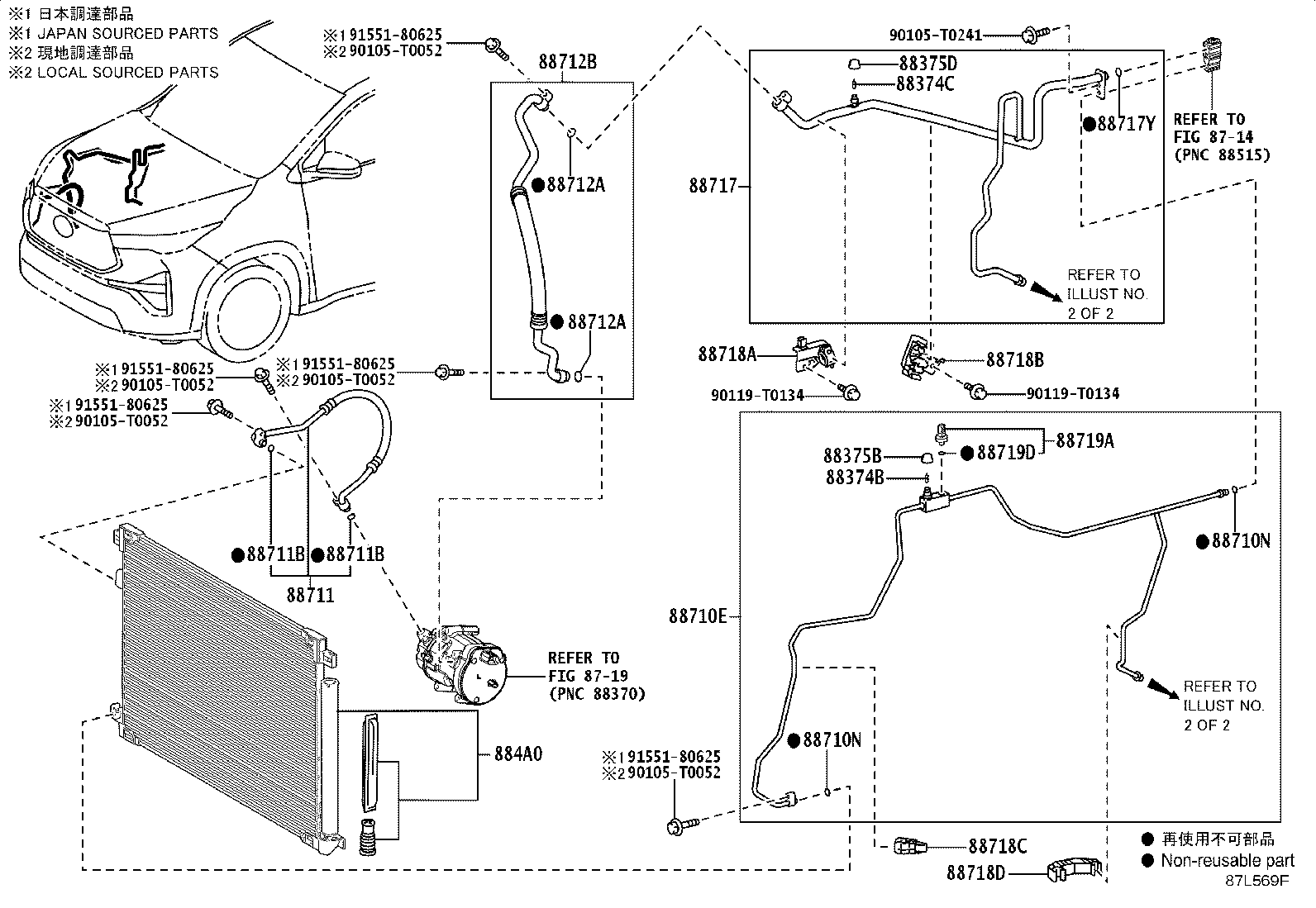

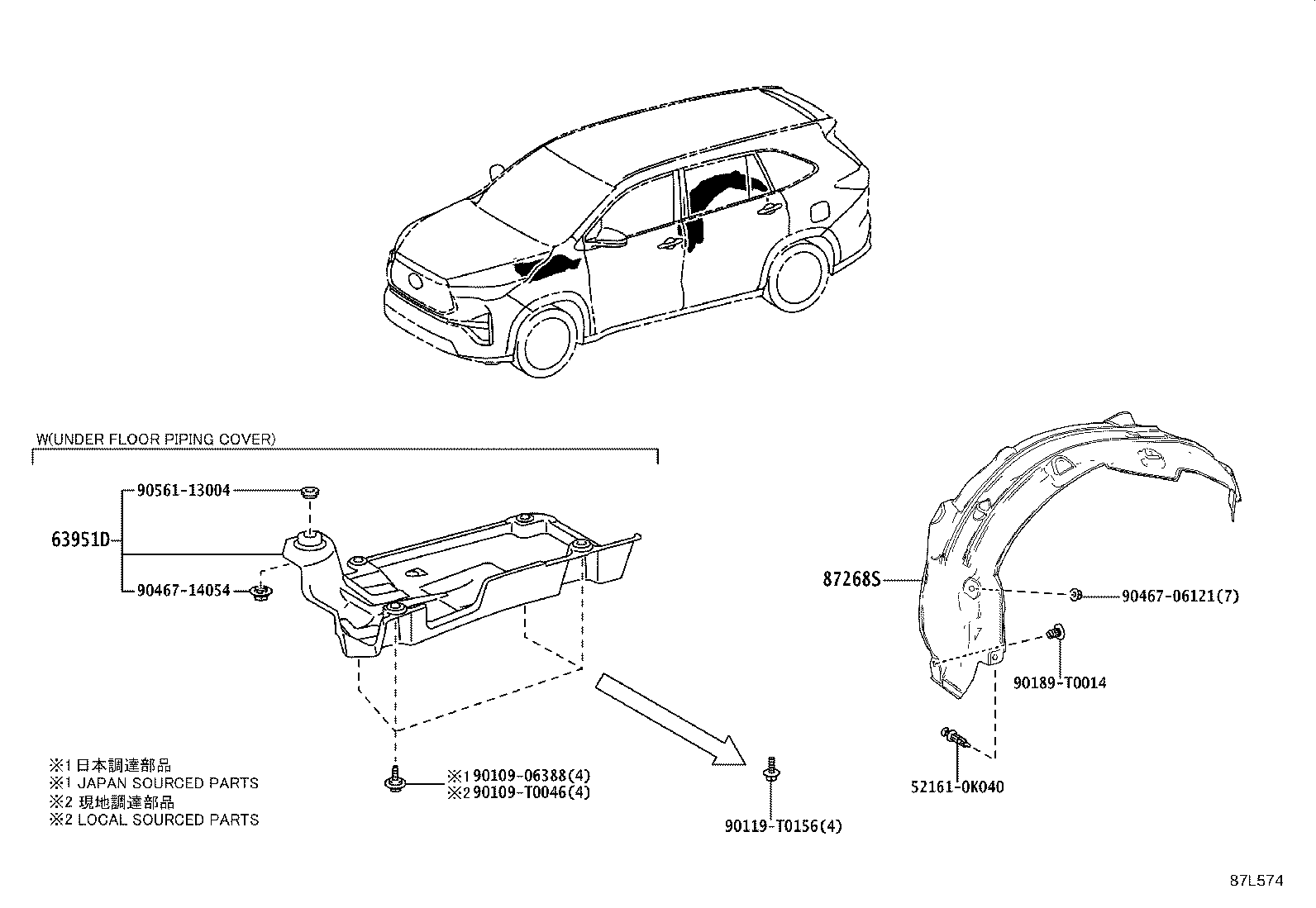

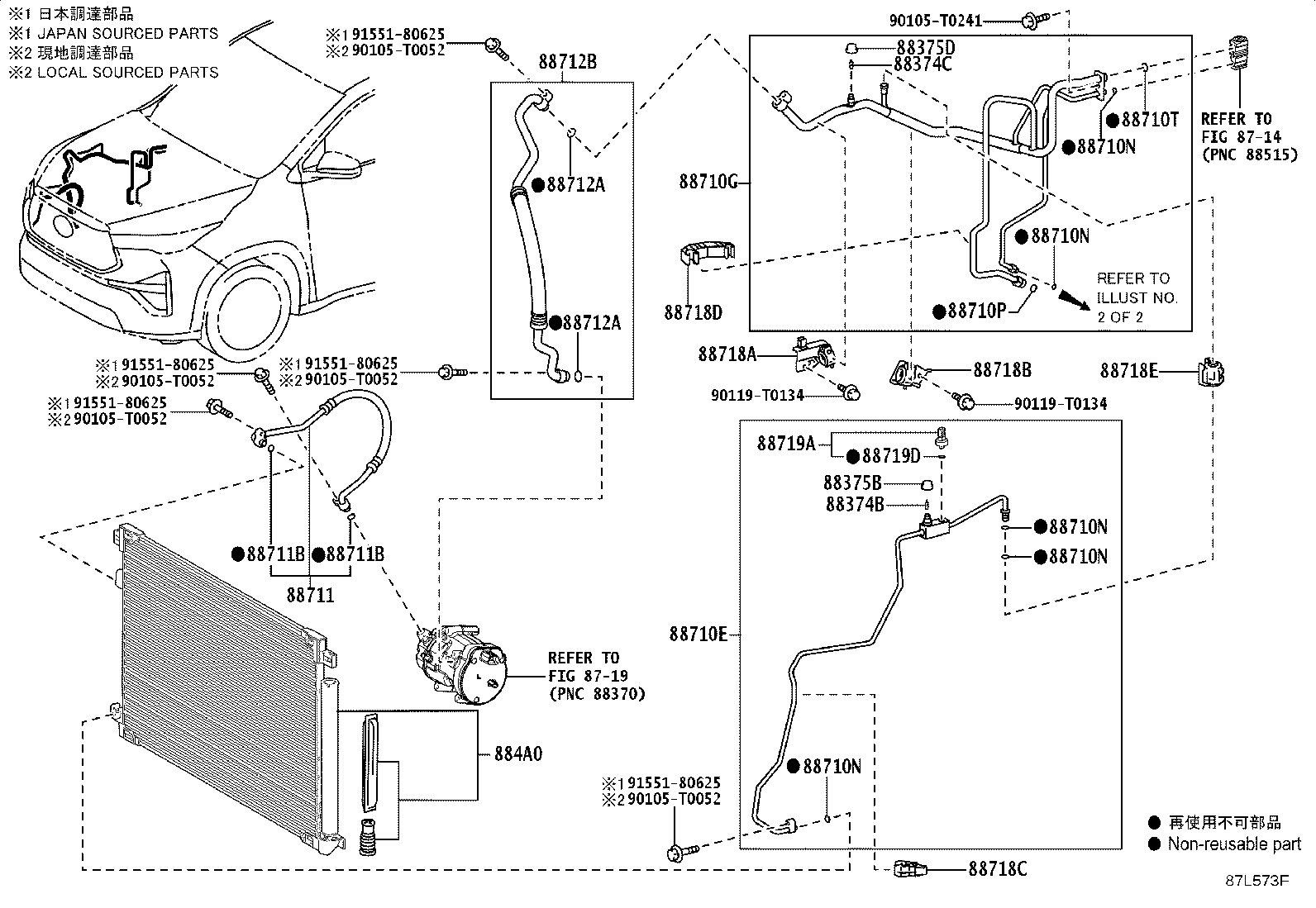

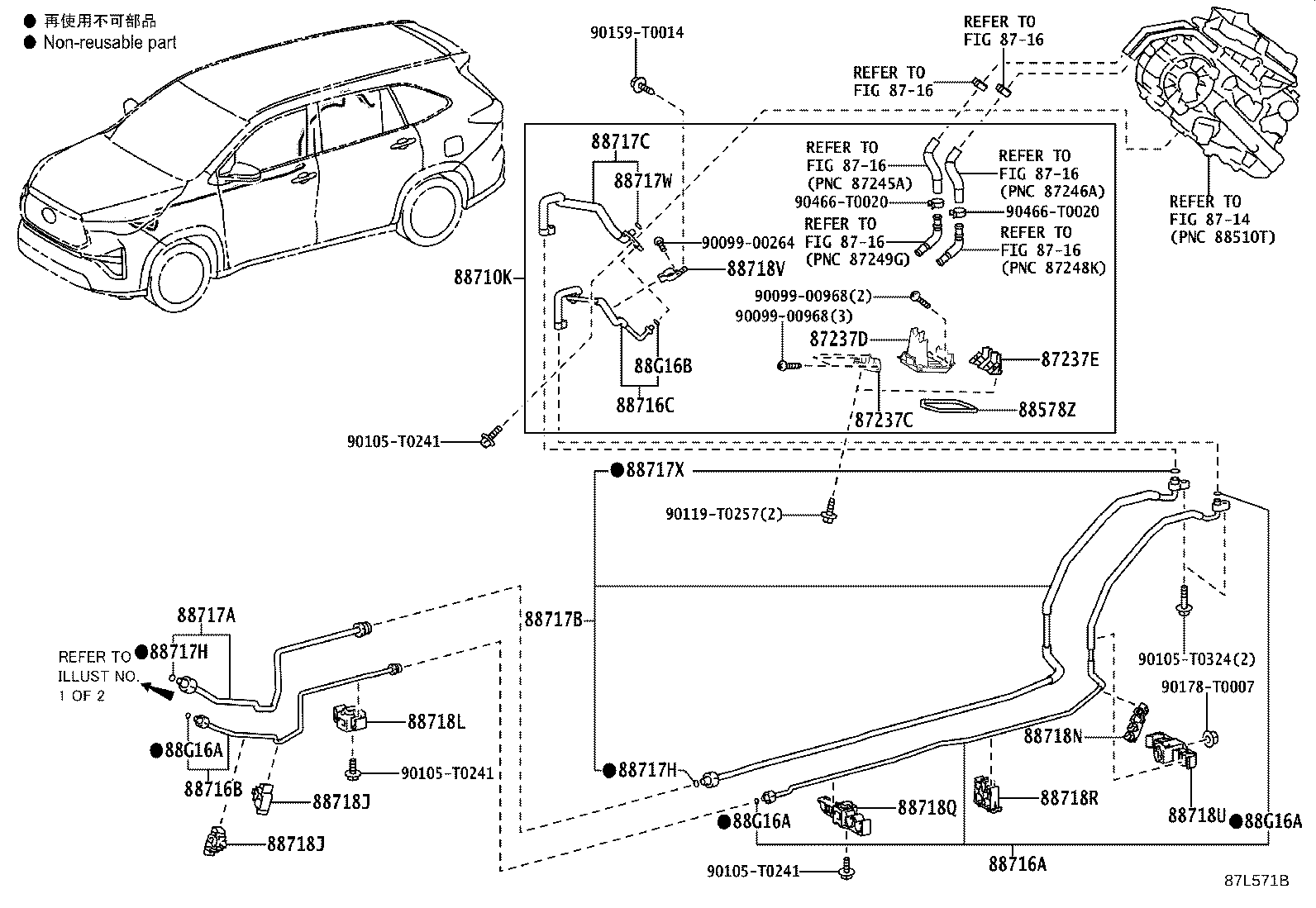

Figure 87L554F 87L554F 2022-11 → — Figure 87L553G 87L553G 2022-11 → — Figure 87L573F 87L573F 2022-11 → — Figure 87L569F 87L569F 2022-11 → — Figure 87L552F 87L552F 2022-11 → — Figure 87L552F 87L552F 2024-04 → — Figure 87L572F 87L572F 2022-11 → — Figure 87L570B 87L570B 2022-11 → — Figure 87L570B 87L570B 2024-04 → — Figure 87L571B 87L571B 2022-11 → — Figure 87L574 87L574 2022-11 → —

Part groups

PNCDescription
63951D Cover, Cooler Pipe
87237C Cover, Heater Piping
87237D Cover, Heater Piping, NO.2
87237E Cover, Heater Piping, NO.3
87268S Protector, Cooler Tube
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
884A0 Condenser Assy, Cooler
88578Z Packing, Cooler, NO.1
88710E Tube & Accessory Assy, Air Conditioner
88710G Tube & Accessory Assy, Air Conditioner, NO.2
88710K Tube & Accessory Assy, Air Conditioner, NO.3
88710N Ring, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
88710P Ring, O, NO.2(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
88710T Ring, O, NO.3(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
88711 Hose, Cooler Refrigerant Discharge, NO.1
88711B Ring, O(FOR COOLER REFRIGERANT DISCHARGE HOSE)
88712A Ring, O(FOR COOLER REFRIGERANT SUCTION HOSE)
88712B Hose, Cooler Refrigerant Suction
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88716U Ring, O(FOR COOLER REFRIGERANT LIQUID PIPE)
88717 Pipe, Cooler Refrigerant Suction, NO.1
88717A Pipe, Cooler Refrigerant Suction, A
88717B Pipe, Cooler Refrigerant Suction, B
88717C Pipe, Cooler Refrigerant Suction, C
88717H Ring, O(FOR COOLER REFRIGERANT SUCTION PIPE)
88717W Ring, O(FOR COOLER REFRIGERANT SUCTION PIPE) NO.2
88717X Ring, O(FOR COOLER REFRIGERANT SUCTION PIPE) NO.3
88717Y Ring, O, NO.1(FOR SUCTION TUBE)
88718A Clamp, NO.1(FOR COOLER REFRIGERANT PIPE)
88718B Clamp, NO.2(FOR COOLER REFRIGERANT PIPE)
88718C Clamp, NO.3(FOR COOLER REFRIGERANT PIPE)
88718D Clamp, NO.4(FOR COOLER REFRIGERANT PIPE)
88718E Clamp, NO.5(FOR COOLER REFRIGERANT PIPE)
88718F Clamp, NO.1(FOR COOLER REFRIGERANT HOSE)
88718G Clamp, NO.2(FOR COOLER REFRIGERANT HOSE)
88718H Clamp, NO.3(FOR COOLER REFRIGERANT HOSE)
88718J Clamp, NO.4(FOR COOLER REFRIGERANT HOSE)
88718L Clamp, Piping
88718N Clamp, Piping
88718Q Clamp, Piping
88718R Clamp, Piping
88718U Clamp, NO.6(FOR COOLER REFRIGERANT PIPE)
88718V Clamp, NO.7(FOR COOLER REFRIGERANT PIPE)
88719A Sensor, Air Conditioner Pressure
88719D Ring, O(FOR AIR CONDITIONER PRESSURE SENSOR)
88G16A Ring, O, NO.1(FOR COOLER REFRIGERANT LIQUID PIPE)
88G16B Ring, O, NO.2(FOR COOLER REFRIGERANT LIQUID PIPE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
