Toyota Innova

2022-11 → present · chassis MAGA10,MAGH10 · catalogue 614210 · General

Supported model Data version 2024-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

7 part groups · 4 illustrations

Illustrations

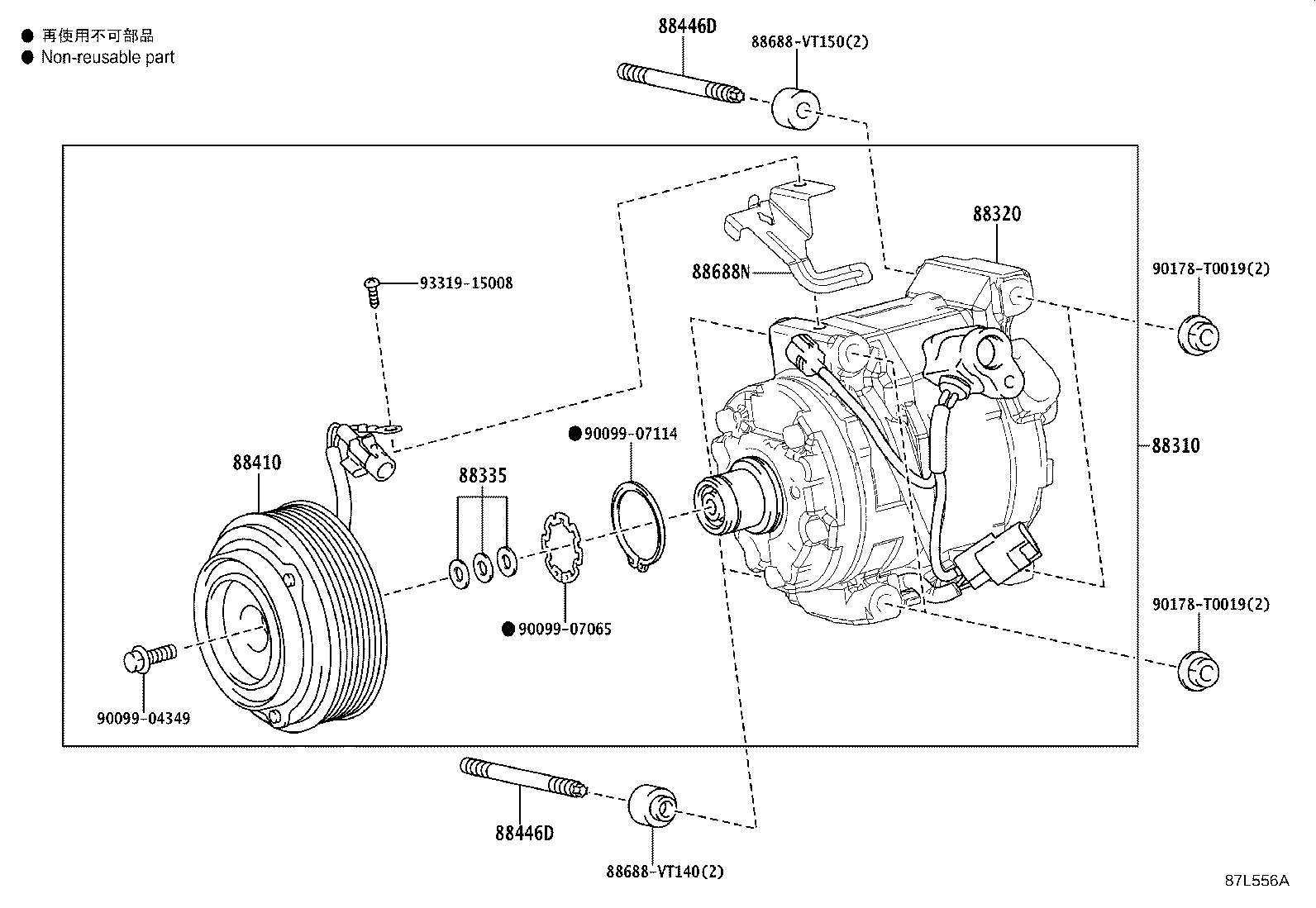

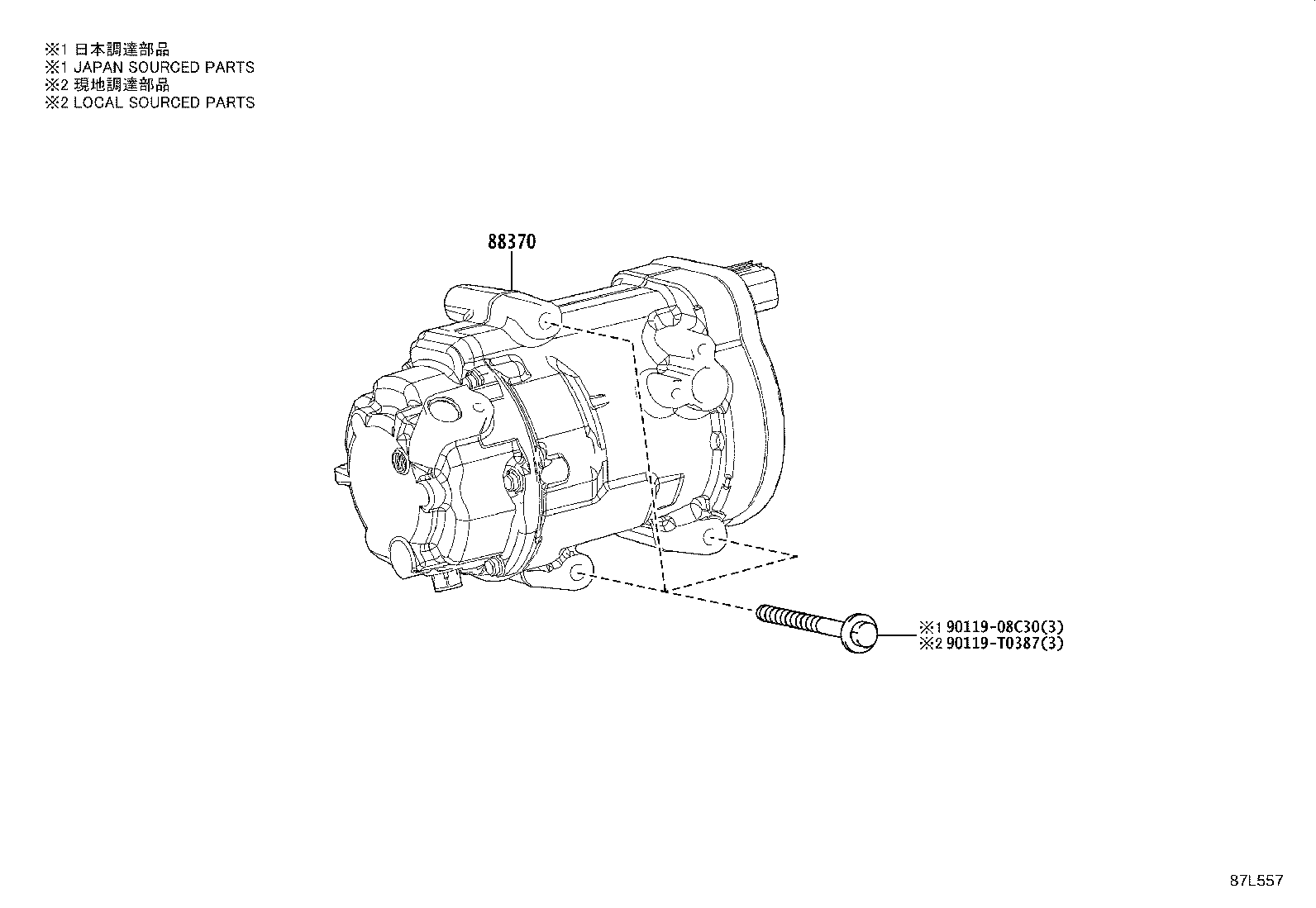

Figure 87L555A 87L555A 2022-11 → — Figure 87L555A 87L555A 2024-04 → — Figure 87L556A 87L556A 2022-11 → — Figure 87L557 87L557 2022-11 → —

Part groups

PNCDescription
88310 Compressor Assy, W/Pulley
88320 Compressor Assy, Cooler
88335 Gasket Kit, Overhaul
88370 Compressor Assy, W/Motor
88410 Clutch Assy, Magnet
88446D Bolt, Cooler
88688N Bracket, Cooler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
