Toyota Rush

2006-12 → 2017-11 · chassis F700 · catalogue 615310 · General

Discontinued model Data version 2018-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

11 part groups · 4 illustrations

Illustrations

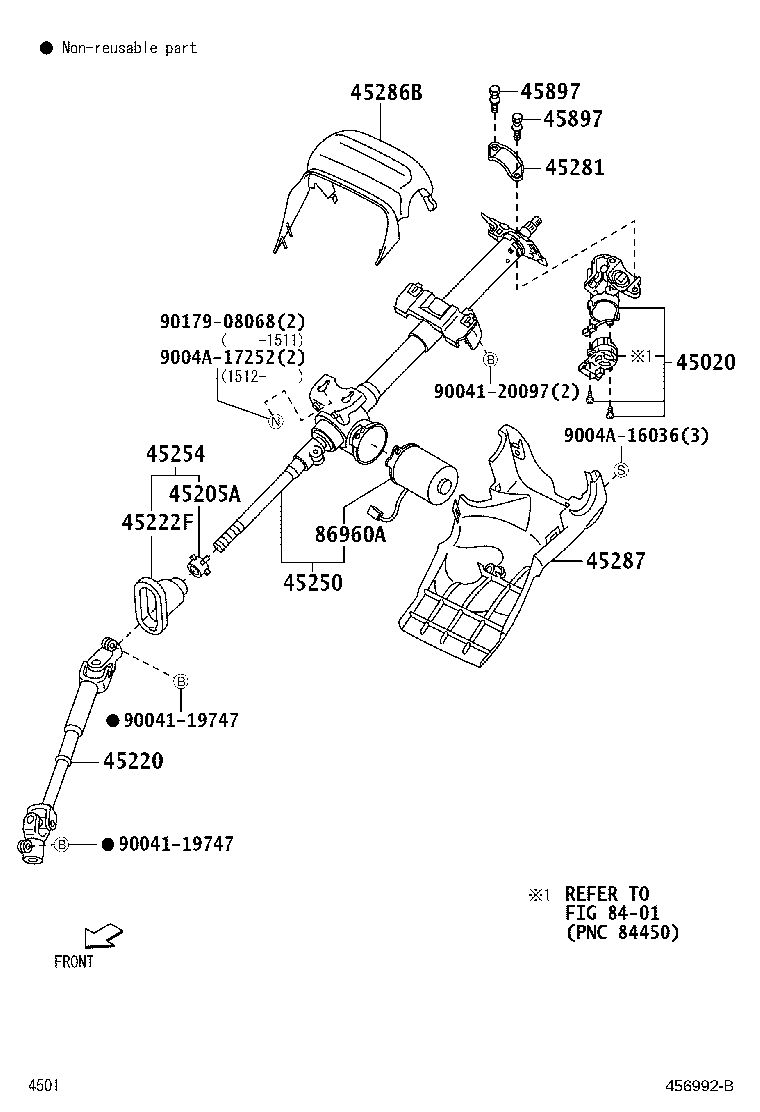

Figure 456991A 456991A 2006-12 → 2010-10 Figure 456991A 456991A 2006-12 → 2015-03 Figure 456992B 456992B 2010-10 → 2015-03 Figure 456992B 456992B 2015-03 → —

Part groups

PNCDescription
45020 Bracket Assy, Steering Column Upper W/Switch
45205A Bush(FOR STEERING COLUMN TUBE)
45220 Shaft Assy, Steering Intermediate
45222F Cover, Dust
45250 Column Assy, Steering
45254 Shield, Steering Column Hole
45281 Housing, Steering Column
45286B Cover, Steering Column, Upr
45287 Cover, Steering Column, Lwr
45897 Bolt, Steering Lock Set
86960A Motor Set, Power Steering
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
