Toyota Rush

2006-12 → 2017-11 · chassis F700 · catalogue 615310 · General

Discontinued model Data version 2018-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

7 part groups · 2 illustrations

Illustrations

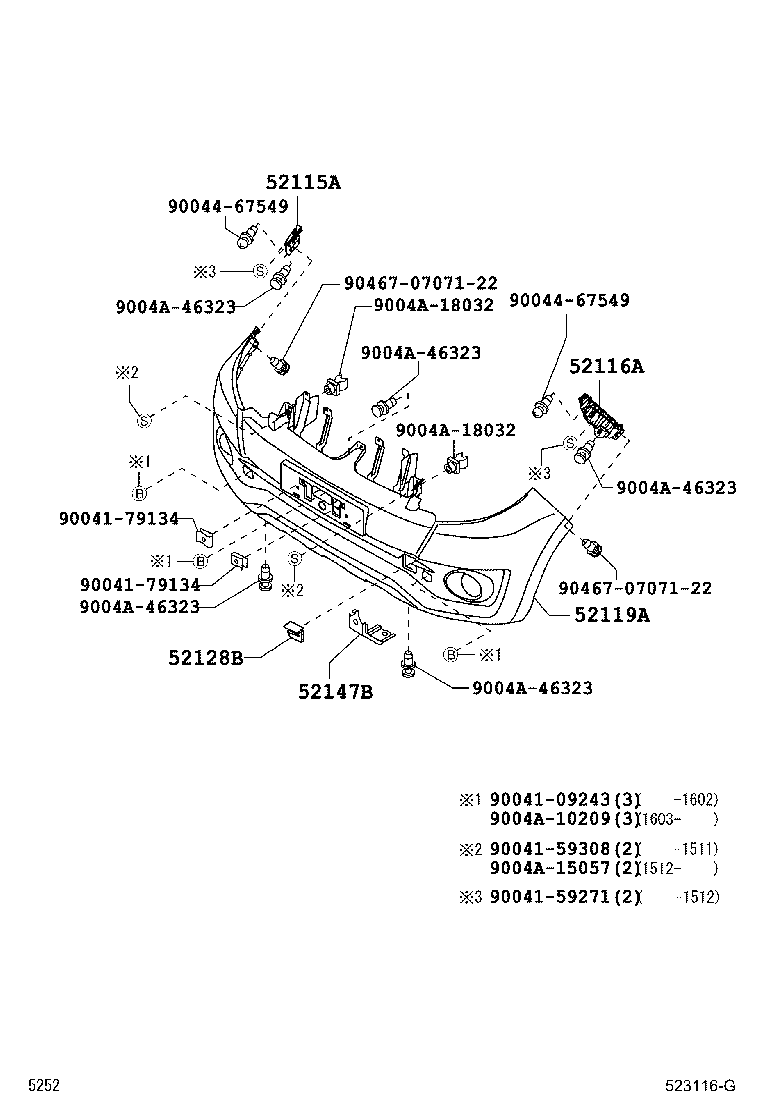

Figure 521655I 521655I 2006-12 → 2015-03 Figure 523116G 523116G 2015-03 → —

Part groups

PNCDescription
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52128B Cover, Front Bumper Hole, LH
52147B Bracket, Front Bumper Mounting
81481E Cover, Fog Lamp, RH
81482C Cover, Fog Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
