Toyota Rush
2006-12 → 2017-11 · chassis F700 · catalogue 615310 · General
Discontinued model
Data version 2018-10

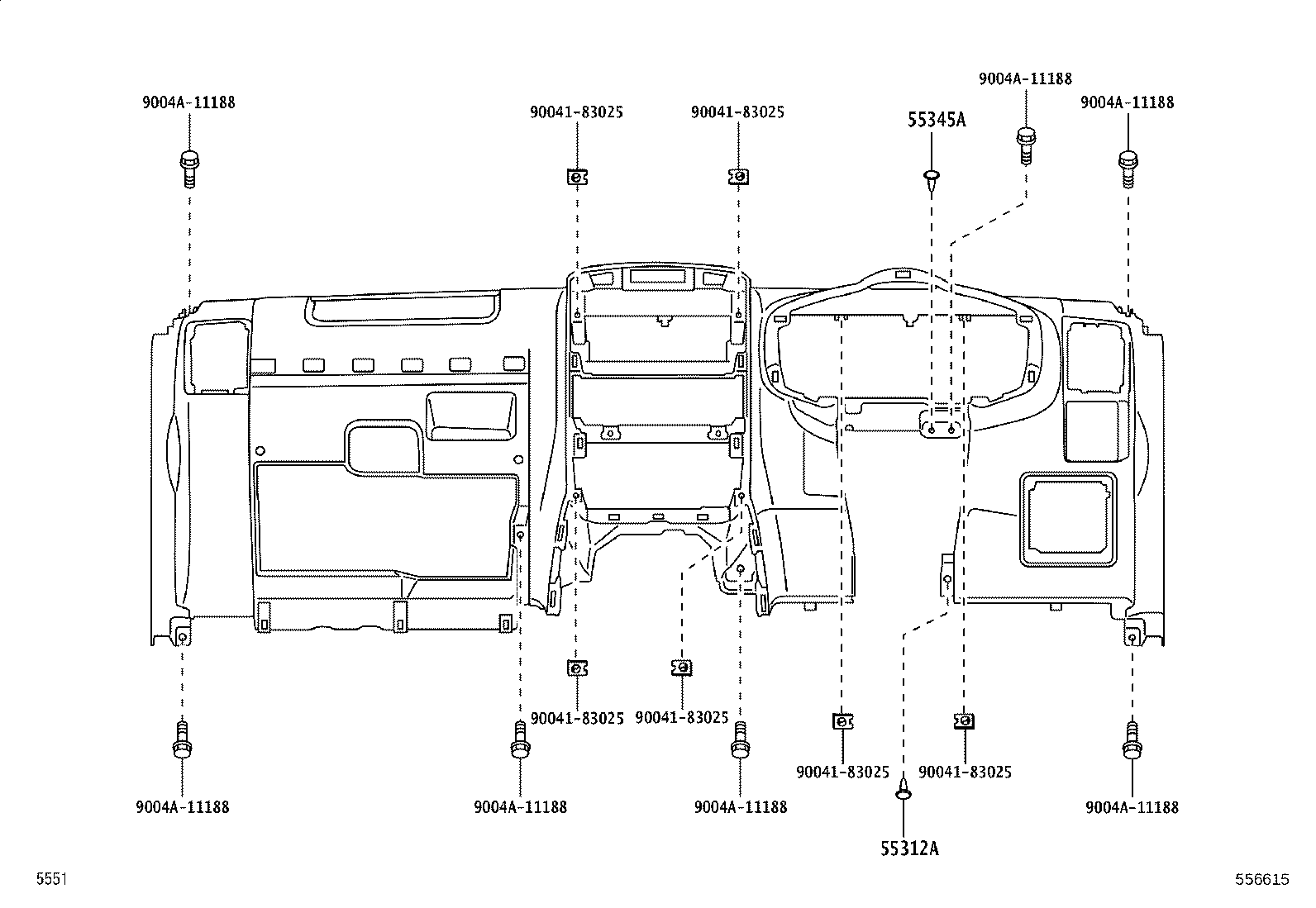

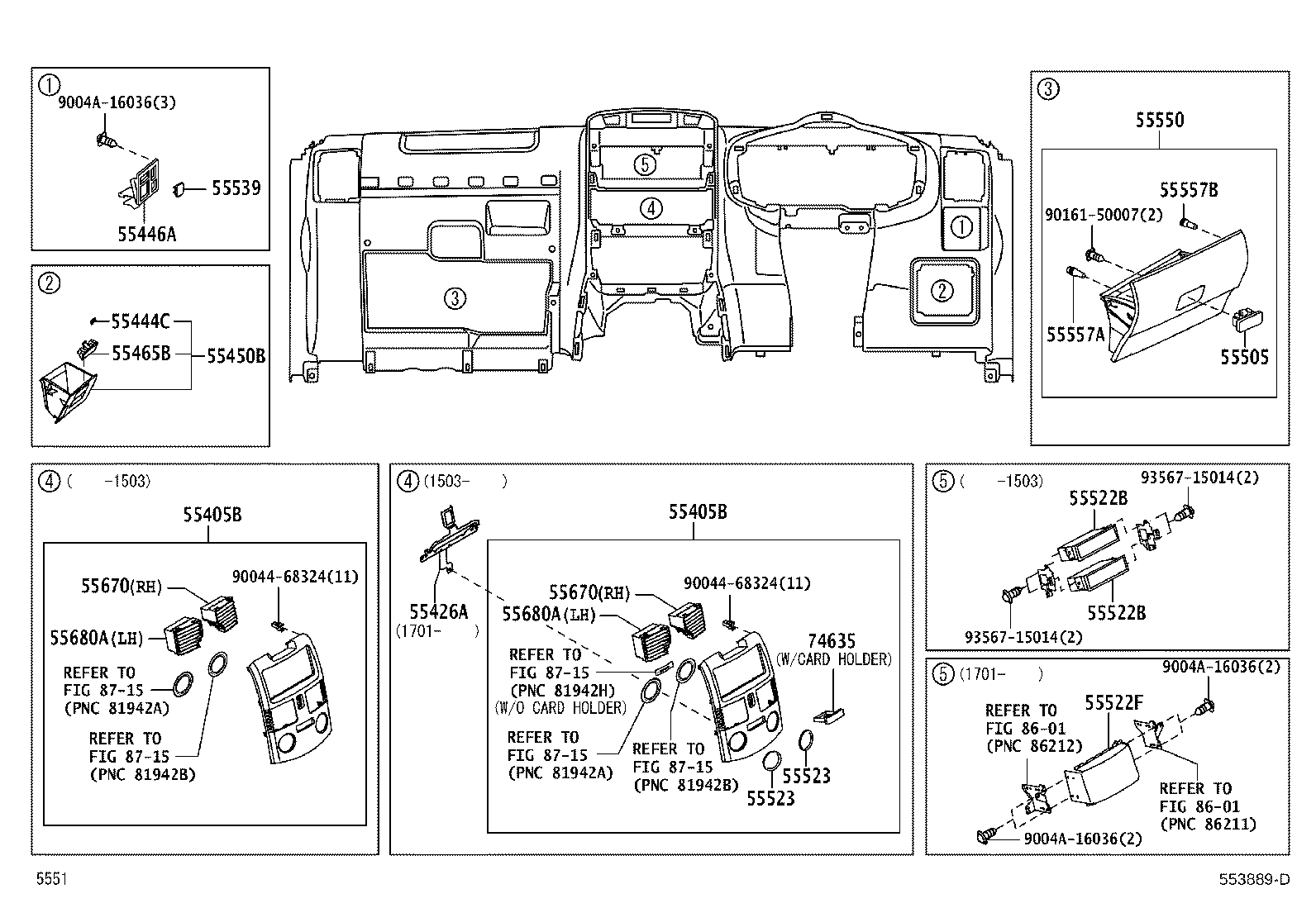

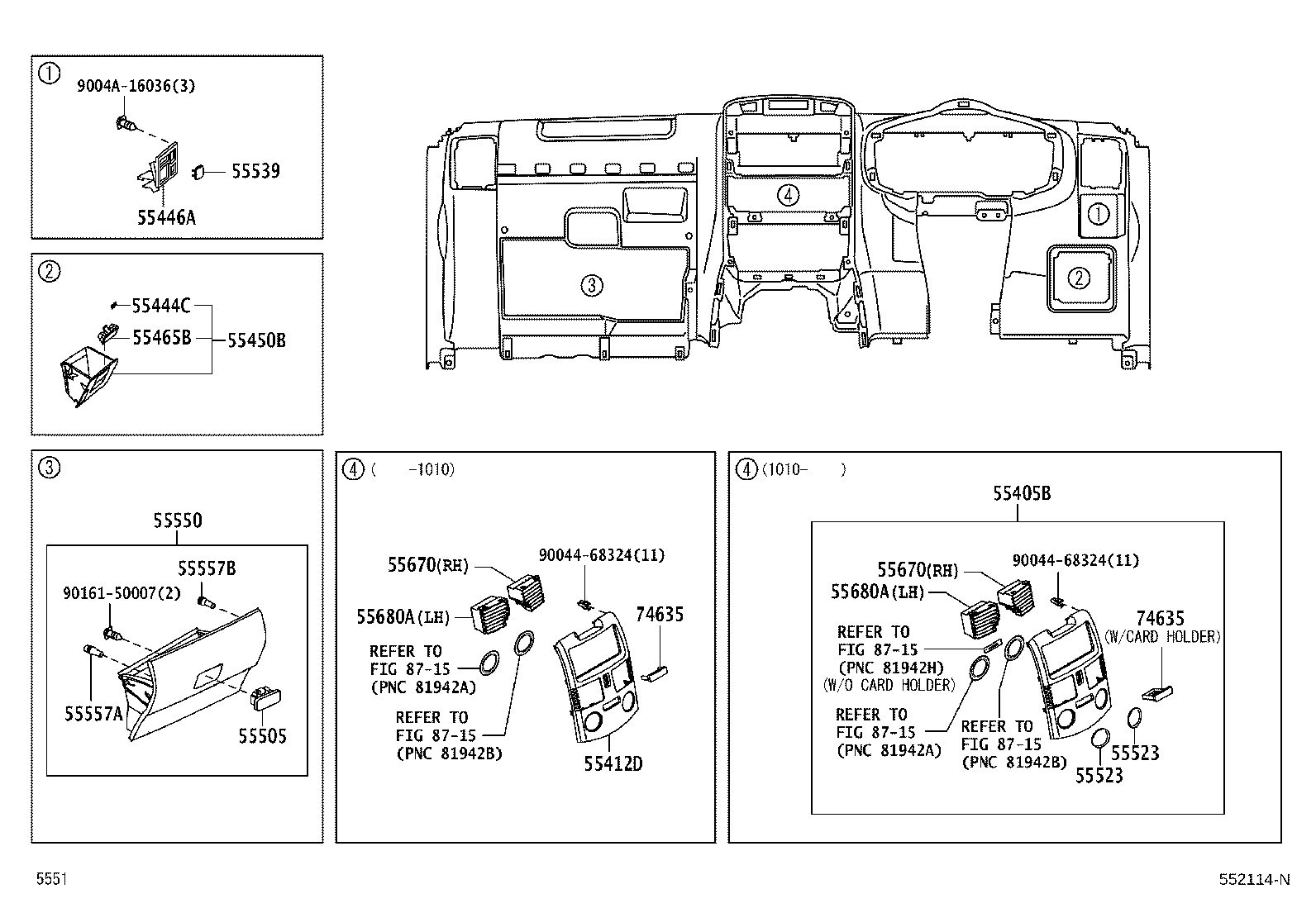

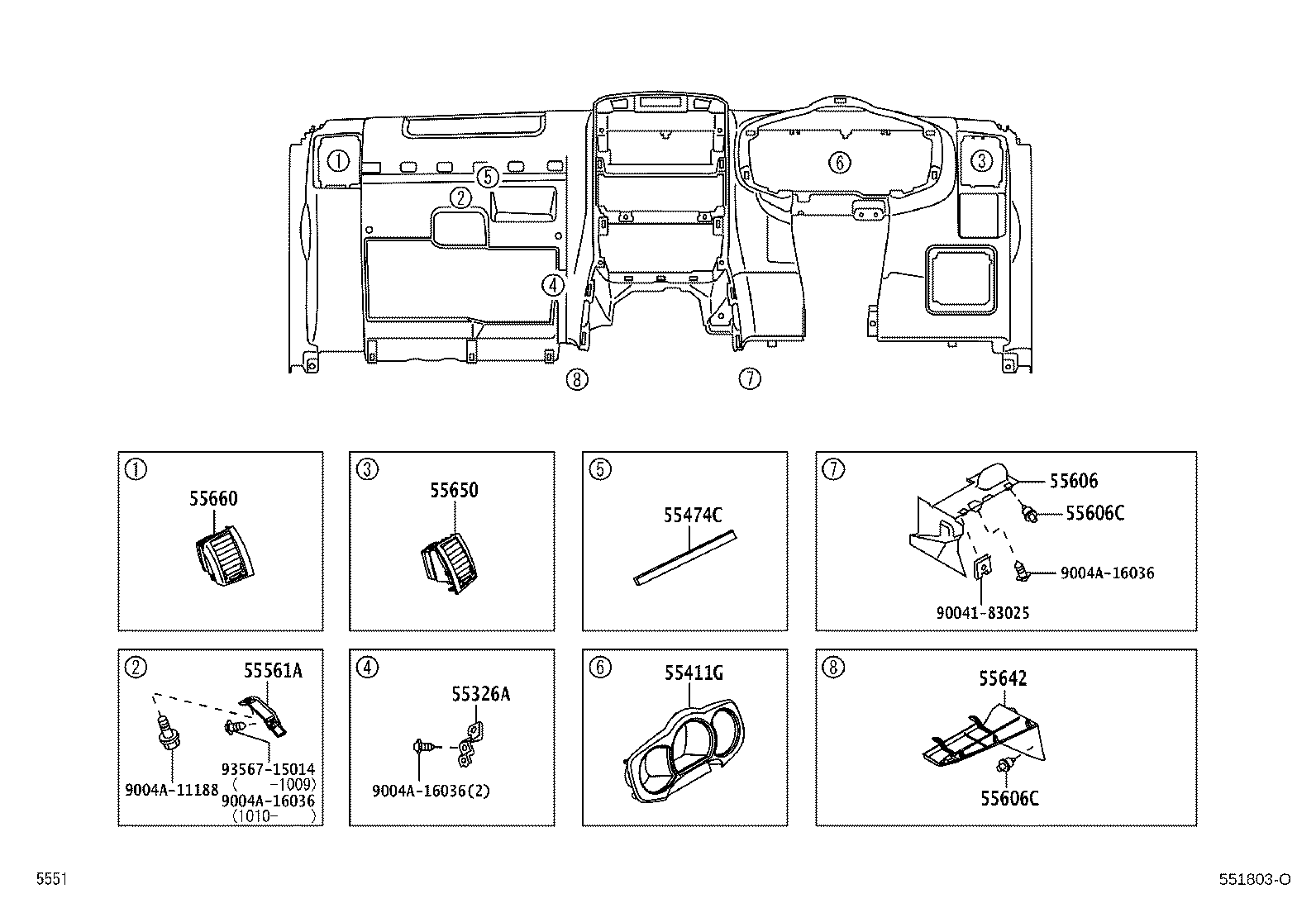

Instrument Panel & Glove Compartment
41 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 50540 | DO0R Assy, Airbag Passenger |
| 55301 | Panel Sub-assy, Instrument |
| 55303A | Stay Sub-assy, Instrument Panel |
| 55306A | Brace Sub-assy, Instrument Panel, NO.1 |
| 55312A | Clip, Instrument Panel |
| 55326A | Stay, Instrument Panel, NO.1 |
| 55331 | Reinforcement, Instrument Panel |
| 55345A | Clip, Instrument Panel, NO.1 |
| 55355 | Cushion, Instrument Panel, NO.1 |
| 55358K | Cushion, Instrument Panel, NO.4 |
| 55405B | Panel Sub-assy, Instrument Cluster Finish, Center |
| 55411G | Panel, Instrument Cluster Finish, NO.1 |
| 55412D | Panel, Instrument Cluster Finish, Center |
| 55426A | Bracket, Cluster Finish Panel, NO.1 |
| 55444C | Spring, Instrument Panel Box |
| 55446A | Base, Switch Hole, NO.1 |
| 55450B | Box Assy, Coin |
| 55453D | Pad, Instrument Panel Safety, NO.1 |
| 55454B | Pad, Instrument Panel Safety, NO.2 |
| 55465B | Knob, Instrument Panel Box Lock |
| 55474C | Garnish, Instrument Cluster Finish Panel, NO.1 |
| 55505 | Lock Sub-assy, Glove Compartment Door |
| 55522B | Cover, Radio Tuner Opening |
| 55522F | Cover, Radio Tuner Opening |
| 55523 | Cover, Heater Control Opening |
| 55539 | Cover, Spare Switch Hole |
| 55550 | Door Assy, Glove Compartment |
| 55557A | Cushion, Glove Compartment Door Check |
| 55557B | Stopper, Glove Compertment Door Check |
| 55561A | Striker, Glove Compartment Door Lock |
| 55606 | Cover Sub-assy, Instrument Panel Under, NO.1 |
| 55606C | Clip(FOR INSTRUMENT PANEL UNDER COVER) |
| 55642 | Cover, Instrument Panel Under, NO.2 |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55670 | Register Assy, Instrument Panel, NO.3 |
| 55680A | Register Assy, Instrument Panel, NO.4 |
| 55981 | Garnish, Defroster Nozzle, NO.1 |
| 55982 | Garnish, Defroster Nozzle, NO.2 |
| 73970A | Airbag Assy, Instrument Panel Passenger |
| 74635 | Holder, Card |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
