Toyota Rush
2006-12 → 2017-11 · chassis F700 · catalogue 615310 · General
Discontinued model
Data version 2018-10

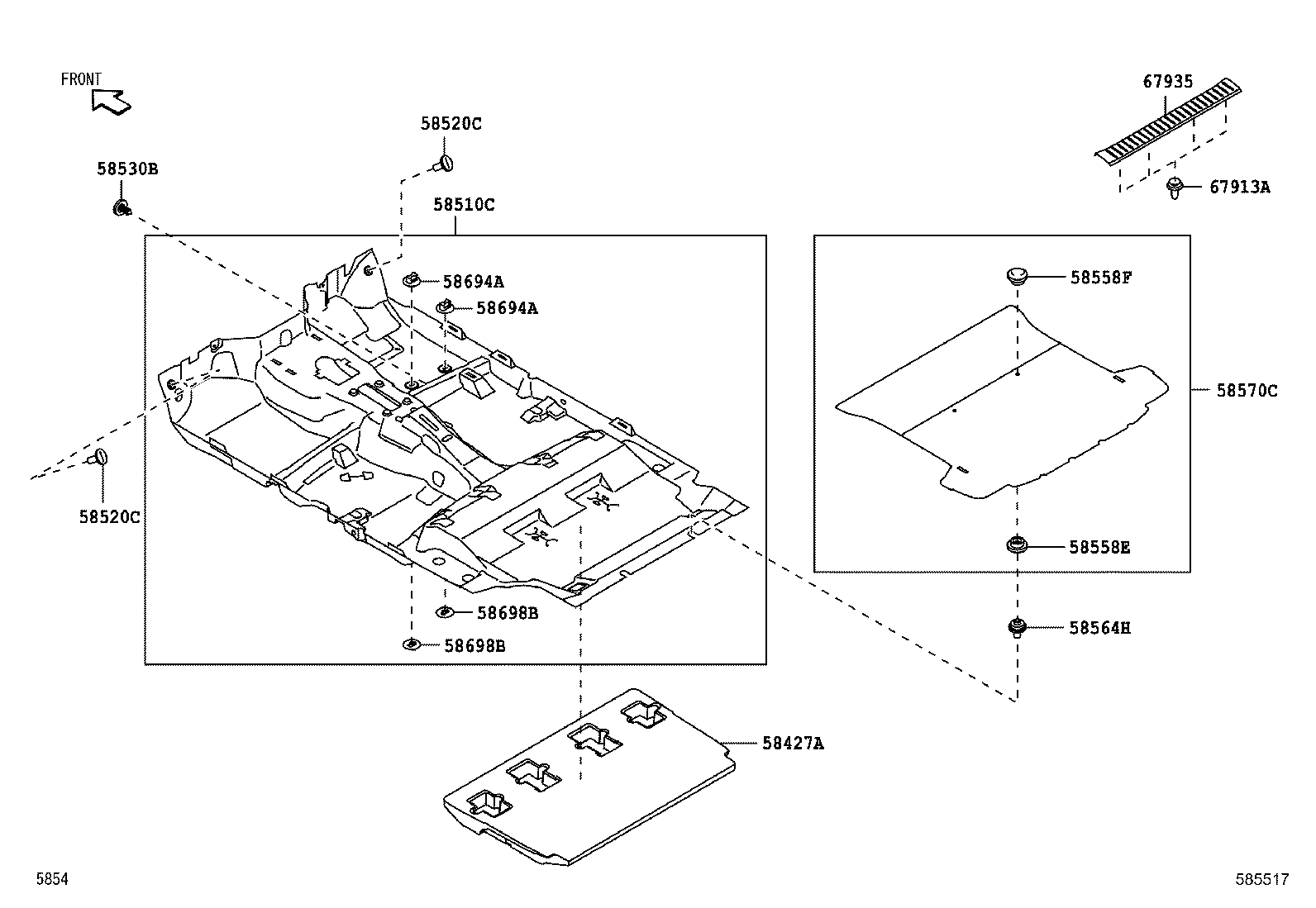

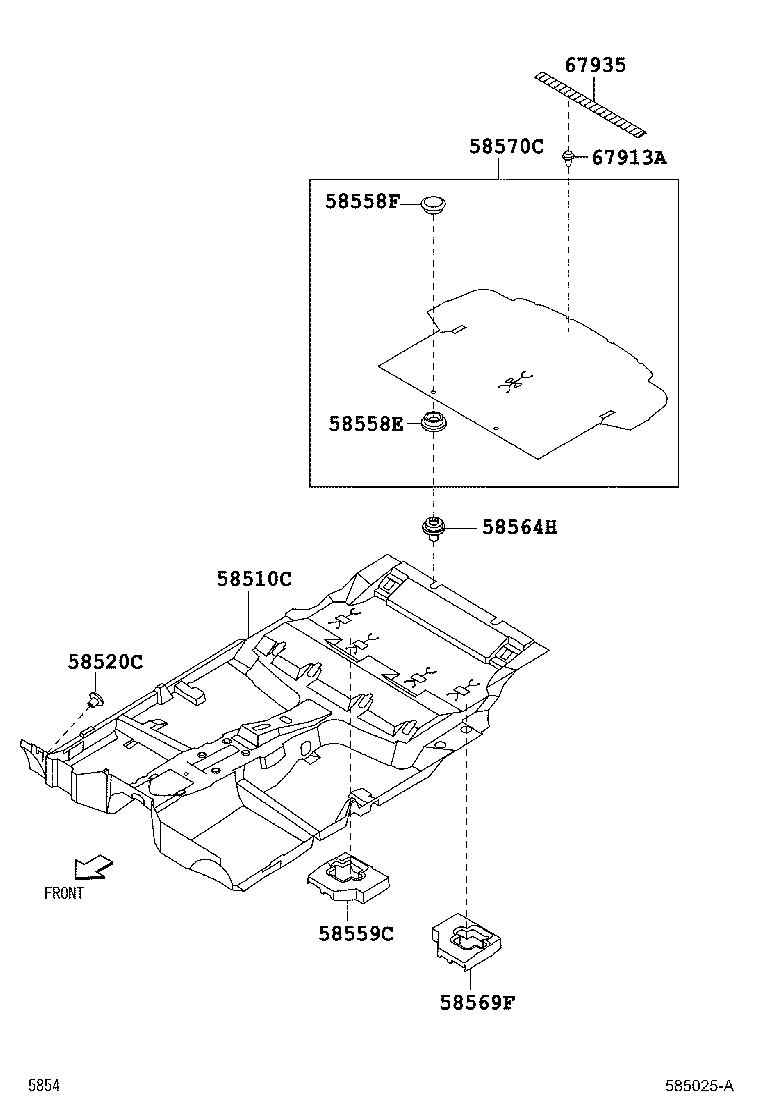

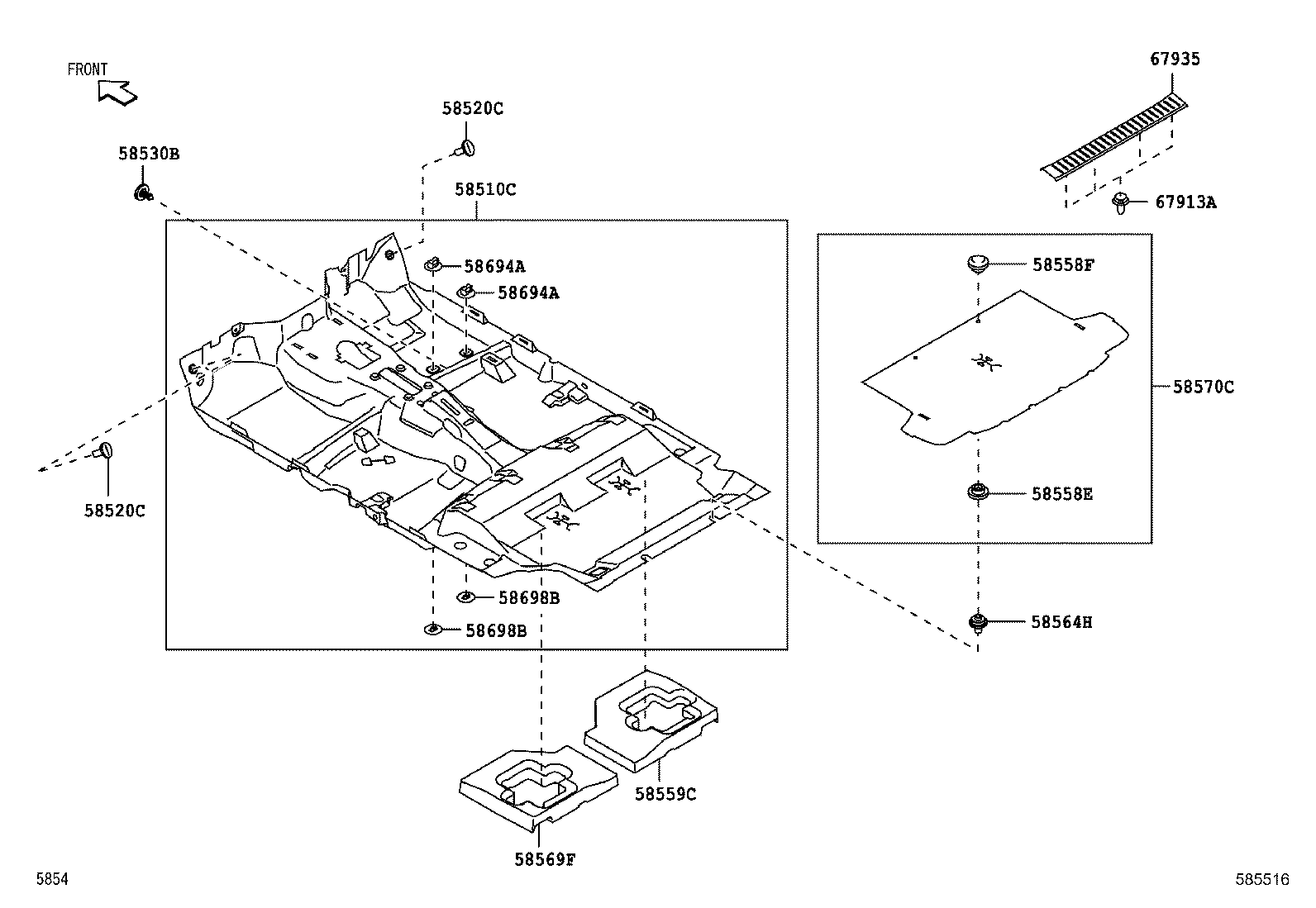

Floor Mat & Silencer Pad
15 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 58427A | Spacer, Rear Floor Board |
| 58510C | Carpet Assy, Front Floor, Front |
| 58520C | Clip(FOR FRONT FLOOR CARPET) |
| 58530B | Clip(FOR FRONT FLOOR CARPET) |
| 58558E | Fastener, Pile |
| 58558F | Fastener, Pile, Upr |
| 58559C | Pad, Front Floor Side, RH |
| 58564H | Clip(FOR REAR FLOOR CARPET) |
| 58569F | Pad, Front Floor Side, LH |
| 58570C | Carpet Assy, Rear Floor |
| 58591 | Cover, Floor Carpet |
| 58694A | Plate, Mat Set, Upper |
| 58698B | Plate, Mat Set, Lower |
| 67913A | Clip(FOR SCUFF PLATE) |
| 67935 | Plate, Back Door Scuff |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
