Toyota Rush

2006-12 → 2017-11 · chassis F700 · catalogue 615310 · General

Discontinued model Data version 2018-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Inside Trim Board

36 part groups · 3 illustrations

Illustrations

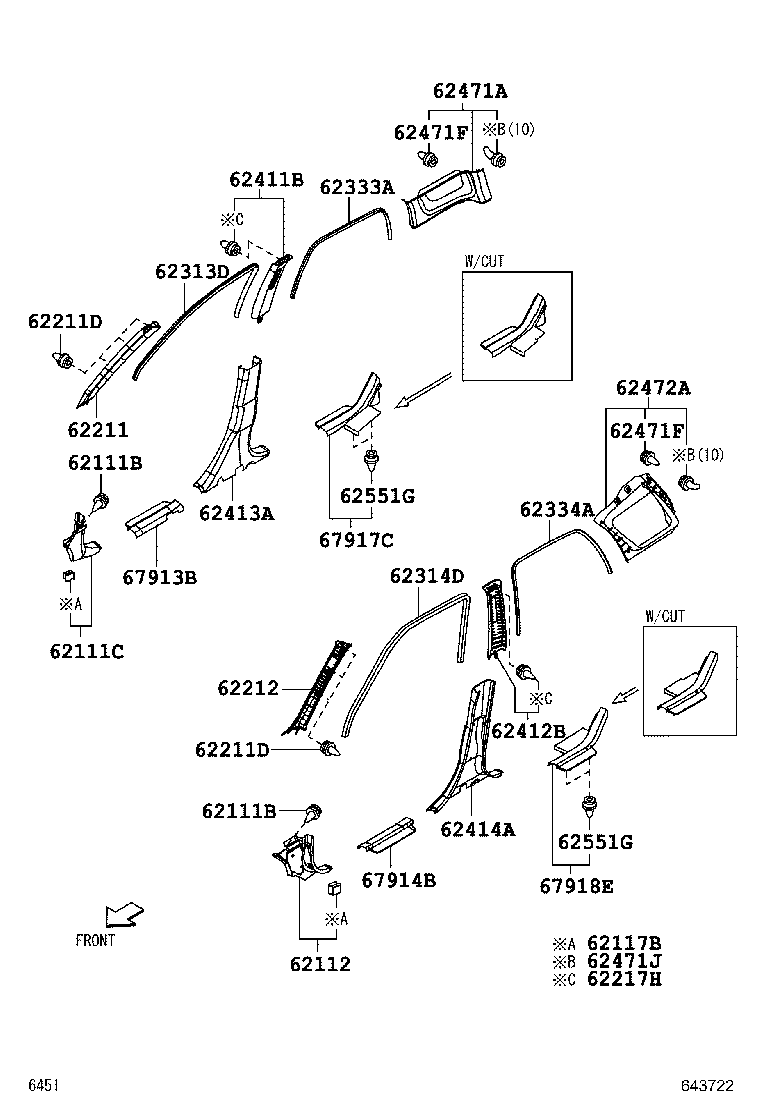

Figure 642020H 642020H 2006-12 → 2011-06 Figure 643722 643722 2011-06 → — Figure 642019H 642019H 2006-12 → —

Part groups

PNCDescription
62111B Clip(FOR COWL SIDE TRIM)
62111C Board, Cowl Side Trim, RH
62112 Board, Cowl Side Trim, LH
62117B Clip, NO.1(FOR COWL SIDE TRIM)
62211 Garnish, Front Pillar, RH
62211D Clip(FOR FRONT BODY PILLAR GARNISH)
62212 Garnish, Front Pillar, LH
62217H Clip, Center Piller Garnish
62313D Trim, Front Door Opening, RH
62314D Trim, Front Door Opening, LH
62333A Trim, Rear Door Opening, RH
62334A Trim, Rear Door Opening, LH
62411B Garnish, Center Pillar, Upper RH
62412B Garnish, Center Pillar, Upper LH
62413A Garnish, Center Pillar, Lower RH
62414A Garnish, Center Pillar, Lower LH
62471A Garnish, Roof Side, Inner RH
62471F Clip (FOR ROOF SIDE, INNER UPPER GARNISH)
62471J Clip (FOR ROOF SIDE GARNISH)
62472A Garnish, Roof Side, Inner LH
62551G Clip
62594E Pocket, Quarter Trim, RH
62595E Pocket, Quarter Trim, LH
62611E Retainer, Door Trim
64730B Panel Assy, Deck Trim Side, RH
64730E Clip(FOR DECK TRIM SIDE BOARD)
64734C Pad, Deck Trim Side, NO.2
64737B Pad, Deck Trim Side RH Silencer
64740C Panel Assy, Deck Trim Side, LH
64750F Clip(FOR DECK SIDE TRIM PANEL)
67772R Cap, Door Trim Retainer
67913B Plate, Front Door Scuff, RH
67914B Plate, Front Door Scuff, LH
67917C Plate, Rear Door Scuff, RH
67918E Plate, Rear Door Scuff, LH
73139D Cover, Seat Belt Anchor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
