Toyota Rush

2006-12 → 2017-11 · chassis F700 · catalogue 615310 · General

Discontinued model Data version 2018-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

14 part groups · 5 illustrations

Illustrations

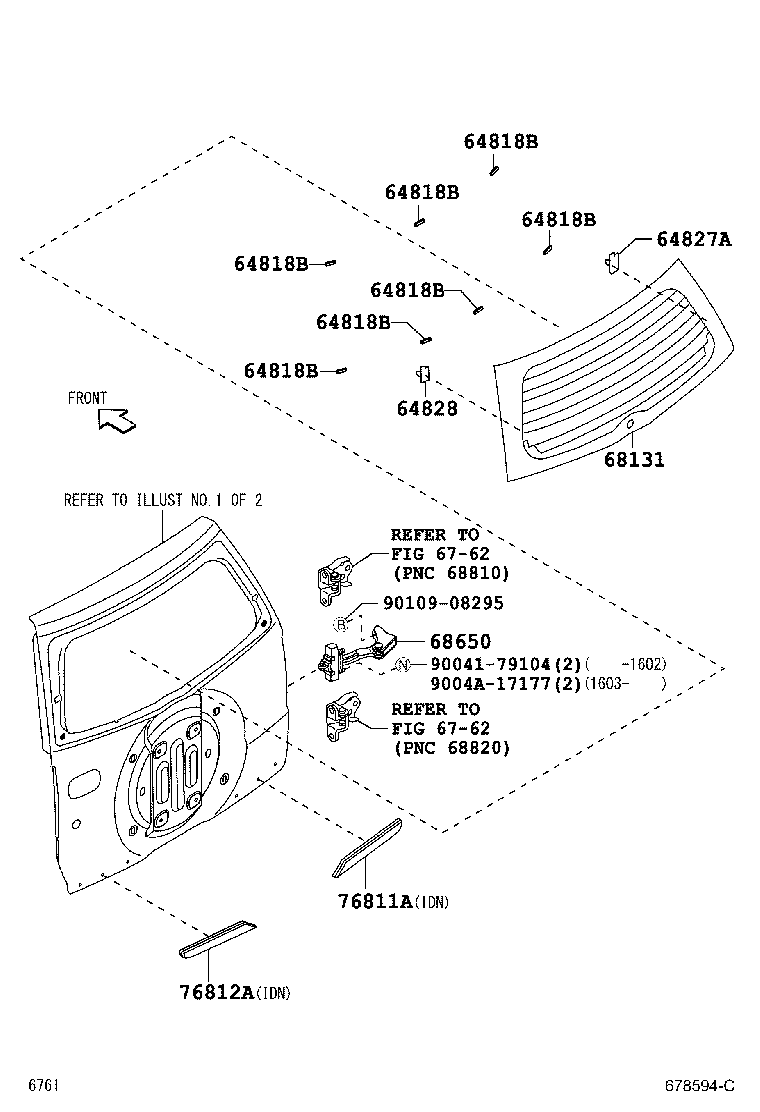

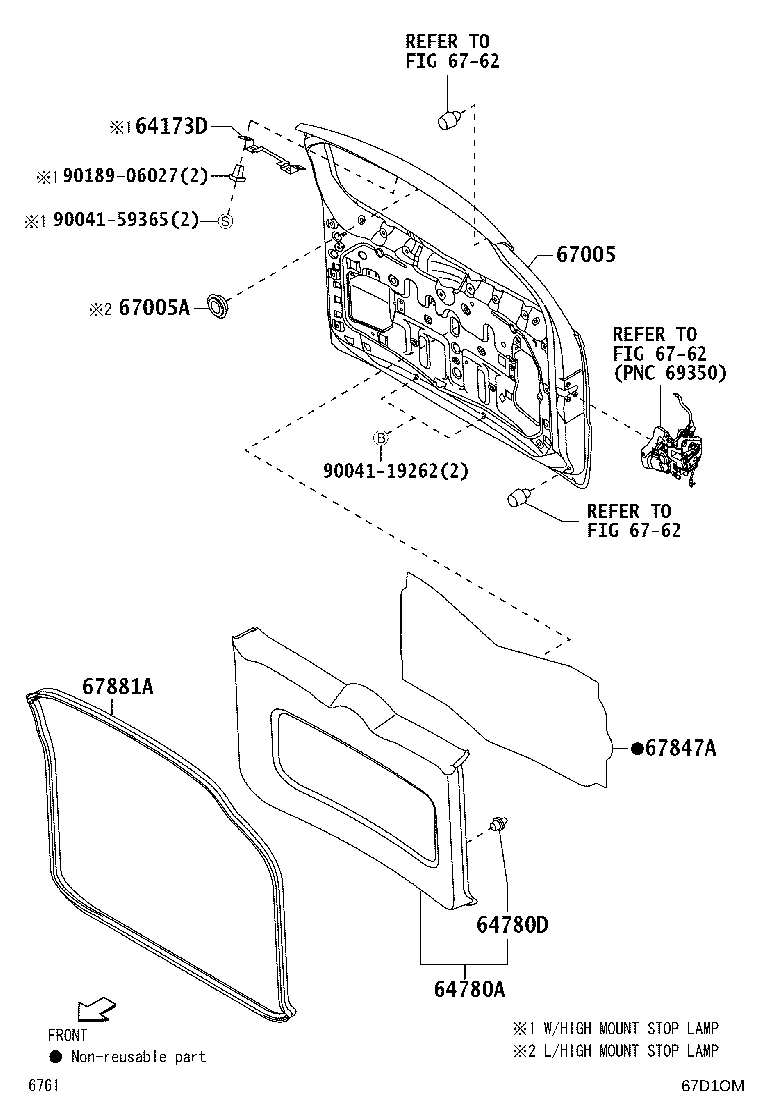

Figure 67D1OL 67D1OL 2006-12 → 2015-03 Figure 674829A 674829A 2006-12 → 2015-03 Figure 674827A 674827A 2006-12 → 2015-03 Figure 67D1OM 67D1OM 2015-03 → — Figure 678594C 678594C 2015-03 → —

Part groups

PNCDescription
64173D Bracket, High Mounting Stop Lamp
64780A Panel Assy, Back Door Trim
64780D Retainer(FOR BACK DOOR TRIM BOARD)
64818B Spacer, Back Door Glass, NO.1
64827A Clip, Back Window Glass, RH
64828 Clip, Back Window Glass, LH
67005 Panel Sub-assy, Back Door
67005A Plug, Hole(FOR BACK DOOR PANEL)
67847A Cover, Back Door Service Hole
67881A Weatherstrip, Back Door
68131 Glass, Back Door
68650 Check Assy, Back Door
76811A Garnish, Back Door, Outside
76812A Garnish, Back Door, Outside NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
