Toyota Rush

2006-12 → 2017-11 · chassis F700 · catalogue 615310 · General

Discontinued model Data version 2018-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat & Seat Track

147 part groups · 11 illustrations

Illustrations

714771N 2006-12 → —

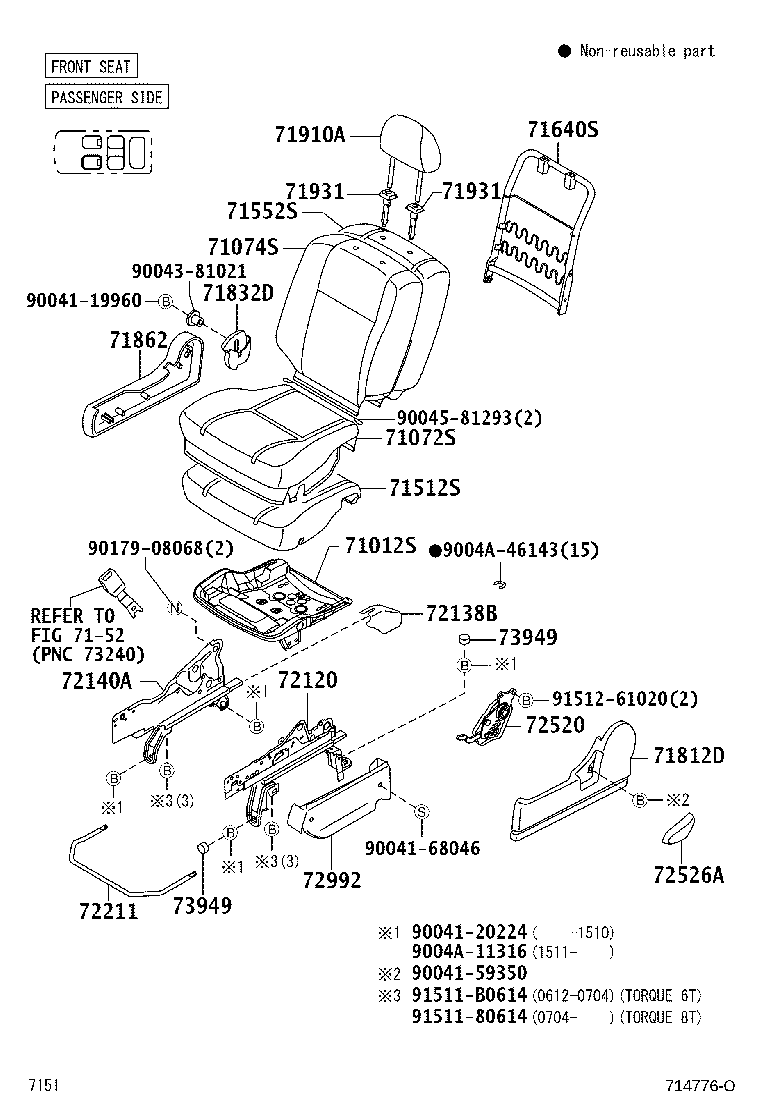

714776O 2006-12 → —

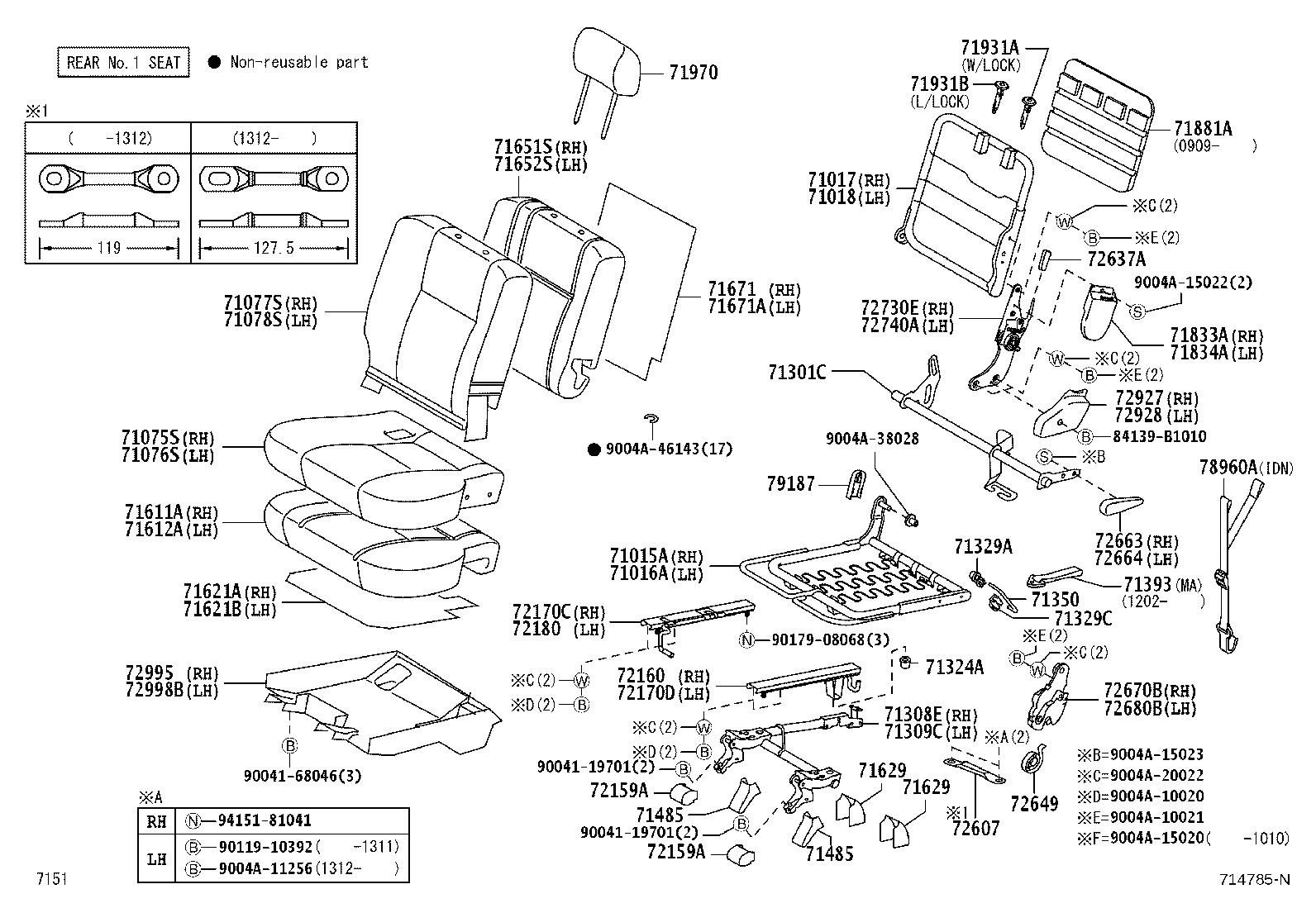

714785N 2006-12 → 2013-12

714785N 2006-12 → 2015-03

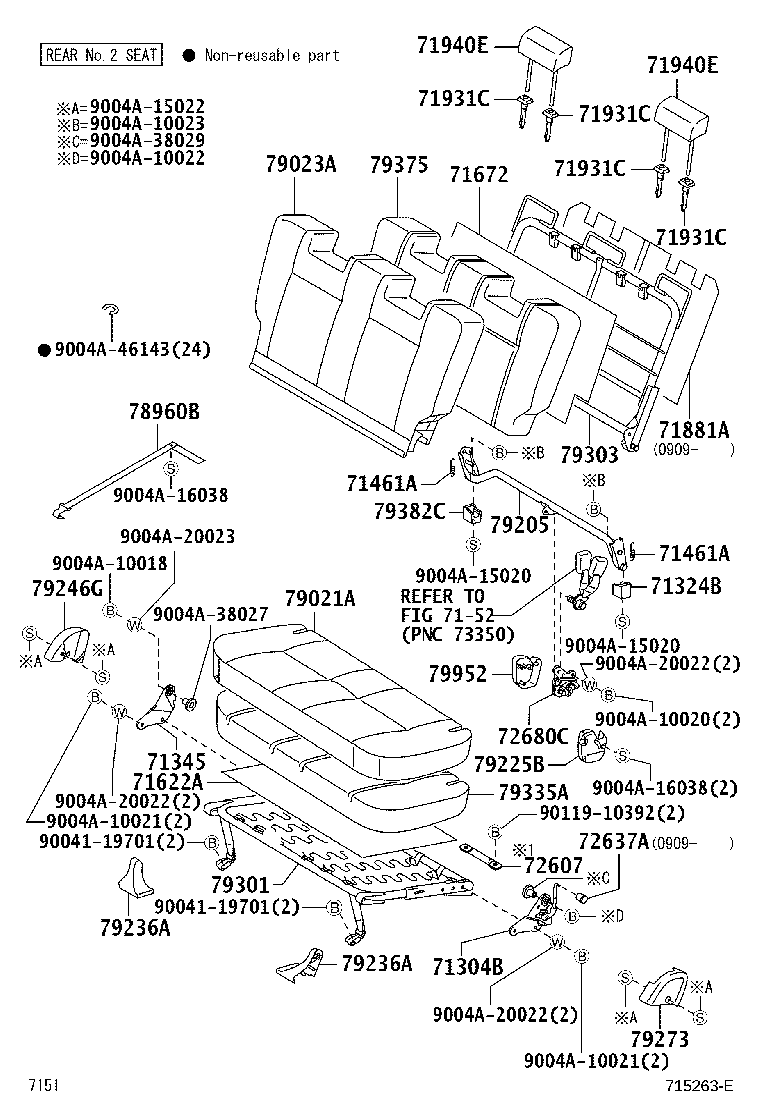

715263E 2007-12 → 2010-10

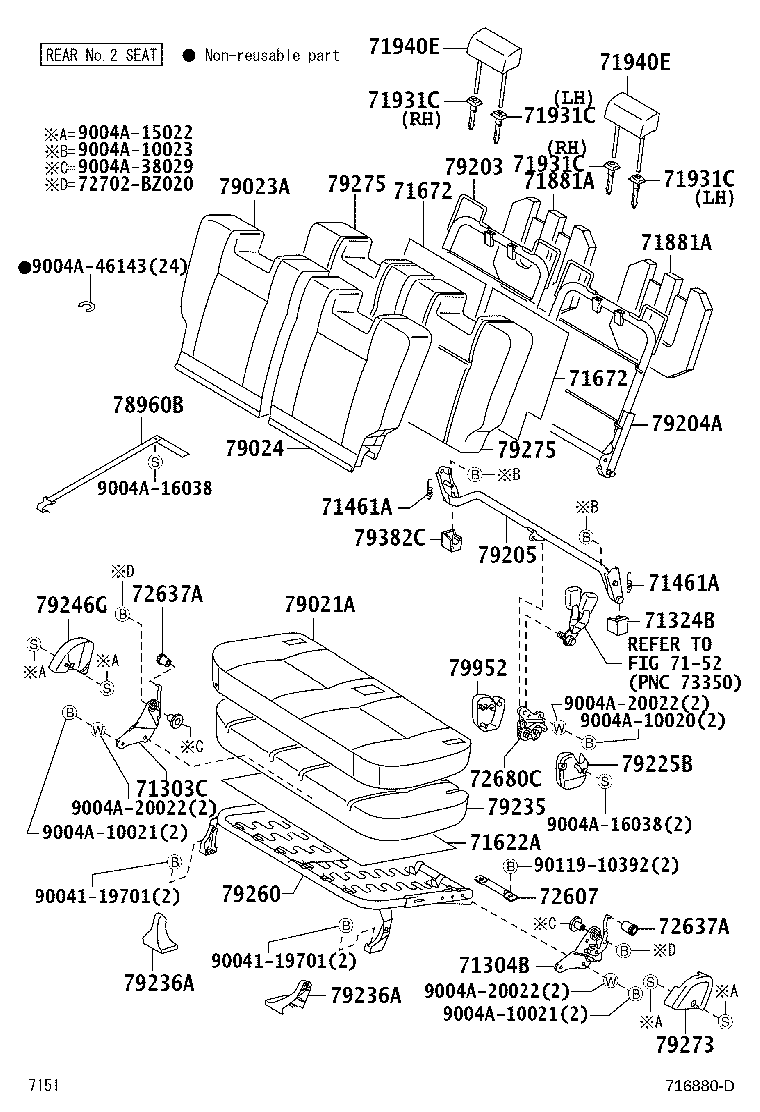

716880D 2010-10 → 2013-12

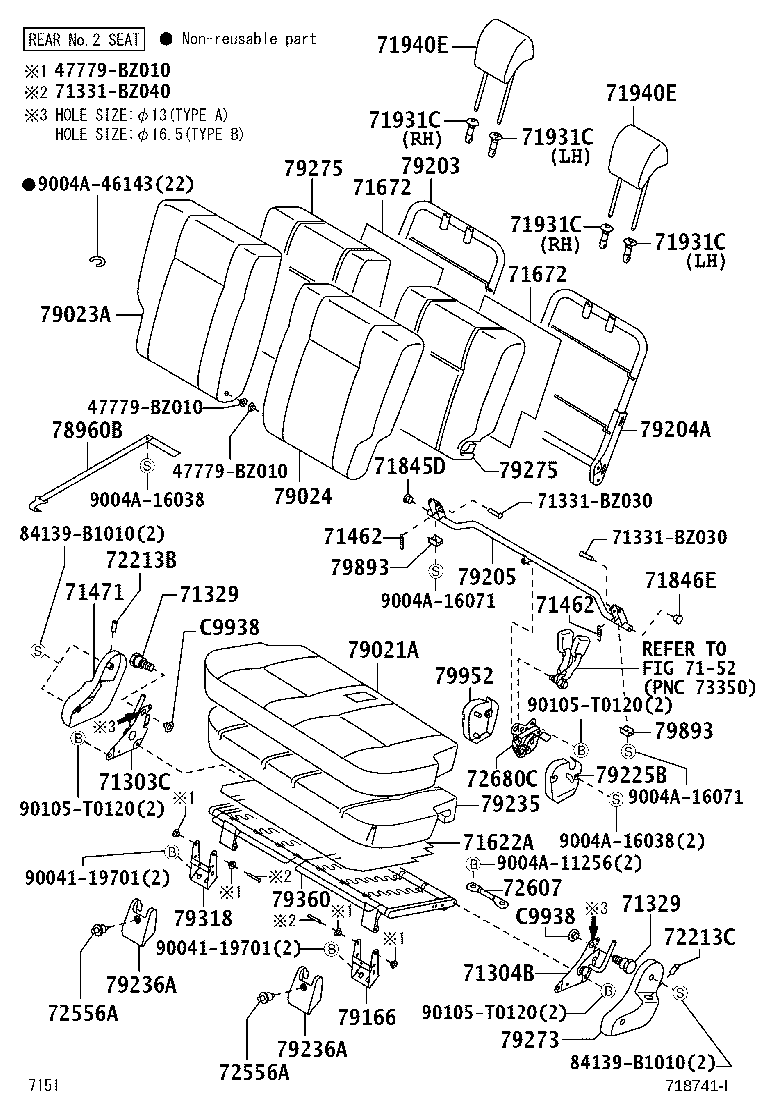

718741I 2013-12 → —

Part groups

PNC	Description
71011S	Frame Sub-assy, Front Seat Cushion, RH
71012S	Frame Sub-assy, Front Seat Cushion, LH
71015A	Frame Sub-assy, Rear Seat Cushion, RH
71016A	Frame Sub-assy, Rear Seat Cushion, LH
71017	Frame Sub-assy, Rear Seatback, RH
71018	Frame Sub-assy, Rear Seatback, LH
71071S	Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S	Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S	Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S	Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71075S	Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
71076S	Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
71077S	Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S	Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71301C	Link Sub-assy, Rear Seat Cushion
71303C	Hinge Sub-assy, Rear Seatback, RH
71304B	Hinge Sub-assy, Rear NO.2 Seat, LH
71308E	Leg Sub-assy, Rear Seat, RH
71309C	Leg Sub-assy, Rear Seat, Rear LH
71324A	Cushion, Rear Seat
71324B	Cushion, Rear Seat
71329	Bolt, Rear Seat Hinge
71329A	Reinforcement, Rear Seat Cushion Support, RH
71329C	Reinforcement, Rear Seat Leg Bracket, RH
71345	Hinge, Rear Seatback
71350	Link Assy, Rear Seatback Cushion, RH
71393	Band, Rear Seat Cushion
71461A	Spring, Rear Seat Cushion, NO.1
71462	Spring, Rear Seat Cushion, NO.2
71471	Cover, Rear Seat Hinge
71485	Cover, Rear Seat Hinge
71511S	Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S	Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71551S	Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S	Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71611A	Pad, Rear Seat Cushion, RH
71612A	Pad, Rear Seat Cushion, LH
71621A	Pad, Rear Seat Cushion Silencer, A
71621B	Pad, Rear Seat Cushion Silencer, NO.2
71622A	Pad, Rear Seat Cushion Silencer, B
71629	Cover, Rear Seat Cushion Hinge
71630S	Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71640S	Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71650B	Spring Assy, Rear Seat Cushion, RH
71651S	Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S	Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71660B	Spring Assy, Rear Seat Cushion, LH
71671	Pad, Rear Seatback Silencer, A
71671A	Pad, Rear Seatback Silencer, A
71672	Pad, Rear Seatback Silencer, B
71811D	Shield, Front Seat Cushion, RH
71812D	Shield, Front Seat Cushion, LH
71831D	Cover, Front Seat Hinge, RH
71832D	Cover, Front Seat Hinge, LH
71833A	Cover, Rear Seat Reclining, NO.1 RH
71834A	Cover, Rear Seat Reclining, NO.1 LH
71845D	Cap, Rear Seat Cover, RH
71846E	Cap, Rear Seat Cover, LH
71861	Shield, Front Seat Cushion, Inner RH
71862	Shield, Front Seat Cushion, Inner LH
71878A	Cover, Rear Seat Reclining, Inner RH
71879C	Cover, Rear Seat Reclining, Inner LH
71881A	Board, Rear Seatback
71910A	Headrest Assy, Front Seat
71931	Support, Front Seat Headrest
71931A	Support, Rear Seat Headrest
71931B	Support Assy, Rear NO.1 Seat Headrest
71931C	Support Assy, Rear NO.2 Seat Headrest
71940E	Headrest Assy, NO.2 Seat
71970	Headrest Assy, Rear Seat
72110A	Track Assy, Front Seat, Outer RH
72120	Track Assy, Front Seat, Outer LH
72130A	Track Assy, Front Seat, Inner RH
72137B	Cover, Seat Track, RH
72138B	Cover, Seat Track, LH
72140A	Track Assy, Front Seat,Inner LH
72159A	Cover, Rear Seat Track Bracket
72160	Track Assy, Rear Seat, Outer RH
72160C	Track Assy, Rear NO.1 Seat, Outer RH
72170C	Track Assy, Rear NO.1 Seat, Inner RH
72170D	Track Assy, Rear Seat, Outer LH
72180	Track Assy, Rear Seat, Inner RH
72211	Handle, Seat Track Adjusting
72213B	Knob, Seat Track Adjusting Handle, RH
72213C	Knob, Seat Track Adjusting Handle, LH
72213F	Knob, Seat Track Adjusting Handle
72220	Track Assy, Rear NO.1 Seat, Inner LH
72301A	Wire Sub-assy, Seat Track Equalizing, RH
72301D	Wire Sub-assy, Seat Track Equalizing, LH
72404	Link Sub-assy, Vertical Seat
72510	Adjuster Assy, Reclining Seatback, RH
72520	Adjuster Assy, Reclining Seatback, LH
72525A	Handle, Reclining Adjuster Release, RH
72526A	Handle, Reclining Adjuster Release, LH
72556A	Clip(FOR REAR SEAT)
72593B	Knob, Reclining Remote Control Lever, RH
72607	Striker Sub-assy, Rear Seat Cushion Lock
72610	Lock Assy, Rear Seat Cushion
72637A	Handle, Rear Seat Lock
72649	Spring, Rear Seat Cushion Support
72663	Lever, Rear Seat Lock Control, NO.1
72664	Lever, Rear Seat Lock Control, LH
72670B	Lock Assy, Rear Seat Cushion, RH
72670C	Lock Assy, Rear Seat Cushion, NO.2 RH
72680B	Lock Assy, Rear Seat Cushion, LH
72680C	Lock Assy, Rear Seat Cushion, NO.2 LH
72695A	Cable, Rear Seat Lock Control
72730E	Adjuster Assy, Rear Seatback, Outer RH
72740A	Adjuster Assy, Rear Seat Reclining, LH
72927	Cover, Rear Seat Cushion Under, RH
72928	Cover, Rear Seat Cushion Under, LH
72991	Cover, Front Seat Cushion, RH
72992	Cover, Front Seat Cushion, LH
72995	Cover, Rear Seat Cushion, RH
72998B	Cover, Rear Seat Cushion, LH
73949	Cap
78950D	Band Assy, Fold Rear Seat Stopper, RH
78950E	Band Assy, Fold Rear Seat Stopper, LH
78960A	Band Assy, NO.2 Fold Seat Stopper, NO.2
78960B	Band Assy, Fold Seat Stopper, NO.4
79011	Cover Sub-assy, NO.1 Seat Cushion, RH
79012	Cover Sub-assy, NO.1 Seat Cushion, LH
79021A	Cover Sub-assy, NO.2 Seat Cushion
79023A	Cover Sub-assy, NO.2 Seatback
79024	Cover Sub-assy, NO.2 Seatback, LH
79166	Bracket, NO.3 Seat Leg, Rear LH
79187	Cover, NO.1 Seat Inner Bracket
79203	Frame Sub-assy, NO.2 Seatback
79204A	Frame Sub-assy, NO.2 Seatback, LH
79205	Leg Sub-assy, NO.2 Seat
79225B	Carpet, Rear NO.2 Seat Cushion, LH
79235	Pad, NO.2 Seat Cushion
79236A	Cover, NO.2 Seat Leg
79246G	Cover, NO.2 Seatback, RH
79260	Spring Assy, NO.2 Seat Cushion
79273	Cover, NO.2 Seat Hinge
79275	Pad, NO.2 Seatback
79301	Frame Sub-assy, NO.3 Seat Cushion
79303	Frame Sub-assy, NO.3 Seatback
79318	Bracket, NO.3 Seat Leg
79335A	Pad, NO.3 Seat Cushion, RH
79360	Spring Assy, NO.3 Seat Cushion
79375	Pad, NO.3 Seatback
79382C	Cushion, NO.2 Seat
79893	Cushion, Fold Seat Leg
79952	Cover, NO.2 Seat Cushion
C9938	Bush

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
