Toyota Rush

2006-12 → 2017-11 · chassis F700 · catalogue 615310 · General

Discontinued model Data version 2018-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate

11 part groups · 3 illustrations

Illustrations

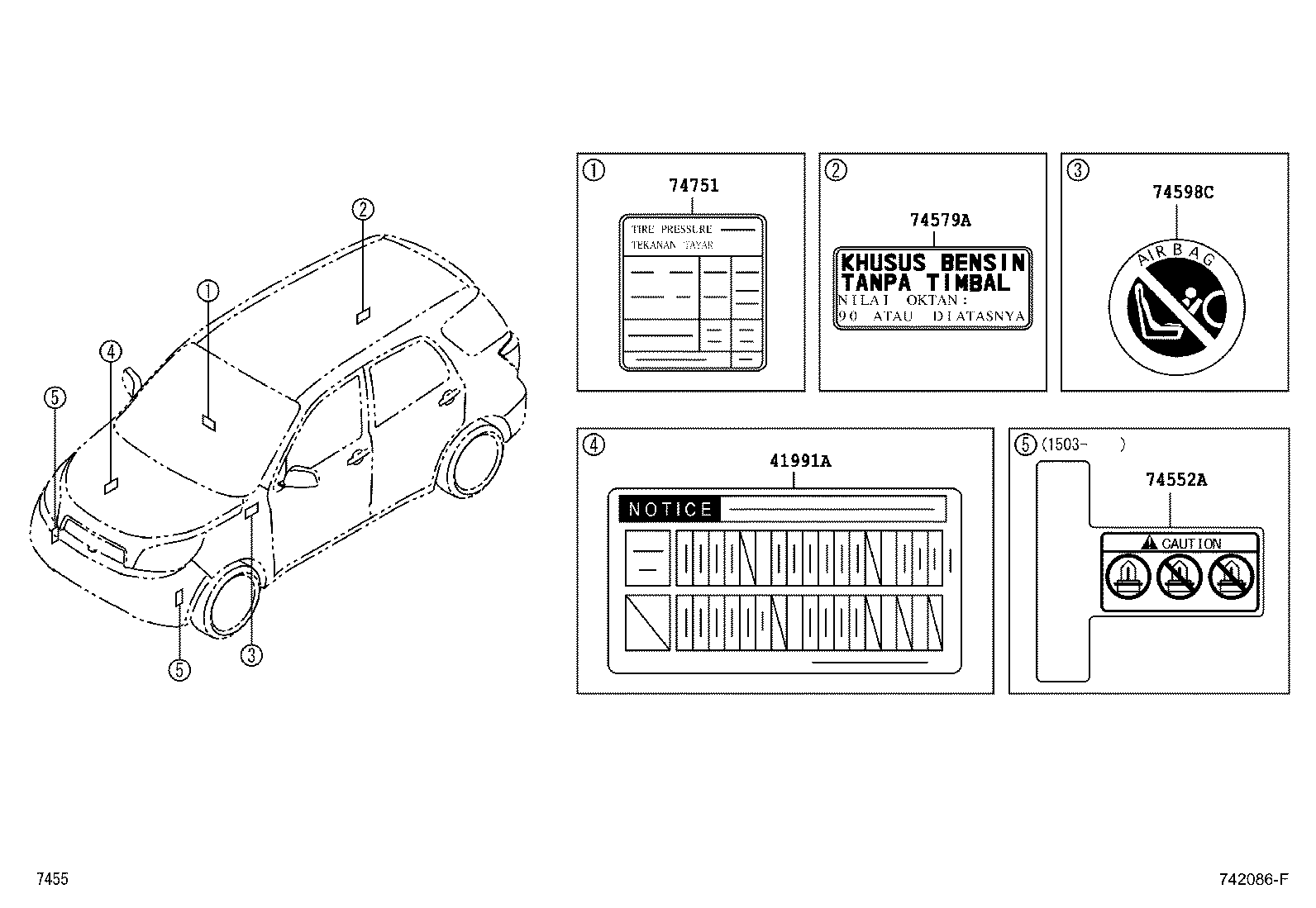

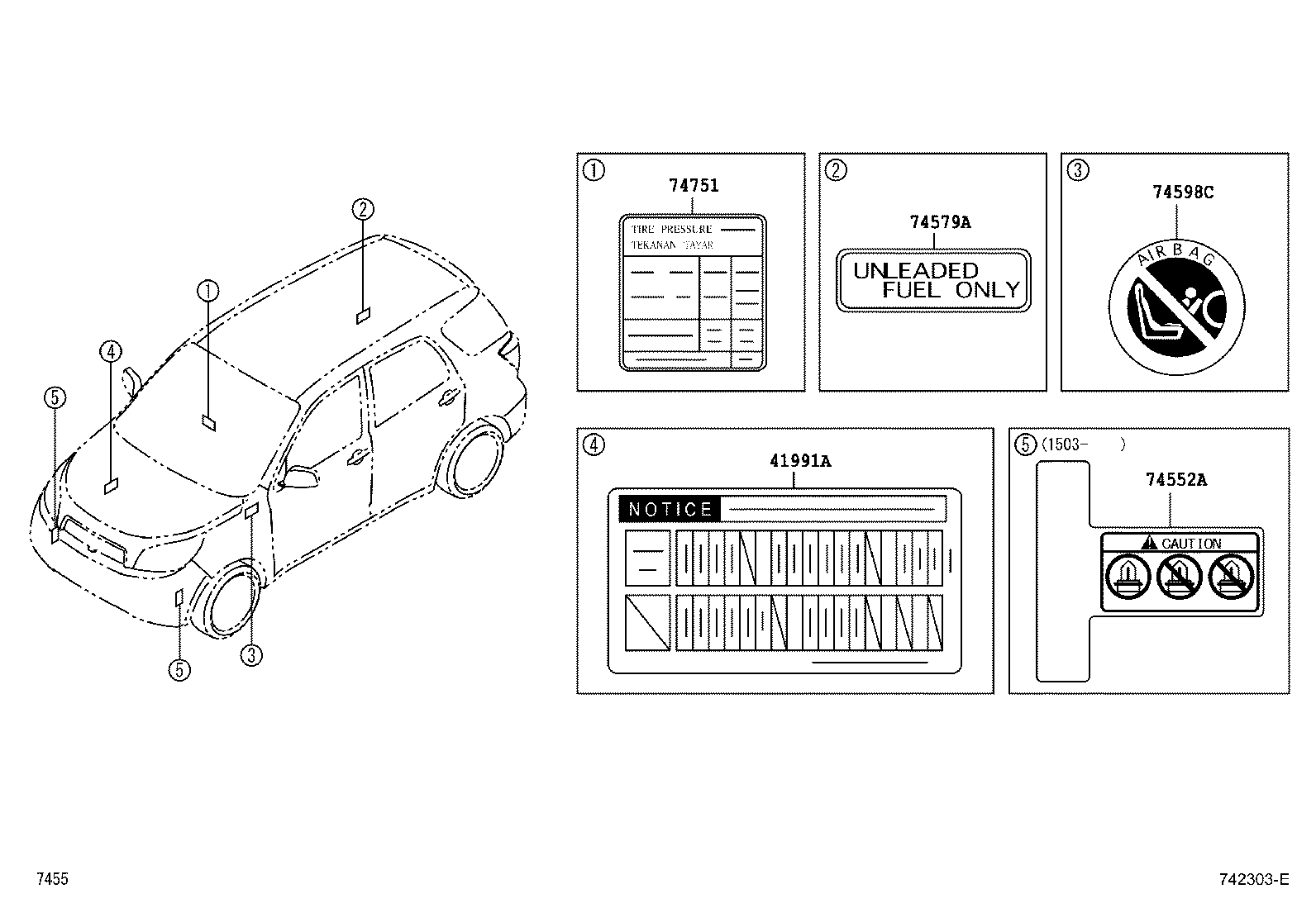

Figure 745557 745557 2006-12 → — Figure 742303E 742303E 2007-12 → — Figure 742086F 742086F 2006-12 → —

Part groups

PNCDescription
11285A Label, Coolant System Notice
11293C Label, Tune-up Specification Information
11293D Label, Engine Caution
11296D Label, Engine Service Information
16793E Label, Cooling Fan Caution
41991A Plate, Caution
74511B Plate, Name
74552A Label, Safety Caution
74579A Label, Unleaded Fuel Information
74598C Label, Passenger Airbag Caution
74751 Label, Tire Pressure Information
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
