Toyota Rush
2006-12 → 2017-11 · chassis F700 · catalogue 615310 · General
Discontinued model
Data version 2018-10

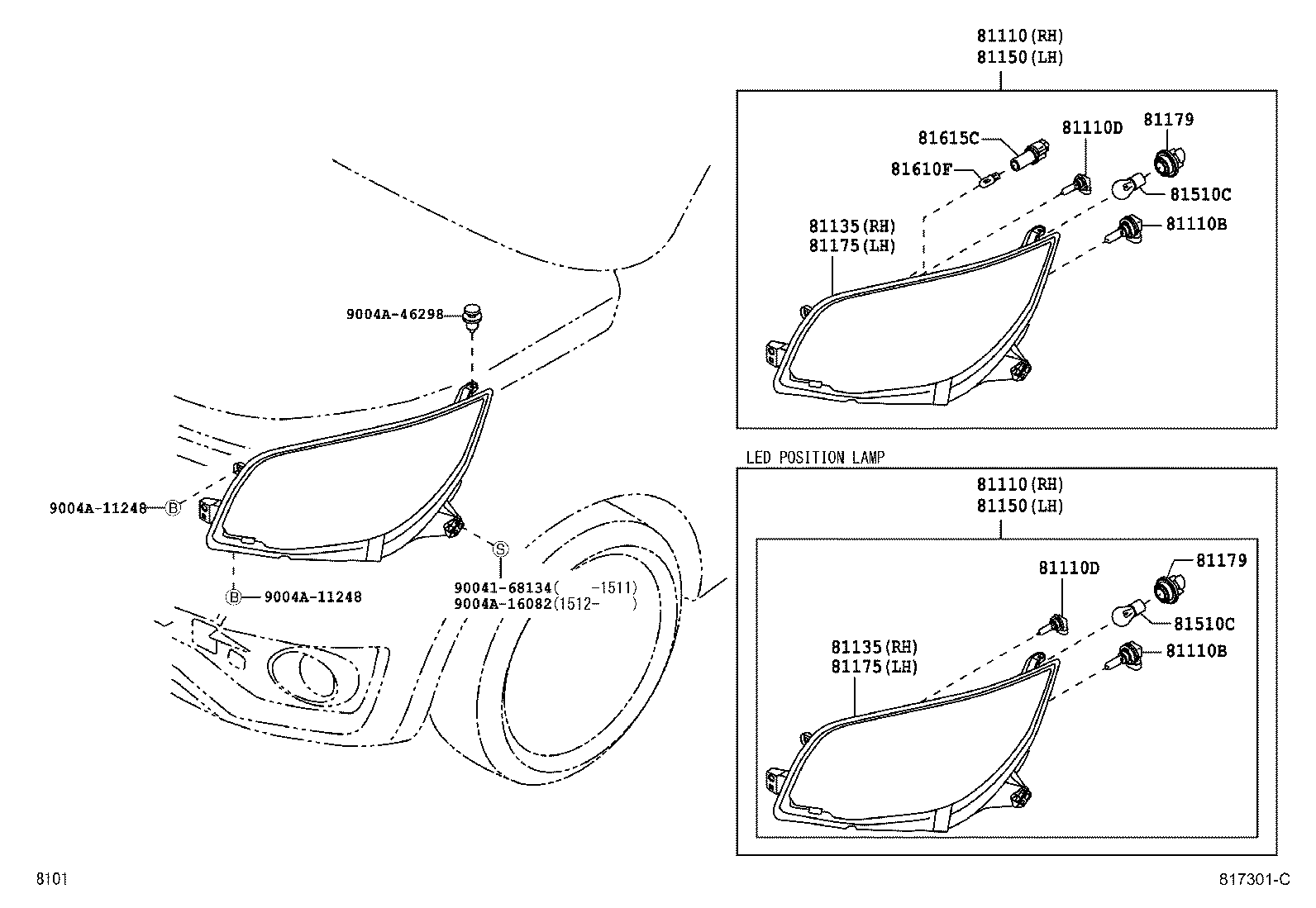

Headlamp
11 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81110 | Headlamp Assy, RH |
| 81110B | Bulb(FOR HEADLAMP, NO.1) |
| 81110D | Bulb(FOR HEADLAMP, NO.2) |
| 81135 | Unit Assy, Headlamp, RH |
| 81139 | Cover, Headlamp Socket |
| 81150 | Headlamp Assy, LH |
| 81175 | Unit Assy, Headlamp, LH |
| 81179 | Cover, Headlamp Socket |
| 81510C | Bulb (FOR FRONT TURN SIGNAL LAMP) |
| 81610F | Bulb(FOR CLEARANCE LAMP) |
| 81615C | Socket & Wire, Clearance Lamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
