Toyota Rush

2006-12 → 2017-11 · chassis F700 · catalogue 615310 · General

Discontinued model Data version 2018-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

12 part groups · 3 illustrations

Illustrations

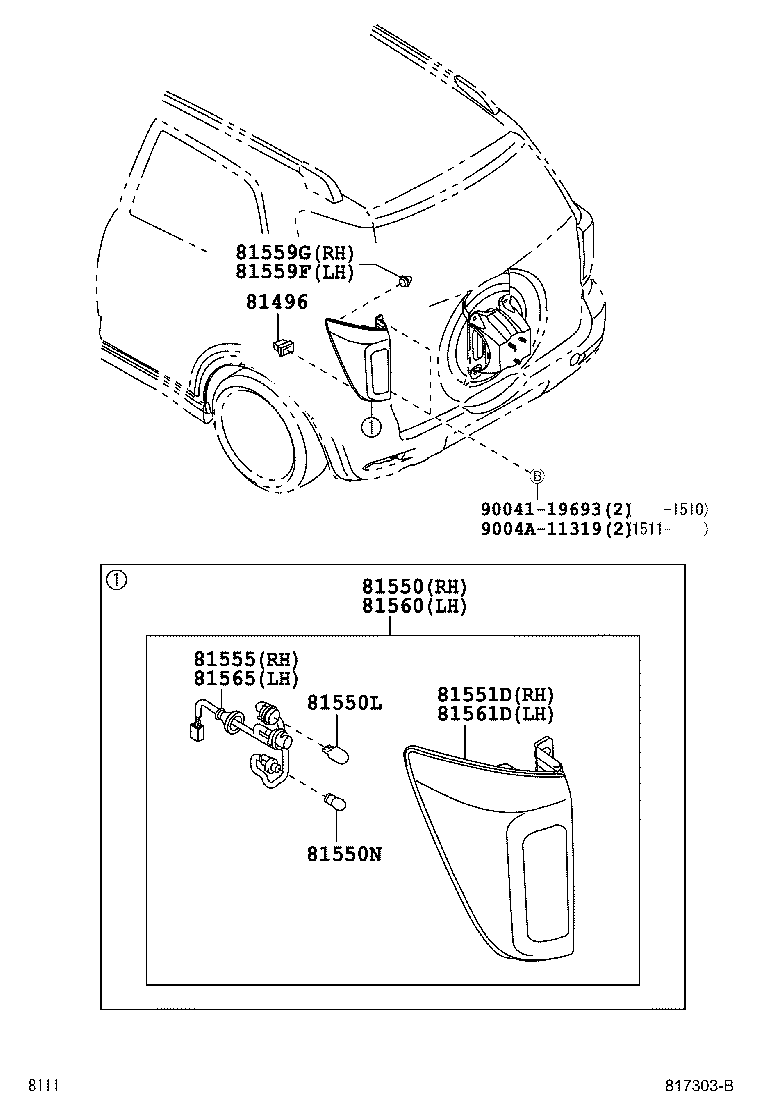

Figure 813936C 813936C 2006-12 → 2010-10 Figure 815462A 815462A 2010-10 → 2015-03 Figure 817303B 817303B 2015-03 → —

Part groups

PNCDescription
81496 Guide, Rear Combination Lamp
81550 Lamp Assy, Rear Combination, RH
81550H Bulb, Tail & Stop Lamp
81550L Bulb, Rear Turn Signal Lamp
81550N Bulb, Back UP Lamp
81551D Lens & Body, Rear Combination Lamp, RH
81555 Socket & Wire Sub-assy, Rear Combination Lamp, RH
81559F Clip, RR Combination Lamp, LH
81559G Clip, RR Combination Lamp, RH
81560 Lamp Assy, Rear Combination, LH
81561D Lens & Body, Rear Combination Lamp, LH
81565 Socket & Wire Sub-assy, Rear Combination Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
