Toyota Rush

2006-12 → 2017-11 · chassis F700 · catalogue 615310 · General

Discontinued model Data version 2018-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

18 part groups · 4 illustrations

Illustrations

Figure 82A658

82A658 2006-12 → —

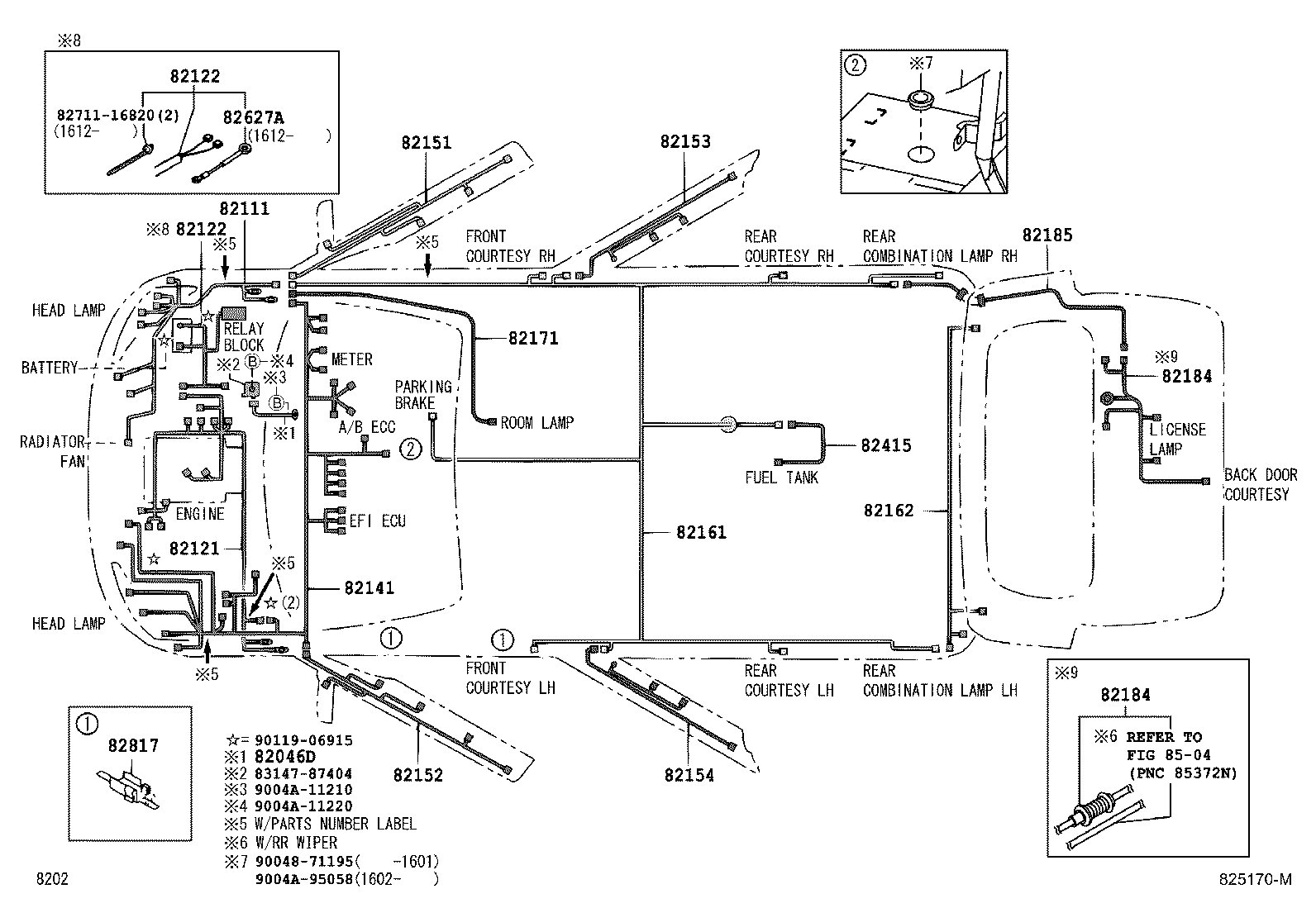

Figure 825170M

825170M 2006-12 → —

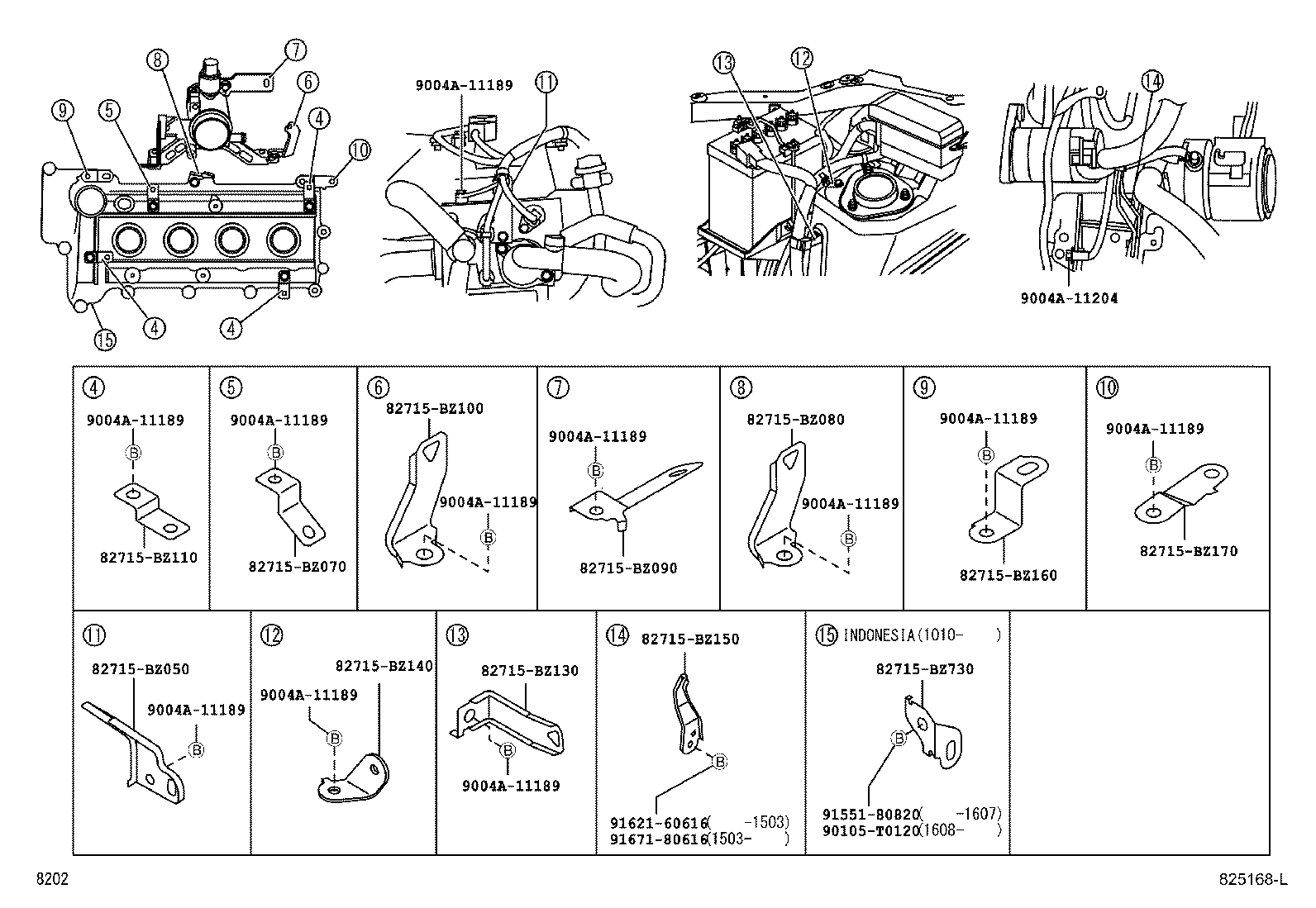

Figure 825168L

825168L 2006-12 → —

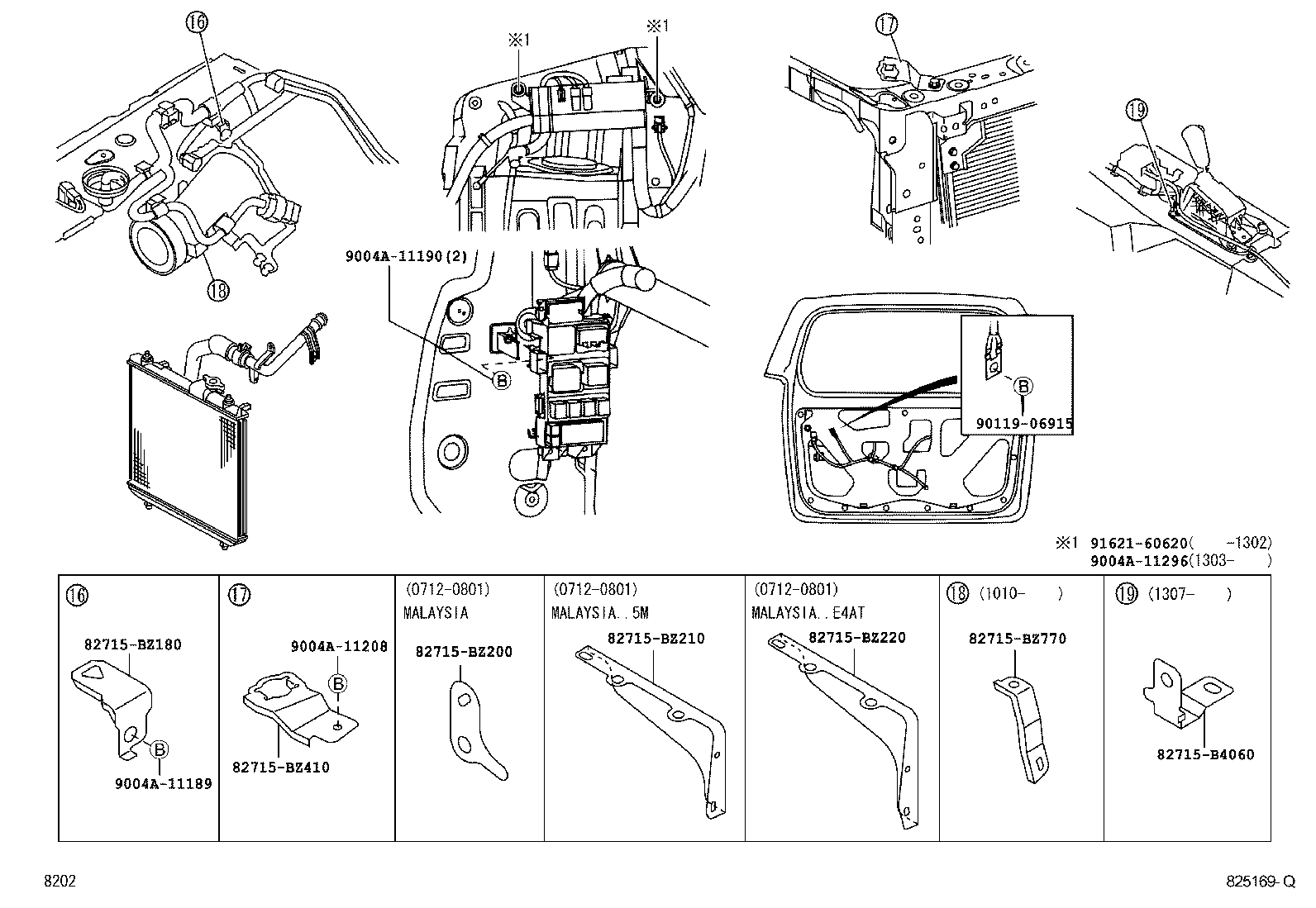

Figure 825169Q

825169Q 2006-12 → —

Part groups

PNC	Description
82046D	Wire, Body Ground
82111	Wire, Engine Room Main
82121	Wire, Engine
82122	Wire, Engine, NO.2
82141	Wire, Instrument Panel
82151	Wire, Front Door, RH
82152	Wire, Front Door, LH
82153	Wire, Rear Door, NO.1
82154	Wire, Rear Door, NO.2
82161	Wire, Floor
82162	Wire, Floor, NO.2
82171	Wire, Roof, NO.1
82184	Wire, Back Door, NO.1
82185	Wire, Back Door, NO.2
82415	Wire, Fuel Pump
82627A	Wire, Fusible Link
82817	Protector, Wiring Harness, NO.1
85999U	Bracket, Relay Block

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
