Toyota Rush
2006-12 → 2017-11 · chassis F700 · catalogue 615310 · General
Discontinued model
Data version 2018-10
Switch & Relay & Computer
51 part groups · 4 illustrations
Part groups

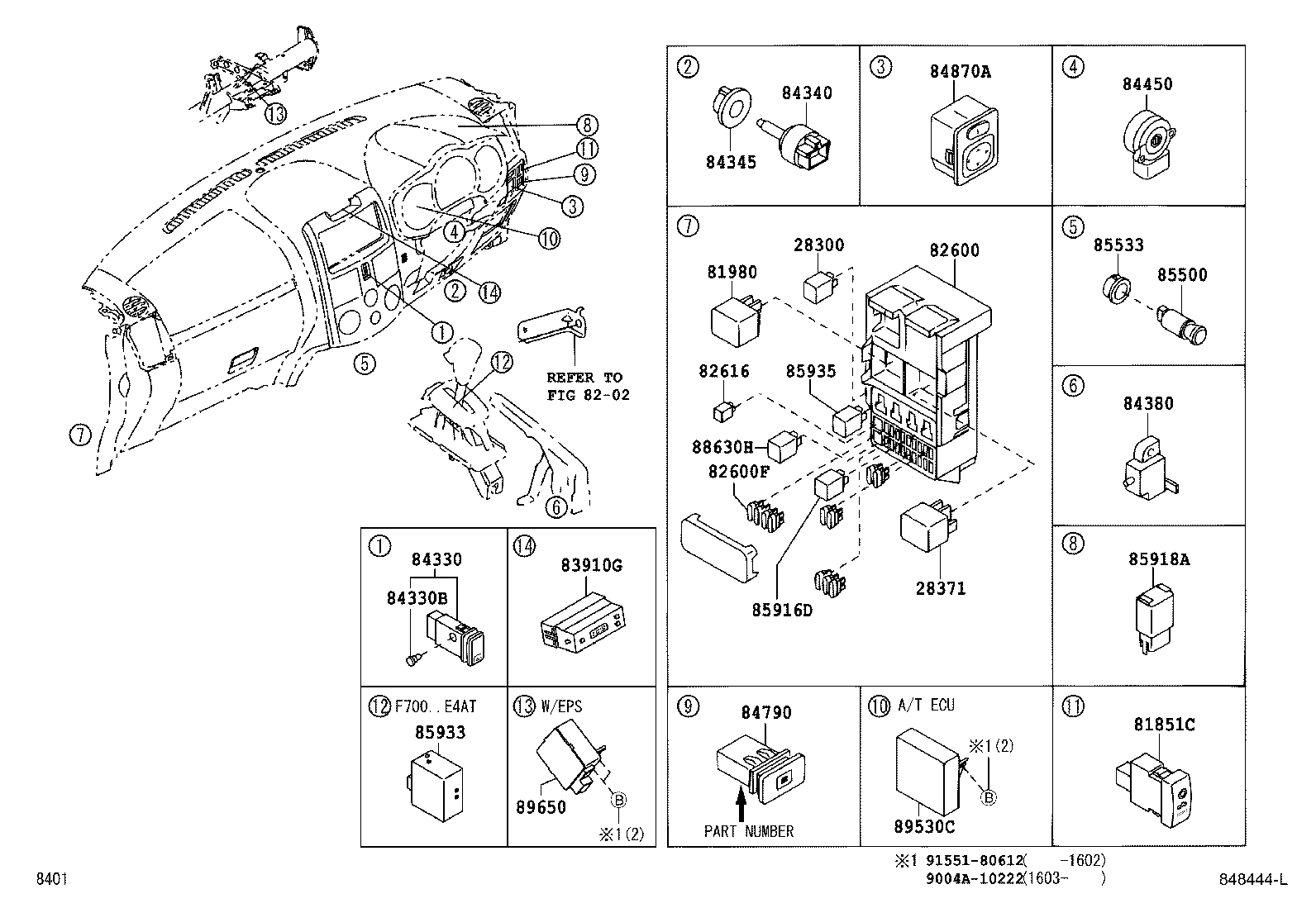

| PNC | Description |
|---|---|
| 28300 | Relay Assy, Starter |
| 28371 | Relay, Ignition, NO.1 |
| 81851C | Lamp Assy, Indicator |
| 81980 | Flasher Assy, Turn Signal |
| 82600 | Block Assy, Fuse |
| 82600F | Fuse, Fuse Block |
| 82616 | Puller, Fuse |
| 82660 | Block Assy, Relay, Engine Room |
| 82661 | Cover, Relay Block, NO.1 |
| 83181G | Sensor, Speedometer |
| 83320 | Gage Assy, Fuel Sender |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |
| 83910G | Clock Assy |
| 84140 | Switch Assy, Headlamp Dimmer |
| 84210 | Switch Assy, Back-up Lamp |
| 84210B | Gasket, Back-up Lamp Switch |
| 84231A | Switch, Courtesy Lamp |
| 84243 | Switch, Engine Hood |
| 84250A | Switch Assy, Steering Pad |
| 84306 | Cable Sub-assy, Spiral |
| 84312 | Plate, Horn Contact |
| 84330 | Switch Assy, Hazard Warning Signal |
| 84330B | Bulb, Hazard Warning Signal Switch |
| 84340 | Switch Assy, Stop Lamp |
| 84345 | Adjuster, Stop Lamp Switch Mounting |
| 84380 | Switch Assy, Brake Warning Test |
| 84450 | Switch Assy, Ignition OR Starter |
| 84540 | Switch Assy, Neutral Start |
| 84650D | Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL) |
| 84790 | Switch Assy, Rear Window Defogger |
| 84810 | Switch Assy, Power Window Regulator |
| 84820 | Master Switch Assy, Power Window Regulator |
| 84870A | Switch Assy, Outer Mirror |
| 85500 | Lighter Assy, Cigarette |
| 85533 | Lens, Cigarette Lighter Indicator |
| 85916D | Relay, Fog Lamp |
| 85916P | Relay, Headlamp |
| 85918A | Relay, Door Control |
| 85925 | Relay, Radiator Fan |
| 85933 | Computer, Shift Lock Control |
| 85934 | Relay, Magnet-clutch |
| 85935 | Relay, Fuel Pump |
| 86530 | Relay Assy, Horn |
| 88630H | Relay Assy, Cooler |
| 89421B | Sensor, Vacuum |
| 89422A | Sensor, Water Temperature |
| 89424G | Sensor, Inlet Air Temperature |
| 89465 | Sensor, Oxygen |
| 89530C | Computer Assy, Transmission Control |
| 89615 | Sensor, Knock Control |
| 89650 | Computer Assy, Power Steering |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
