Toyota Rush

2006-12 → 2017-11 · chassis F700 · catalogue 615310 · General

Discontinued model Data version 2018-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

5 part groups · 2 illustrations

Illustrations

Figure 863496B

863496B 2006-12 → 2015-03

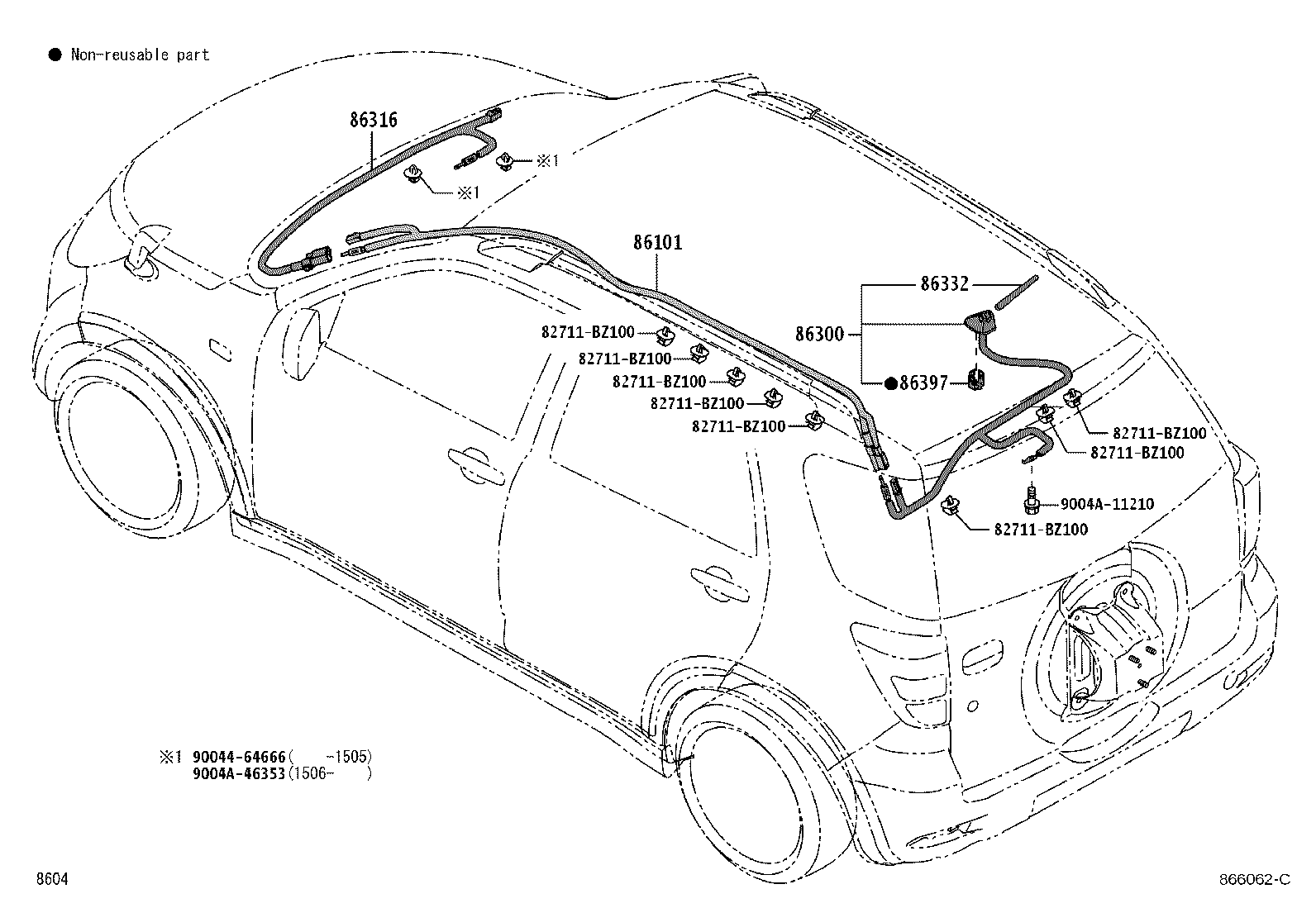

Figure 866062C

866062C 2015-03 → —

Part groups

PNC	Description
86101	Cord Sub-assy, Antenna
86300	Antenna Assy, W/Holder
86316	Cable, Antenna
86332	Rod, Antenna
86397	Plate, Antenna Earth

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
