Toyota Rush

2006-12 → 2017-11 · chassis F700 · catalogue 615310 · General

Discontinued model Data version 2018-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

18 part groups · 5 illustrations

Illustrations

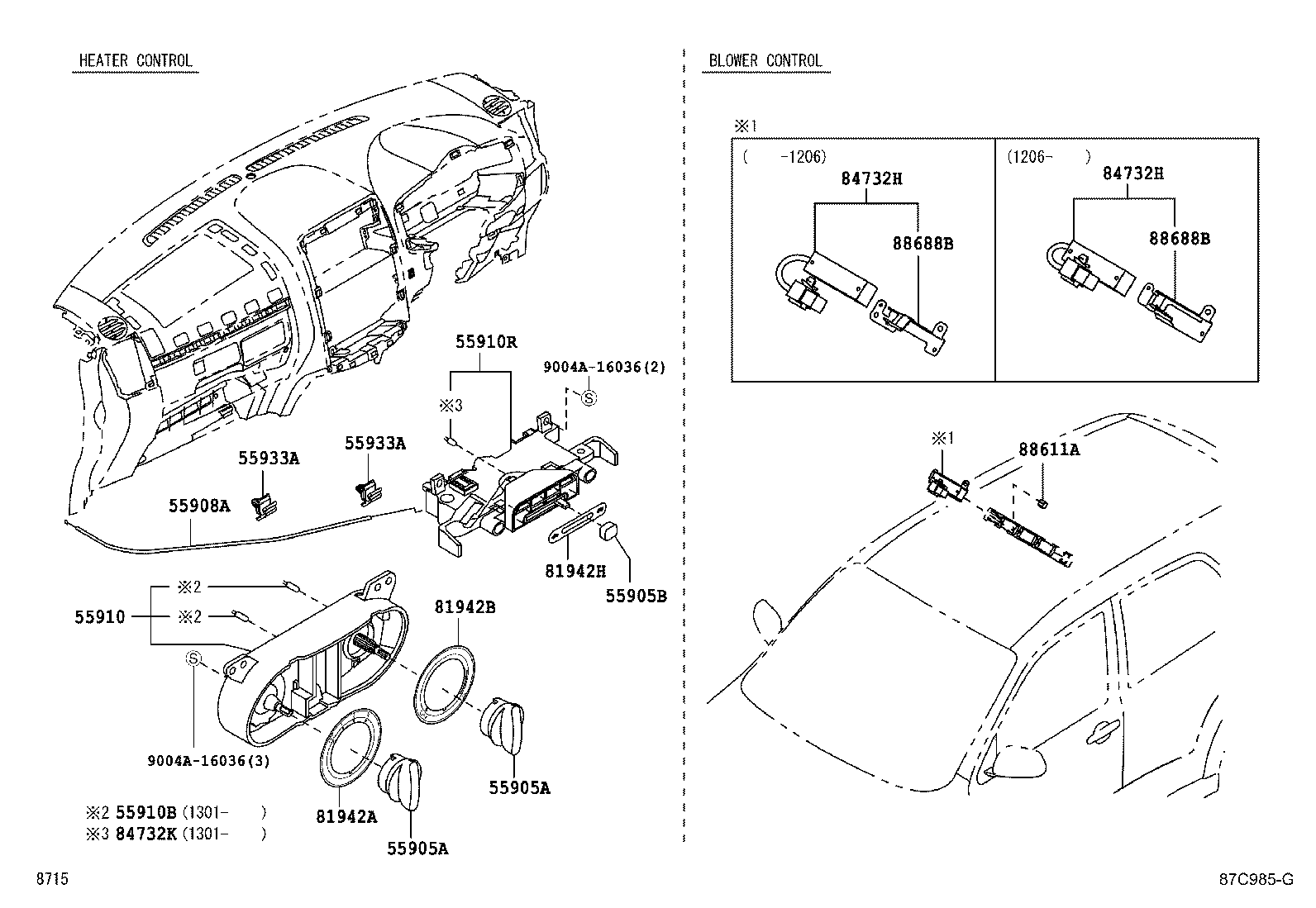

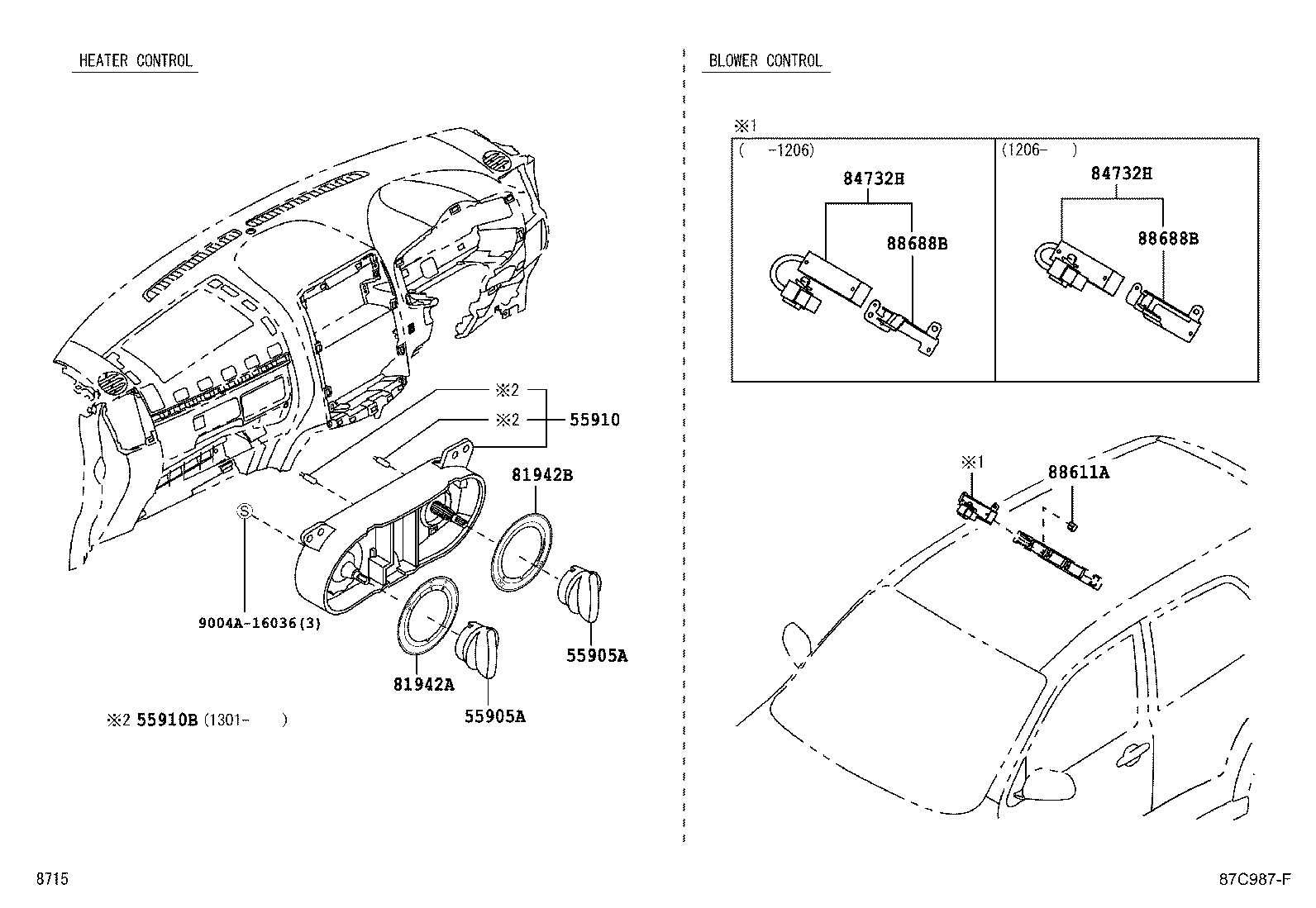

Figure 87C984E 87C984E 2007-12 → 2010-10 Figure 87C985G 87C985G 2010-10 → — Figure 87C986D 87C986D 2007-12 → — Figure 87C987F 87C987F 2006-12 → — Figure 87C988B 87C988B 2006-12 → —

Part groups

PNCDescription
55086A Duct Sub-assy, Heater TO Register, Center
55873D Seal, Air Duct, Center
55874B Seal, Air Duct, NO.4
55905A Knob, Heater Control
55905B Knob, Heater Control, NO.2
55908A Cable Sub-assy, Air Inlet Damper Control
55910 Control Assy, Heater OR Boost Ventilator
55910B Bulb, Heater Control
55910R Control Assy, Heater
55933A Clamp, Heater Control Cable
81942A Sheet, Heater Control Name, NO.1
81942B Sheet, Heater Control Name, NO.2
81942H Sheet, Heater Control Name, NO.3
84732H Switch, Heater Blower
84732K Bulb, Heater Blower Switch
87220 Duct Assy, Air
88611A Knob, Cooler Control Switch
88688B Bracket, Air Conditioner Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
