Toyota Rush

2017-12 → present · chassis F800 · catalogue 615320 · General

Supported model Data version 2019-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Disc Wheel & Wheel Cap

9 part groups · 5 illustrations

Illustrations

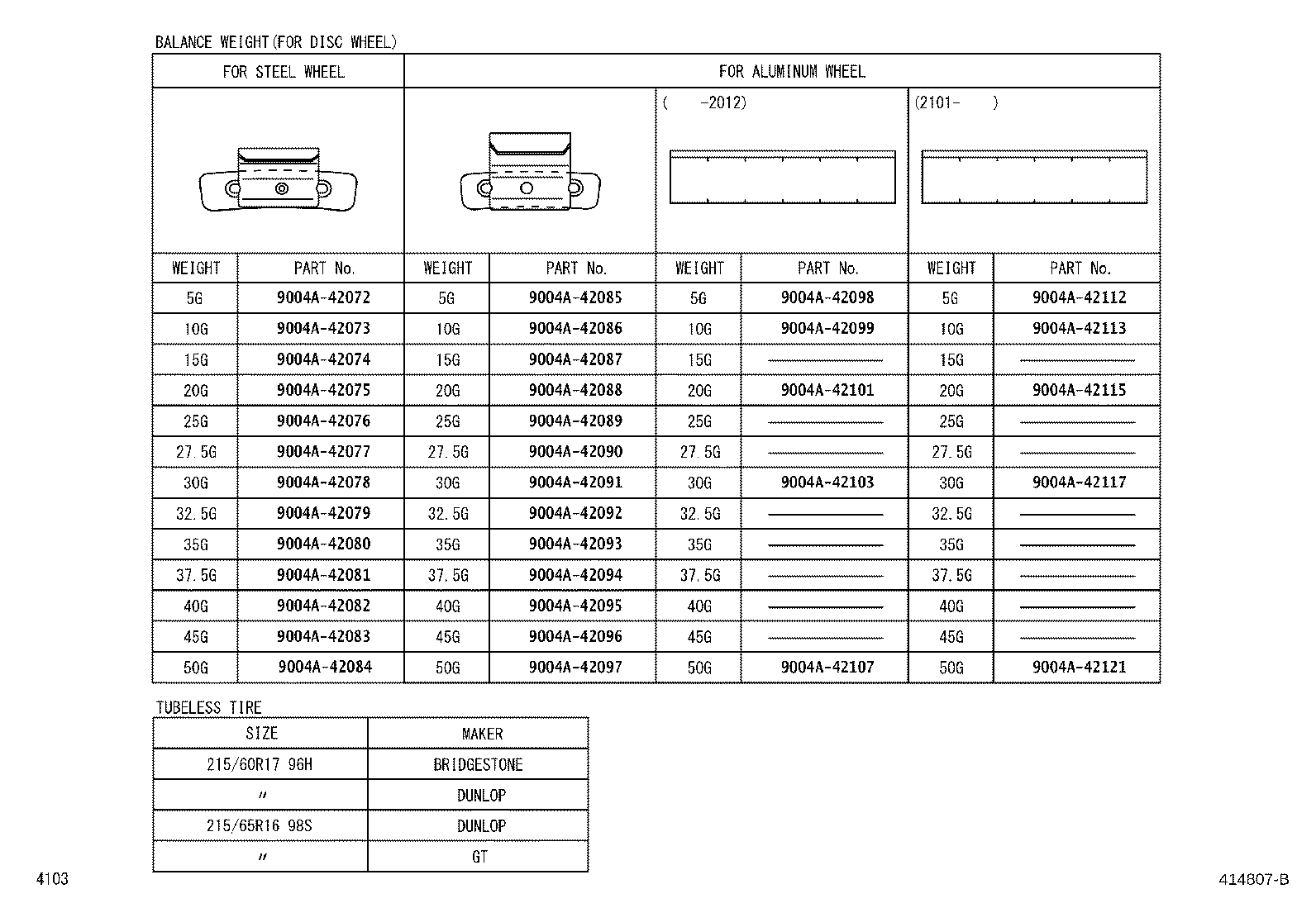

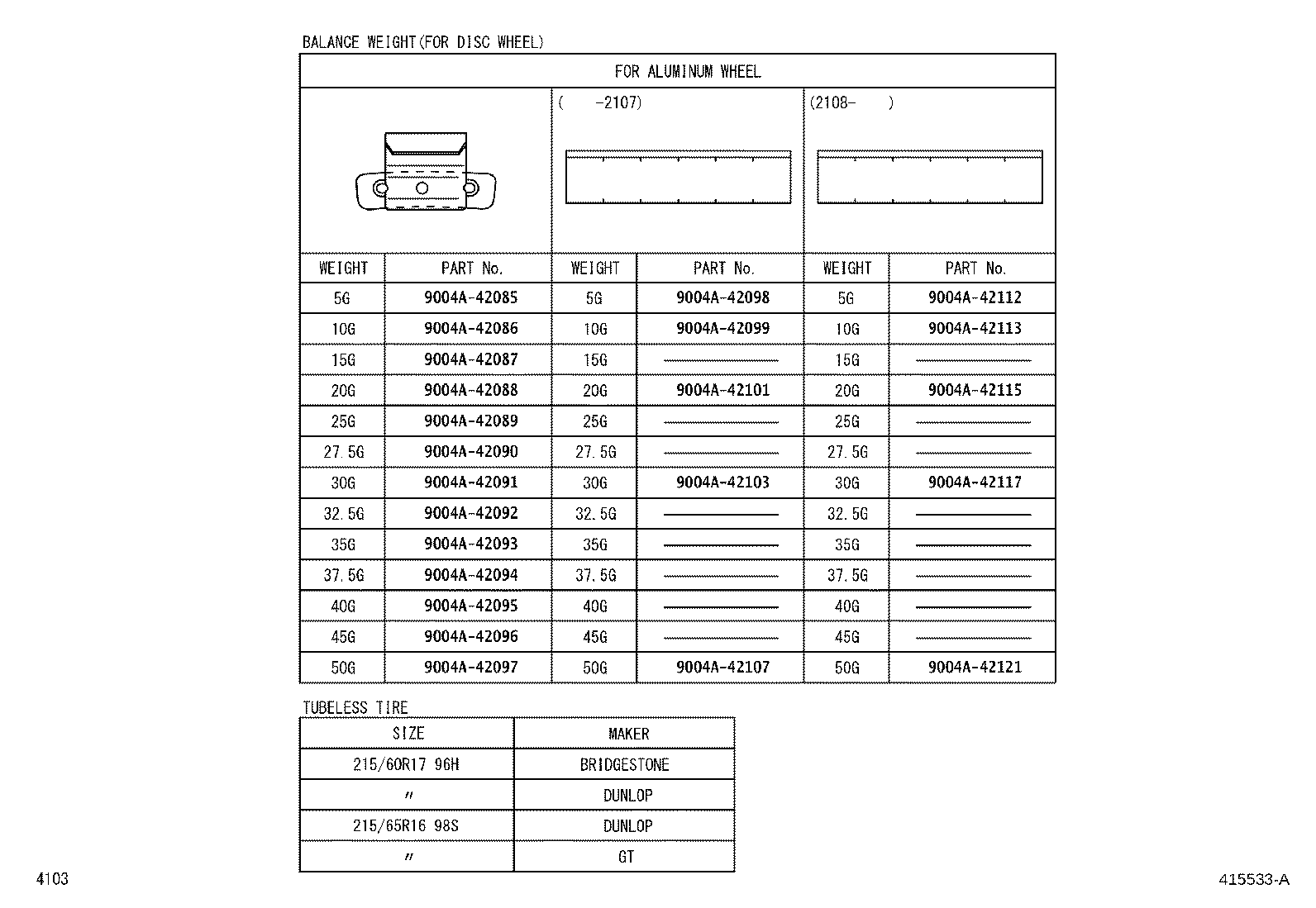

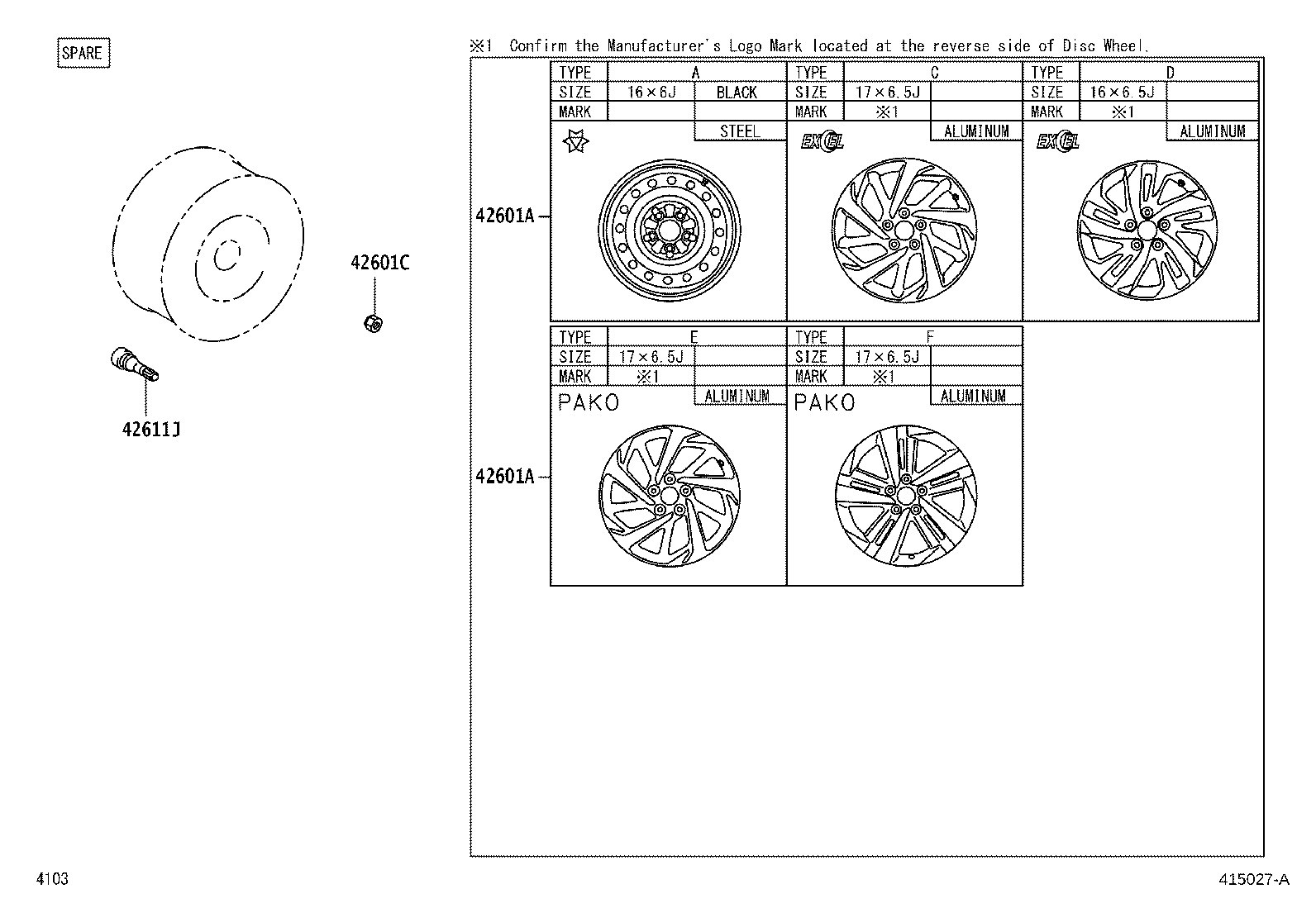

Figure 414805C 414805C 2017-12 → — Figure 415027A 415027A 2017-12 → — Figure 414806B 414806B 2017-12 → — Figure 414807B 414807B 2017-12 → — Figure 415533A 415533A 2017-12 → —

Part groups

PNCDescription
42601 Wheel, Disc
42601A Wheel, Disc (FOR SPARE)
42601C Nut, Hub (FOR AXLE)
42603 Ornament Sub-assy, Wheel Hub
42607 Valve Sub-assy, Tire Pressure Monitor
42611G Valve (FOR TUBELESS TIRE)
42611J Valve (FOR TUBELESS TIRE SPARE)
42611U Cap, Tire Valve
42636 Washer, Tire Valve
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
