Brake Pedal & Bracket

8 part groups · 4 illustrations

Illustrations

Figure 47C541B

47C541B 2017-12 → —

Figure 47B021C

47B021C 2017-12 → —

Figure 47C542B

47C542B 2017-12 → —

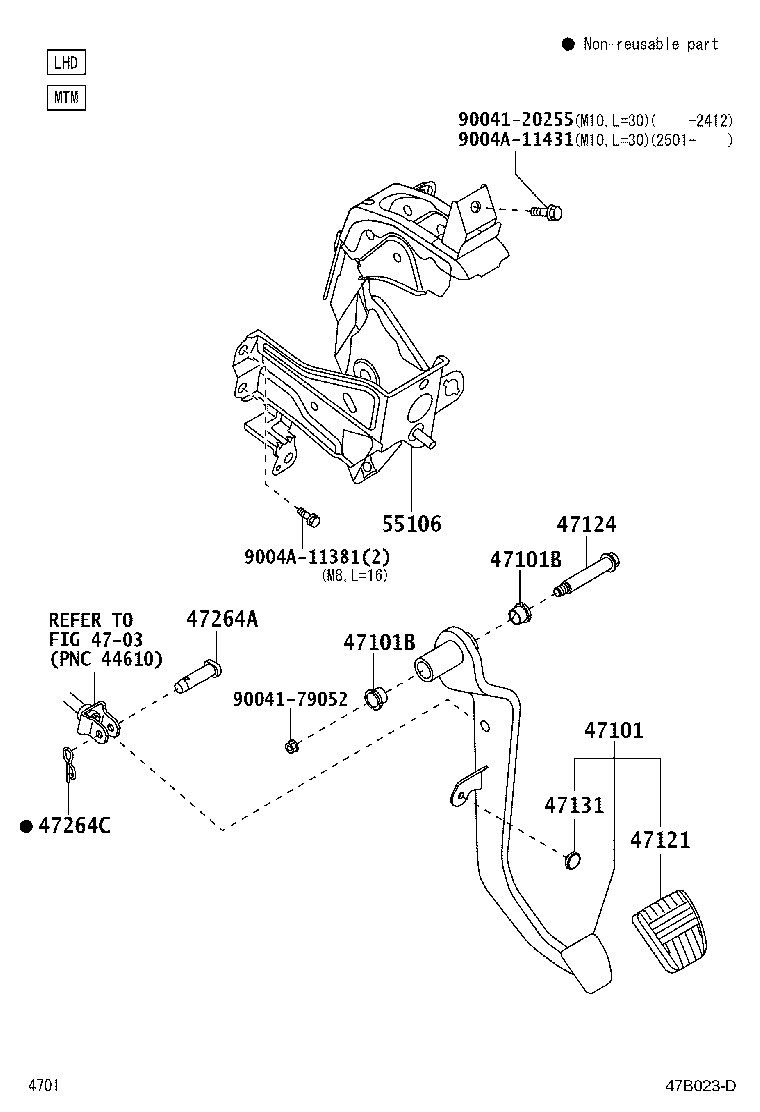

Figure 47B023D

47B023D 2017-12 → —

Part groups

PNC	Description
47101	Pedal Sub-assy, Brake
47101B	Bush(FOR BRAKE PEDAL)
47121	Pad, Brake Pedal
47124	Shaft, Brake Pedal
47131	Cushion(FOR STOP LAMP SWITCH)
47264A	Pin(FOR PUSH ROD)
47264C	Clip(FOR PUSH ROD CLEVIS PIN)
55106	Support Sub-assy, Brake Pedal

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
