Toyota Rush

2017-12 → present · chassis F800 · catalogue 615320 · General

Supported model Data version 2019-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

11 part groups · 2 illustrations

Illustrations

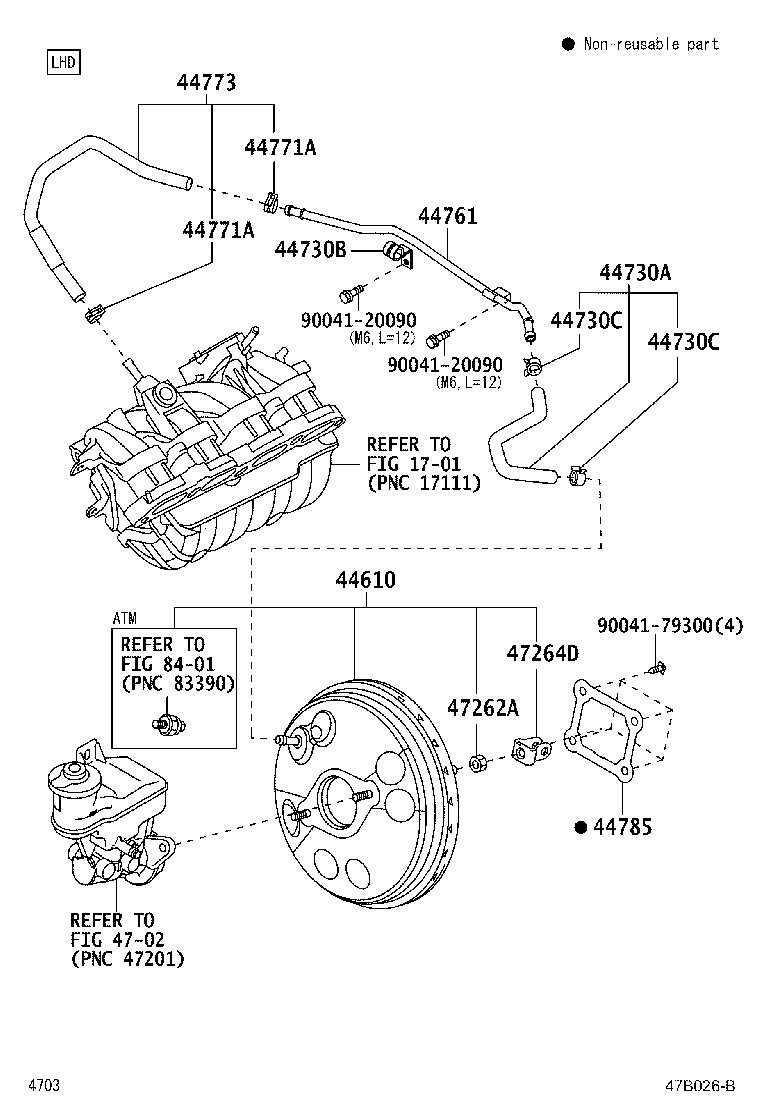

Figure 47C544B 47C544B 2017-12 → — Figure 47B026B 47B026B 2017-12 → —

Part groups

PNCDescription
44610 Booster Assy, Brake
44730A Hose, Vacuum, NO.1
44730B Clamp, Vacuum Hose
44730C Clip(FOR VACUUM HOSE)
44761 Tube, Intake Manifold OR Vacuum Pump TO Connector
44771A Clip(FOR VACUUM TUBE CONNECTOR HOSE)
44773 Hose, Vacuum, NO.2
44785 Gasket, Brake Booster
44976 Seal, Booster
47262A Nut, Master Cylinder Push Rod Clevis Lock
47264D Clevis, Brake Master Cylinder Push Rod
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
