Toyota Rush
2017-12 → present · chassis F800 · catalogue 615320 · General
Supported model
Data version 2019-07
Rear Drum Brake Wheel Cylinder & Backing Plate

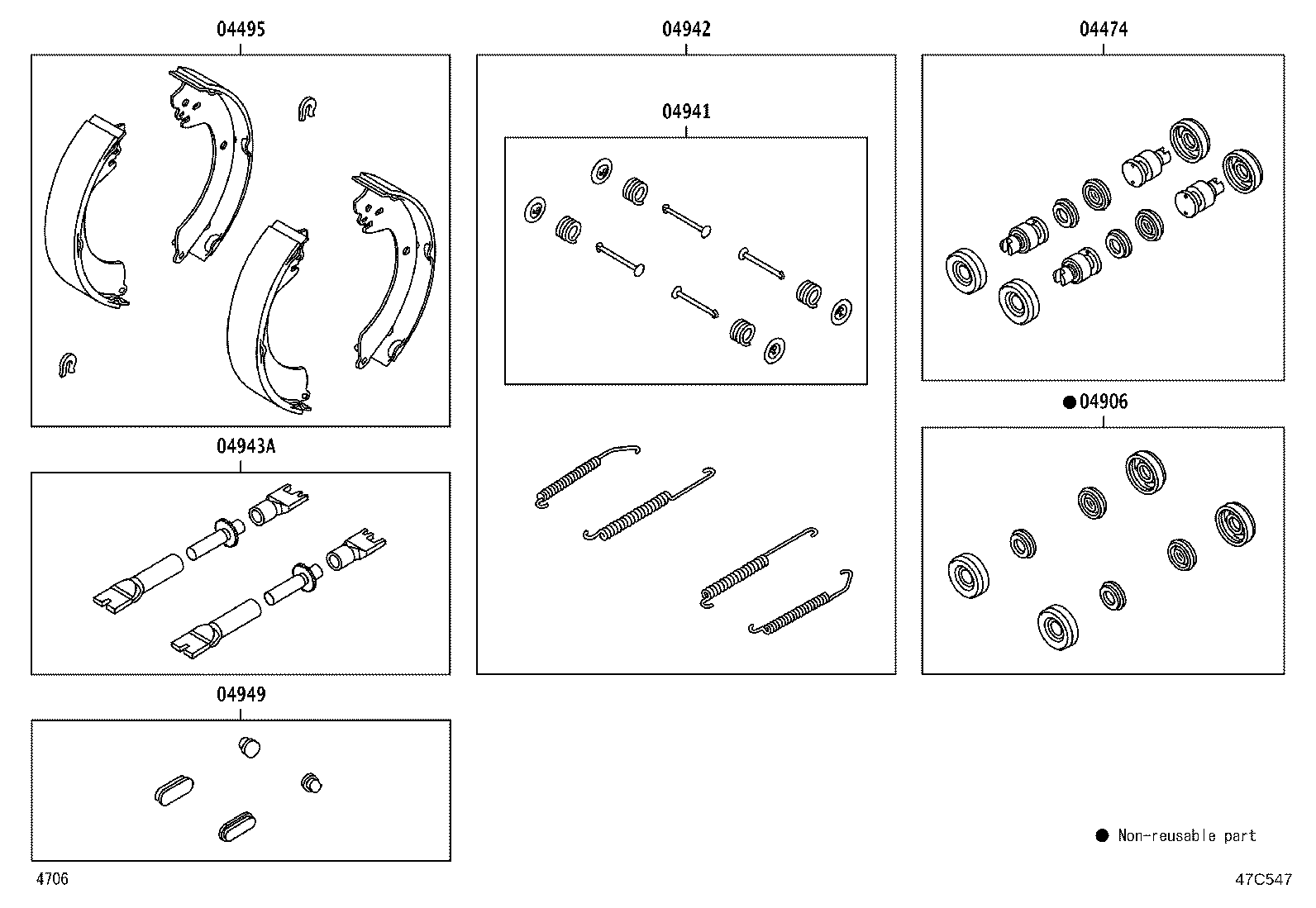

25 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 04474 | Cylinder Kit, Rear Wheel |
| 04495 | Shoe Kit, Rear Brake |
| 04906 | Cup Kit, Rear Wheel Cylinder |
| 04941 | Spring Kit, Rear Brake Shoe Hold Down |
| 04942 | Spring Kit, Rear Brake |
| 04943A | Strut Kit, Rear Brake |
| 04949 | Plug Kit, Rear Brake |
| 47043 | Plate Sub-assy, Brake Backing, Rear RH |
| 47043D | Bolt(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) |
| 47044 | Plate Sub-assy, Brake Backing, Rear LH |
| 47430C | Spring(FOR REAR BRAKE SHOE HOLD DOWN) |
| 47447G | Pin, Shoe Hold Down Spring(FOR REAR BRAKE) |
| 47449B | Cup, Shoe Hold Down Spring(FOR REAR BRAKE) |
| 47459R | Spring, Shoe Return(FOR REAR BRAKE) |
| 47460 | Adjuster Assy, Shoe, RH(FOR REAR BRAKE) |
| 47470 | Adjuster Assy, Shoe, LH(FOR REAR BRAKE) |
| 47547R | Plug, Bleeder(FOR DRUM BRAKE, REAR) |
| 47548R | Cap, Bleeder Plug(FOR DRUM BRAKE, REAR) |
| 47560 | Cylinder Assy, Rear Wheel Brake(FOR RH, REAR OR LOWER) |
| 47570 | Cylinder Assy, Rear Wheel Brake(FOR LH, FRONT OR UPPER) |
| 47611C | Lever, Parking Brake Shoe, RH |
| 47612A | Lever, Parking Brake Shoe, LH |
| 47635C | Retainer, Adjusting Bolt Spring |
| 47643A | Lever, Rear Brake Automatic Adjust, RH |
| 47644A | Lever, Rear Brake Automatic Adjust, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
