Toyota Rush

2017-12 → present · chassis F800 · catalogue 615320 · General

Supported model Data version 2019-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Tube & Clamp

29 part groups · 2 illustrations

Illustrations

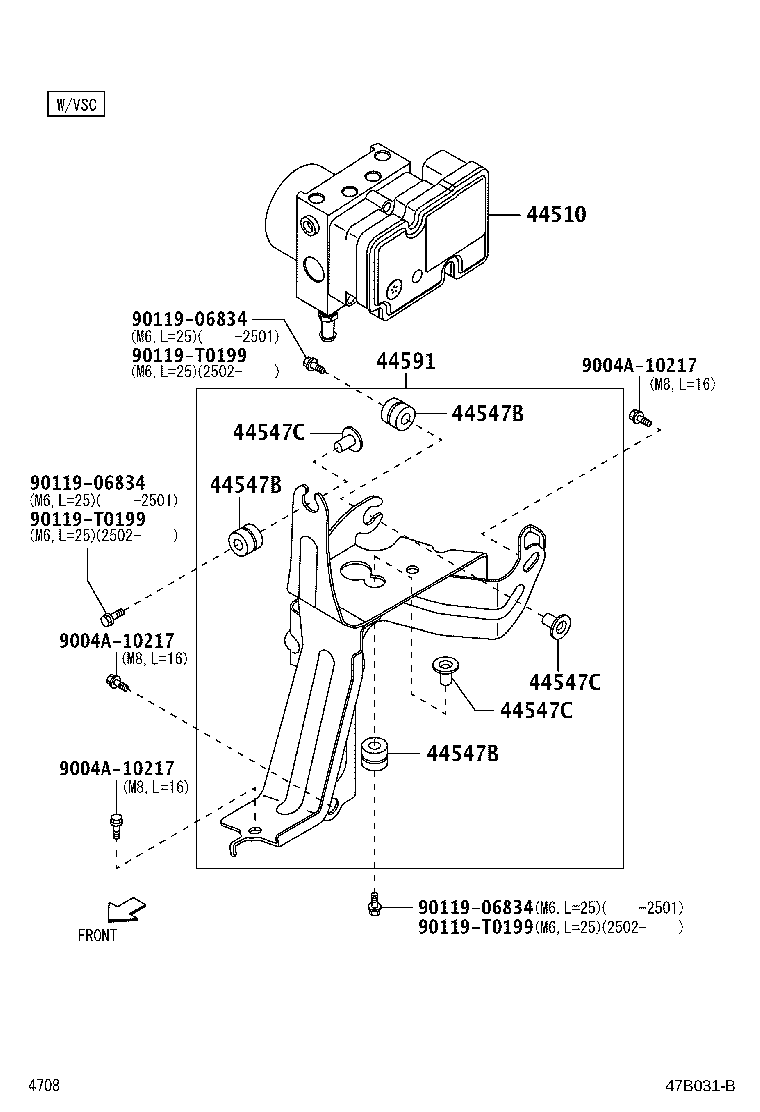

Figure 47C548A 47C548A 2017-12 → — Figure 47B031B 47B031B 2017-12 → —

Part groups

PNCDescription
44510 Actuator Assy, Brake
44547B Cushion, Brake Actuator Bracket
44547C Spacer(FOR BRAKE ACTUATOR BRACKET)
44591 Bracket, Brake Actuator, NO.1
47311 Tube, Front Brake, NO.1
47312 Tube, Front Brake, NO.2
47313 Tube, Front Brake, NO.3
47313A Hose, Flexible, NO.1(FOR FRONT)
47313B Bolt, Union(FOR FRONT FLEXIBLE HOSE)
47313J Hose, Flexible, NO.2(FOR FRONT)
47313P Gasket(FOR FRONT FLEXIBLE HOSE)
47314 Tube, Front Brake, NO.4
47316A Hose, Flexible(FOR REAR BRAKE TUBE)
47321 Tube, Rear Brake, NO.1
47322 Tube, Rear Brake, NO.2
47323 Tube, Rear Brake, NO.3
47324 Tube, Rear Brake, NO.4
47325 Tube, Rear Brake, NO.5
47326 Tube, Rear Brake, NO.6
47371A Clamp, Brake Tube, NO.1
47371B Clamp, Brake Tube, NO.6
47371D Clamp, Brake Tube, NO.8
47371E Clamp, Brake Tube, NO.9
47371F Clamp, Brake Tube, NO.10
47371H Clamp, Brake Tube, NO.12
47372 Clamp, Brake Tube, NO.2
47374B Clamp, Brake Tube, NO.4
47375 Clamp, Brake Tube, NO.5
47391 Way, Brake Tube
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
