Toyota Rush
2017-12 → present · chassis F800 · catalogue 615320 · General
Supported model
Data version 2019-07
Hood & Front Fender
13 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 53301 | Hood Sub-assy |
| 53341B | Insulator, Hood |
| 53341C | Clip(FOR HOOD INSULATOR) |
| 53395B | Clip(FOR HOOD TO FRONT END PANEL SEAL) |

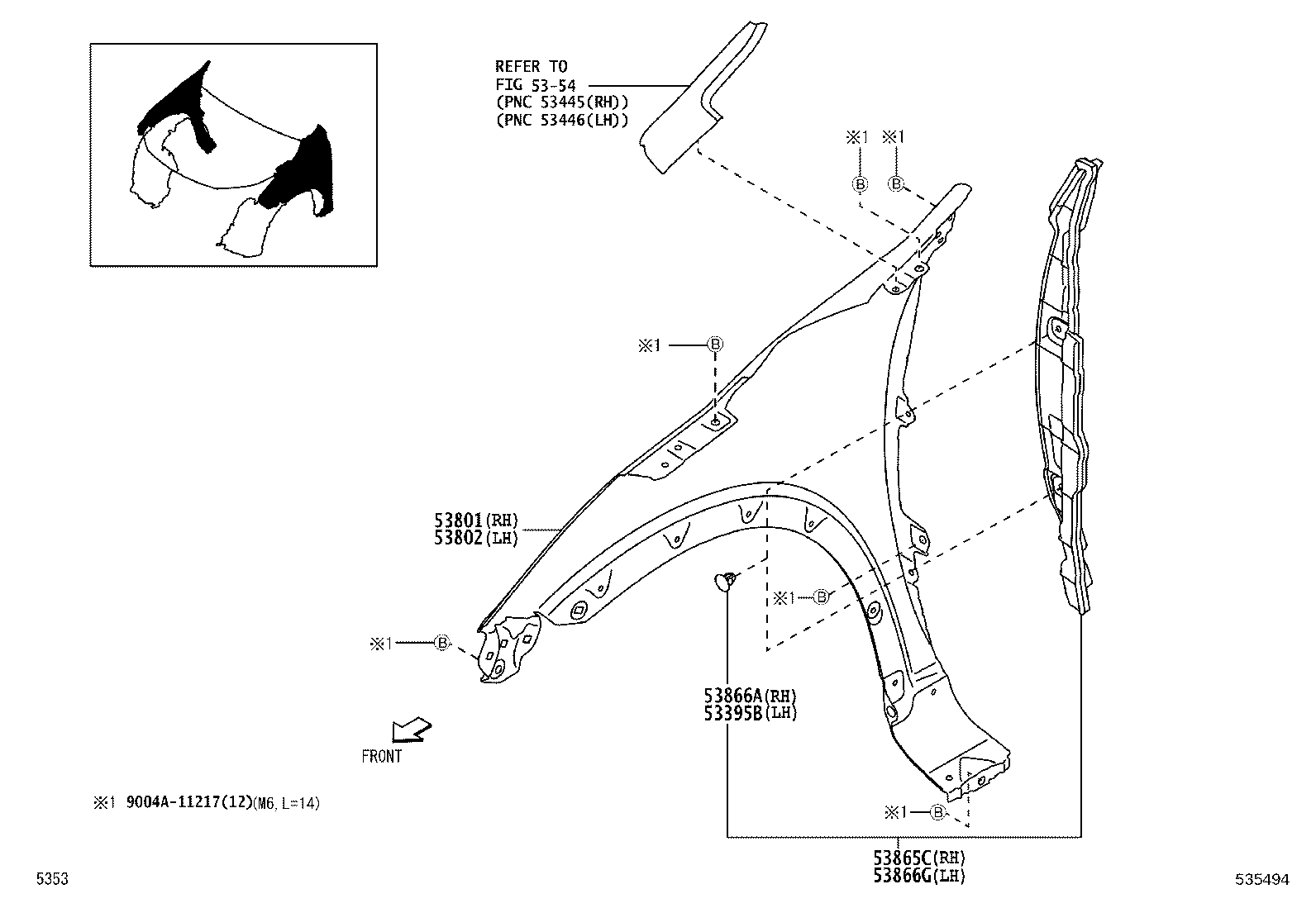

| 53801 | Fender Sub-assy, Front RH |
| 53802 | Fender Sub-assy, Front LH |

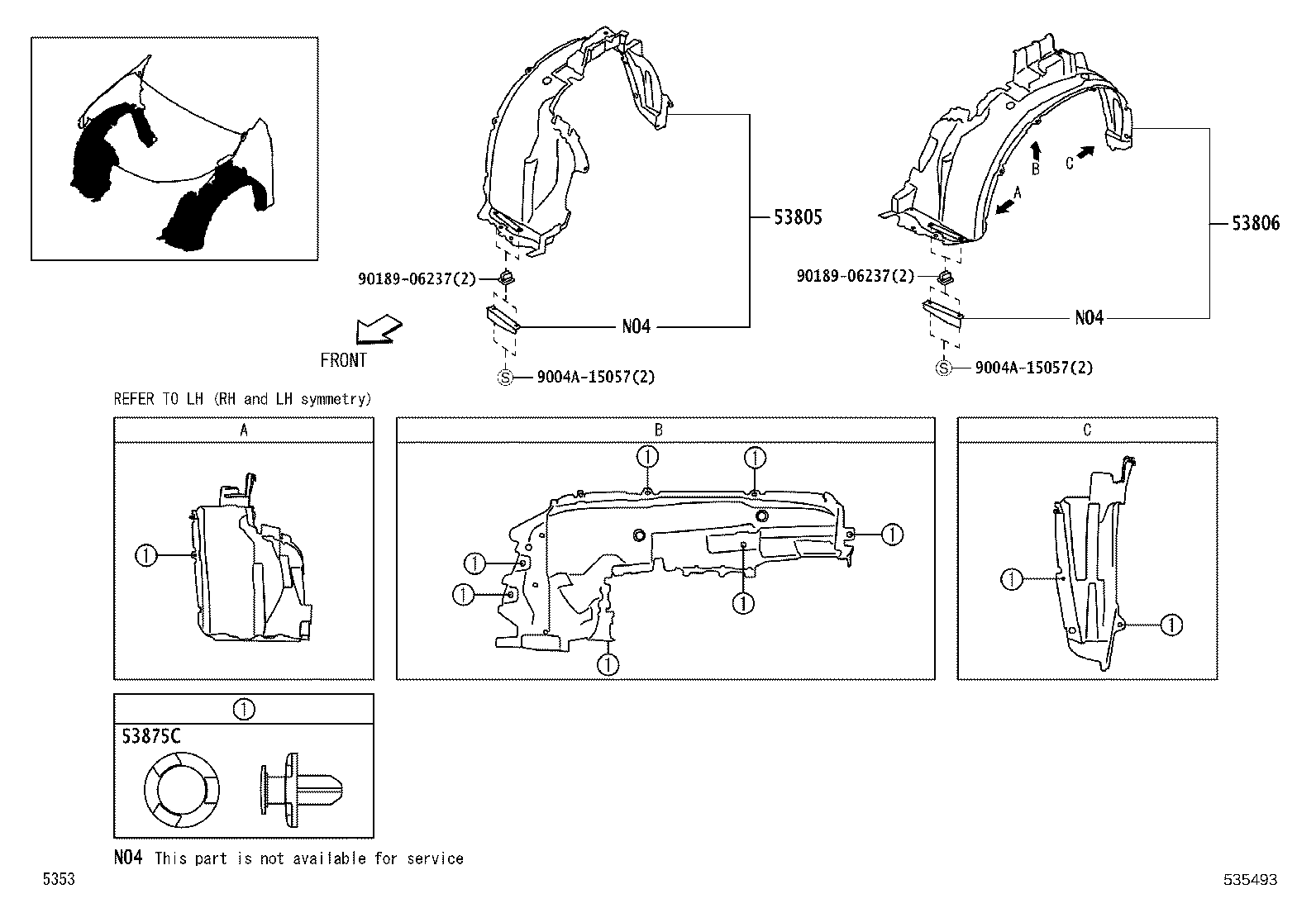

| 53805 | Shield Sub-assy, Front Fender Splash, RH |
| 53806 | Shield Sub-assy, Front Fender Splash, LH |
| 53865C | Plate, Front Fender Extension, RH |
| 53866A | Clip(FOR FRONT FENDER TO COWL SIDE SEAL) |
| 53866G | Plate, Front Fender Extension, LH |
| 53875C | Clip, Front Fender Liner |
| 55739G | Stopper, Hood |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
