Toyota Rush

2017-12 → present · chassis F800 · catalogue 615320 · General

Supported model Data version 2019-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

19 part groups · 2 illustrations

Illustrations

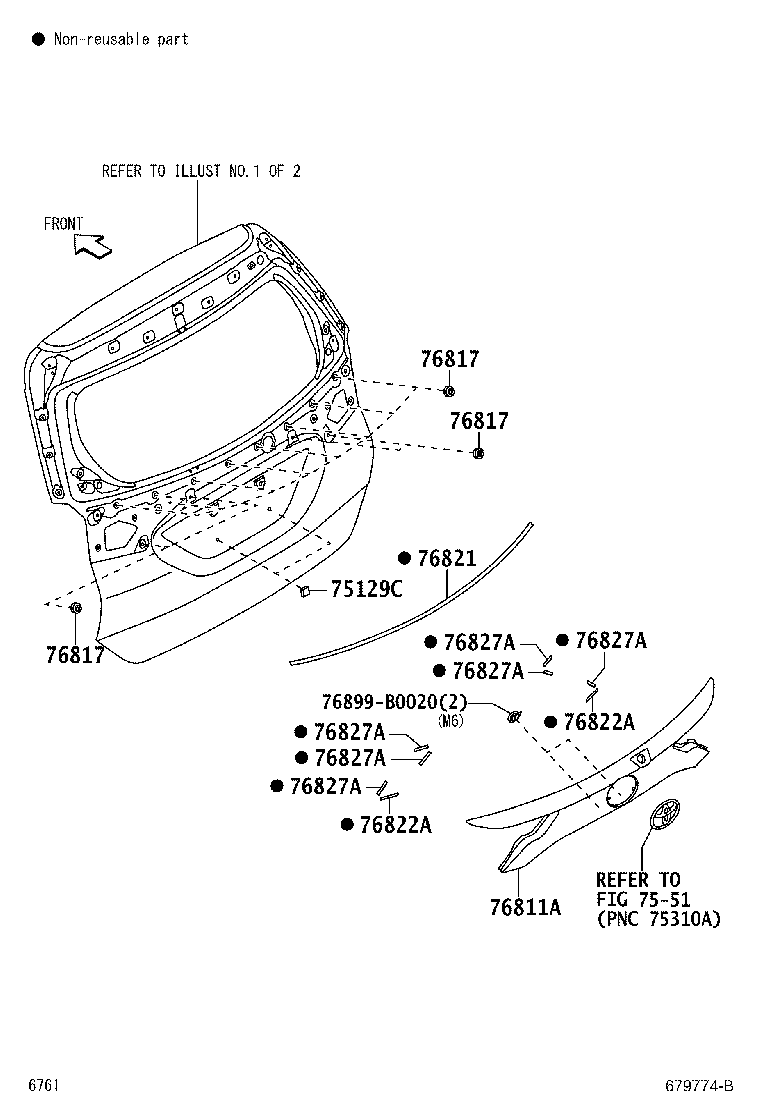

Figure 67A354D 67A354D 2017-12 → — Figure 679774B 679774B 2017-12 → —

Part groups

PNCDescription
64780A Panel Assy, Back Door Trim
64818B Spacer, Back Door Glass, NO.1
64827E Clip, Back Window Glass, RH
64828D Clip, Back Window Glass, LH
67005 Panel Sub-assy, Back Door
67005B Cushion(FOR BACK DOOR PANEL)
67750A Clip(FOR BACK DOOR TRIM)
67837L Seal, Door Dust Proof
67881A Weatherstrip, Back Door
68131 Glass, Back Door
74811G Handle, Door Pull
75129C Cushion, Rear Licence Plate
75573C Moulding, Back Window, Outside
75574B Moulding, Back Window, Outside LH
76811A Garnish, Back Door, Outside
76817 Clip, Back Door Outside Garnish
76821 Protector, Back Door Garnish Moulding, Upper
76822A Protector, Back Door Garnish Moulding, Lwr
76827A Retainer, Back Door Garnish, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
