Toyota Rush

2017-12 → present · chassis F800 · catalogue 615320 · General

Supported model Data version 2019-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat & Seat Track

216 part groups · 8 illustrations

Illustrations

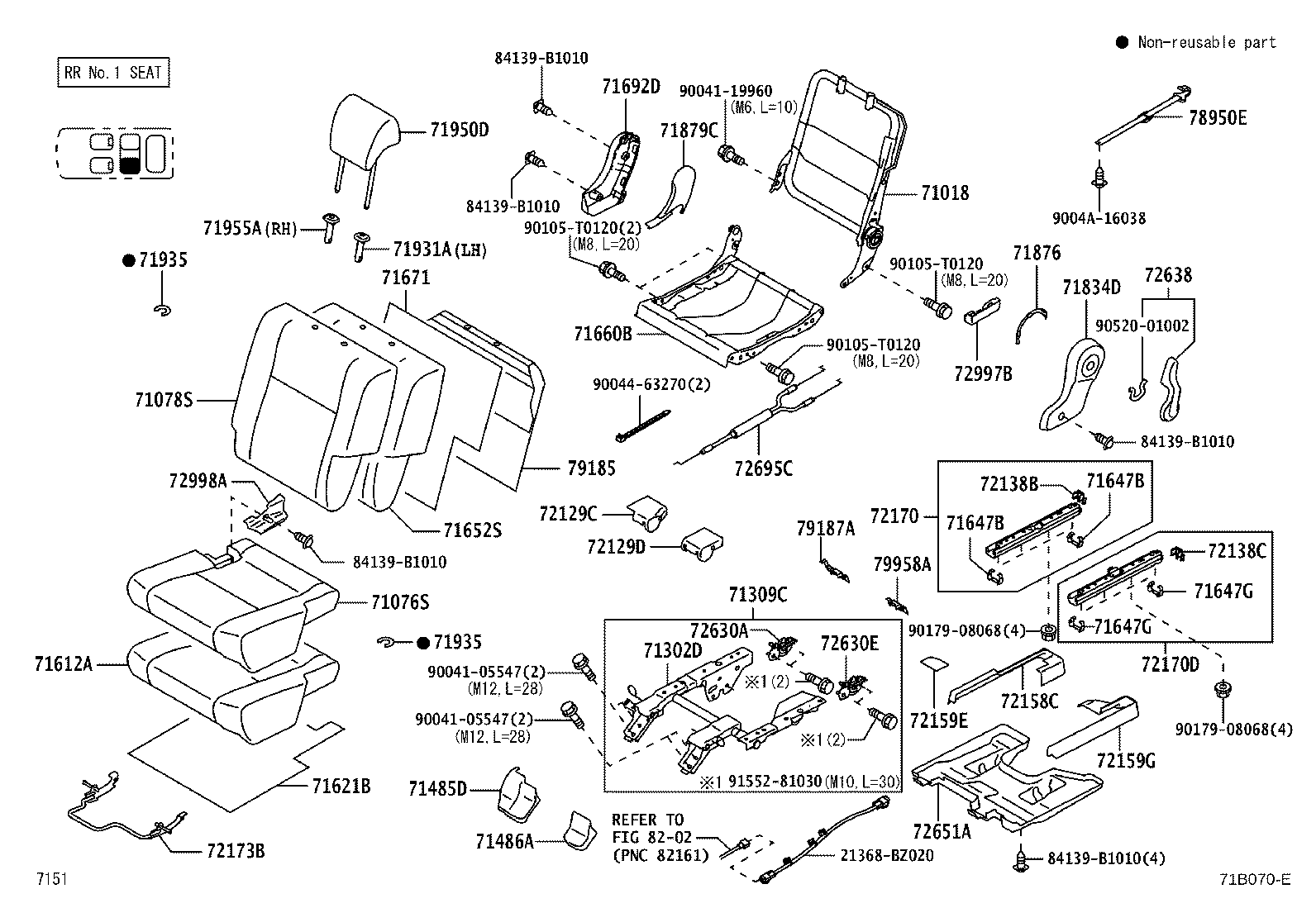

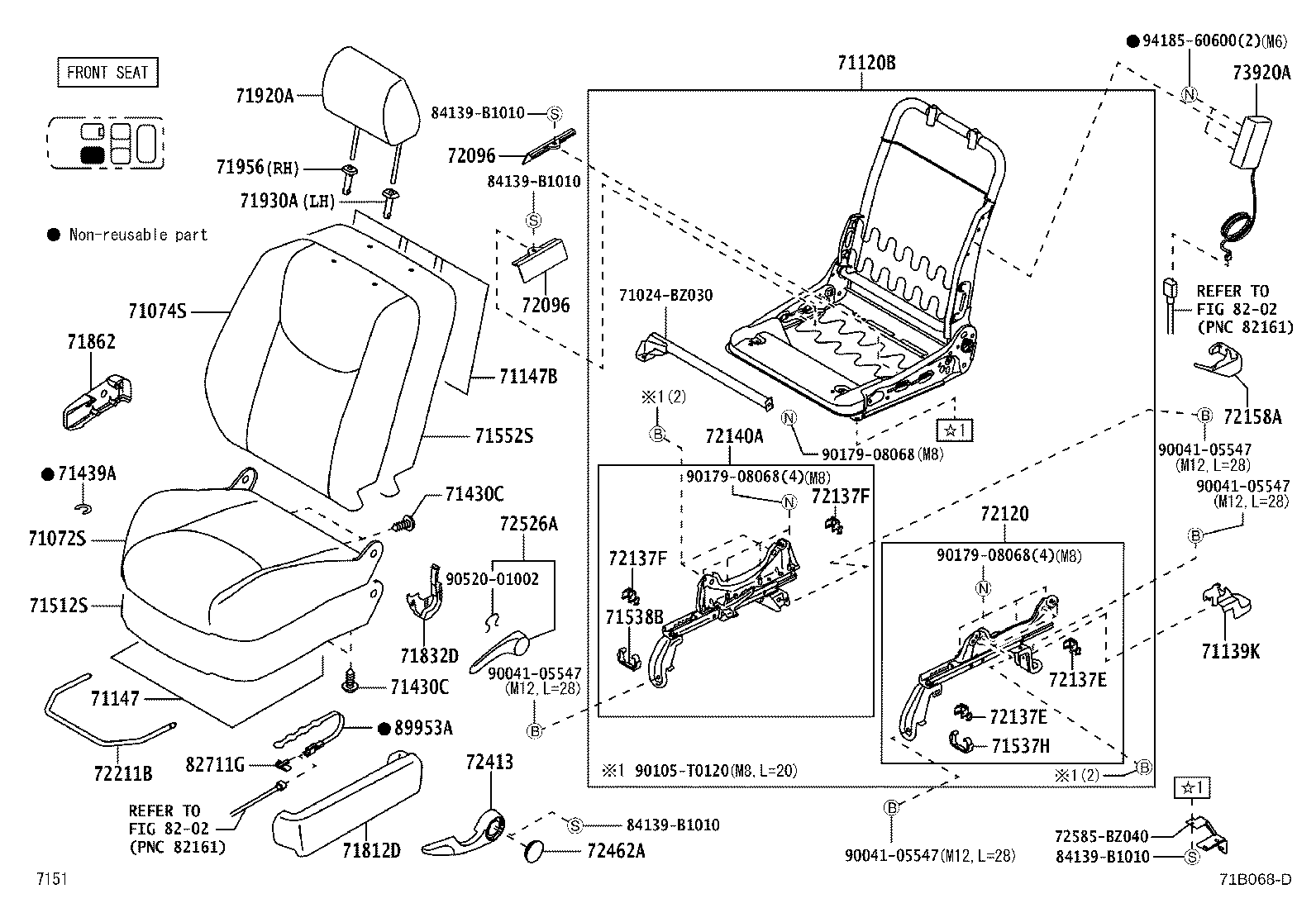

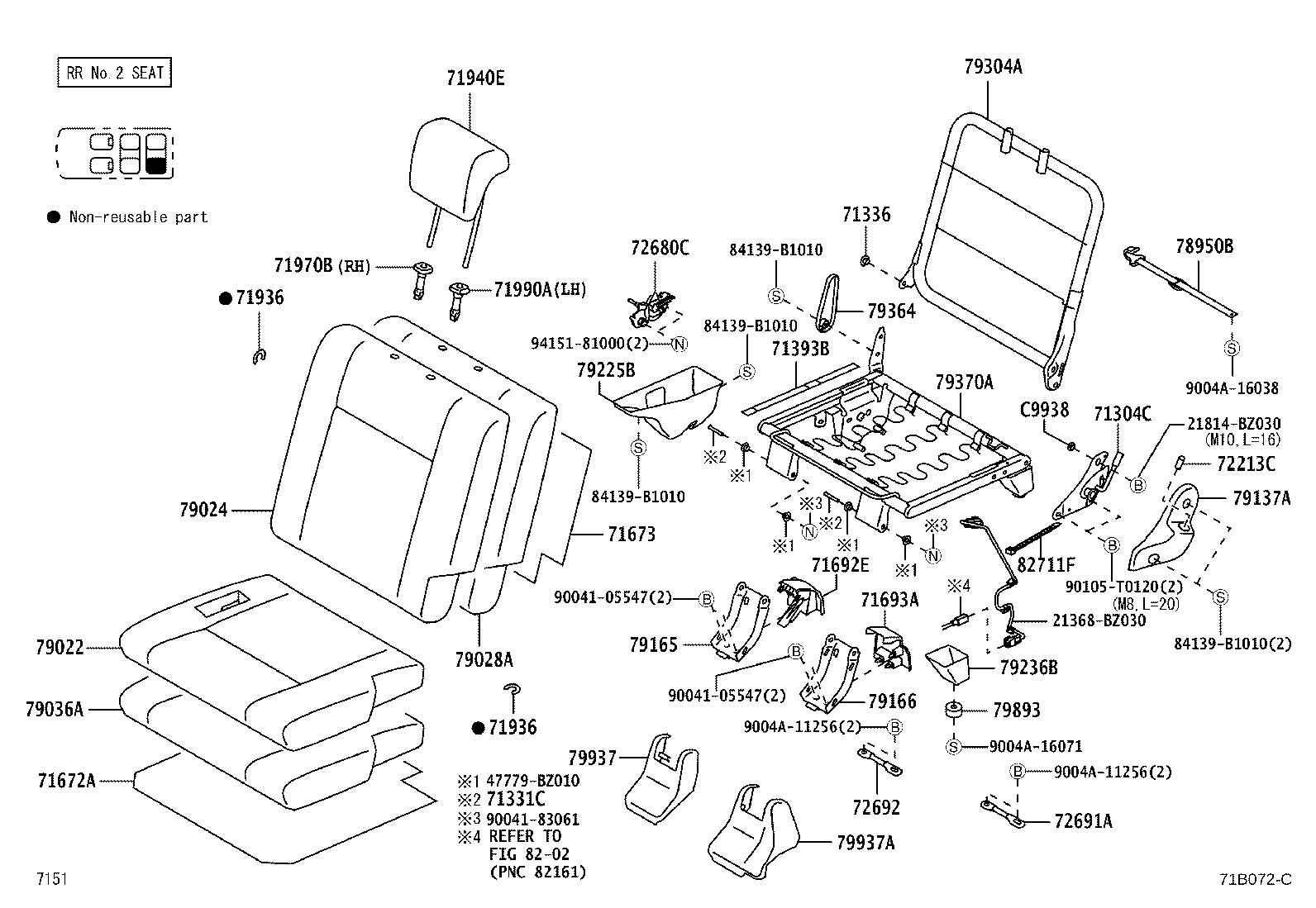

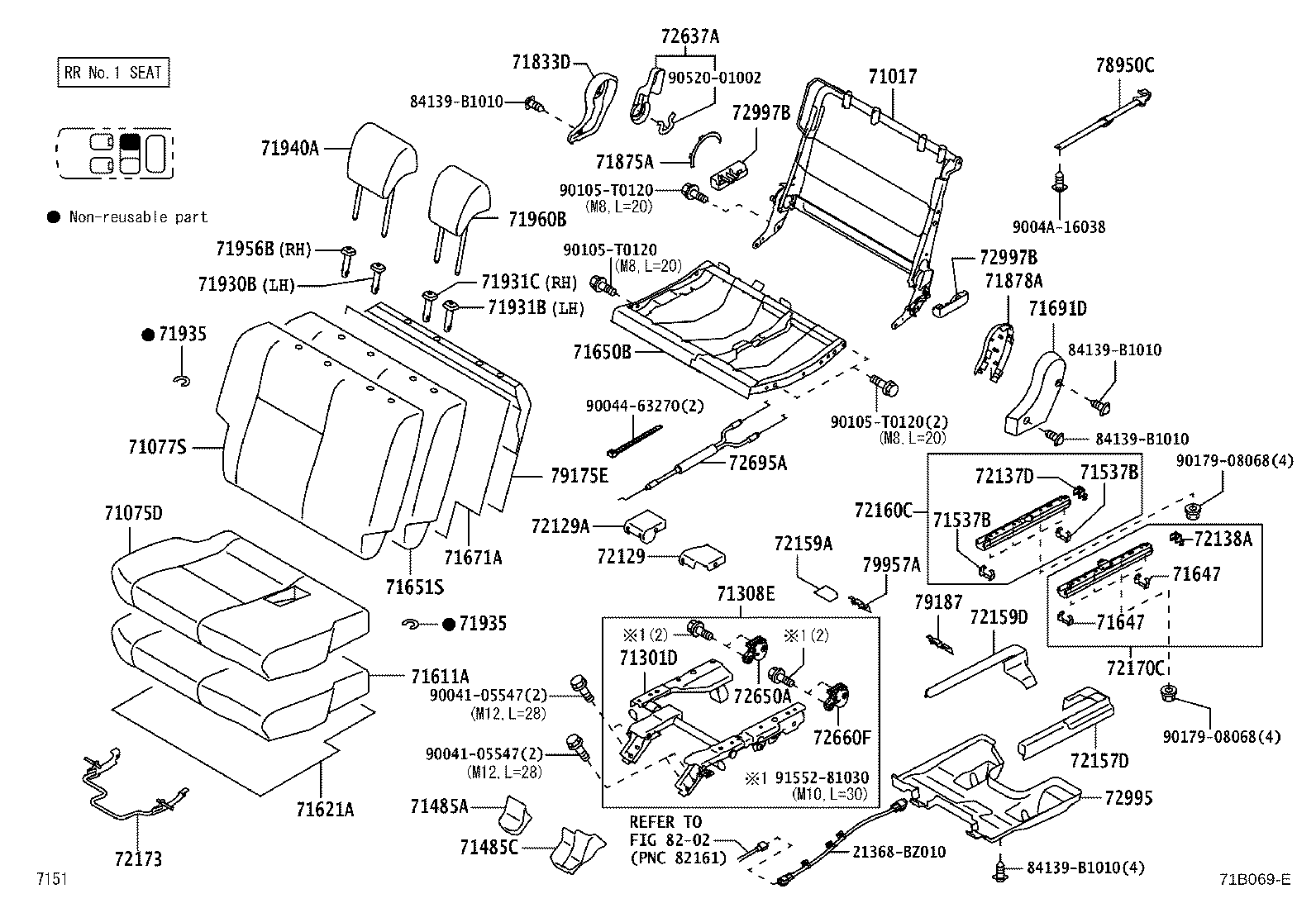

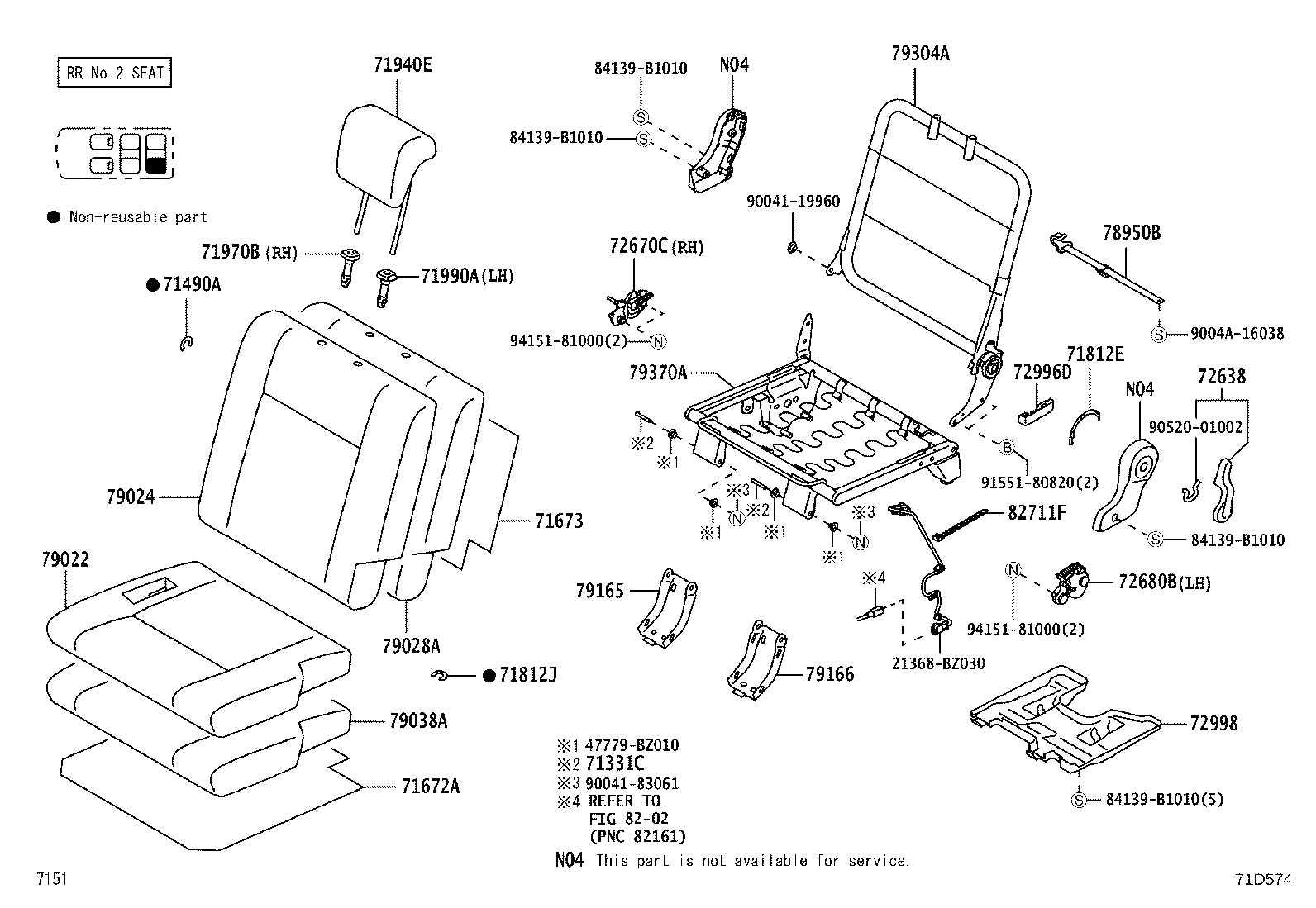

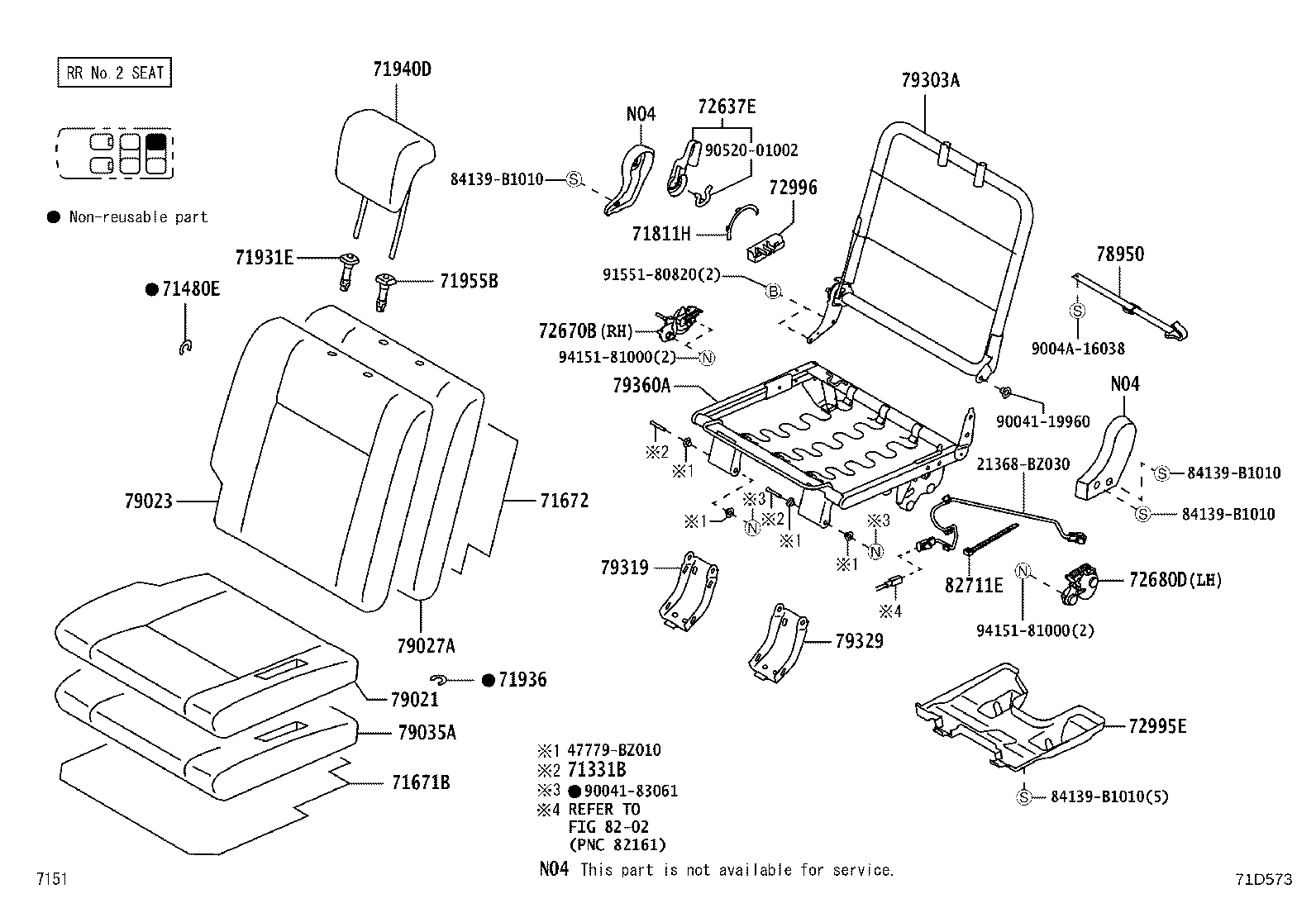

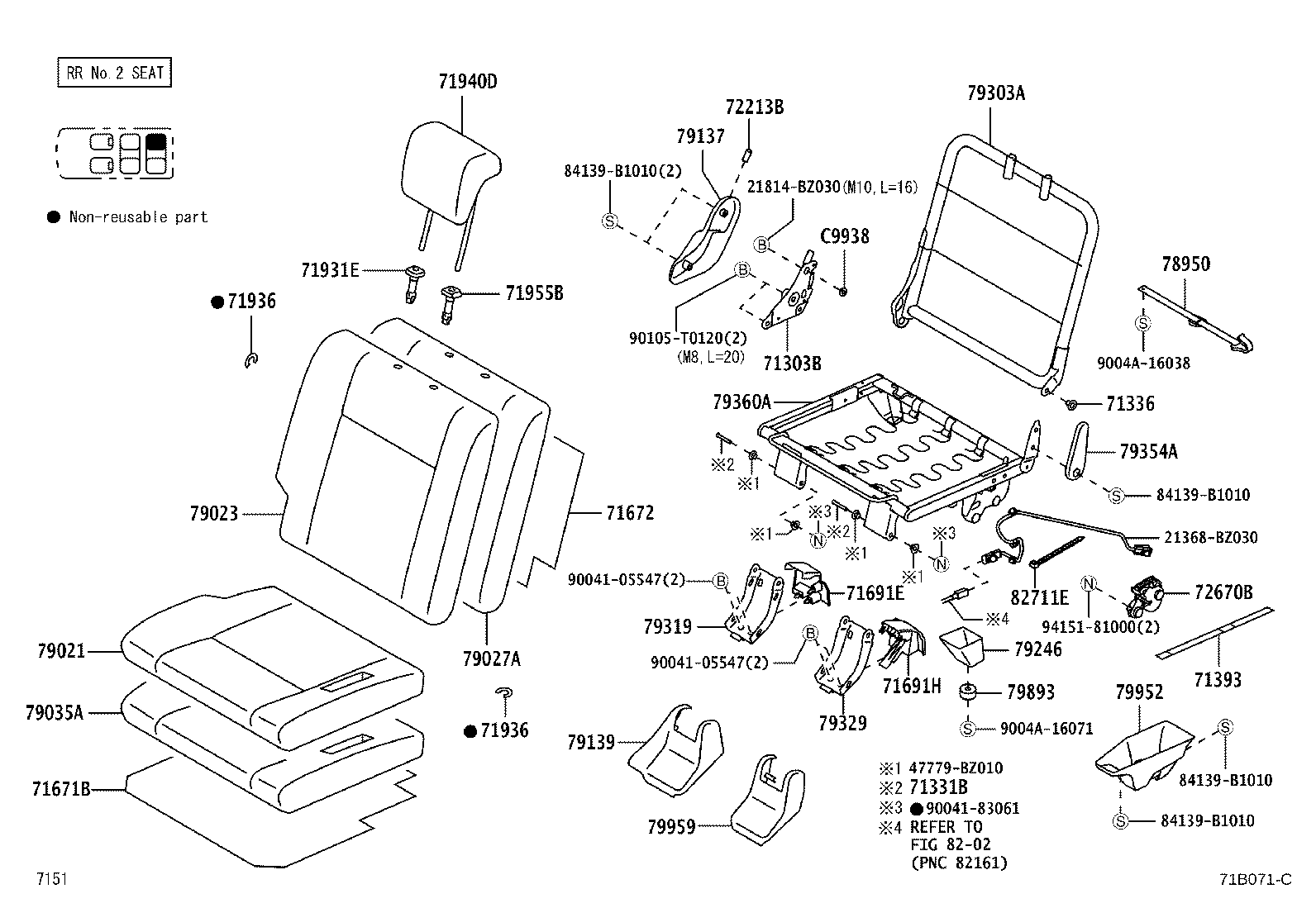

Figure 71B067C 71B067C 2017-12 → — Figure 71B068D 71B068D 2017-12 → — Figure 71B069E 71B069E 2017-12 → — Figure 71B070E 71B070E 2017-12 → — Figure 71B071C 71B071C 2017-12 → — Figure 71B072C 71B072C 2017-12 → — Figure 71D573 71D573 2020-06 → — Figure 71D574 71D574 2020-06 → —

Part groups

PNCDescription
71017 Frame Sub-assy, Rear Seatback, RH
71018 Frame Sub-assy, Rear Seatback, LH
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71075D Cover Sub-assy, Rear Seat Cushion, RH
71076S Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
71077S Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71110A Frame Assy, Front Seat W/Adjuster, RH
71120B Frame Assy, Front Seat W/Adjuster, LH
71139C Cover, Front Seat Leg, RH
71139K Cover, Front Seat Leg, LH(FOR LH SEAT)
71147 Silencer, Seat Spring
71147B Silencer, Seat Spring
71301D Hinge Sub-assy, Rear Seat, RH
71302D Hinge Sub-assy, Rear Seat, LH
71303B Hinge Sub-assy, Rear NO.2 Seat, RH
71304C Hinge Sub-assy, Rear Seatback, LH
71308E Leg Sub-assy, Rear Seat, RH
71309C Leg Sub-assy, Rear Seat, Rear LH
71331B Pin, Rear Seat Hinge, RH
71331C Pin, Rear Seat Hinge, LH
71336 Bush OR Spacer, Rear Seatback Hinge
71393 Band, Rear Seat Cushion
71393B Band, Rear Seat Cushion, LH
71430C Clip
71439A Clip
71480E Clip, Rear Seatback, RH
71485A Cover, Rear Seat Hinge, NO.2 RH
71485C Cover, Rear Seat Hinge, RH
71485D Cover, Rear Seat Hinge, LH
71486A Cover, Rear Seat Hinge, NO.2 LH
71490A Clip, Rear Seatback, LH
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71537B Protector, Rear Seat Cushion
71537C Protector, Front Seat Cushion Edge, RH
71537D Protector, Front Seat Cushion Edge, LH
71537H Protector, Front Seat Cushion Edge, RH(FOR LH SEAT)
71538B Protector, Front Seat Cushion Edge, LH(FOR LH SEAT)
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71611A Pad, Rear Seat Cushion, RH
71612A Pad, Rear Seat Cushion, LH
71621A Pad, Rear Seat Cushion Silencer, A
71621B Pad, Rear Seat Cushion Silencer, NO.2
71647 Protector, Rear Seat Cushion Edge
71647B Protector, Rear Seat Cushion Edge
71647G Protector, Rear Seat Cushion Edge
71650B Spring Assy, Rear Seat Cushion, RH
71651S Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71660B Spring Assy, Rear Seat Cushion, LH
71671 Pad, Rear Seatback Silencer, A
71671A Pad, Rear Seatback Silencer, A
71671B Pad, Rear Seat Cushion Silencer, A
71672 Pad, Rear Seatback Silencer, B
71672A Pad, Rear Seat Cushion Silencer, B
71673 Pad, Rear Seatback Silencer, C
71691D Cover, Rear Seat Cushion Hinge, Upper RH
71691E Cover, Rear Seat Cushion Hinge, NO.1
71691H Cover, Rear Seat Cushion Hinge, NO.2
71692D Cover, Rear Seat Cushion Hinge, Upper LH
71692E Cover, Rear Seat Cushion Hinge, NO.2
71693A Cover, Rear Seat Cushion Hinge, NO.3
71811D Shield, Front Seat Cushion, RH
71811H Cover, Reclining Adjuster, RH
71812D Shield, Front Seat Cushion, LH
71812E Cover, Reclining Adjuster, LH
71812J Clip, Rear Seat Cover
71831D Cover, Front Seat Hinge, RH
71832D Cover, Front Seat Hinge, LH
71833D Cover Rear Seat Reclining, RH
71834D Cover, Rear Seat Reclining, LH
71861 Shield, Front Seat Cushion, Inner RH
71862 Shield, Front Seat Cushion, Inner LH
71875A Cover, Reclining Adjuster Inside, RH
71876 Cover, Reclining Adjuster Inside, LH
71878A Cover, Rear Seat Reclining, Inner RH
71879C Cover, Rear Seat Reclining, Inner LH
71910A Headrest Assy, Front Seat
71920A Headrest Assy, Front Seat, LH
71930A Support Assy, Front Seat Headrest
71930B Support Assy, Rear Seat Headrest
71931 Support, Front Seat Headrest
71931A Support, Rear Seat Headrest
71931B Support Assy, Rear NO.1 Seat Headrest
71931C Support Assy, Rear NO.2 Seat Headrest
71931E Support Assy, Rear NO.3 Seat Headrest
71935 Clip
71936 Clip
71940A Headrest Assy, Rear Seat
71940D Headrest Assy, Rear NO.2 Seat, RH
71940E Headrest Assy, NO.2 Seat
71950D Headrest Assy, Rear Seat, LH
71955A Support, Rear Seat Headrest
71955B Support, Rear Seat Headrest
71956 Support, Headrest
71956A Support, Front Seat Headrest
71956B Support, Rear Seat Headrest
71960B Headrest Assy, Rear Seat, Center
71970B Support Assy, Rear Seat Headrest, RH
71990A Support Assy, Rear Seat Headrest, LH
72095B Plate Sub-assy, Front Seat, RH
72096 Plate Sub-assy, Front Seat, LH
72110A Track Assy, Front Seat, Outer RH
72120 Track Assy, Front Seat, Outer LH
72129 Protector, Seat Track Lower Rail, NO.1
72129A Protector, Seat Track Lower Rail, NO.2
72129C Protector, Seat Track Lower Rail, NO.3
72129D Protector, Seat Track Lower Rail, NO.4
72130A Track Assy, Front Seat, Inner RH
72137B Cover, Seat Track, RH
72137D Cover, Rear Seat Track, RH
72137E Cover, Seat Track, NO.1
72137F Cover, Seat Track, NO.2
72138A Cover, Rear Seat Track, LH
72138B Cover, Seat Track, LH
72138C Cover, Seat Track, LH
72140A Track Assy, Front Seat,Inner LH
72157A Cover, Seat Track Bracket, Inner RH
72157D Cover, Seat Track Bracker, Inner RH
72158A Cover, Rear Seat Track Bracket, Inner LH
72158C Cover, Seat Track Bracket, Inner LH
72159A Cover, Rear Seat Track Bracket
72159D Cover, Rear Seat Track Bracket, Outer RH
72159E Cover, Rear Seat Track Bracket, Outer LH
72159G Cover, Rear Seat Track Bracket, LH
72160C Track Assy, Rear NO.1 Seat, Outer RH
72170 Track Assy, Rear Seat, Outer LH
72170C Track Assy, Rear NO.1 Seat, Inner RH
72170D Track Assy, Rear Seat, Outer LH
72173 Handle, Rear Seat Track Adjusting
72173B Handle, Rear Seat Track Adjusting, LH
72211 Handle, Seat Track Adjusting
72211B Handle, Seat Track Adjusting
72213B Knob, Seat Track Adjusting Handle, RH
72213C Knob, Seat Track Adjusting Handle, LH
72413 Lever, Vertical Adjuster Lock
72462 Cover, Vertical Adjuster RH
72462A Cover, Vertical Adjuster LH
72525A Handle, Reclining Adjuster Release, RH
72526A Handle, Reclining Adjuster Release, LH
72630A Lock Assy, Rear NO.1 Seat
72630E Lock Assy, Rear NO.1 Seat
72637A Handle, Rear Seat Lock
72637E Handle, Rear Seat Lock, RH
72638 Handle, Rear Seat Lock, LH
72650A Lock Assy, Rear Seat, RH
72651A Cover, Rear Seat Lock
72660F Lock Assy, Rear Seat, LH
72670B Lock Assy, Rear Seat Cushion, RH
72670C Lock Assy, Rear Seat Cushion, NO.2 RH
72680B Lock Assy, Rear Seat Cushion, LH
72680C Lock Assy, Rear Seat Cushion, NO.2 LH
72680D Lock Assy, Front Seat Cushion, LH
72691A Striker, Rear Seat Cushion Lock, NO.1
72692 Striker, Rear Seat Cushion Lock, NO.2
72695A Cable, Rear Seat Lock Control
72695C Cable, Rear Seat Lock Control, LH
72995 Cover, Rear Seat Cushion, RH
72995E Cover, Rear Seat Cushion
72996 Cover, Rear Seatback, RH
72996D Cover, Rear NO.2 Seatback, LH
72997B Cover, Rear Seatback
72998 Cover, Rear Seat Cushion, LH
72998A Cover, NO.1 Seat Cushion, LH
73910A Airbag Assy, Front Seat, RH
73920A Airbag Assy, Front Seat, LH
78950 Band Assy, Fold Seat Stopper, NO.1
78950B Band Assy, Fold Seat Stopper, NO.3
78950C Band Assy, Fold Seat Stopper
78950E Band Assy, Fold Rear Seat Stopper, LH
79021 Cover Sub-assy, NO.2 Seat Cushion, RH
79022 Cover Sub-assy, NO.2 Seat Cushion, LH
79023 Cover Sub-assy, NO.2 Seatback, RH
79024 Cover Sub-assy, NO.2 Seatback, LH
79027A Pad Sub-assy, NO.2 Seatback, RH
79028A Pad Sub-assy, NO.2 Seatback, LH
79035A Pad Sub-assy, NO.3 Seat Cushion, RH
79036A Pad, Sub-assy, NO.3 Seat Cushion, LH
79038A Pad Sub-assy, NO.3 Seatback, LH
79137 Cover, NO.1 Seat Hinge
79137A Cover, NO.2 Seat Hinge
79139 Cover, Rear Seat Leg
79165 Bracket, NO.3 Seat Leg, Rear RH
79166 Bracket, NO.3 Seat Leg, Rear LH
79175E Pad, NO.1 Seatback, RH
79185 Pad, NO.1 Seatback, LH
79187 Cover, NO.1 Seat Inner Bracket
79187A Cover, NO.1 Seat Inner Bracket, LH
79225B Carpet, Rear NO.2 Seat Cushion, LH
79236B Cover, NO.2 Seat Leg, LH
79246 Cover, NO.2 Seat Leg, NO.1
79303A Frame Sub-assy, NO.3 Seatback, RH
79304A Frame Sub-assy, NO.3 Seatback, LH
79319 Bracket, NO.3 Seat Leg, RR RH
79329 Bracket, NO.3 Seat Leg, RR LH
79354A Cover, NO.3 Seatback Hinge, RH
79360A Spring Assy, NO.3 Seat Cushion, RH
79364 Cover, NO.3 Seatback Hinge, LH
79370A Spring Assy, NO.3 Seat Cushion, LH
79893 Cushion, Fold Seat Leg
79937 Cover, Rear Seat Leg, NO.2
79937A Cover, Rear Seat Leg, NO.2
79952 Cover, NO.2 Seat Cushion
79957A Cover, Rear Seat Rear Bracket, RH
79958A Cover, Rear Seat Rear Bracket, LH
79959 Cover, RR Seat Leg
82711E Clamp, Wiring Harness
82711F Clamp, Wiring Harness
82711G Clamp, Wiring Harness
89953A Sensor, Belt Warning Occupant Detection
C9938 Bush
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
