Toyota Rush

2017-12 → present · chassis F800 · catalogue 615320 · General

Supported model Data version 2019-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt

16 part groups · 3 illustrations

Illustrations

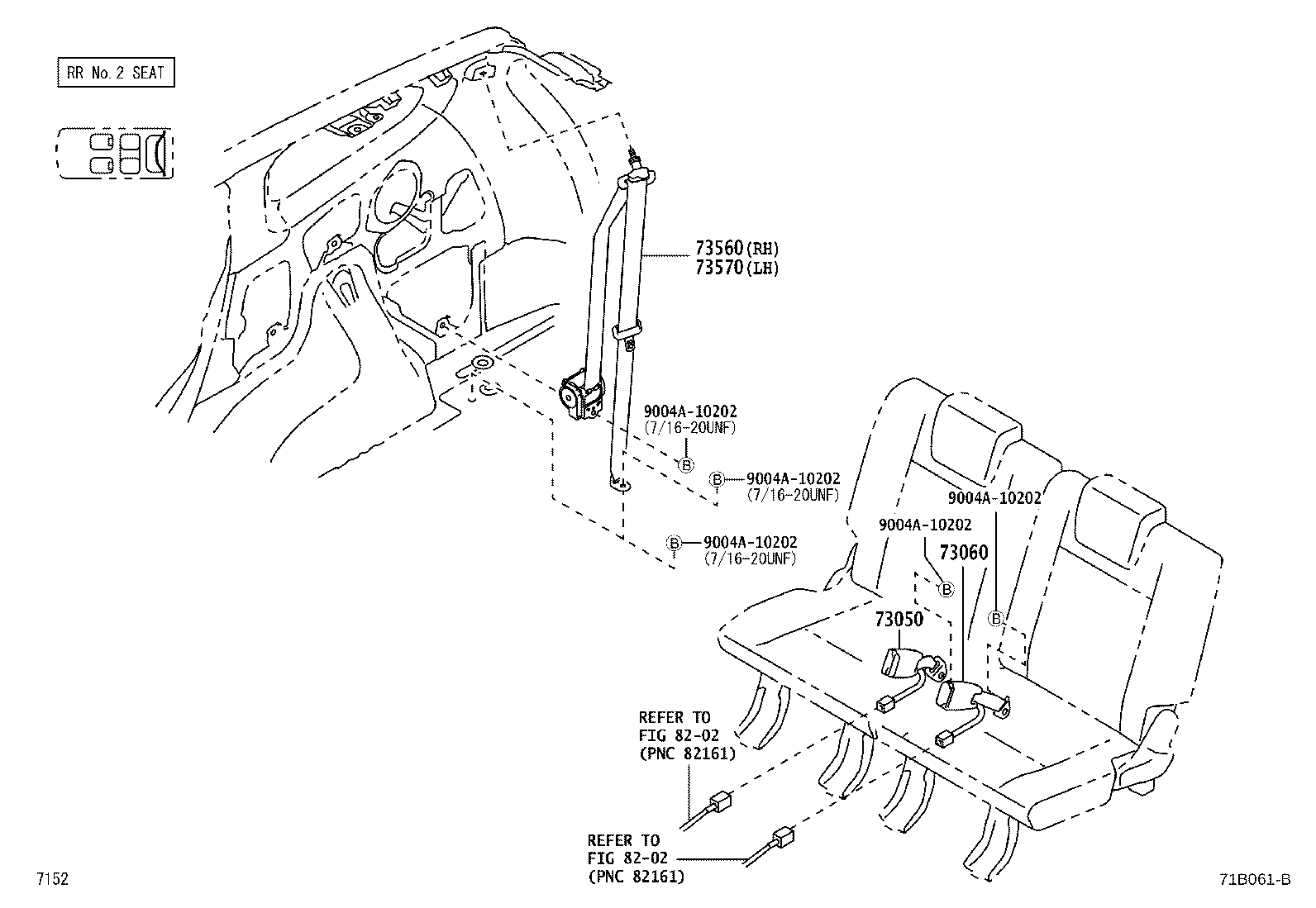

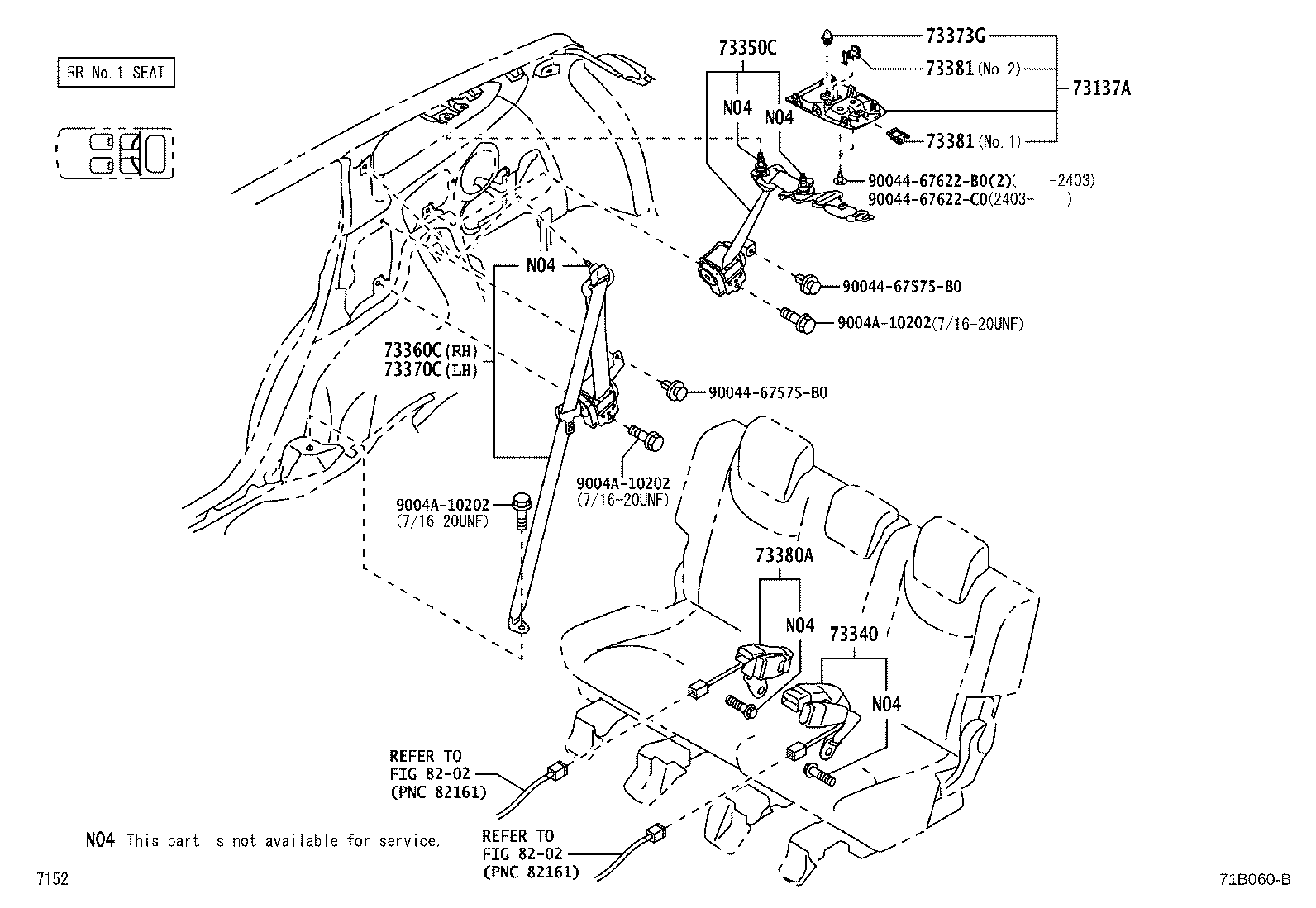

Figure 71B058B 71B058B 2017-12 → — Figure 71B060B 71B060B 2017-12 → — Figure 71B061B 71B061B 2017-12 → —

Part groups

PNCDescription
73050 Belt Assy, Rear NO.2 Seat Lap, Center W/Inner RH
73060 Belt Assy, Rear NO.2 Seat Lap, Center W/Inner LH
73137A Cover, Shoulder Belt Anchor, Upr
73210 Belt Assy, Front Seat Outer, RH
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73240 Belt Assy, Front Seat Inner, LH
73340 Belt Assy, Rear Seat Lap Type, LH
73350C Belt Assy, Rear Seat, Outer Center
73360C Belt Assy, Rear NO.1 Seat, Outer RH
73370C Belt Assy, Rear NO.1 Seat, Outer LH
73373G Clip, Rear Seat Shoulder Belt Cover
73380A Belt Assy, Rear Seat, Inner
73381 Holder, Rear Seat Belt
73560 Belt Assy, Rear NO.2 Seat, Outer RH
73570 Belt Assy, Rear NO.2 Seat, Outer LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
