Toyota Rush

2017-12 → present · chassis F800 · catalogue 615320 · General

Supported model Data version 2019-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Spoiler & Side Mudguard

11 part groups · 2 illustrations

Illustrations

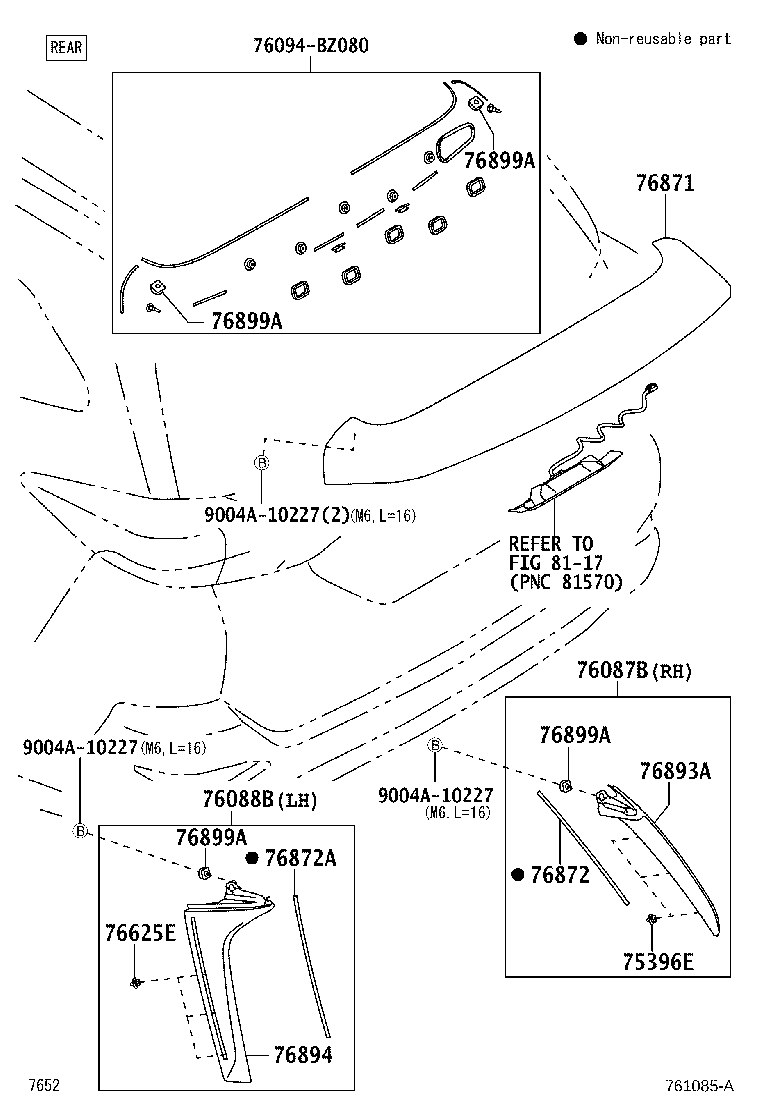

Figure 761084A 761084A 2017-12 → — Figure 761085A 761085A 2017-12 → —

Part groups

PNCDescription
75396E Clip, Outside Moulding, NO.2
76087B Spoiler Sub-assy, Rear Side, RH
76088B Spoiler Sub-assy, Rear Side, LH
76625E Clip
76851 Cover, Front Spoiler
76871 Spoiler, Rear
76872 Protector, Rear Spoiler, NO.1
76872A Protector, Rear Spoiler, NO.1
76893A Cover, Rear Spoiler, RH
76894 Cover, Rear Spoiler, LH
76899A Nut, Rear Spoiler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
