Toyota Rush
2017-12 → present · chassis F800 · catalogue 615320 · General
Supported model
Data version 2019-07
Fuel Tank & Tube

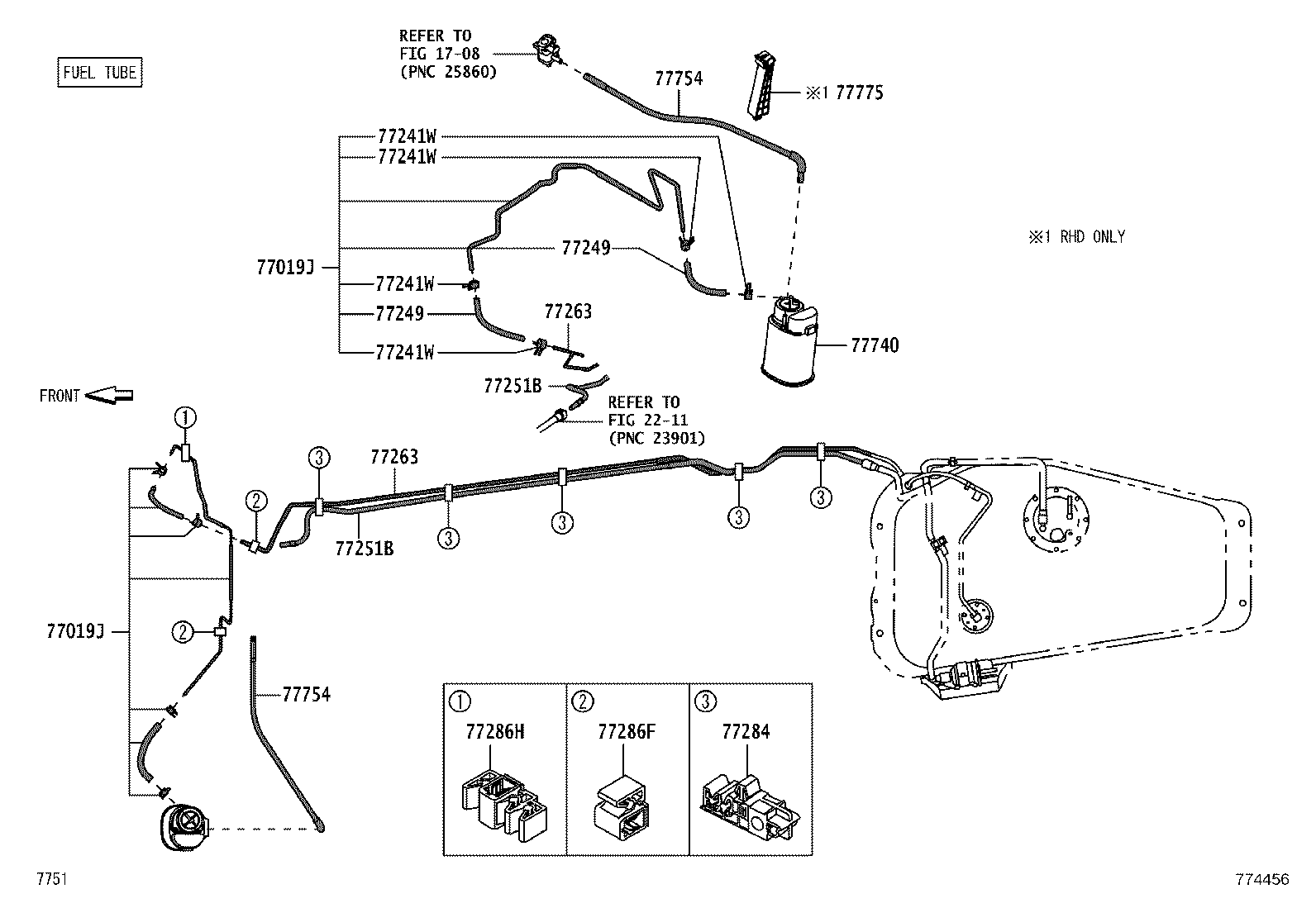

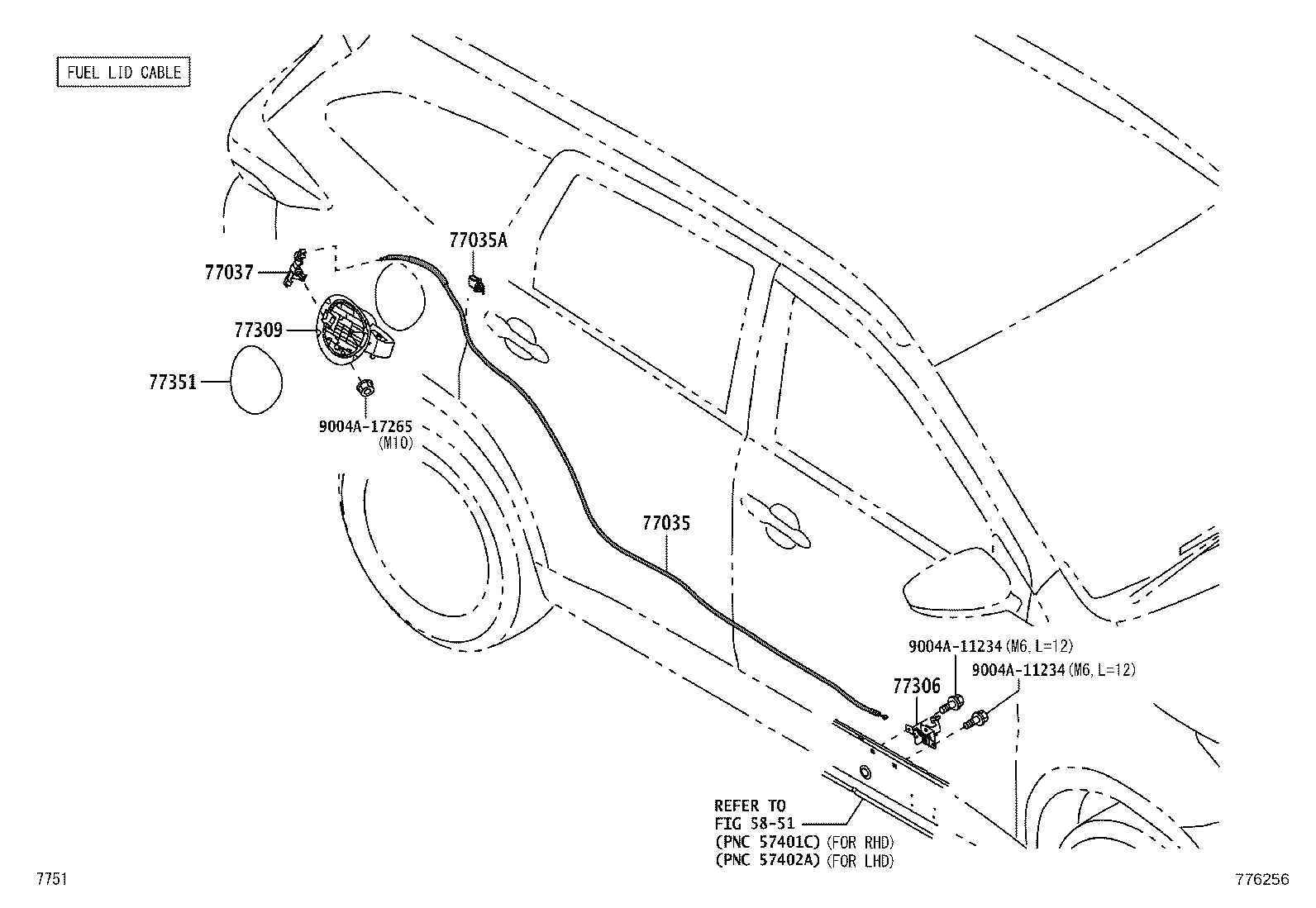

57 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 23217D | Filter, Fuel Pump |
| 23221 | Pump, Fuel |
| 23223 | Pump, Fuel, NO.2 |
| 23225A | Spacer, Fuel Pump |
| 23249A | Rubber, Cushion(FOR FUEL PUMP) |
| 23285 | Ring, O |
| 23300J | Filter Assy, Fuel |
| 77001A | Tank Sub-assy, Fuel |
| 77013 | Tube Sub-assy, Fuel Tank Breather, NO.2 |
| 77019J | Tube Sub-assy, Fuel Tank TO Canister |
| 77020A | Tube Assy, Fuel Suction W/Pump & Gage |
| 77035 | Cable Sub-assy, Fuel Lid Lock Control |
| 77035A | Clamp (FOR FUEL LID LOCK CONTROL CABLE) |
| 77037 | Lock Sub-assy, Fuel Filler Opening Lid |
| 77048A | Clip (FOR FUEL INLET PIPE SEAL) |
| 77100B | Gasket(FOR FUEL TANK) |
| 77108B | Valve Sub-assy, Fuel Tank Filler Check |
| 77141B | Reinforcement, Fuel Tank Flange, NO.1 |
| 77169A | Gasket, Fuel Suction Tube Set |
| 77201 | Pipe Sub-assy, Fuel Tank Inlet |
| 77203A | Tube Sub-assy, Fuel Suction |
| 77203C | Bracket, Fuel Pump |
| 77204A | Tube, Fuel Tank Return |
| 77213B | Hose, Fuel Tank TO Filler Pipe |
| 77219 | Cover, Fuel Tank Filler Pipe |
| 77241V | Clip, Tube Joint |
| 77241W | Clip, Tube Joint |
| 77248A | Holder, Fuel Tank Filler Pipe Cover |
| 77249 | Hose, Fuel Emission |
| 77251B | Tube, Fuel Main |
| 77259C | Hose, Fuel |
| 77259G | Clip, Fuel Hose |
| 77263 | Tube, Fuel Tank TO Canister, NO.3 |
| 77269A | Hose, Fuel Tank Breather |
| 77277R | Protector, Fuel Tank Filler Pipe |
| 77284 | Clamp, Fuel Tube |
| 77285F | Clamp, Fuel Tube, NO.1 |
| 77286D | Clamp, Fuel Tube, NO.2 |
| 77286F | Clamp, Fuel Tube, NO.2 |
| 77286H | Clamp, Fuel Tube, NO.3 |
| 77289B | Clamp, Fuel Tube, NO.3 |
| 77291A | Shield, Fuel Tank Filler Pipe |
| 77295F | Grommet, Fuel Hose |
| 77306 | Lever Sub-assy, Fuel Lid Lock Open |
| 77309 | Hinge Sub-assy, Fuel Inlet Box Cover |
| 77310A | Cap Assy, Fuel Tank |
| 77351 | Lid, Fuel Filler Opening, Outer |
| 77380 | Valve Assy, Fuel Cut Off |
| 77506A | Clamp, Fuel Tank Band Shim |
| 77631A | Protector, Fuel Tank, Lower Center |
| 77644 | Bolt, Fuel Tank |
| 77651A | Cushion, Fuel Tank, NO.1 |
| 77652A | Cushion, Fuel Tank, NO.2 |
| 77740 | Canister Assy, Charcoal |
| 77754 | Hose, Charcoal Canister Outlet, NO.1 |
| 77775 | Guide, Charcoal Canister Outlet |
| 87268T | Protector, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
