Toyota Rush

2017-12 → present · chassis F800 · catalogue 615320 · General

Supported model Data version 2019-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Battery & Battery Cable

2 part groups · 4 illustrations

Illustrations

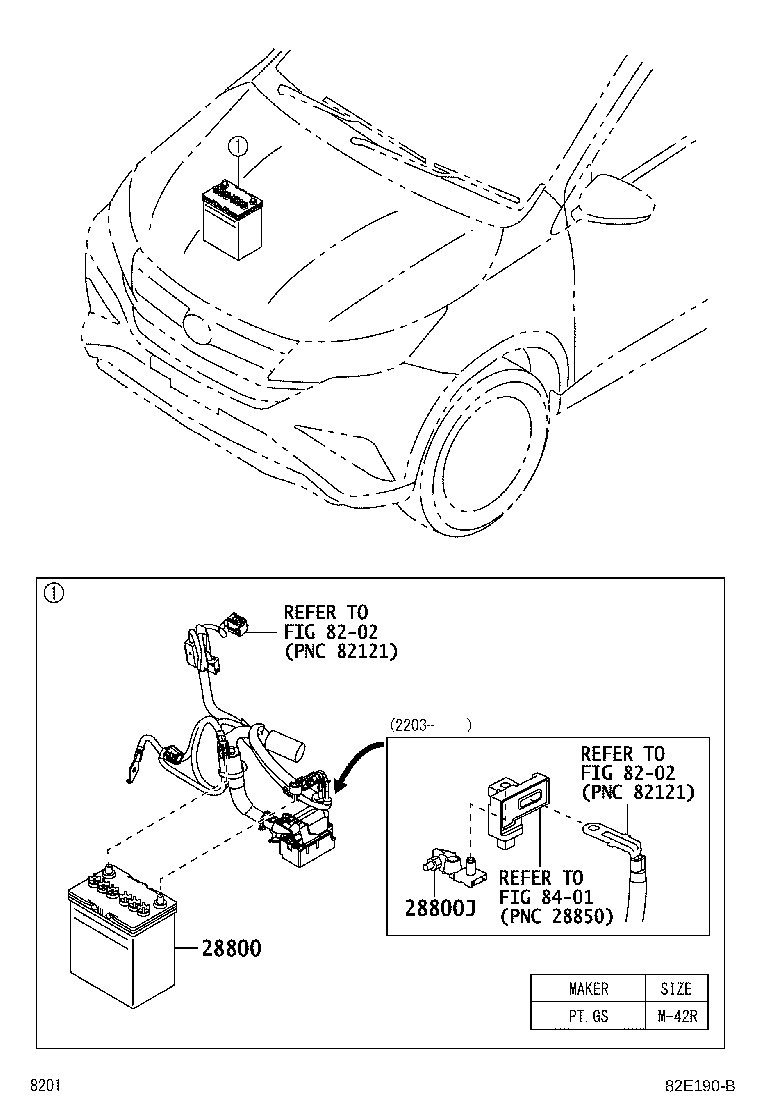

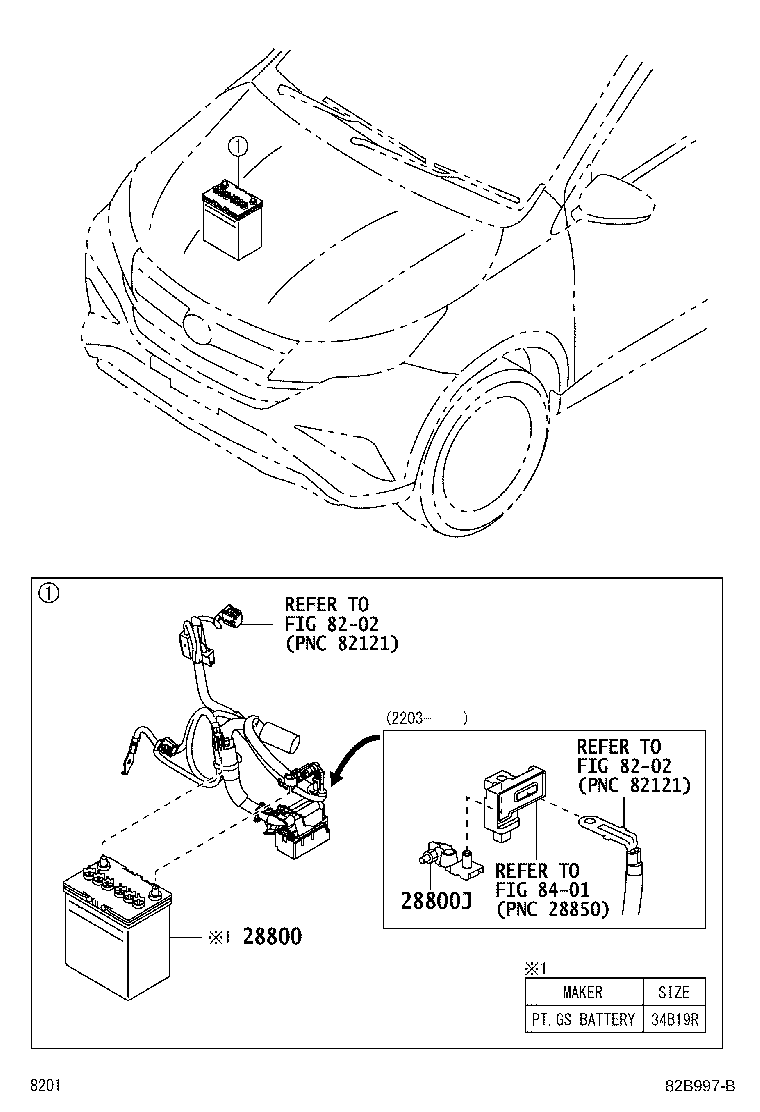

Figure 82B798C 82B798C 2017-12 → 2021-08 Figure 82B798C 82B798C 2017-12 → — Figure 82E190B 82E190B 2021-08 → — Figure 82B997B 82B997B 2018-04 → —

Part groups

PNCDescription
28800 Battery
28800J Terminal, Battery Negative
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
