Toyota Rush

2017-12 → present · chassis F800 · catalogue 615320 · General

Supported model Data version 2019-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

17 part groups · 8 illustrations

Illustrations

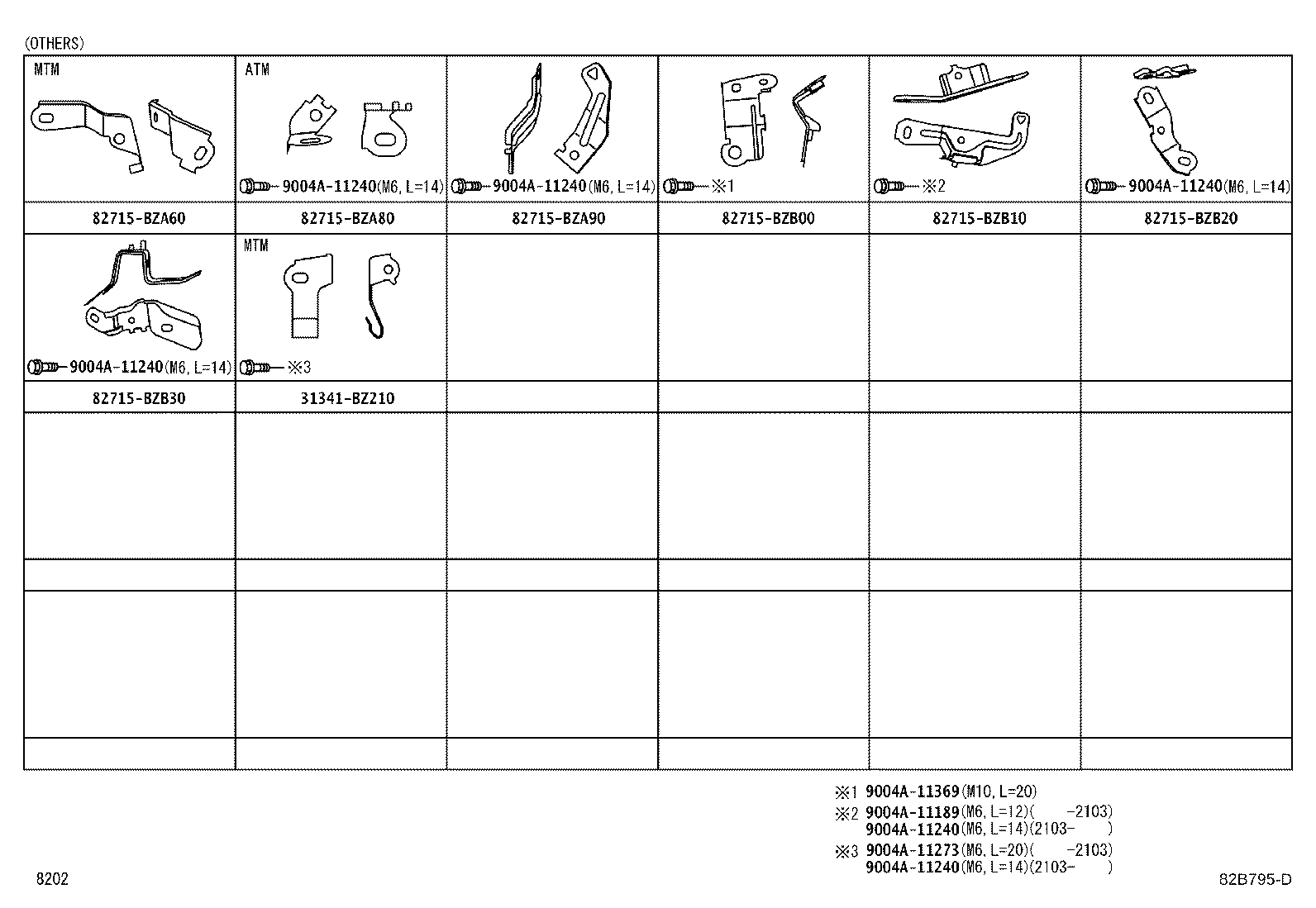

Figure 82B785A 82B785A 2017-12 → — Figure 82B786B 82B786B 2017-12 → — Figure 82B787A 82B787A 2017-12 → — Figure 82B788A 82B788A 2018-04 → — Figure 82B789A 82B789A 2017-12 → — Figure 82B790B 82B790B 2017-12 → — Figure 82B791 82B791 2017-12 → — Figure 82B795D 82B795D 2017-12 → —

Part groups

PNCDescription
82111 Wire, Engine Room Main

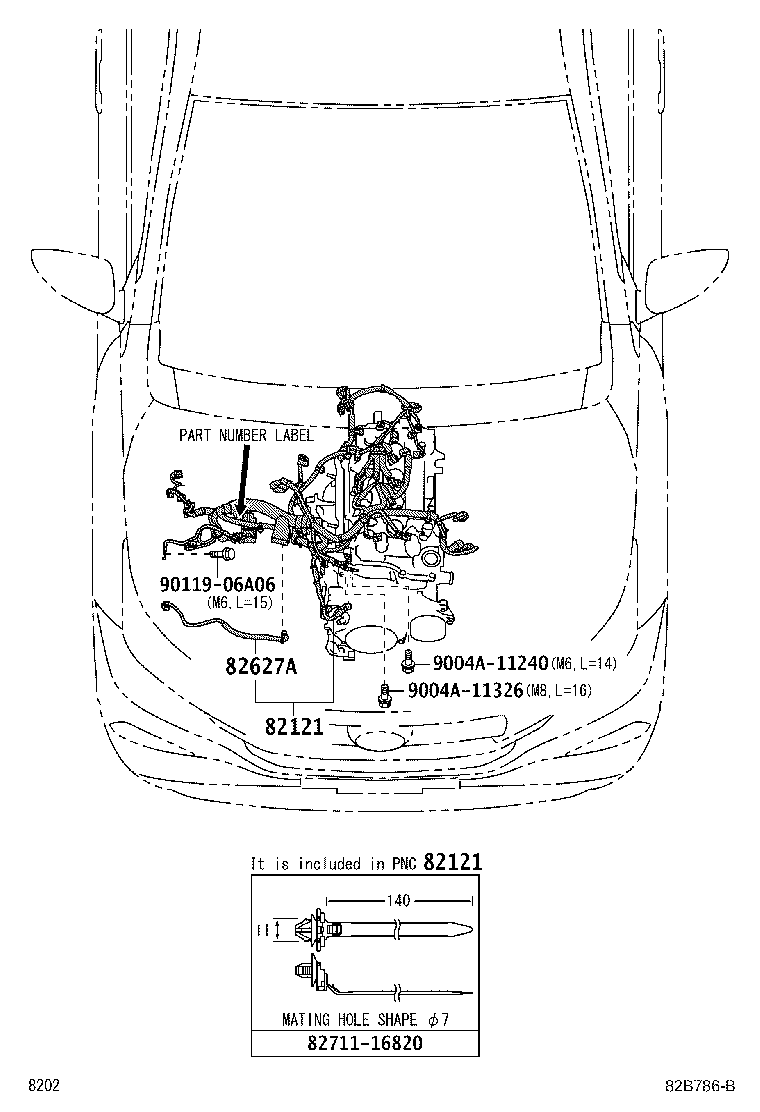

82121 Wire, Engine

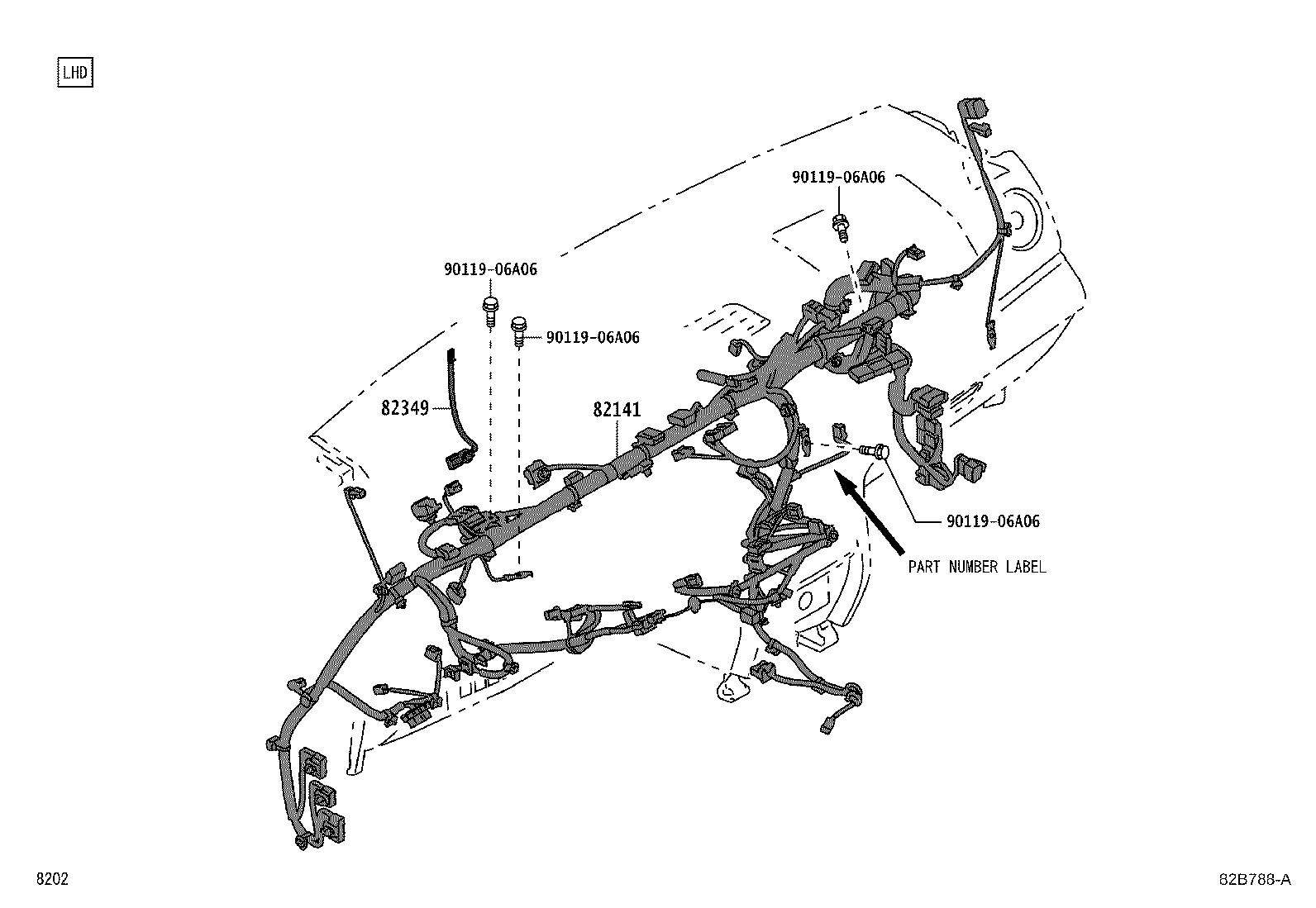

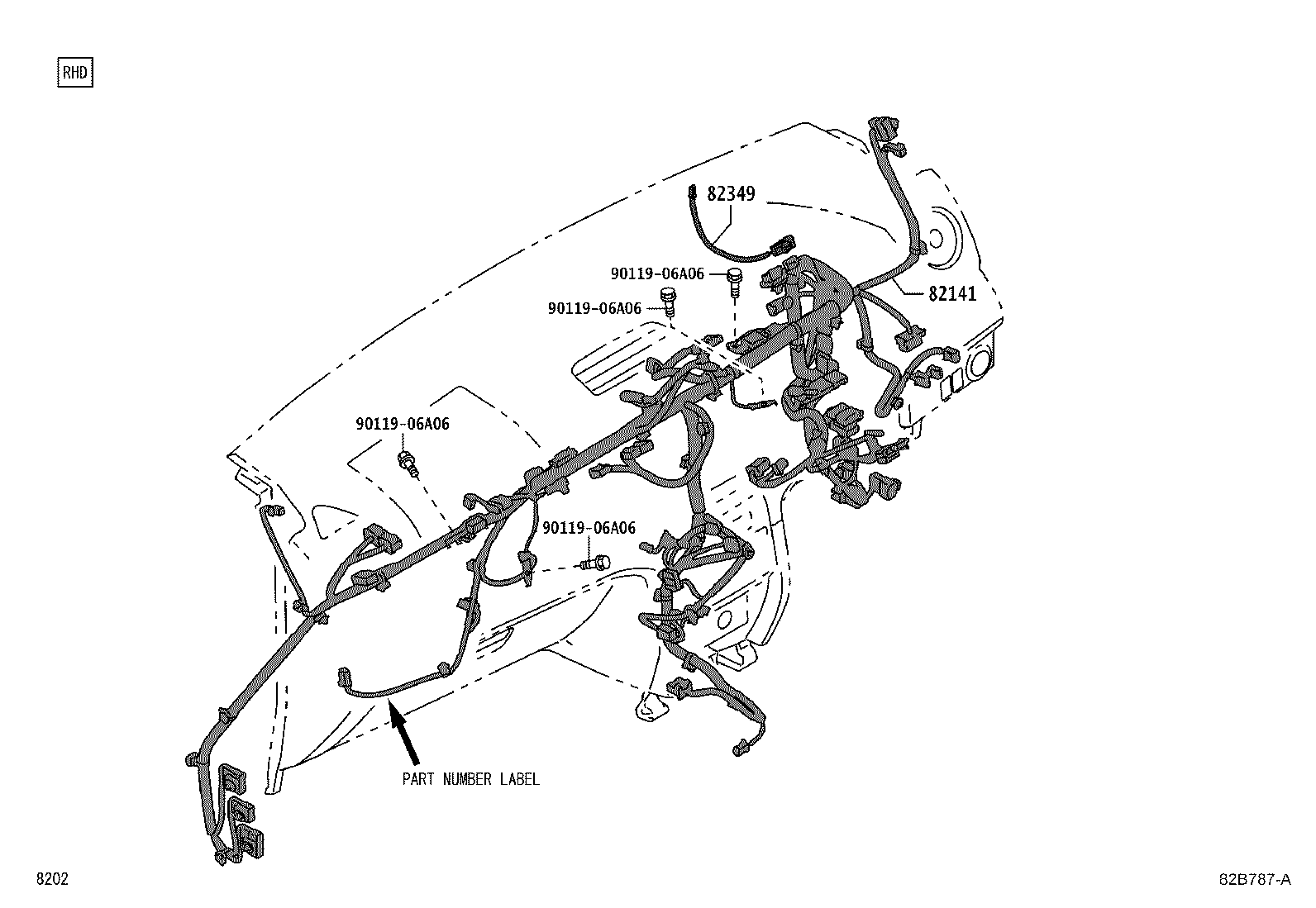

82141 Wire, Instrument Panel

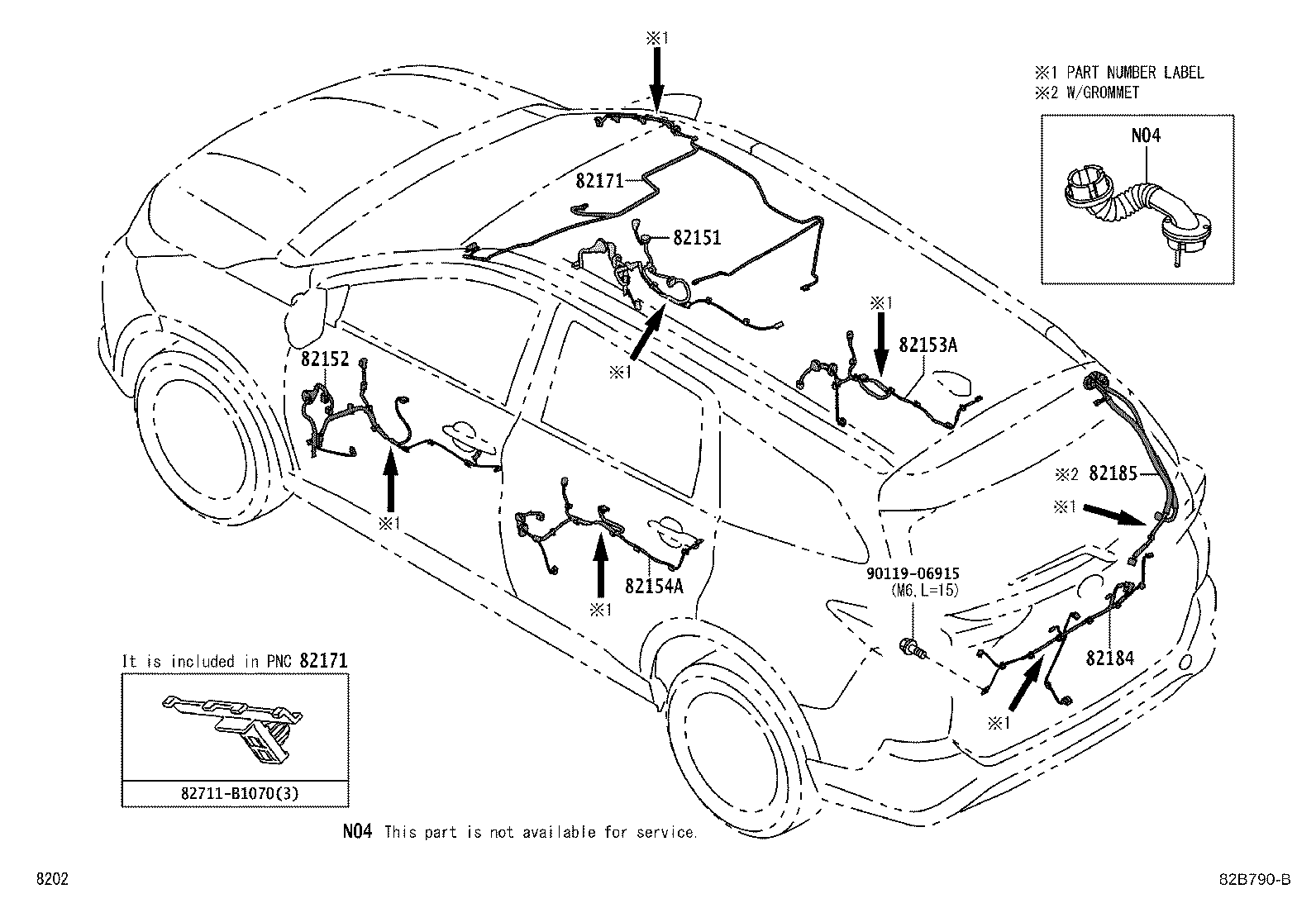

82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153A Wire, Rear Door, RH
82154A Wire, Rear Door, LH

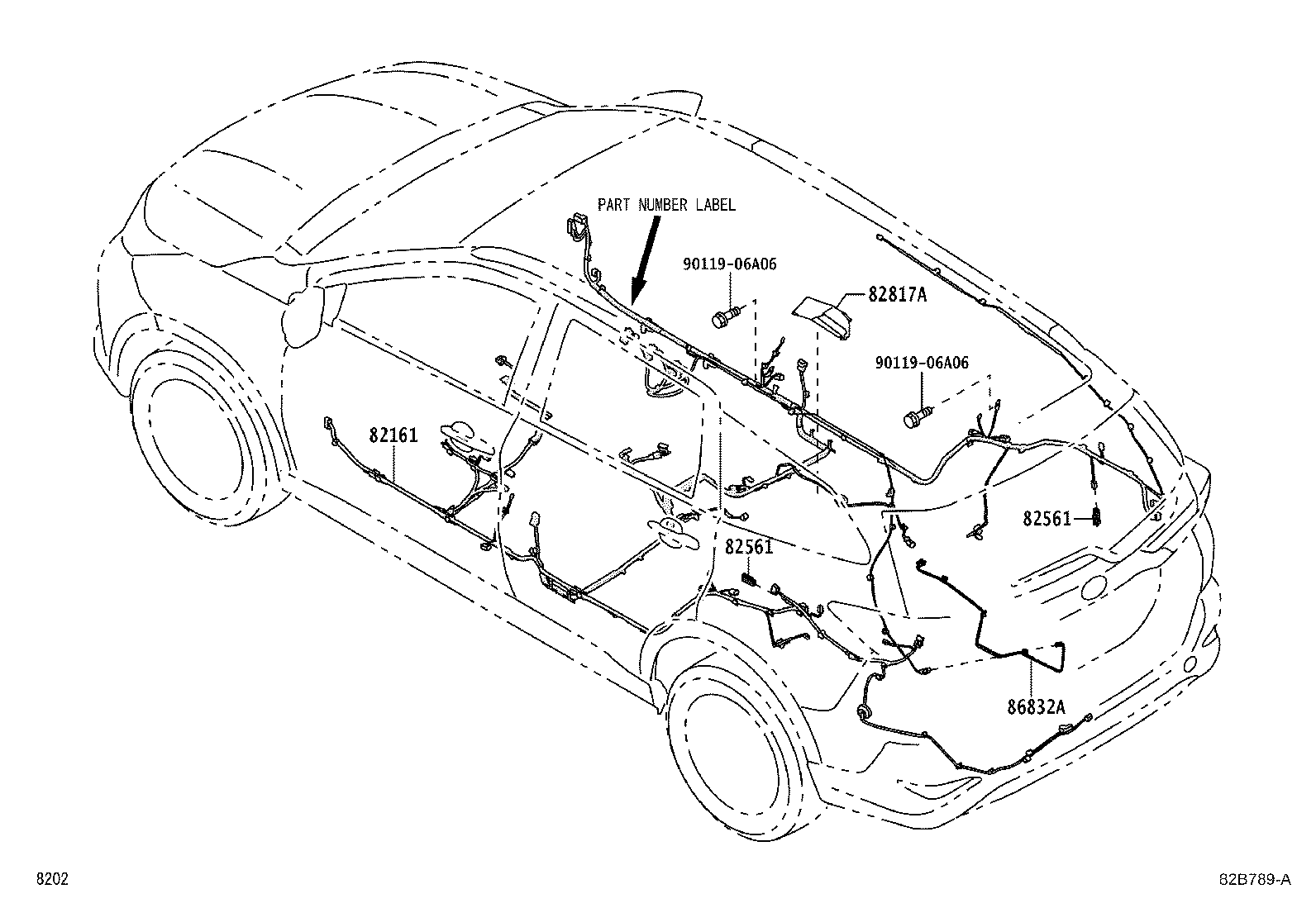

82161 Wire, Floor
82171 Wire, Roof, NO.1
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82349 Wire, Light Control Rheostat
82415 Wire, Fuel Pump
82561 Wire, Rear Speaker
82627A Wire, Fusible Link
82817A Protector, Wiring Harness, NO.2
86832A Wire, Accessory Socket
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
