Toyota Rush

2017-12 → present · chassis F800 · catalogue 615320 · General

Supported model Data version 2019-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

52 part groups · 12 illustrations

Illustrations

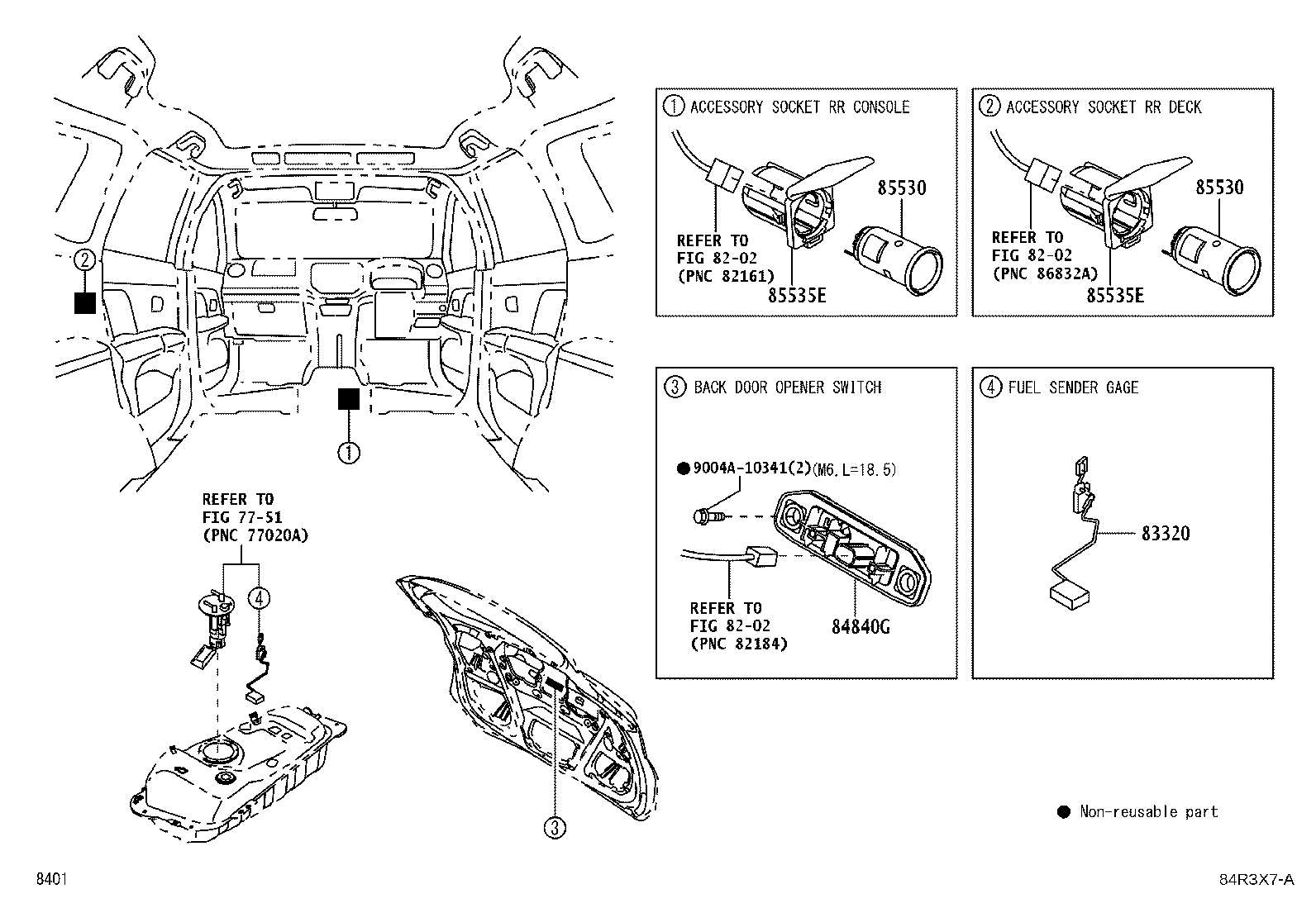

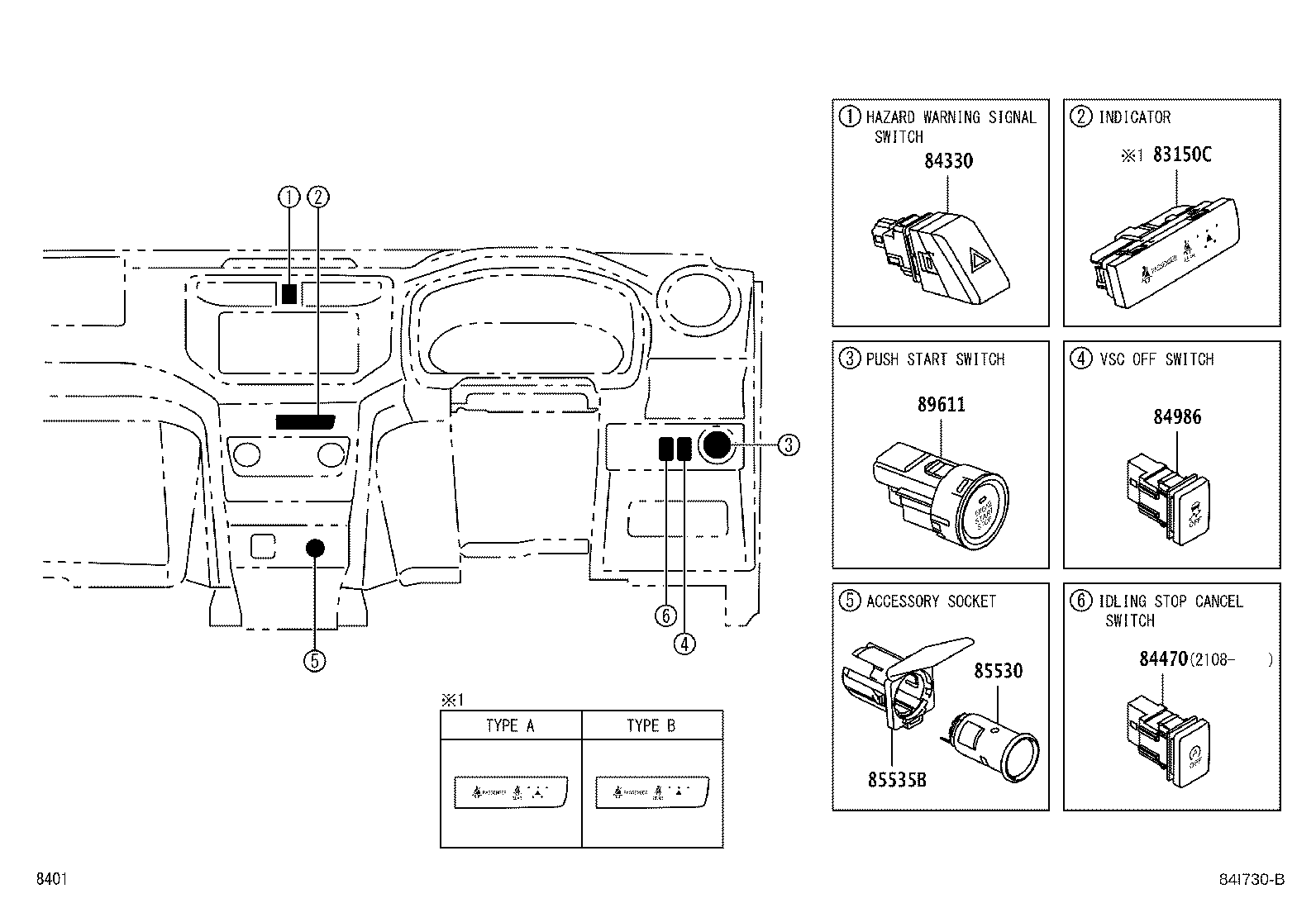

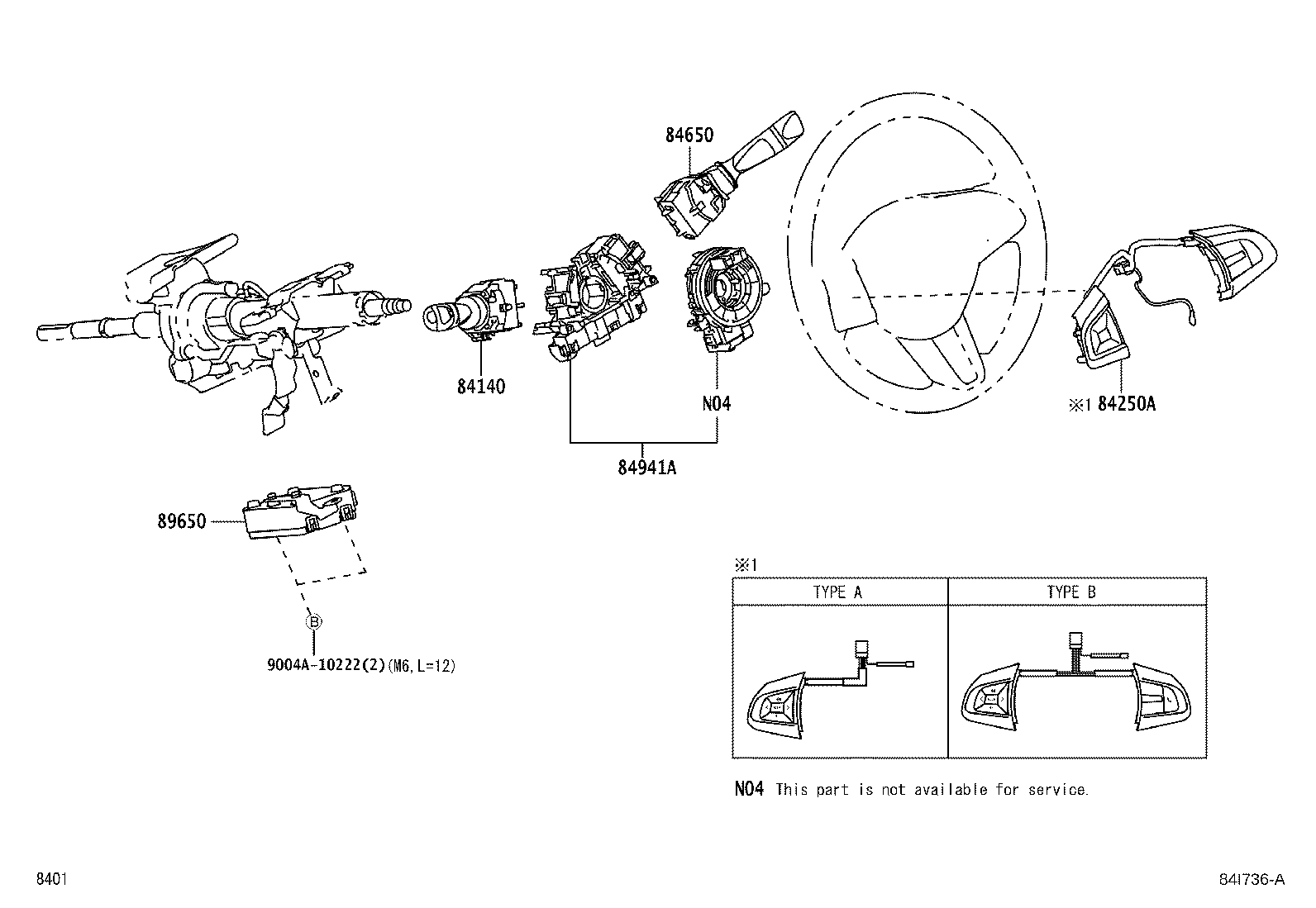

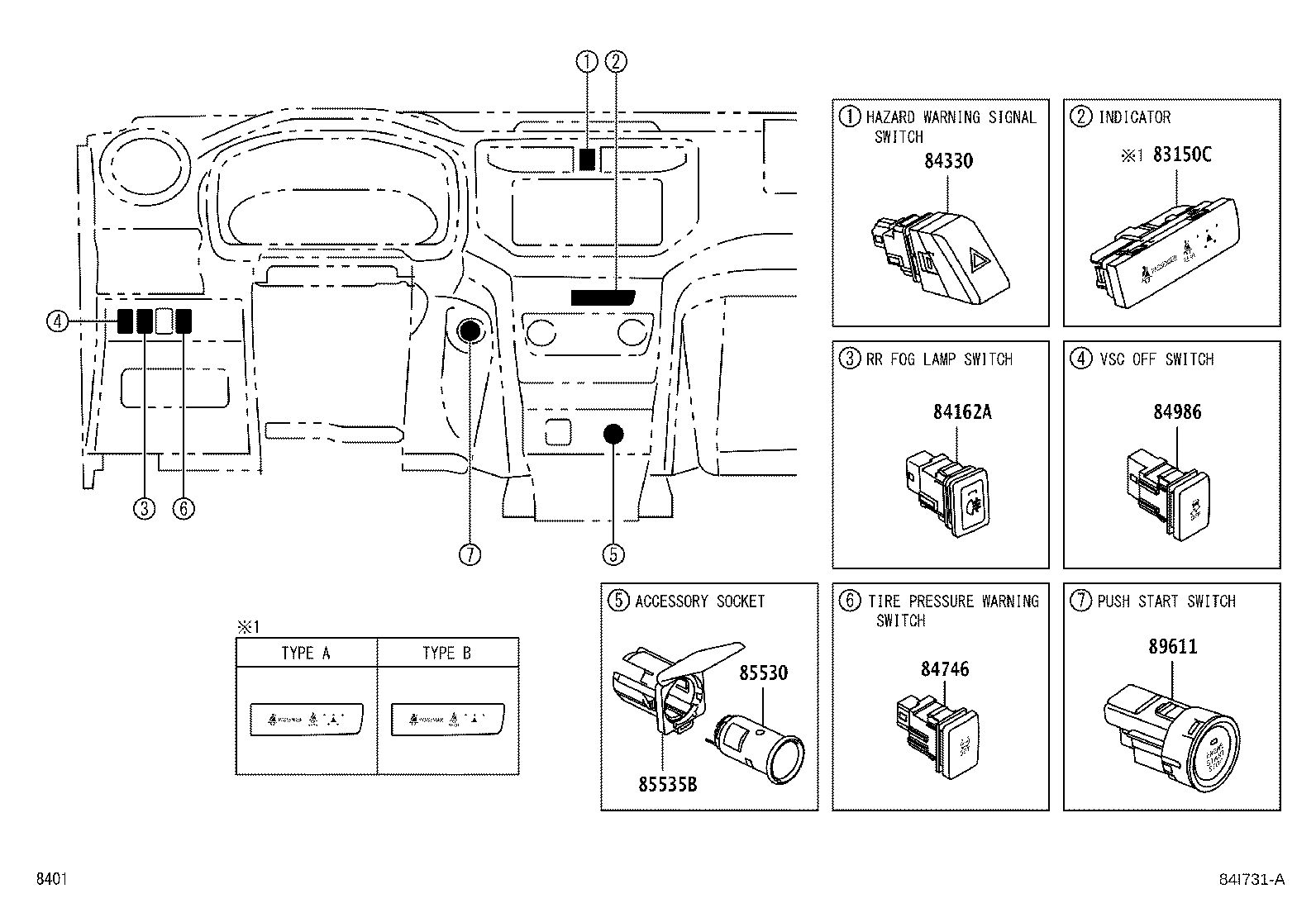

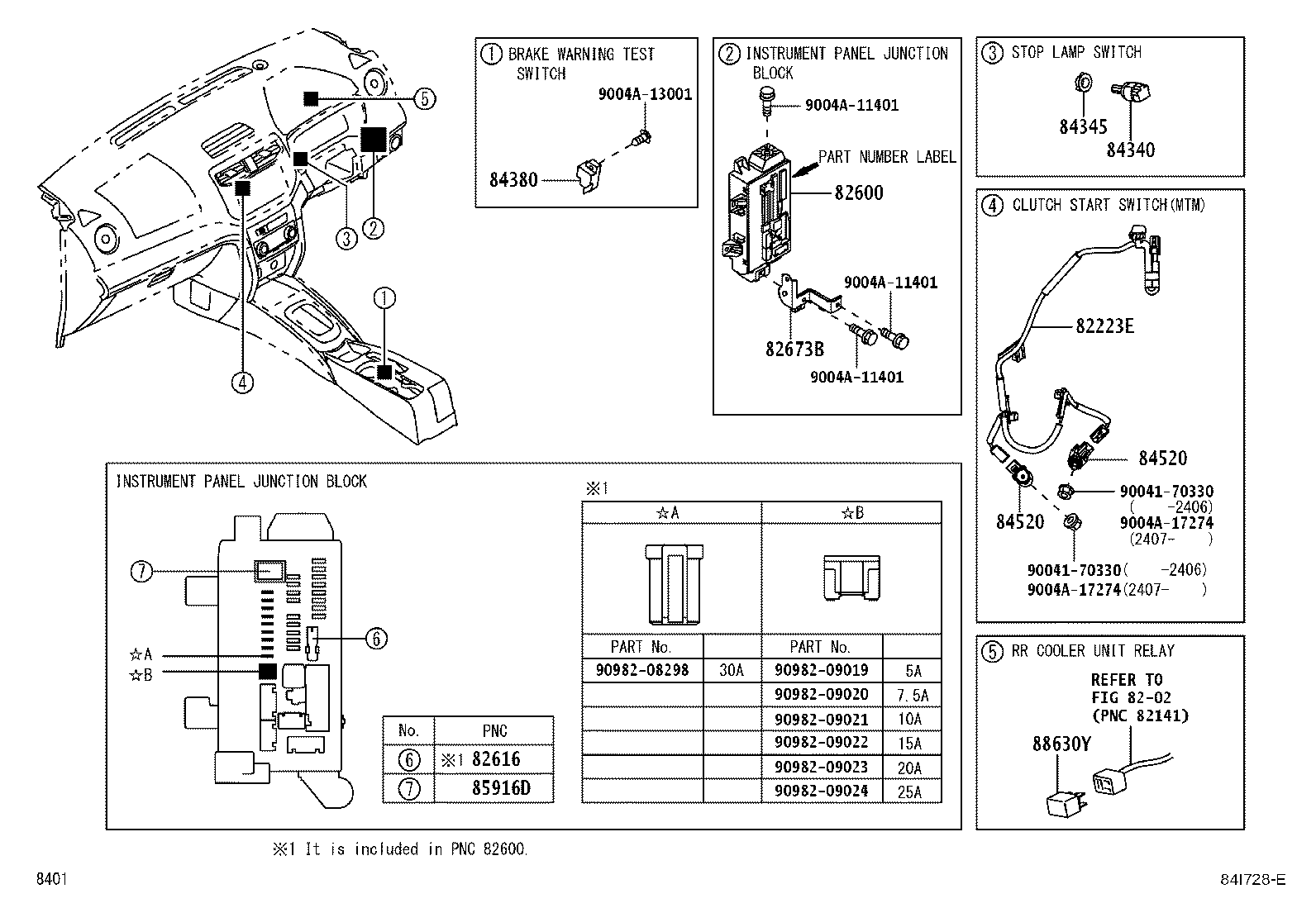

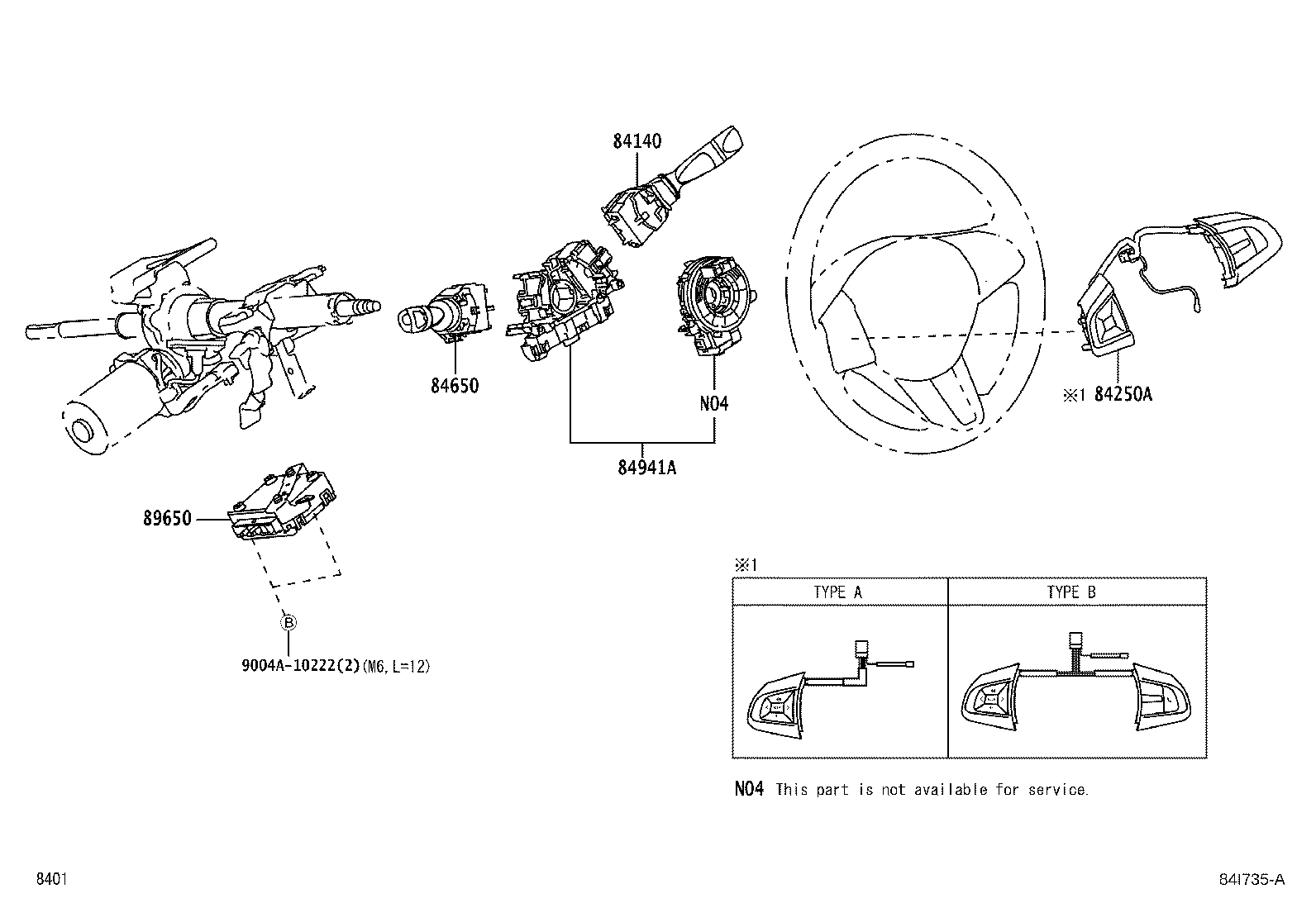

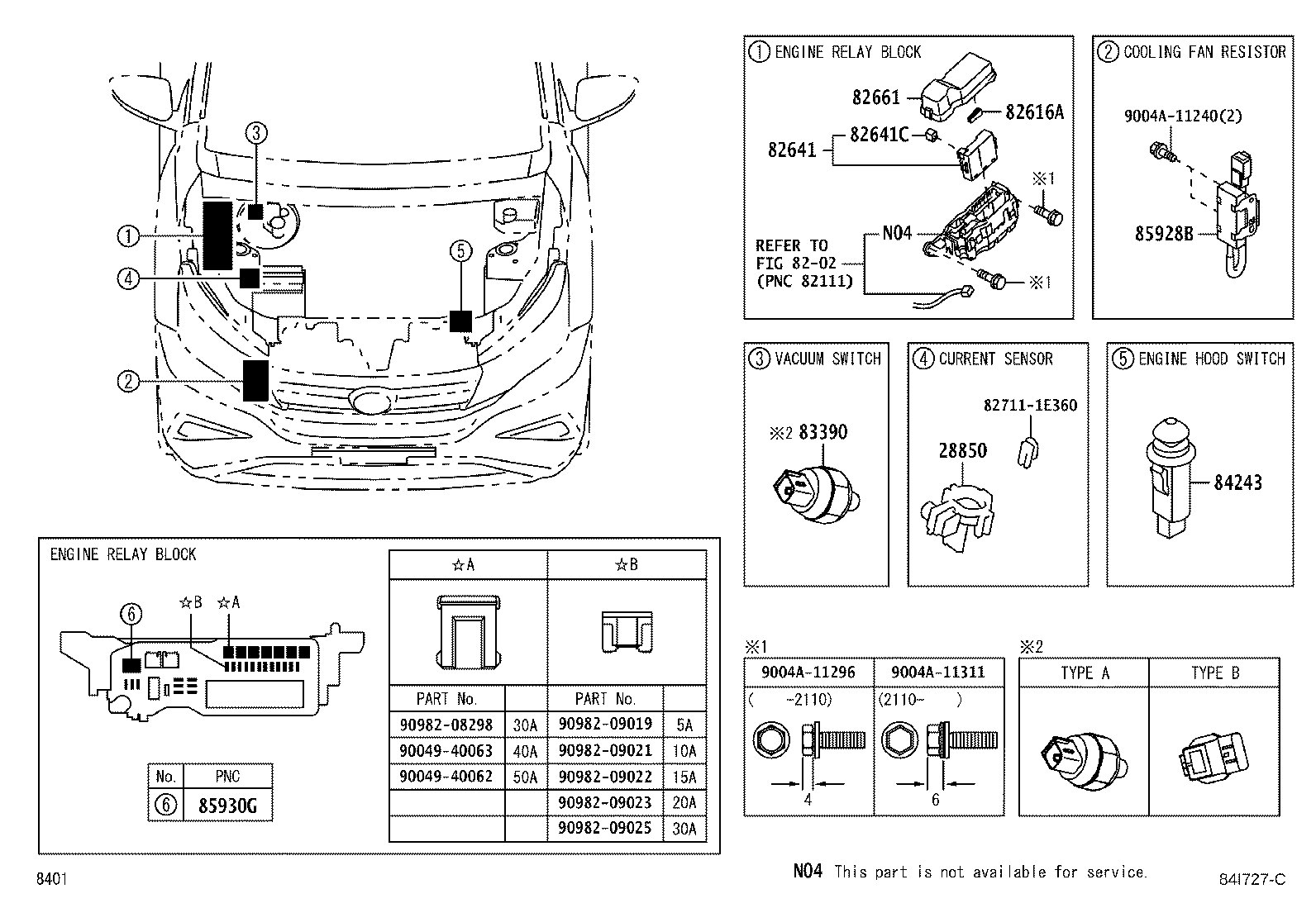

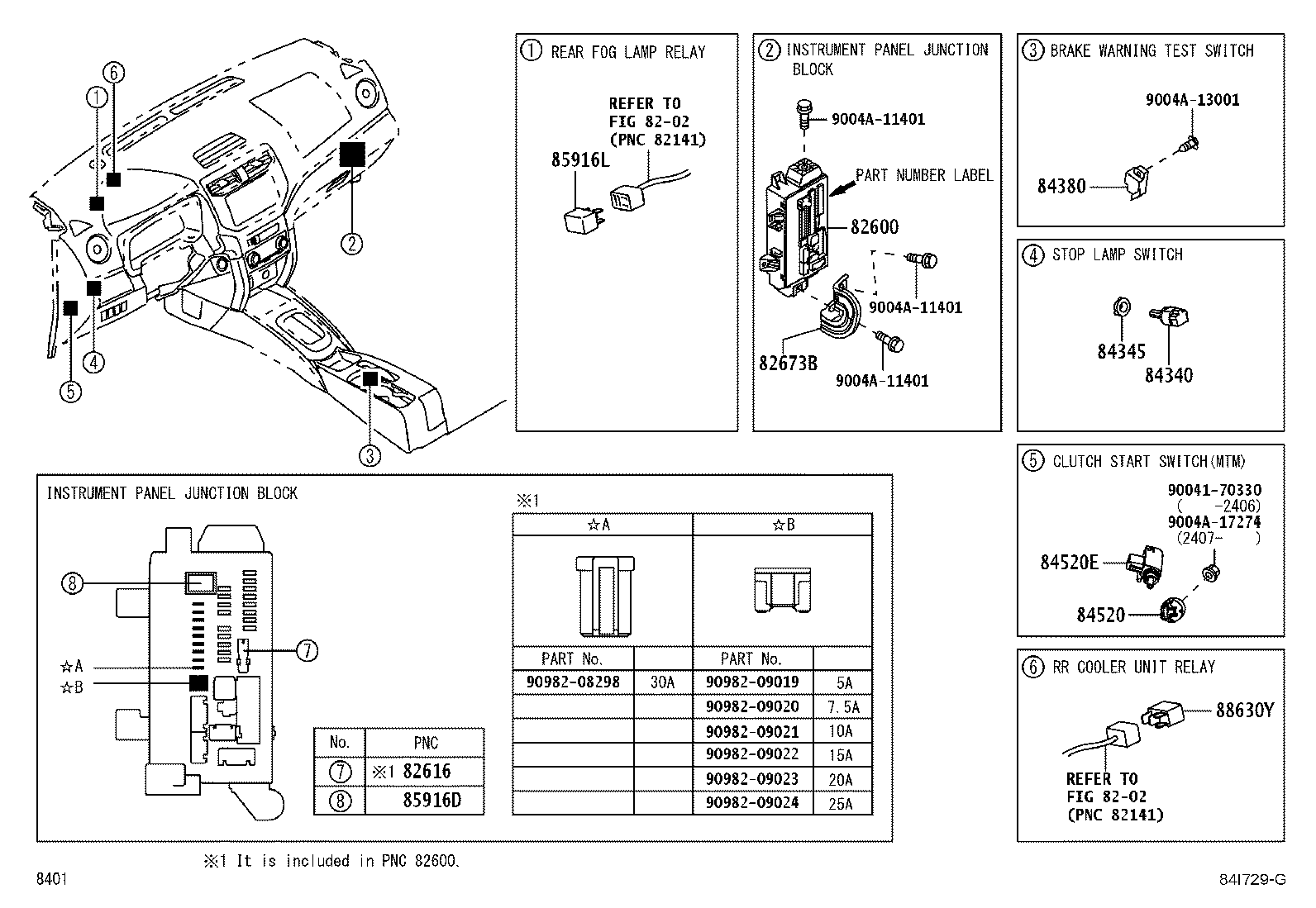

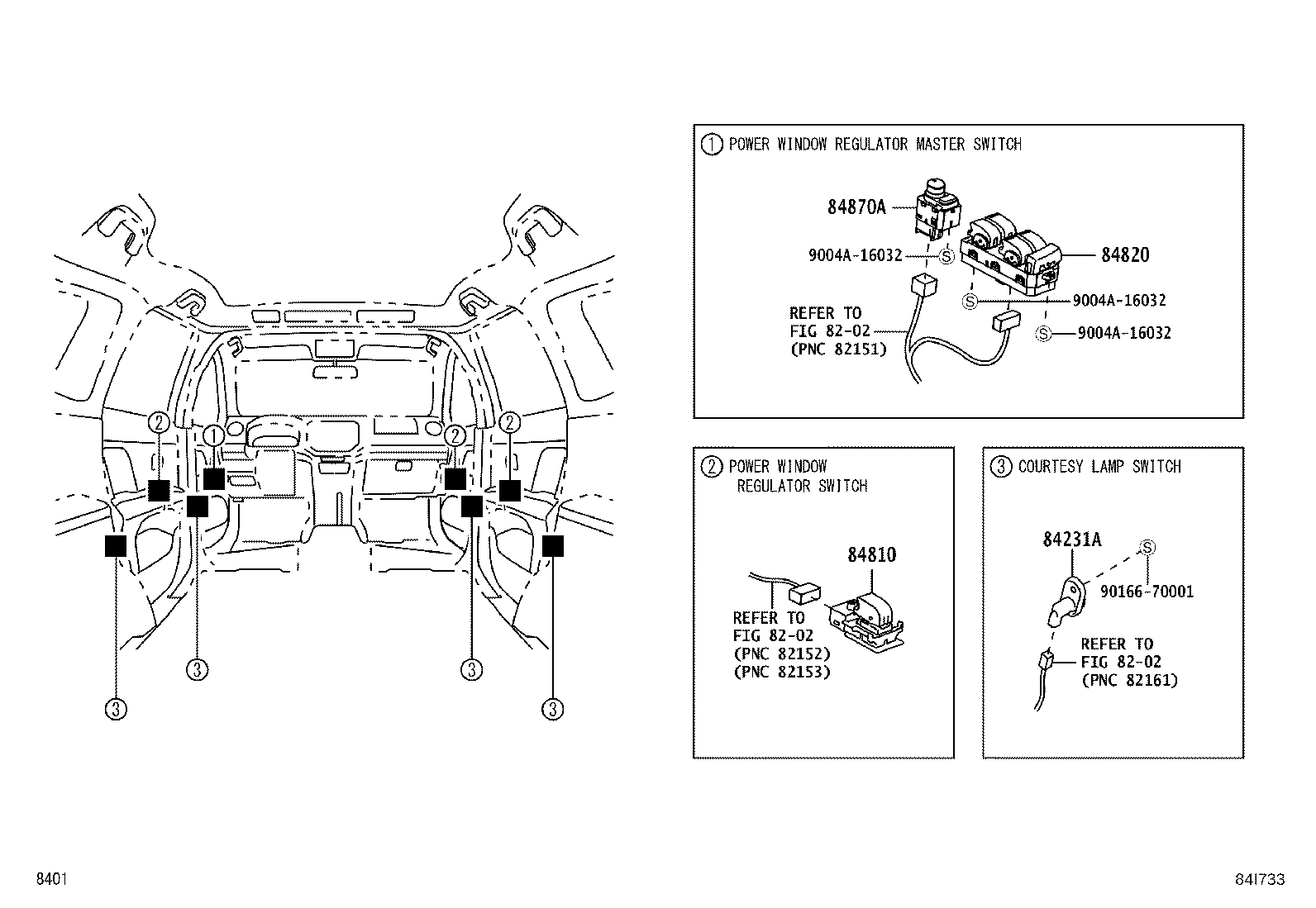

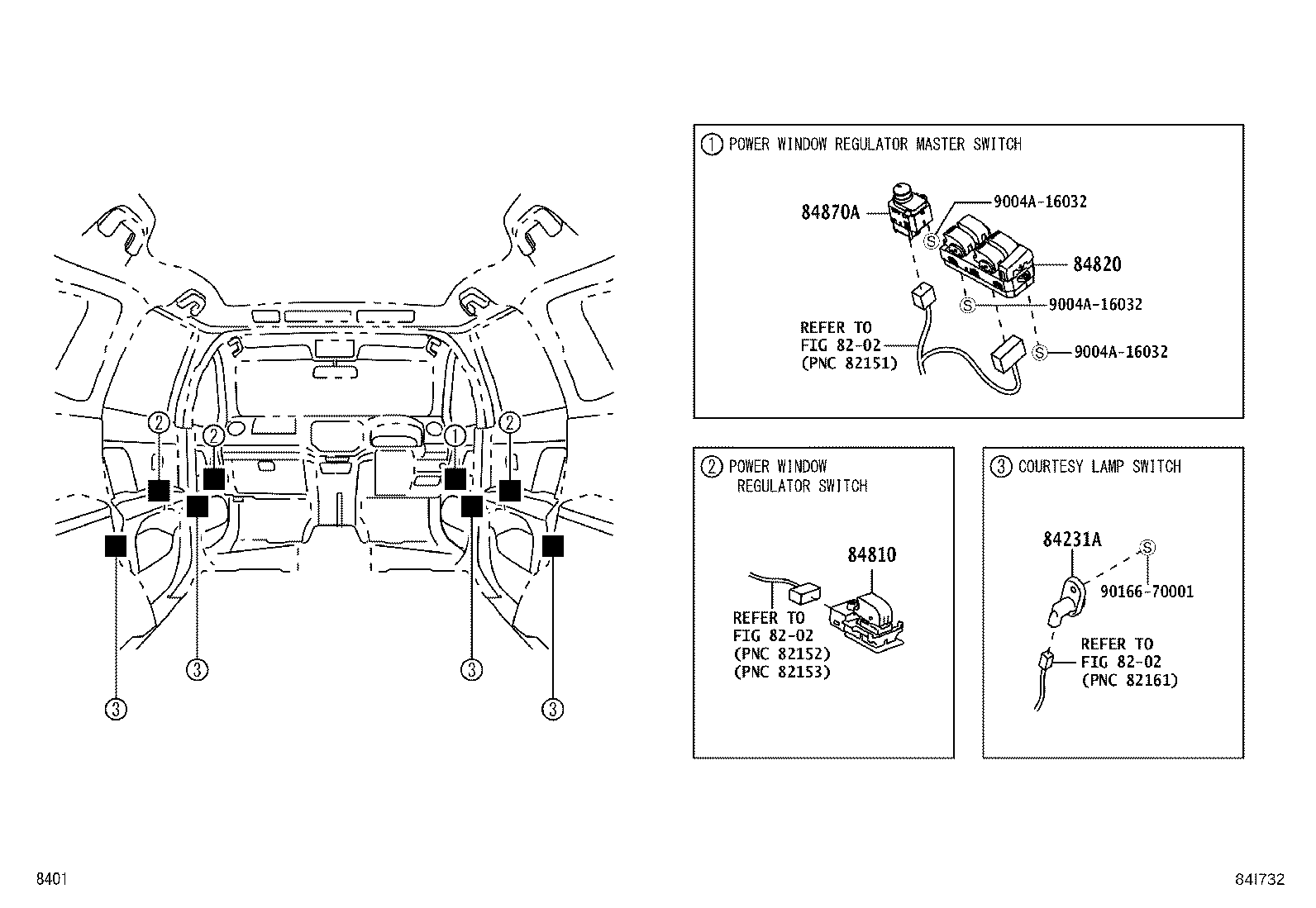

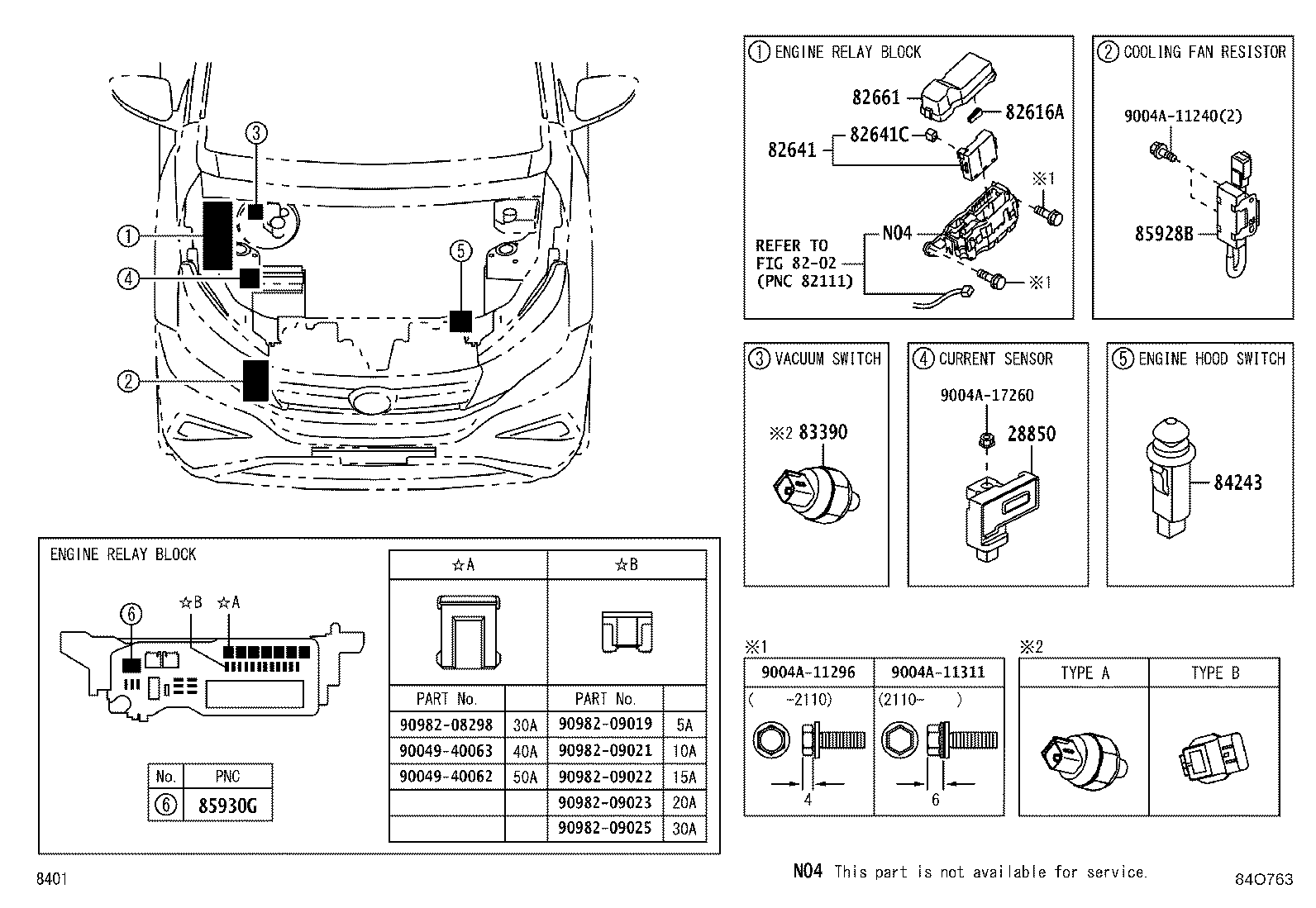

Figure 84M216 84M216 2017-12 → — Figure 84I727C 84I727C 2017-12 → 2022-03 Figure 84O763 84O763 2022-03 → 2025-04 Figure 84I728E 84I728E 2017-12 → — Figure 84I729G 84I729G 2018-04 → — Figure 84I730B 84I730B 2017-12 → — Figure 84I731A 84I731A 2018-04 → — Figure 84I732 84I732 2017-12 → — Figure 84I733 84I733 2018-04 → — Figure 84R3X7A 84R3X7A 2017-12 → — Figure 84I735A 84I735A 2017-12 → — Figure 84I736A 84I736A 2018-04 → —

Part groups

PNCDescription
28850 Sensor Assy, Battery Current
82223E Wire, Clutch Start Switch
82600 Block Assy, Fuse
82616 Puller, Fuse
82616A Puller, Fuse, NO.2
82641 Relay, Integration NO.1
82641C Relay, Integration NO.2
82661 Cover, Relay Block, NO.1
82673B Bracket, Junction Block, NO.2
82715 Bracket,Wiring Harness Clamp
83150C Indicator Assy
83320 Gage Assy, Fuel Sender
83390 Switch Assy, Vacuum Warning
83530 Switch Assy, Oil Pressure (FOR ENGINE)
84140 Switch Assy, Headlamp Dimmer
84162A Switch, Rear Fog Lamp
84210 Switch Assy, Back-up Lamp
84231A Switch, Courtesy Lamp
84243 Switch, Engine Hood
84250A Switch Assy, Steering Pad
84330 Switch Assy, Hazard Warning Signal
84340 Switch Assy, Stop Lamp
84345 Adjuster, Stop Lamp Switch Mounting
84380 Switch Assy, Brake Warning Test
84470 Switch Assy, Warning Canceling
84520 Switch Assy, Clutch Start
84520E Switch Assy, Clutch Start, NO.2
84540 Switch Assy, Neutral Start
84545 Switch, Neutral Position
84650 Switch Assy, Windshield Wiper
84746 Switch, Tire Pressure Warning
84810 Switch Assy, Power Window Regulator
84820 Master Switch Assy, Power Window Regulator
84840G Switch Assy, Back Door Opener
84870A Switch Assy, Outer Mirror
84941A Base, Switch
84986 Switch, Vehicle Stability Control
85530 Socket Assy, Power Outlet, NO.1
85535B Cover, Power Outlet Socket, NO.1
85535E Cover, Power Outlet Socket, NO.2
85916D Relay, Fog Lamp
85916L Relay, Rear Fog Lamp
85928B Resistor, Cooling Fan
85930G Relay, Acc
88630Y Relay, Rear Cooler
89422A Sensor, Water Temperature
89465 Sensor, Oxygen
89465A Sensor, Oxygen NO.2
89467B Sensor, Air Fuel Ratio
89611 Switch, Push Start
89615 Sensor, Knock Control
89650 Computer Assy, Power Steering
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
