Toyota Rush

2017-12 → present · chassis F800 · catalogue 615320 · General

Supported model Data version 2019-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Washer

18 part groups · 2 illustrations

Illustrations

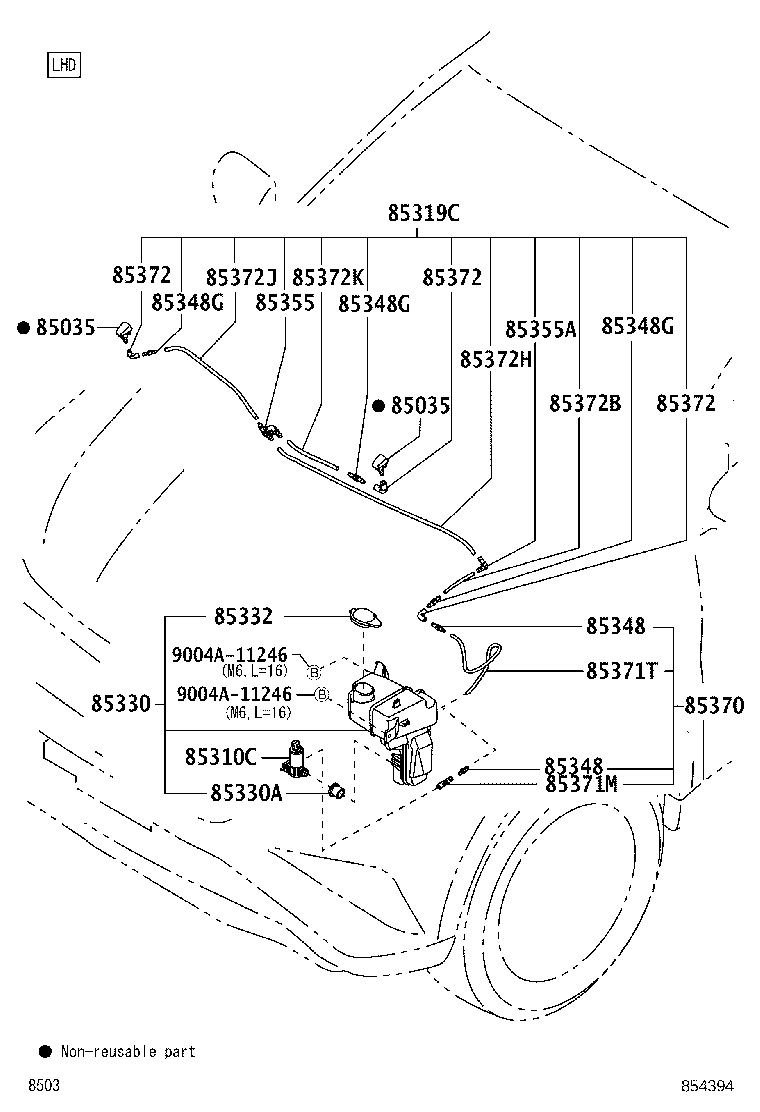

Figure 854393 854393 2017-12 → — Figure 854394 854394 2018-04 → —

Part groups

PNCDescription
85035 Nozzle Sub-assy, Washer
85310C Motor & Pump Assy, Washer
85319C Hose, Washer
85330 Jar Assy, Windshield Washer
85330A Bush, Windshield Washer Jar
85332 Cap, Windshield Washer Jar
85348 Joint, Windshield Washer Hose, NO.1
85348G Joint, Windshield Washer Hose, NO.2
85355 Valve, Windshield Washer Hose
85355A Joint, Windshield Washer Elbow
85370 Hose Assy, Windshield Washer
85371M Hose, Windshield Washer (FROM JOINT TO TANK)
85371T Hose, Windshield Washer (FROM JOINT TO JOINT)
85372 Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
85372B Hose, Windshield Washer (FROM JOINT TO JOINT), NO.2
85372H Hose, Windshield Washer (FROM JOINT TO JOINT), NO.3
85372J Hose, Windshield Washer (FROM JOINT TO JOINT), NO.4
85372K Hose, Windshield Washer (FROM JOINT TO JOINT), NO.5
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
