Toyota Rush

2017-12 → present · chassis F800 · catalogue 615320 · General

Supported model Data version 2019-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

3 part groups · 2 illustrations

Illustrations

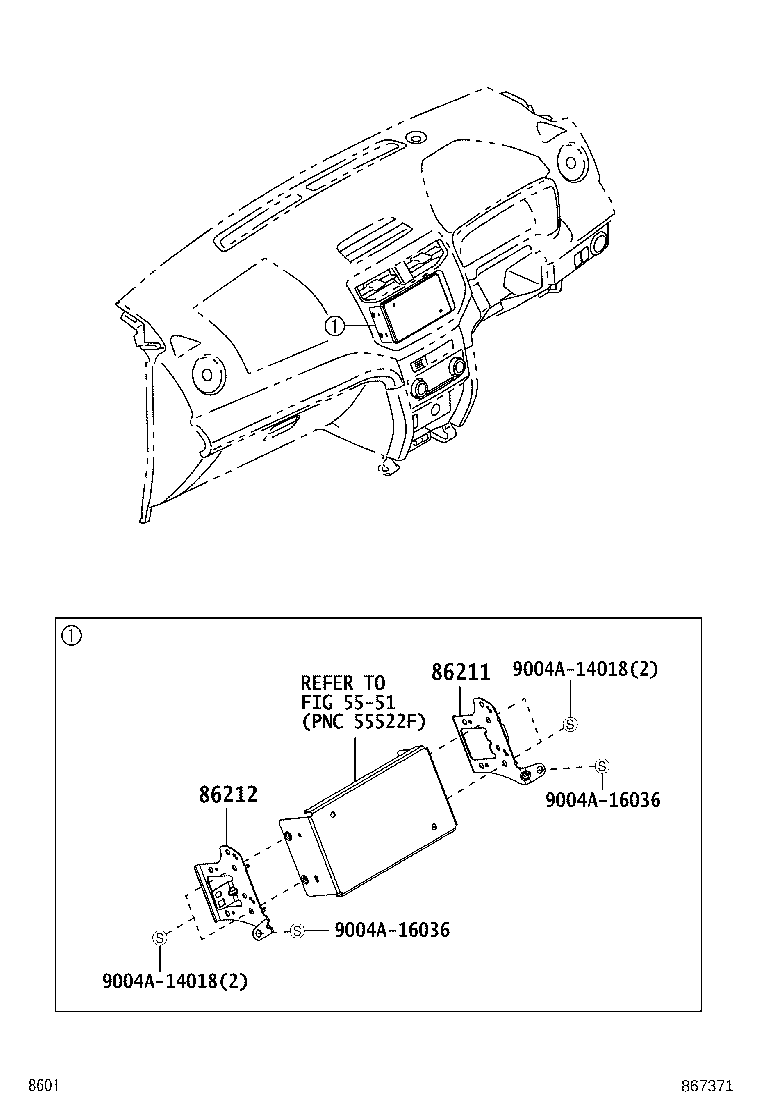

Figure 867097 867097 2018-04 → — Figure 867371 867371 2018-08 → —

Part groups

PNCDescription
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86221D Panel, Radio Receiver
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
