Toyota Rush

2017-12 → present · chassis F800 · catalogue 615320 · General

Supported model Data version 2019-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

9 part groups · 2 illustrations

Illustrations

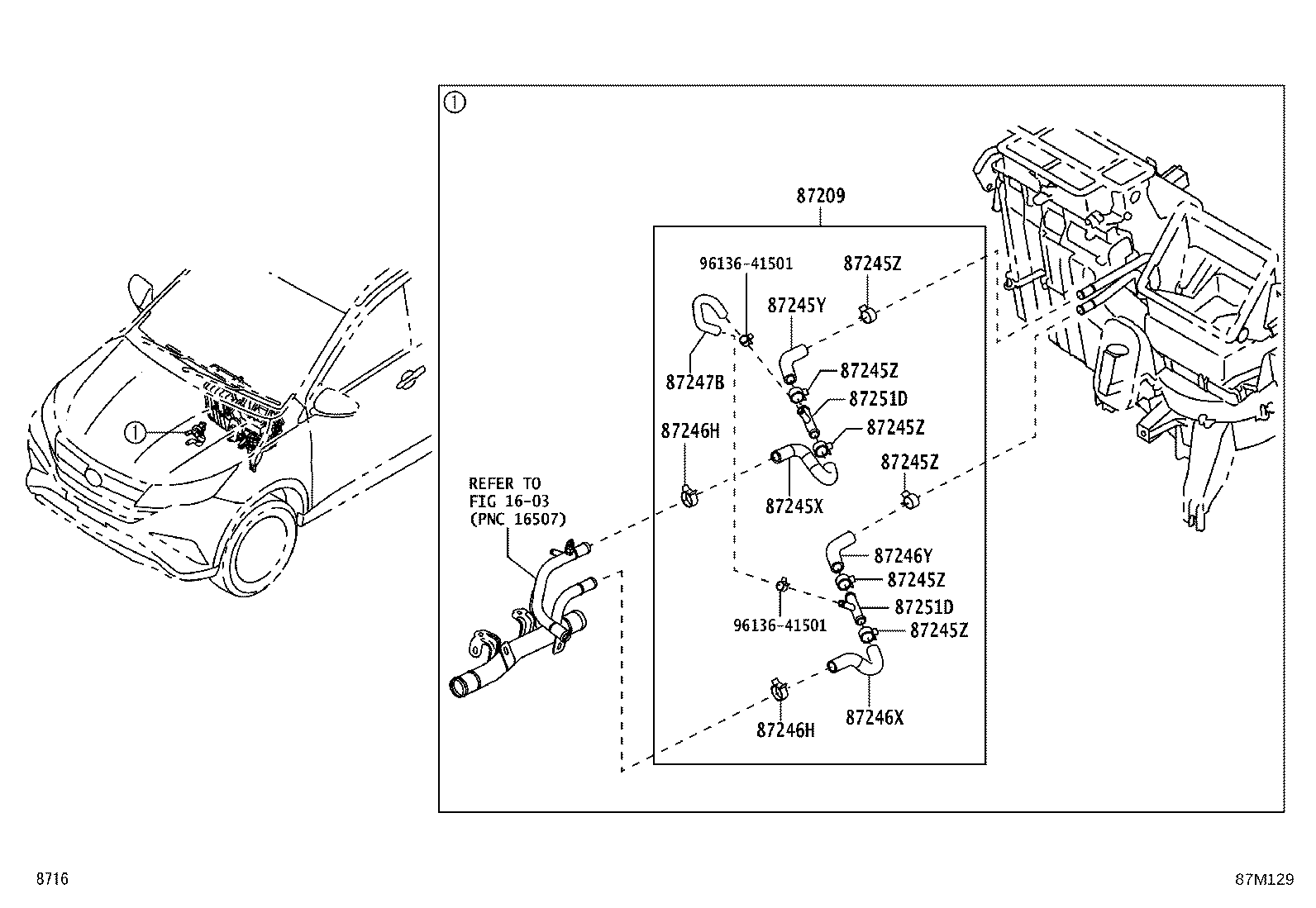

Figure 87G884 87G884 2018-04 → — Figure 87M129 87M129 2018-10 → —

Part groups

PNCDescription
87209 Hose Sub-assy, Water
87245X Hose, Heater Water
87245Y Hose, Heater Water
87245Z Clip OR Clamp (FOR HEATER WATER HOSE)
87246H Clip OR Clamp(FOR HEATER WATER HOSE)
87246X Hose, Heater Water
87246Y Hose, Heater Water
87247B Hose, Heater Water, B
87251D Joint, Water, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
