Toyota Rush

2018-12 → 2023-10 · chassis F850 · catalogue 617310 · General

Supported model Data version 2018-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

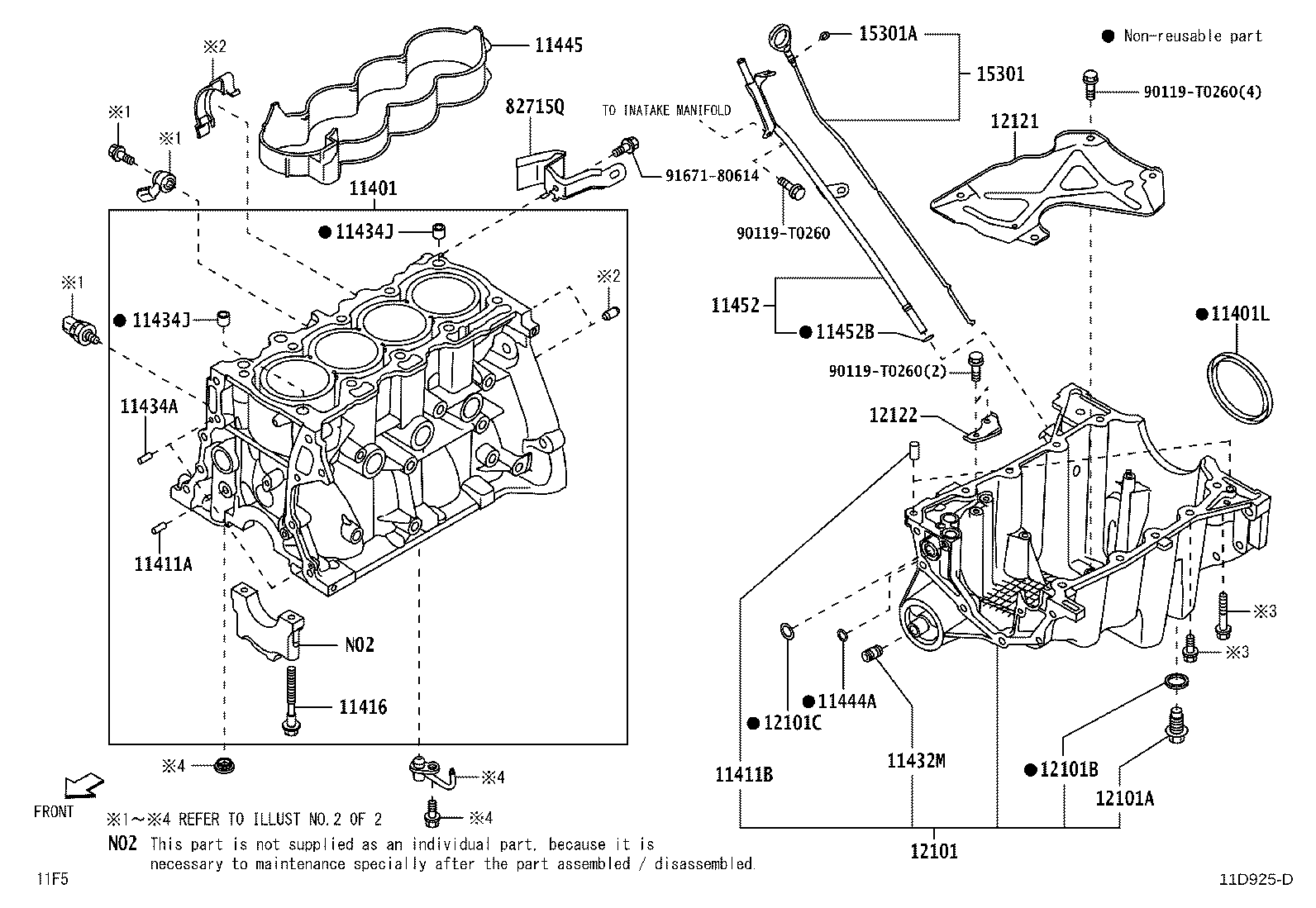

Exploded illustration 11D925D 9167180614 — not listed in this catalogue 82715Q — BRACKET, WIRING HARNESS CLAMP (1 parts) 12101B — GASKET(FOR OIL PAN DRAIN PLUG) (1 parts) 11401 — BLOCK SUB-ASSY, CYLINDER (1 parts) 11434A — PIN, STRAIGHT(FOR TIMING GEAR COVER SET) (1 parts) 11434J — PIN, RING (FOR CYLINDER HEAD SET) (1 parts) 11434J — PIN, RING (FOR CYLINDER HEAD SET) (1 parts) 11411B — PIN, RING(FOR CYLINDER BLOCK NO.2) (2 parts) 11432M — UNION(FOR CYLINDER BLOCK) (1 parts) 11401L — SEAL, ENGINE REAR OIL (1 parts) 11444A — RING, O (1 parts) 12101C — RING, O(FOR OIL PAN) (1 parts) 11445 — SPACER, CYLINDER BLOCK WATER JACKET (1 parts) 11452 — GUIDE, OIL LEVEL GAGE (1 parts) 12122 — PLATE, OIL PAN BAFFLE, NO.2 (1 parts) 11452B — RING, O(FOR OIL LEVEL GAGE GUIDE) (1 parts) 12101 — PAN SUB-ASSY, OIL (1 parts) 11411A — PIN, RING(FOR CYLINDER BLOCK NO.1 ) (1 parts) 90119T0260 — not listed in this catalogue 90119T0260 — not listed in this catalogue 90119T0260 — not listed in this catalogue 12101A — PLUG(FOR OIL PAN DRAIN) (1 parts) 11416 — BOLT(FOR CRANKSHAFT BEARING CAP SET) (1 parts) 12121 — PLATE, OIL PAN BAFFLE, NO.1 (1 parts) 15301 — GAGE SUB-ASSY, OIL LEVEL (1 parts) 15301A — RING, O(FOR OIL LEVEL GAGE) (1 parts)
11D925D · 22 callouts, 4 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
22 parts on this figure
Part number Description Fitment Price
11401 — Block Sub-assy, Cylinder
11410-B9060 Block Sub-assy, Cylinder
2018-12 → 2023-10 ended
2NRVE F850 —
11401L — Seal, Engine Rear Oil
90311-T0074 Seal, Engine Rear Oil
2018-12 → 2023-10 ended
2NRVE F850 —
11411A — Pin, Ring(FOR CYLINDER BLOCK NO.1 )
90250-10030 Pin, Ring(FOR CYLINDER BLOCK NO.1 )
2018-12 → 2023-10 ended
2NRVE F850 —
11411B — Pin, Ring(FOR CYLINDER BLOCK NO.2)
9004A-25044 Pin, Ring(FOR CYLINDER BLOCK NO.2)
2020-07 → 2023-10 ended
2NRVE F850 —
90250-08120 Pin, Ring(FOR CYLINDER BLOCK NO.2)
2018-12 → 2020-06 ended
2NRVE F850 —
11416 — Bolt(FOR CRANKSHAFT BEARING CAP SET)
90910-T2013 Bolt(FOR CRANKSHAFT BEARING CAP SET)
2018-12 → 2023-10 ended
2NRVE F850 —
11432M — Union(FOR CYLINDER BLOCK)
90404-T0005 Union(FOR CYLINDER BLOCK)
2018-12 → 2023-10 ended
2NRVE F850 —
11434A — Pin, Straight(FOR TIMING GEAR COVER SET)
90250-04097 note Pin, Straight(FOR TIMING GEAR COVER SET)
2018-12 → 2023-10 ended
2NRVE F850 —
11434J — Pin, Ring (FOR CYLINDER HEAD SET)
90253-13017 Pin, Ring (FOR CYLINDER HEAD SET)
2018-12 → 2023-10 ended
2NRVE F850 —
11444A — Ring, O
90301-T0055 Ring, O
2018-12 → 2023-10 ended
2NRVE F850 —
11445 — Spacer, Cylinder Block Water Jacket
11445-0Y020 Spacer, Cylinder Block Water Jacket
2018-12 → 2023-10 ended
2NRVE F850 —
11452 — Guide, Oil Level Gage
11409-BZ101 Guide, Oil Level Gage
2018-12 → 2023-10 ended
2NRVE F850 —
11452B — Ring, O(FOR OIL LEVEL GAGE GUIDE)
9004A-30058 Ring, O(FOR OIL LEVEL GAGE GUIDE)
2018-12 → 2023-10 ended
2NRVE F850 —
12101 — Pan Sub-assy, Oil
12101-BZ090 Pan Sub-assy, Oil
2018-12 → 2023-10 ended
2NRVE F850 —
12101A — Plug(FOR OIL PAN DRAIN)
9004A-34015 Plug(FOR OIL PAN DRAIN)
2018-12 → 2023-10 ended
2NRVE F850 —
12101B — Gasket(FOR OIL PAN DRAIN PLUG)
9004A-43022 Gasket(FOR OIL PAN DRAIN PLUG)
2018-12 → 2023-10 ended
2NRVE F850 —
12101C — Ring, O(FOR OIL PAN)
90301-T0057 Ring, O(FOR OIL PAN)
2018-12 → 2023-10 ended
2NRVE F850 —
12121 — Plate, Oil Pan Baffle, NO.1
12121-BZ070 Plate, Oil Pan Baffle, NO.1
2018-12 → 2023-10 ended
2NRVE F850 —
12122 — Plate, Oil Pan Baffle, NO.2
12122-BZ010 Plate, Oil Pan Baffle, NO.2
2018-12 → 2023-10 ended
2NRVE F850 —
15301 — Gage Sub-assy, Oil Level
15301-BZ100 Gage Sub-assy, Oil Level
2018-12 → 2023-10 ended
2NRVE F850 —
15301A — Ring, O(FOR OIL LEVEL GAGE)
9004A-30048 Ring, O(FOR OIL LEVEL GAGE)
2018-12 → 2023-10 ended
2NRVE F850 —
82715Q — Bracket, Wiring Harness Clamp
82715-BZG10 Bracket, Wiring Harness Clamp
2018-12 → 2023-10 ended
F850 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
