Toyota Rush
2018-12 → 2023-10 · chassis F850 · catalogue 617310 · General
Supported model
Data version 2018-11

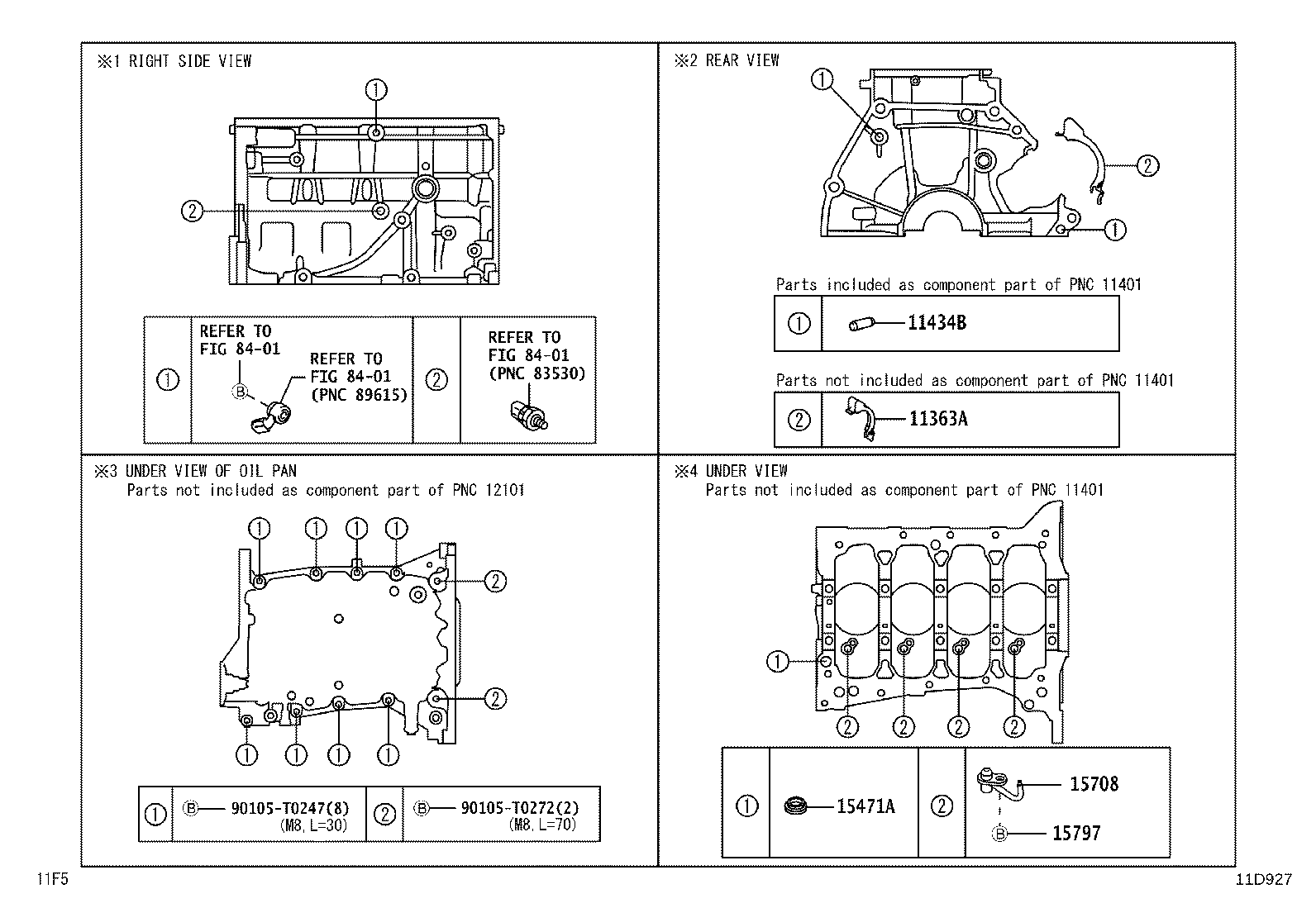

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11363A — Cover, Flywheel Housing Side | ||||
| 11363-BZ020 |
Cover, Flywheel Housing Side
2018-12 → 2023-10
ended
|
2NRVE F850 | — | |
| 11434B — Pin, Straight(FOR CLUTCH HOUSING SET) | ||||
| 90250-10113 note |
Pin, Straight(FOR CLUTCH HOUSING SET)
2018-12 → 2023-10
ended
|
2NRVE F850 | — | |
| 15471A — Gasket(FOR CLYINDER BLOCK) | ||||
| 90430-T0023 |
Gasket(FOR CLYINDER BLOCK)
2018-12 → 2023-10
ended
|
2NRVE F850 | — | |
| 15708 — Nozzle Sub-assy, Oil, NO.1 | ||||
| 15708-0Y040 |
Nozzle Sub-assy, Oil, NO.1
2018-12 → 2023-10
ended
|
2NRVE F850 | — | |
| 15797 — Bolt, Oil Nozzle Union | ||||
| 90110-06040 note |
Bolt, Oil Nozzle Union
2022-01 → 2023-10
ended
|
2NRVE F850 | — | |
| 90110-T0002 note |
Bolt, Oil Nozzle Union
2018-12 → 2021-12
ended
|
2NRVE F850 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
