Toyota Rush

2018-12 → 2023-10 · chassis F850 · catalogue 617310 · General

Supported model Data version 2018-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

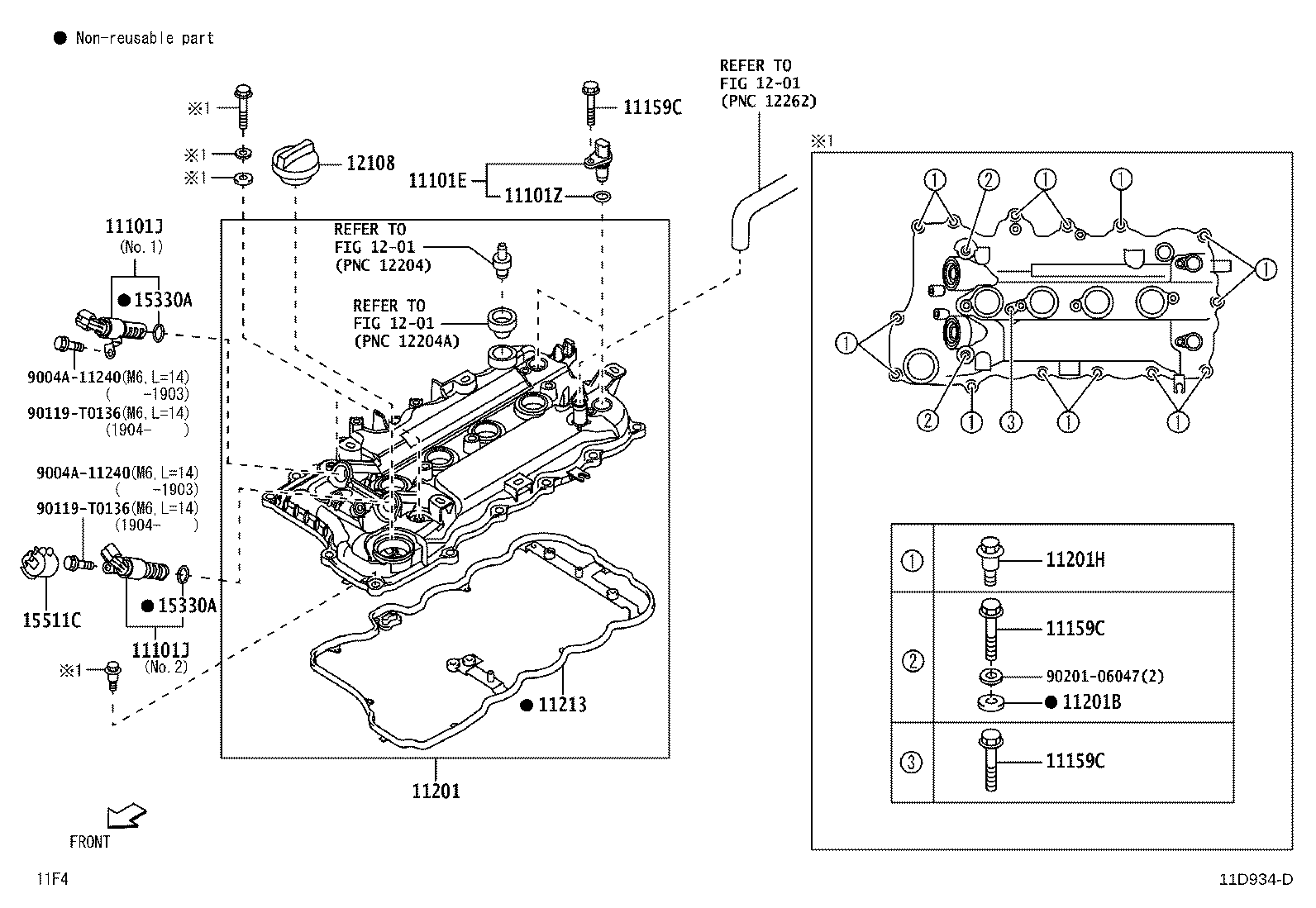

Exploded illustration 11D934D 1201 — not listed in this catalogue 1201 — not listed in this catalogue 1201 — not listed in this catalogue 11101J — VALVE ASSY, CAMSHAFT TIMING OIL CONTROL (2 parts) 15511C — COVER, OIL CONTROL VALVE (1 parts) 11159C — BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) (1 parts) 11201 — COVER SUB-ASSY, CYLINDER HEAD (1 parts) 11213 — GASKET, CYLINDER HEAD COVER (1 parts) 9004A11240 — not listed in this catalogue 9004A11240 — not listed in this catalogue 11159C — BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) (1 parts) 11201H — BOLT(FOR CYLINDER HEAD COVER) (1 parts) 11159C — BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) (1 parts) 11201B — WASHER, SEAL(FOR CYLINDER HEAD COVER) (1 parts) 9020106047 — not listed in this catalogue 12108 — CAP SUB-ASSY, OIL FILLER (1 parts) 90119T0136 — not listed in this catalogue 90119T0136 — not listed in this catalogue 11101J — VALVE ASSY, CAMSHAFT TIMING OIL CONTROL (2 parts) 15330A — RING, O(FOR CAM TIMING OIL CONTROL VALVE) (1 parts) 15330A — RING, O(FOR CAM TIMING OIL CONTROL VALVE) (1 parts) 11101E — SENSOR, CAM POSITION (1 parts) 11101Z — O RING, CAM POSITION SENSOR (1 parts)
11D934D · 15 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
12 parts on this figure
Part number Description Fitment Price
11101E — Sensor, Cam Position
90919-T5002 Sensor, Cam Position
2018-12 → 2023-10 ended
2NRVE F850 —
11101J — Valve Assy, Camshaft Timing Oil Control
15330-0Y050 note Valve Assy, Camshaft Timing Oil Control
2018-12 → 2023-10 ended
2NRVE F850 —
15330-0Y060 note Valve Assy, Camshaft Timing Oil Control
2018-12 → 2023-10 ended
2NRVE F850 —
11101Z — O Ring, Cam Position Sensor
9004A-30059 O Ring, Cam Position Sensor
2018-12 → 2023-10 ended
2NRVE F850 —
11159C — Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
90105-T0347 note Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2018-12 → 2023-10 ended
2NRVE F850 —
11201 — Cover Sub-assy, Cylinder Head
11201-BZ100 Cover Sub-assy, Cylinder Head
2018-12 → 2023-10 ended
2NRVE F850 —
11201B — Washer, Seal(FOR CYLINDER HEAD COVER)
90210-T0002 Washer, Seal(FOR CYLINDER HEAD COVER)
2018-12 → 2023-10 ended
2NRVE F850 —
11201H — Bolt(FOR CYLINDER HEAD COVER)
90109-T0055 note Bolt(FOR CYLINDER HEAD COVER)
2018-12 → 2023-10 ended
2NRVE F850 —
11213 — Gasket, Cylinder Head Cover
11213-0Y030 Gasket, Cylinder Head Cover
2018-12 → 2023-10 ended
2NRVE F850 —
12108 — Cap Sub-assy, Oil Filler
12180-0H020 Cap Sub-assy, Oil Filler
2018-12 → 2023-10 ended
2NRVE F850 —
15330A — Ring, O(FOR CAM TIMING OIL CONTROL VALVE)
90068-14041 Ring, O(FOR CAM TIMING OIL CONTROL VALVE)
2018-12 → 2023-10 ended
2NRVE F850 —
15511C — Cover, Oil Control Valve
15511-BZ010 Cover, Oil Control Valve
2018-12 → 2023-10 ended
2NRVE F850 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
