Toyota Rush

2018-12 → 2023-10 · chassis F850 · catalogue 617310 · General

Supported model Data version 2018-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

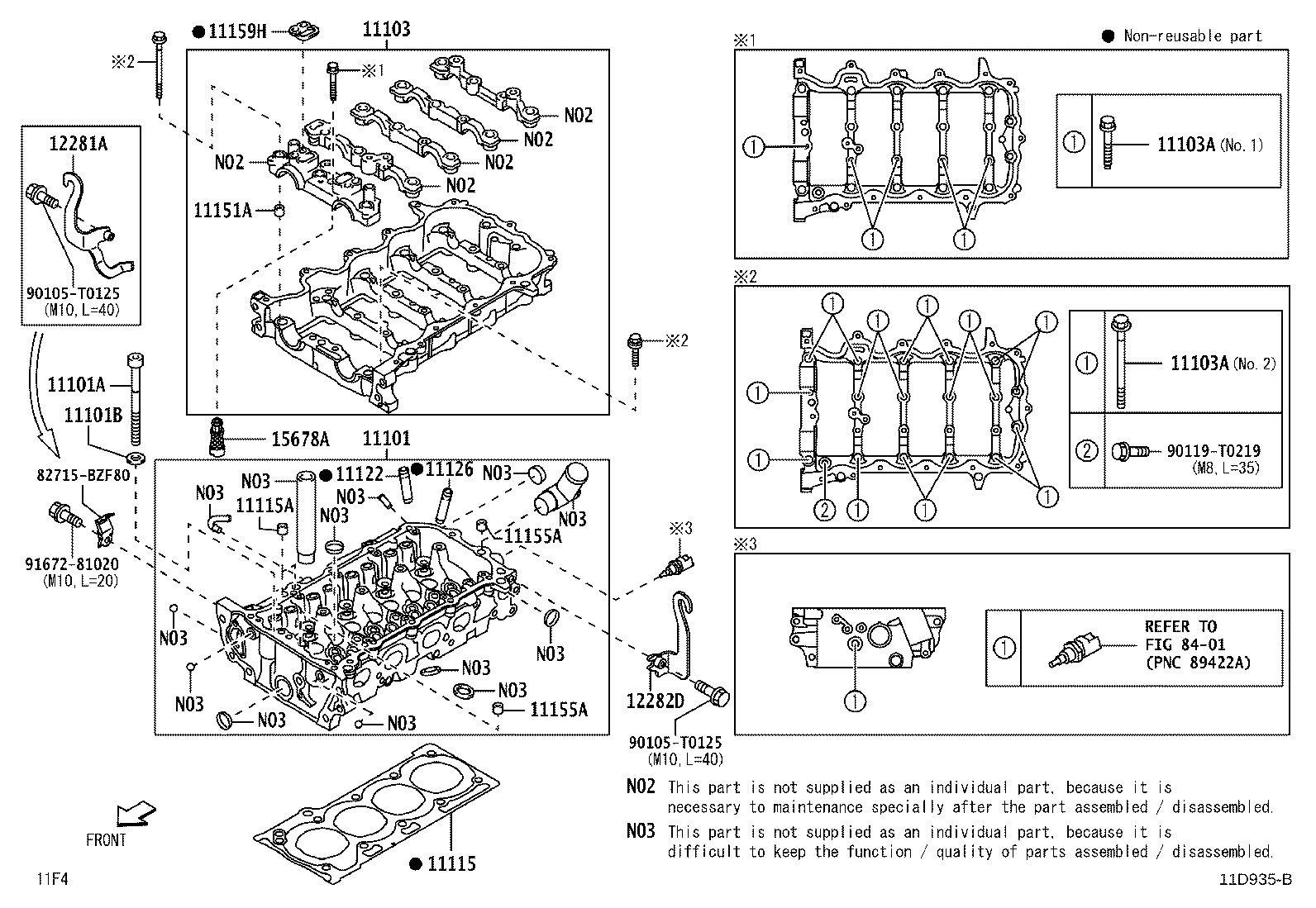

Exploded illustration 11D935B 8401 — not listed in this catalogue 11103A — BOLT(FOR CAMSHAFT HOUSING SET) (2 parts) 11103A — BOLT(FOR CAMSHAFT HOUSING SET) (2 parts) 90119T0219 — not listed in this catalogue 11126 — BUSH, EXHAUST VALVE GUIDE (2 parts) 11101 — HEAD SUB-ASSY, CYLINDER (1 parts) 11122 — BUSH, INTAKE VALVE GUIDE (2 parts) 11101A — BOLT(FOR CYLINDER HEAD SET) (1 parts) 15678A — FILTER, OIL CONTROL VALVE (1 parts) 11101B — WASHER, PLATE(FOR CYLINDER HEAD SET) (1 parts) 11103 — HOUSING SUB-ASSY, CAMSHAFT (1 parts) 11115 — GASKET, CYLINDER HEAD (1 parts) 11151A — PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) (1 parts) 11115A — PIN, RING (1 parts) 11155A — PIN, RING W/HEAD (1 parts) 11155A — PIN, RING W/HEAD (1 parts) 11159H — GASKET, CAMSHAFT BEARING CAP OIL HOLE (1 parts) 9167281020 — not listed in this catalogue 82715BZF80 — not listed in this catalogue 90105T0125 — not listed in this catalogue 12282D — HANGER, ENGINE, NO.2 (1 parts) 12281A — HANGER, ENGINE, NO.1 (1 parts) 90105T0125 — not listed in this catalogue
11D935B · 17 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
18 parts on this figure
Part number Description Fitment Price
11101 — Head Sub-assy, Cylinder
11101-B9660 Head Sub-assy, Cylinder
2018-12 → 2023-10 ended
2NRVE F850 —
11101A — Bolt(FOR CYLINDER HEAD SET)
90910-T2012 Bolt(FOR CYLINDER HEAD SET)
2018-12 → 2023-10 ended
2NRVE F850 —
11101B — Washer, Plate(FOR CYLINDER HEAD SET)
90201-10344 Washer, Plate(FOR CYLINDER HEAD SET)
2018-12 → 2023-10 ended
2NRVE F850 —
11103 — Housing Sub-assy, Camshaft
11103-0Y040 Housing Sub-assy, Camshaft
2018-12 → 2023-10 ended
2NRVE F850 —
11103A — Bolt(FOR CAMSHAFT HOUSING SET)
90105-T0271 note Bolt(FOR CAMSHAFT HOUSING SET)
2018-12 → 2023-10 ended
2NRVE F850 —
90119-T0443 note Bolt(FOR CAMSHAFT HOUSING SET)
2018-12 → 2023-10 ended
2NRVE F850 —
11115 — Gasket, Cylinder Head
11115-0Y030 Gasket, Cylinder Head
2018-12 → 2023-10 ended
2NRVE F850 —
11115A — Pin, Ring
90253-12002 Pin, Ring
2018-12 → 2023-10 ended
2NRVE F850 —
11122 — Bush, Intake Valve Guide
11122-47020 note Bush, Intake Valve Guide
2018-12 → 2023-10 ended
2NRVE F850 —
11123-47020 note Bush, Intake Valve Guide
2018-12 → 2023-10 ended
2NRVE F850 —
11126 — Bush, Exhaust Valve Guide
11122-47020 note Bush, Exhaust Valve Guide
2018-12 → 2023-10 ended
2NRVE F850 —
11123-47020 note Bush, Exhaust Valve Guide
2018-12 → 2023-10 ended
2NRVE F850 —
11151A — Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING)
90253-13005 note Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING)
2018-12 → 2023-10 ended
2NRVE F850 —
11155A — Pin, Ring W/Head
90253-11005 Pin, Ring W/Head
2018-12 → 2023-10 ended
2NRVE F850 —
11159H — Gasket, Camshaft Bearing Cap Oil Hole
11159-0Y020 Gasket, Camshaft Bearing Cap Oil Hole
2018-12 → 2023-10 ended
2NRVE F850 —
12281A — Hanger, Engine, NO.1
12281-0Y070 note Hanger, Engine, NO.1
2018-12 → 2023-10 ended
2NRVE F850 —
12282D — Hanger, Engine, NO.2
12282-BZ141 Hanger, Engine, NO.2
2018-12 → 2023-10 ended
2NRVE F850 —
15678A — Filter, Oil Control Valve
15678-0Y010 Filter, Oil Control Valve
2018-12 → 2023-10 ended
2NRVE F850 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
