Toyota Rush
2018-12 → 2023-10 · chassis F850 · catalogue 617310 · General
Supported model
Data version 2018-11

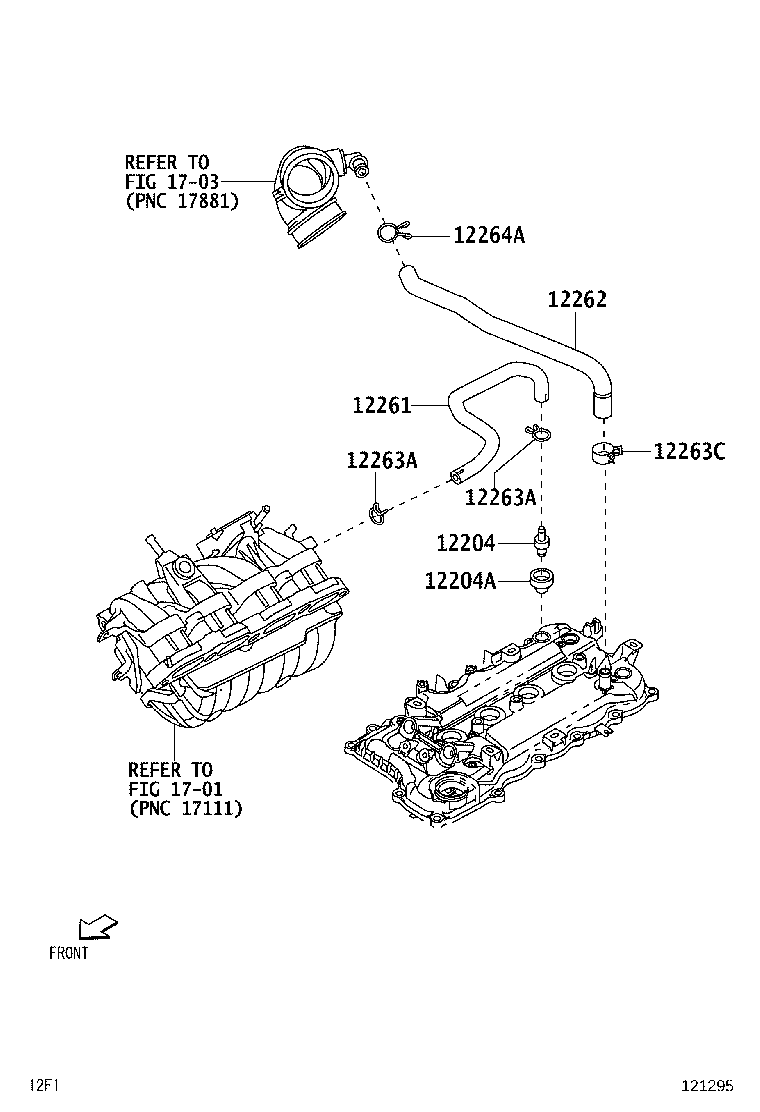

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 12204 — Valve Sub-assy, Ventilation | ||||
| 12204-0Y020 |
Valve Sub-assy, Ventilation
2018-12 → 2023-10
ended
|
2NRVE F850 | — | |
| 12204A — Grommet(FOR VENTILATION SYSTEM) | ||||
| 90480-T0013 |
Grommet(FOR VENTILATION SYSTEM)
2018-12 → 2023-10
ended
|
2NRVE F850 | — | |
| 12261 — Hose, Ventilation | ||||
| 12261-BZ160 |
Hose, Ventilation
2018-12 → 2023-10
ended
|
2NRVE F850 | — | |
| 12262 — Hose, Ventilation, NO.2 | ||||
| 12262-BZ080 |
Hose, Ventilation, NO.2
2018-12 → 2023-10
ended
|
2NRVE F850 | — | |
| 12263A — Clip(FOR VENTILATION HOSE) | ||||
| 90466-T0061 |
Clip(FOR VENTILATION HOSE)
2018-12 → 2023-10
ended
|
2NRVE F850 | — | |
| 12263C — Clip(FOR VENTILATION HOSE) | ||||
| 90044-67207 |
Clip(FOR VENTILATION HOSE)
2018-12 → 2023-10
ended
|
2NRVE F850 | — | |
| 12264A — Clip(FOR VENTILATION HOSE) | ||||
| 90466-T0063 |
Clip(FOR VENTILATION HOSE)
2018-12 → 2023-10
ended
|
2NRVE F850 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
