Toyota Rush

2018-12 → 2023-10 · chassis F850 · catalogue 617310 · General

Supported model Data version 2018-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes
Exploded illustration 132832B 13050 — GEAR ASSY, CAMSHAFT TIMING (1 parts) 13070A — GEAR ASSY, CAMSHAFT TIMING EXHAUST (1 parts) 13506 — CHAIN SUB-ASSY (1 parts) 13511 — CAMSHAFT (1 parts) 13512 — CAMSHAFT, NO.2 (1 parts) 13540 — TENSIONER ASSY, CHAIN, NO.1 (1 parts) 13562 — DAMPER, CHAIN VIBRATION, NO.2 (1 parts) 13566B — GUIDE, TIMING CHAIN (1 parts) 13591 — ARM, TIMING CHAIN TENSION (1 parts) 13711 — VALVE, INTAKE (1 parts) 13711C — SPRING, COMPRESSION(FOR OUTER) (1 parts) 13711B — SPRING, COMPRESSION(FOR INNER) (1 parts) 13715 — VALVE, EXHAUST (1 parts) 13715A — SEAL, EXHAUST VALVE STEM OIL (1 parts) 13716 — CAP, VALVE STEM (1 parts) 13716 — CAP, VALVE STEM (1 parts) 13734 — SEAT, VALVE SPRING (1 parts) 13734 — SEAT, VALVE SPRING (1 parts) 13741 — RETAINER, VALVE SPRING (1 parts) 13741 — RETAINER, VALVE SPRING (1 parts) 13741A — LOCK, VALVE SPRING RETAINER (1 parts) 13741A — LOCK, VALVE SPRING RETAINER (1 parts) 13741A — LOCK, VALVE SPRING RETAINER (1 parts) 13741A — LOCK, VALVE SPRING RETAINER (1 parts) 13750 — ADJUSTER ASSY, VALVE LASH (1 parts) 13750 — ADJUSTER ASSY, VALVE LASH (1 parts) 13801 — ARM SUB-ASSY, VALVE ROCKER, NO.1 (1 parts) 13801 — ARM SUB-ASSY, VALVE ROCKER, NO.1 (1 parts) 90105T0273 — not listed in this catalogue 90105T0273 — not listed in this catalogue 9004A11240 — not listed in this catalogue 90105T0085 — not listed in this catalogue 13711E — SEAL, INTAKE VALVE STEM OIL (1 parts) 9004A11240 — not listed in this catalogue 90119T0136 — not listed in this catalogue 90119T0136 — not listed in this catalogue

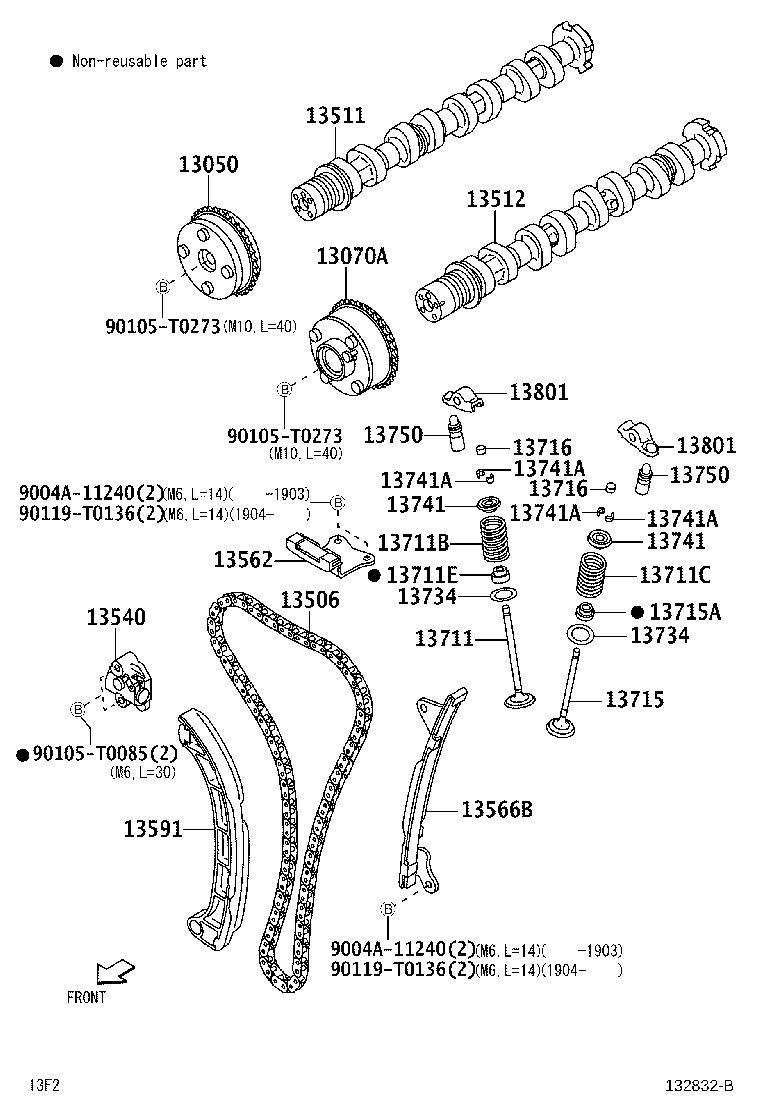

132832B · 29 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
21 parts on this figure
Part number Description Fitment Price
13050 — Gear Assy, Camshaft Timing
13050-0Y020 Gear Assy, Camshaft Timing
2018-12 → 2023-10 ended
2NRVE F850 —
13070A — Gear Assy, Camshaft Timing Exhaust
13070-0Y020 Gear Assy, Camshaft Timing Exhaust
2018-12 → 2023-10 ended
2NRVE F850 —
13506 — Chain Sub-assy
13506-0Y040 Chain Sub-assy
2018-12 → 2023-10 ended
2NRVE F850 —
13511 — Camshaft
13501-BZ040 Camshaft
2018-12 → 2023-10 ended
2NRVE F850 —
13512 — Camshaft, NO.2
13502-BZ030 Camshaft, NO.2
2018-12 → 2023-10 ended
2NRVE F850 —
13540 — Tensioner Assy, Chain, NO.1
13540-0Y010 Tensioner Assy, Chain, NO.1
2018-12 → 2023-10 ended
2NRVE F850 —
13562 — Damper, Chain Vibration, NO.2
13562-0Y020 Damper, Chain Vibration, NO.2
2018-12 → 2023-10 ended
2NRVE F850 —
13566B — Guide, Timing Chain
13566-0Y010 Guide, Timing Chain
2018-12 → 2023-10 ended
2NRVE F850 —
13591 — Arm, Timing Chain Tension
13591-0Y010 Arm, Timing Chain Tension
2018-12 → 2023-10 ended
2NRVE F850 —
13711 — Valve, Intake
13711-0Y020 Valve, Intake
2018-12 → 2023-10 ended
2NRVE F850 —
13711B — Spring, Compression(FOR INNER)
90501-T0045 Spring, Compression(FOR INNER)
2018-12 → 2023-10 ended
2NRVE F850 —
13711C — Spring, Compression(FOR OUTER)
90501-T0045 Spring, Compression(FOR OUTER)
2018-12 → 2023-10 ended
2NRVE F850 —
13711E — Seal, Intake Valve Stem Oil
90913-T2004 Seal, Intake Valve Stem Oil
2018-12 → 2023-10 ended
2NRVE F850 —
13715 — Valve, Exhaust
13715-0Y020 Valve, Exhaust
2018-12 → 2023-10 ended
2NRVE F850 —
13715A — Seal, Exhaust Valve Stem Oil
90913-T2005 Seal, Exhaust Valve Stem Oil
2018-12 → 2023-10 ended
2NRVE F850 —
13716 — Cap, Valve Stem
13716-75020 Cap, Valve Stem
2018-12 → 2023-10 ended
2NRVE F850 —
13734 — Seat, Valve Spring
13734-0C010 Seat, Valve Spring
2018-12 → 2023-10 ended
2NRVE F850 —
13741 — Retainer, Valve Spring
13741-0Y010 Retainer, Valve Spring
2018-12 → 2023-10 ended
2NRVE F850 —
13741A — Lock, Valve Spring Retainer
90913-03028 Lock, Valve Spring Retainer
2018-12 → 2023-10 ended
2NRVE F850 —
13750 — Adjuster Assy, Valve Lash
13750-0C040 Adjuster Assy, Valve Lash
2018-12 → 2023-10 ended
2NRVE F850 —
13801 — Arm Sub-assy, Valve Rocker, NO.1
13801-0C030 Arm Sub-assy, Valve Rocker, NO.1
2018-12 → 2023-10 ended
2NRVE F850 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
