Toyota Rush
2018-12 → 2023-10 · chassis F850 · catalogue 617310 · General
Supported model
Data version 2018-11

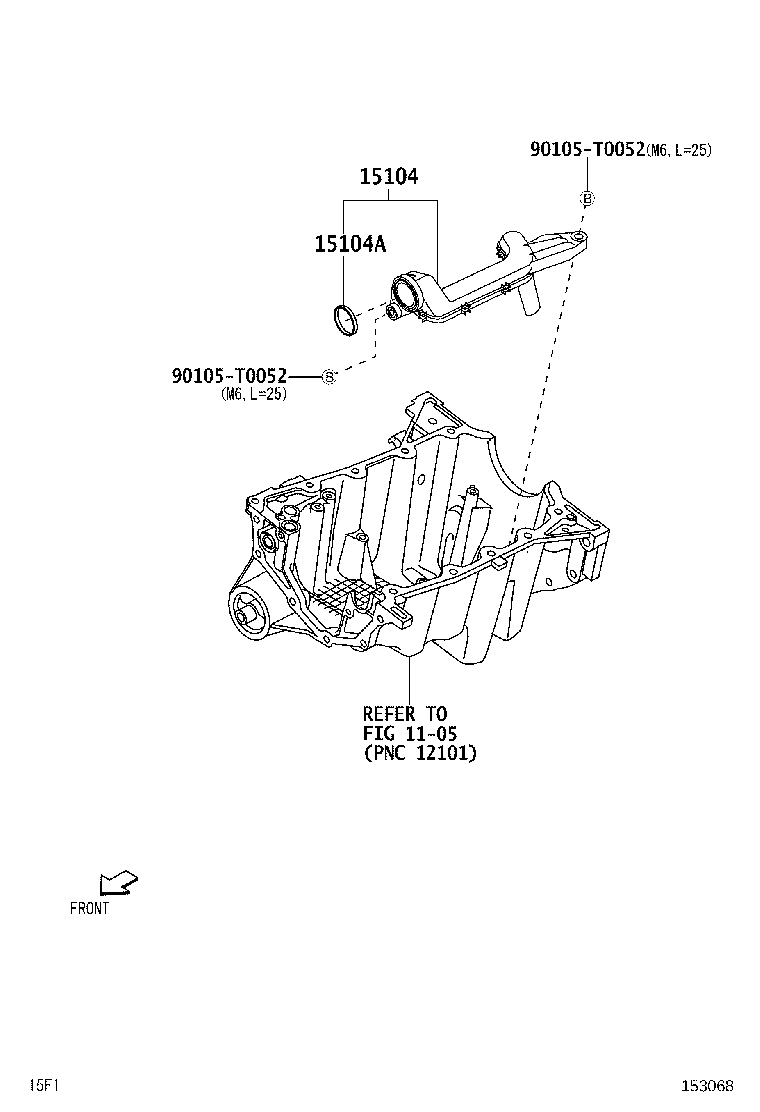

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 15104 — Strainer Sub-assy, Oil | ||||
| 15104-BZ030 |
Strainer Sub-assy, Oil
2018-12 → 2023-10
ended
|
2NRVE F850 | — | |
| 15104A — Ring, O(FOR OIL STRAINER) | ||||
| 9004A-30056 |
Ring, O(FOR OIL STRAINER)
2018-12 → 2023-10
ended
|
2NRVE F850 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
