Toyota Rush
2018-12 → 2023-10 · chassis F850 · catalogue 617310 · General
Supported model
Data version 2018-11

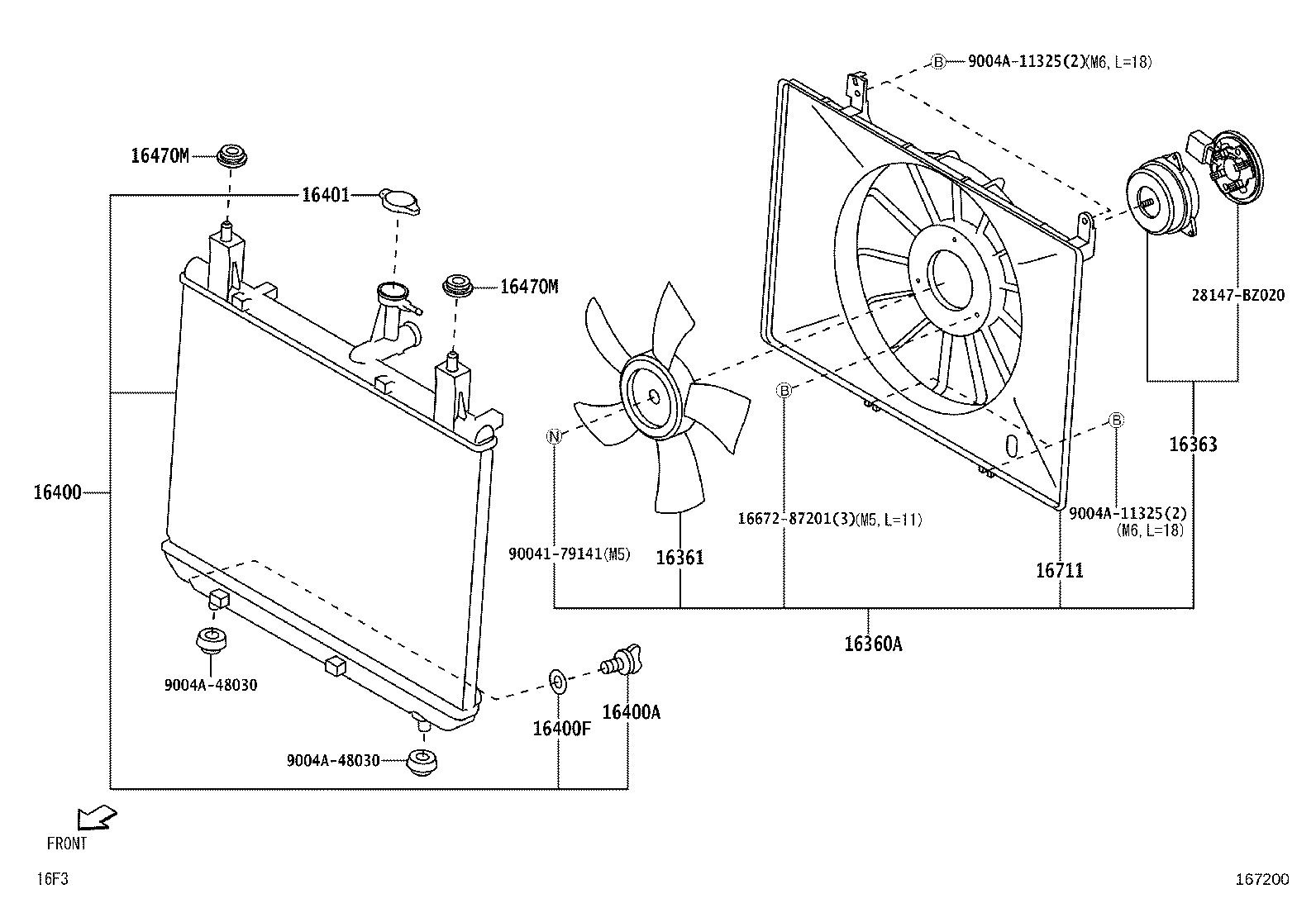

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 16360A — Fan Assy, W/Motor | ||||
| 16360-BZ210 |
Fan Assy, W/Motor
2018-12 → 2023-10
ended
|
2NRVE F850 | — | |
| 16361 — Fan | ||||
| 16361-BZ090 |
Fan
2018-12 → 2023-10
ended
|
2NRVE F850 | — | |
| 16363 — Motor, Cooling Fan | ||||
| 16363-BZ100 |
Motor, Cooling Fan
2018-12 → 2023-10
ended
|
2NRVE F850 | — | |
| 16400 — Radiator Assy | ||||
| 16400-BZ690 |
Radiator Assy
2018-12 → 2023-10
ended
|
2NRVE F850 | — | |
| 16400A — Cock Sub-assy, Radiator Drain | ||||
| 16417-BZ050 |
Cock Sub-assy, Radiator Drain
2018-12 → 2023-10
ended
|
2NRVE F850 | — | |
| 16400F — Packing(FOR RADIATOR DRAIN COCK) | ||||
| 16442-97201 |
Packing(FOR RADIATOR DRAIN COCK)
2018-12 → 2023-10
ended
|
2NRVE F850 | — | |
| 16401 — Cap Sub-assy, Radiator | ||||
| 16401-BZ010 |
Cap Sub-assy, Radiator
2018-12 → 2023-10
ended
|
2NRVE F850 | — | |
| 16470M — Grommet | ||||
| 9004A-48017 |
Grommet
2018-12 → 2023-10
ended
|
2NRVE F850 | — | |
| 16711 — Shroud, Fan | ||||
| 16711-BZ050 |
Shroud, Fan
2018-12 → 2023-10
ended
|
2NRVE F850 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
