Toyota Rush

2018-12 → 2023-10 · chassis F850 · catalogue 617310 · General

Supported model Data version 2018-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

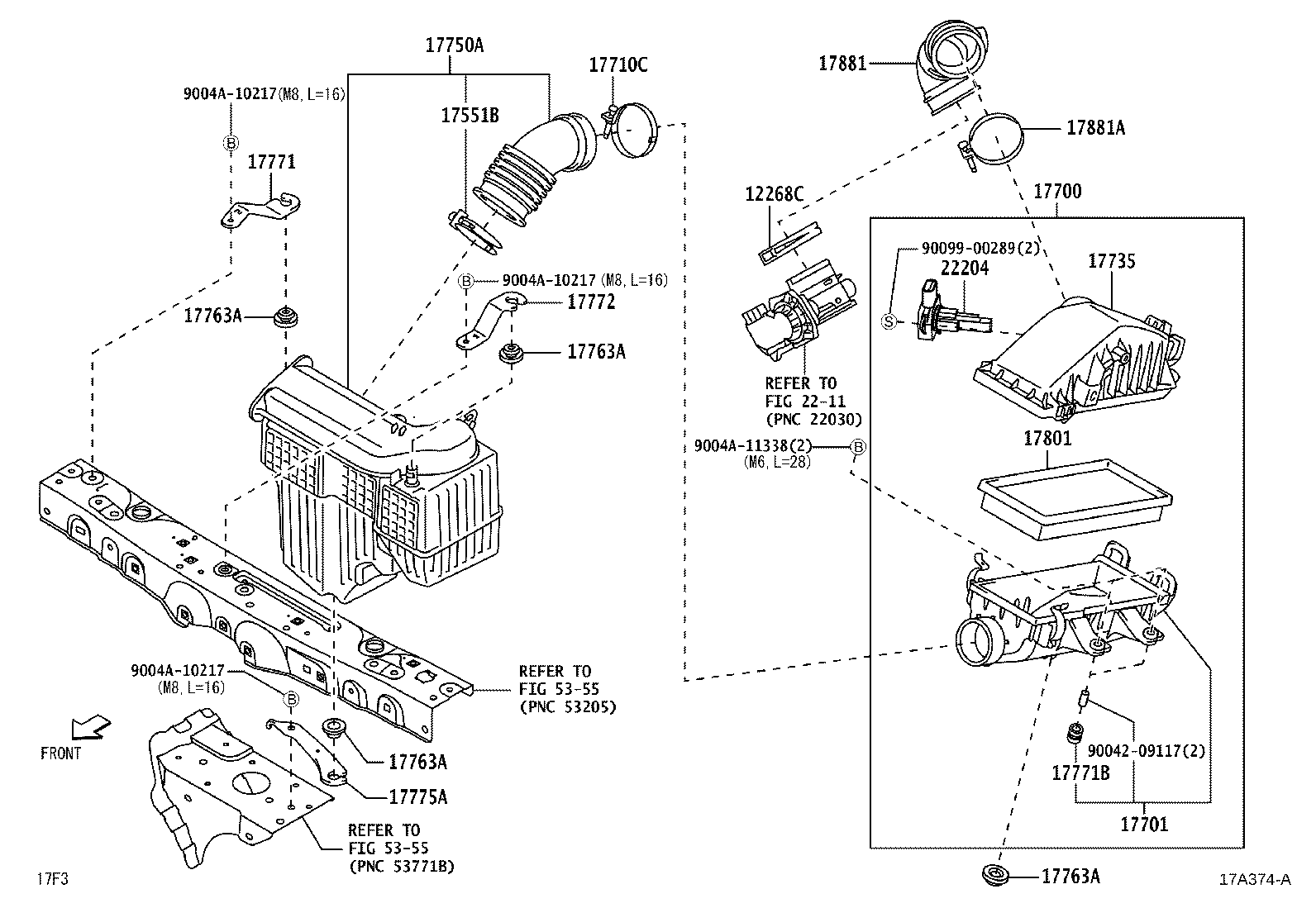

Exploded illustration 17A374A 17771B — GROMMET(FOR AIR CLEANER BRACKET) (1 parts) 17735 — CAP, AIR CLEANER (1 parts) 17700 — CLEANER ASSY, AIR (1 parts) 9004A10217 — not listed in this catalogue 9004A10217 — not listed in this catalogue 9004A10217 — not listed in this catalogue 9009900289 — not listed in this catalogue 17801 — ELEMENT SUB-ASSY, AIR CLEANER FILTER (1 parts) 17775A — BRACKET, AIR CLEANER PIPE, NO.3 (1 parts) 17763A — GROMMET, AIR CLEANER INLET DUCT (1 parts) 17763A — GROMMET, AIR CLEANER INLET DUCT (1 parts) 17763A — GROMMET, AIR CLEANER INLET DUCT (1 parts) 17772 — BRACKET, INTAKE AIR CONNECTOR, NO.2 (1 parts) 17763A — GROMMET, AIR CLEANER INLET DUCT (1 parts) 17771 — BRACKET, AIR CLEANER INLET DUCT (1 parts) 17551B — CLAMP(FOR AIR CLEANER INLET, NO.1) (1 parts) 17750A — INLET ASSY, AIR CLEANER (1 parts) 17710C — CLAMP(FOR AIR CLEANER INLET DUCT) (1 parts) 17881 — HOSE, AIR CLEANER, NO.1 (2 parts) 17881A — CLAMP(FOR AIR CLEANER HOSE, NO.1) (1 parts) 12268C — CLIP, HOSE (1 parts) 22204 — METER SUB-ASSY, INTAKE AIR FLOW (1 parts) 9004209117 — not listed in this catalogue 2211 — not listed in this catalogue 5355 — not listed in this catalogue 5355 — not listed in this catalogue 17701 — CASE SUB-ASSY, AIR CLEANER (1 parts) 9004A11338 — not listed in this catalogue
17A374A · 19 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
17 parts on this figure
Part number Description Fitment Price
12268C — Clip, Hose
90466-62002 Clip, Hose
2018-12 → 2023-10 ended
2NRVE F850 —
17551B — Clamp(FOR AIR CLEANER INLET, NO.1)
9004A-46128 Clamp(FOR AIR CLEANER INLET, NO.1)
2018-12 → 2023-10 ended
2NRVE F850 —
17700 — Cleaner Assy, Air
17700-BZ170 Cleaner Assy, Air
2018-12 → 2023-10 ended
2NRVE F850 —
17701 — Case Sub-assy, Air Cleaner
17701-BZ160 Case Sub-assy, Air Cleaner
2018-12 → 2023-10 ended
2NRVE F850 —
17710C — Clamp(FOR AIR CLEANER INLET DUCT)
9004A-46128 Clamp(FOR AIR CLEANER INLET DUCT)
2018-12 → 2023-10 ended
2NRVE F850 —
17735 — Cap, Air Cleaner
17735-BZ030 Cap, Air Cleaner
2018-12 → 2023-10 ended
2NRVE F850 —
17750A — Inlet Assy, Air Cleaner
17750-BZ010 Inlet Assy, Air Cleaner
2018-12 → 2023-10 ended
2NRVE F850 —
17763A — Grommet, Air Cleaner Inlet Duct
9004A-48060 Grommet, Air Cleaner Inlet Duct
2018-12 → 2023-10 ended
2NRVE F850 —
17771 — Bracket, Air Cleaner Inlet Duct
17771-BZ080 Bracket, Air Cleaner Inlet Duct
2018-12 → 2023-10 ended
2NRVE F850 —
17771B — Grommet(FOR AIR CLEANER BRACKET)
90044-80392 Grommet(FOR AIR CLEANER BRACKET)
2018-12 → 2023-10 ended
2NRVE F850 —
17772 — Bracket, Intake Air Connector, NO.2
17772-BZ030 Bracket, Intake Air Connector, NO.2
2018-12 → 2023-10 ended
2NRVE F850 —
17775A — Bracket, Air Cleaner Pipe, NO.3
17775-BZ020 Bracket, Air Cleaner Pipe, NO.3
2018-12 → 2023-10 ended
2NRVE F850 —
17801 — Element Sub-assy, Air Cleaner Filter
17801-BZ150 Element Sub-assy, Air Cleaner Filter
2018-12 → 2023-10 ended
2NRVE F850 —
17881 — Hose, Air Cleaner, NO.1
17880-BZ210 Hose, Air Cleaner, NO.1
2019-12 → 2023-10 ended
2NRVE F850 —
17881-BZ170 Hose, Air Cleaner, NO.1
2018-12 → 2019-11 ended
2NRVE F850 —
17881A — Clamp(FOR AIR CLEANER HOSE, NO.1)
9004A-46128 Clamp(FOR AIR CLEANER HOSE, NO.1)
2018-12 → 2023-10 ended
2NRVE F850 —
22204 — Meter Sub-assy, Intake Air Flow
22204-BZ010 Meter Sub-assy, Intake Air Flow
2018-12 → 2023-10 ended
2NRVE F850 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
