Toyota Rush
2018-12 → 2023-10 · chassis F850 · catalogue 617310 · General
Supported model
Data version 2018-11

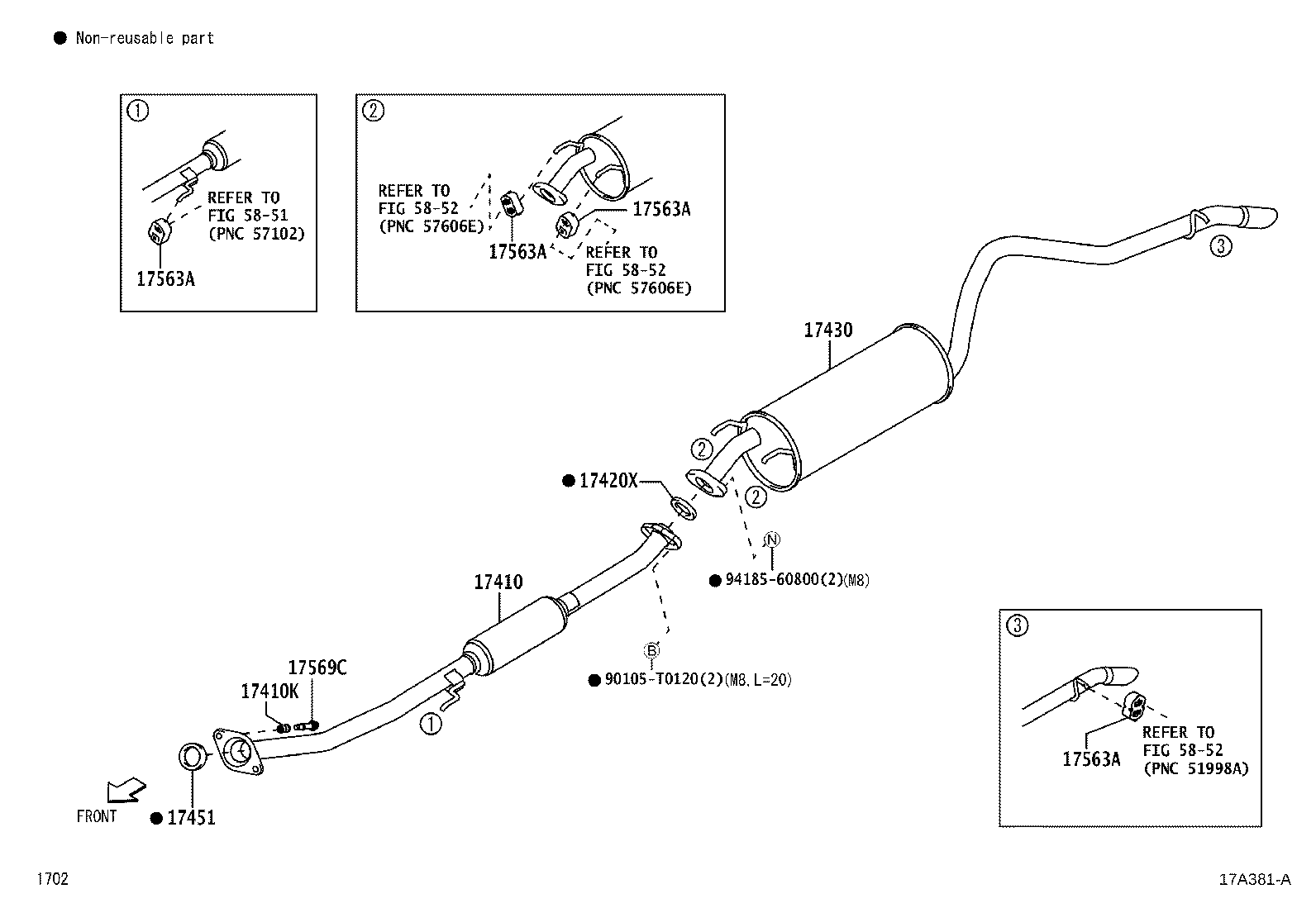

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 17410 — Pipe Assy, Exhaust, Front | ||||
| 17410-BZ840 |
Pipe Assy, Exhaust, Front
2018-12 → 2023-10
ended
|
2NRVE F850 | — | |
| 17410K — Spring, Exhaust Pipe | ||||
| 17152-B1010 |
Spring, Exhaust Pipe
2018-12 → 2023-10
ended
|
2NRVE F850 | — | |
| 17420X — Gasket, Exhaust Pipe, Center | ||||
| 17451-BZ010 |
Gasket, Exhaust Pipe, Center
2018-12 → 2023-10
ended
|
2NRVE F850 | — | |
| 17430 — Pipe Assy, Exhaust, Tail | ||||
| 17430-BZ480 |
Pipe Assy, Exhaust, Tail
2018-12 → 2023-10
ended
|
2NRVE F850 | — | |
| 17451 — Gasket, Exhaust Pipe | ||||
| 17451-21030 |
Gasket, Exhaust Pipe
2018-12 → 2023-10
ended
|
2NRVE F850 | — | |
| 17563A — Support, Exhaust Pipe, NO.3 | ||||
| 17567-BZ030 |
Support, Exhaust Pipe, NO.3
2018-12 → 2020-04
ended
|
2NRVE F850 | — | |
| 17567-BZ031 |
Support, Exhaust Pipe, NO.3
2020-05 → 2023-10
ended
|
2NRVE F850 | — | |
| 17569C — Bolt, Exhaust Pipe Support | ||||
| 17569-97501 |
Bolt, Exhaust Pipe Support
2018-12 → 2023-10
ended
|
2NRVE F850 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
